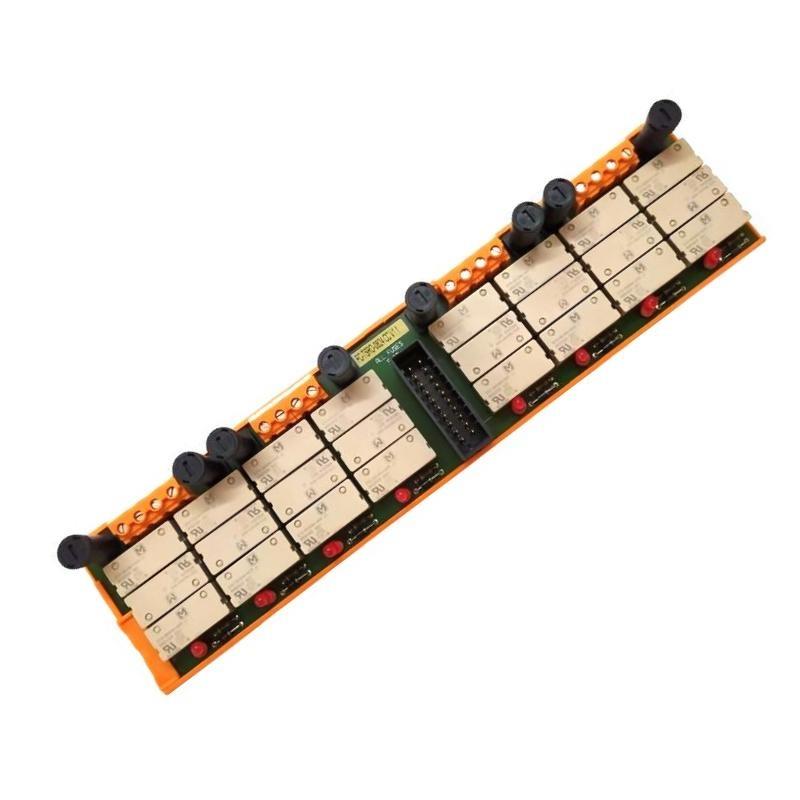

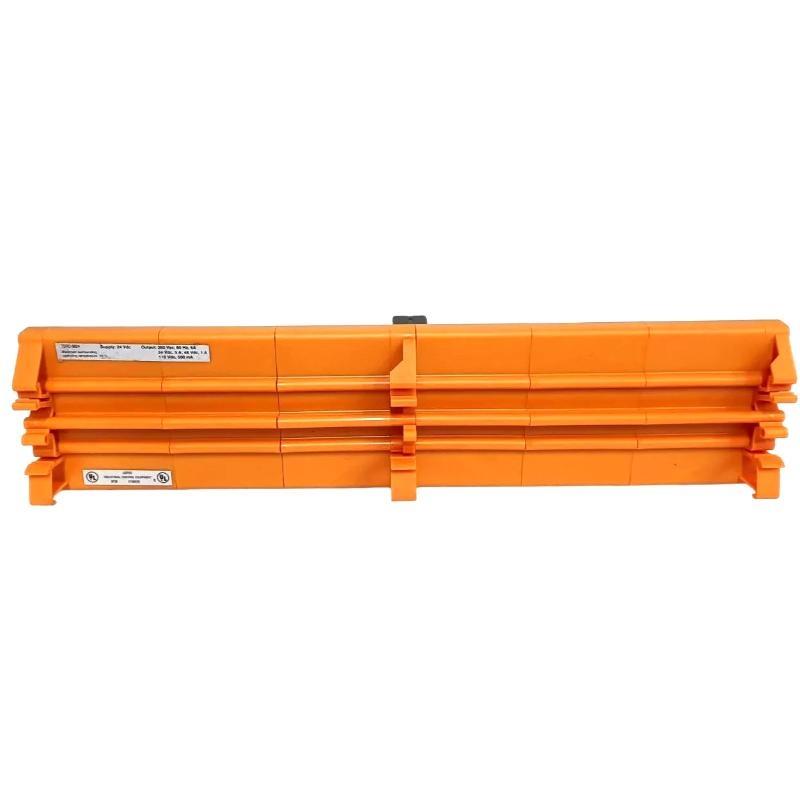

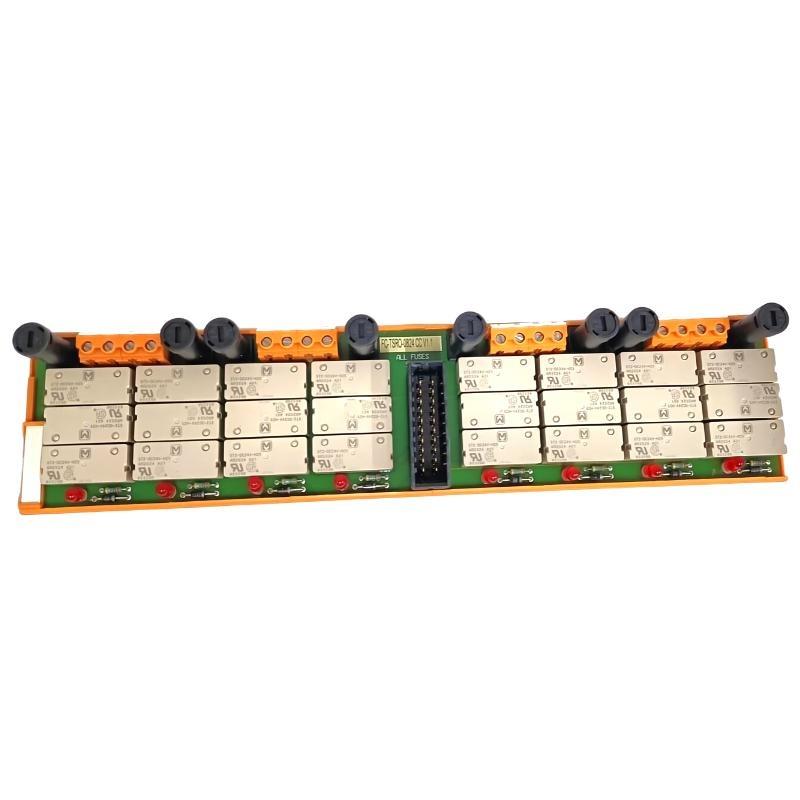

Product Overview
The Honeywell FC-TSRO-0824 is a digital output field termination assembly designed to provide a secure, organized, and reliable interface between the Honeywell Experion® DCS digital output modules and the field actuators or devices they control. This assembly facilitates the connection and management / discrete digital output signals from the control system to devices such as solenoid valves, motor starters, and alarm indicators.
Built to withstand the rigors / industrial environments, the FC-TSRO-0824 helps maintain signal integrity and system reliability through its robust design and well-thought-out wiring layout. Its modular and compact construction allows for ease / installation and maintenance in control panels and field junction boxes.
Technical Specifications
| Parameter | 説明 |
|---|---|
| モデル Number | FC-TSRO-0824 |
| メーカー | Honeywell |
| Product Type | Digital Output Field Termination Assembly |
| Number / Channels | 8 Channels |
| Output Signal Type | Discrete Digital Output (relay/solid state) |
| Termination Type | Screw terminals |
| Cable Type Compatibility | サポートs shielded and unshielded wiring |
| Mounting Method | DIN rail mounting |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | 5% to 95% non-condensing |
| Insulation Resistance | >100 MΩ at 500 VDC |
| Dielectric Strength | 1500 VAC for 1 minute |
| Dimensions (W × H × D) | 300 × 70 × 60 mm |
| 重量 | 0.53 kg |
| Certifications | UL, CE, CSA |
Applications
The FC-TSRO-0824 is extensively used in industries where reliable digital output signal termination is critical:
-
Oil & Gas Plants – Control / solenoid valves, trip relays, and emergency shutdown systems.
-
Power Generation – Activation / breakers, turbine controls, and alarm systems.
-
Chemical Processing – Managing batch control actuators and discrete control devices.
-
Water & Wastewater Treatment – Controlling pumps, valves, and signaling equipment.
-
Manufacturing Automation – Interface for motor starters, conveyor controls, and warning lights.
-
Pharmaceutical Industry – Discrete output control for process equipment and alarms.
Key Advantages
-
Reliable Signal Transmission
Designed to ensure consistent and accurate digital output signals to field devices, minimizing signal degradation. -
Compact and Modular Design
Facilitates easy installation in limited space and supports modular expansion if needed. -
Industrial-Grade Durability
Constructed from flame-retardant materials and robust terminals suited for harsh environments. -
Simplified Wiring and Maintenance
Clearly labeled terminals and organized channel layout speed up troubleshooting and repairs. -
Compatibility
Seamlessly integrates with Honeywell Experion® digital output modules and supports diverse industrial wiring standards. -
Reduced Commissioning Time
Preassembled and factory-tested to reduce installation errors and accelerate system startup.
よくある質問 (FAQ)
-
What is the main function / the FC-TSRO-0824 assembly?
It provides a structured termination point for digital output signals from the control system to field devices. -
How many output channels does the assembly support?
The assembly supports 8 digital output channels. -
Is the FC-TSRO-0824 compatible with shielded cables?
Yes, it supports shielded cables with dedicated grounding terminals to reduce interference. -
What mounting options are available for this assembly?
The assembly is designed for DIN rail mounting inside control cabinets or junction boxes. -
Can this assembly be used in safety-critical applications?
While designed for industrial reliability, it should be used alongside certified safety systems for critical applications. -
What temperature range can the FC-TSRO-0824 operate in?
It operates reliably between -20°C and +70°C. -
Does the 台 require any firmware or s/tware configuration?
No, it is a passive hardware termination assembly requiring no firmware or s/tware. -
How /ten should the assembly be inspected during maintenance?
Visual inspections every 6 to 12 months are recommended to check terminal tightness and for corrosion. -
Can the FC-TSRO-0824 be installed outdoors?
The assembly should be housed in an appropriate enclosure if used outdoors to protect it from environmental factors. -
What certifications does this assembly carry?
It complies with UL, CE, and CSA standards for industrial electrical components.
Related モデルs (Same Series or Similar Functionality)
| モデル | 説明 | Channels | Dimensions (mm) | 重量 |
|---|---|---|---|---|
| FC-TSRO-1616 | 16-Channel Digital Output Field Termination Assembly | 16 | 345 × 110 × 75 | 1.5 kg |
| FC-TSDI-1624 | 16-Channel Digital Input Field Termination Assembly | 16 | 345 × 110 × 75 | 1.5 kg |
| FC-TSDO-3216 | 32-Channel Digital Output Termination Assembly | 32 | 350 × 110 × 80 | 1.8 kg |
| FC-TSRO-0408 | 4-Channel Digital Output Termination Assembly | 4 | 140 × 110 × 65 | 0.7 kg |
| FC-TSDO-0808 | 8-Channel Digital Output Termination Assembly | 8 | 180 × 110 × 70 | 1.0 kg |
| FC-TSDI-0808 | 8-Channel Digital Input Termination Assembly | 8 | 180 × 110 × 70 | 1.0 kg |
Popular Honeywell モデルs (Same ブランド)
| モデル | 説明 | Primary Use | 重量 |
|---|---|---|---|
| FC-TSDO-3216 | Digital Output Termination Assembly | Field digital output signals | 1.8 kg |
| FC-TSDI-3216 | Digital Input Termination Assembly | Field digital input signals | 1.8 kg |
| FC-TSPO-1000 | Power Supply Module | Power conditioning | 2.0 kg |
| FC-TSRM-2200 | Remote I/O Module | Remote field data acquisition | 2.5 kg |
| FC-TSPD-1624 | Analog Input Termination Assembly | Analog signal termination | 1.6 kg |
| FC-TSPD-3216 | Extended Analog Input Termination Assembly | Larger analog signal counts | 2.0 kg |
