製品紹介

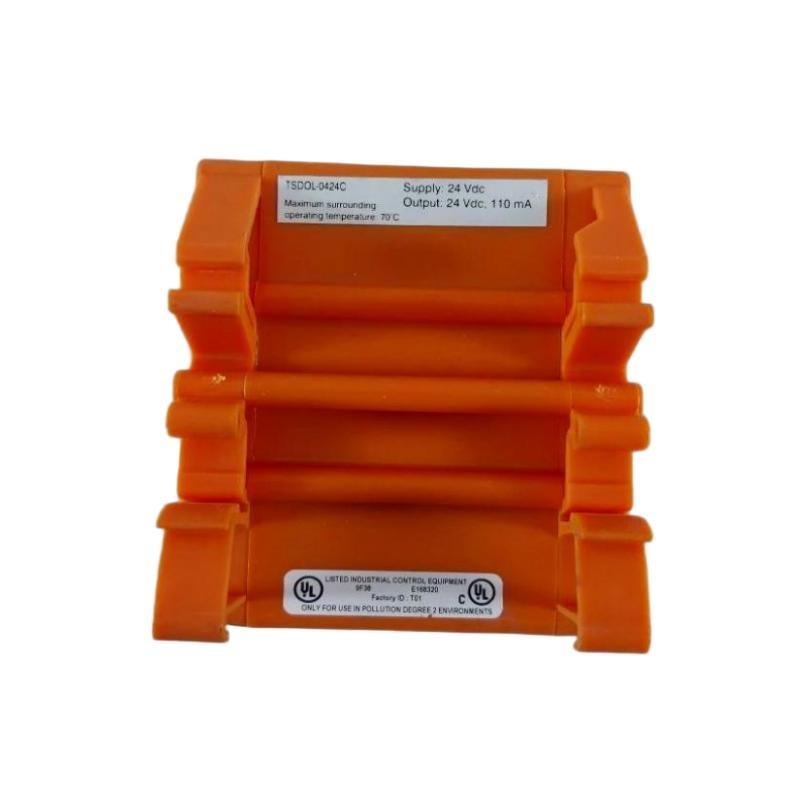

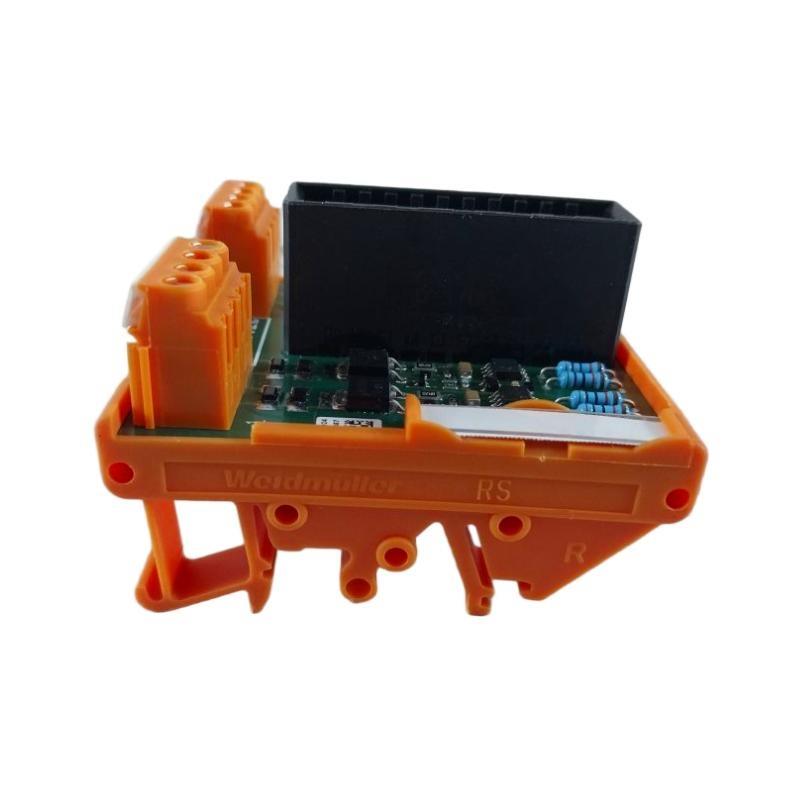

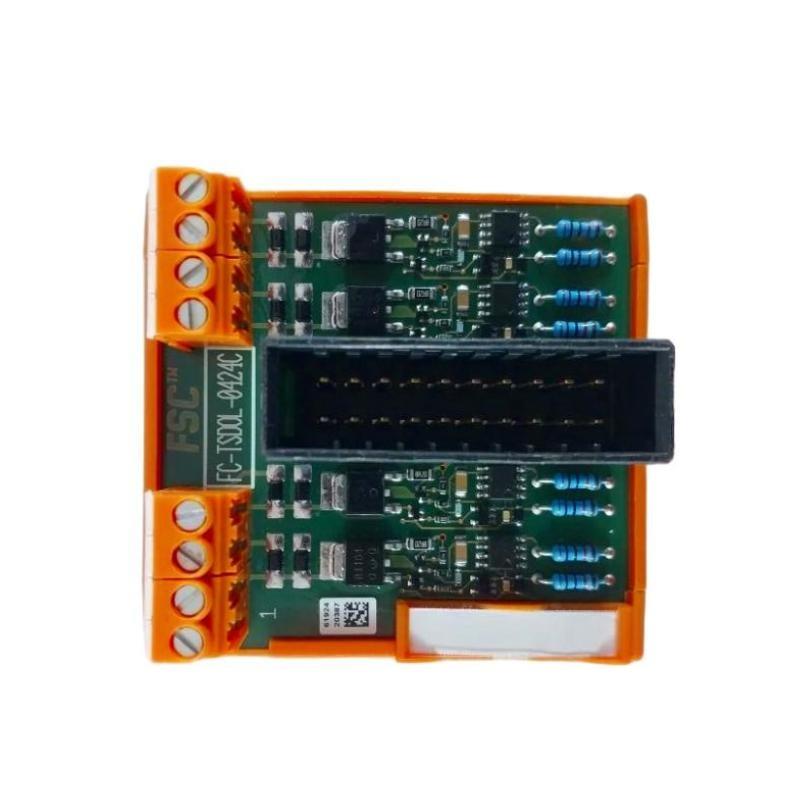

The Honeywell FC-TSDOL-0424C is a 4-channel Safe Digital Output Field Termination Assembly (FTA) designed for industrial automation systems requiring high reliability and safety. Operating at 24 VDC with current-limited outputs, this module ensures precise and fail-safe control / actuators, solenoids, and other field devices. Its robust construction and compact design make it suitable for integration into various Distributed Control Systems (DCS), including Honeywell’s Experion PKS and TDC 3000 platforms.
製品仕様
| Specification | Details |
|---|---|
| モデル Number | FC-TSDOL-0424C |
| ブランド | Honeywell |
| Type | Safe Digital Output Module |
| Channels | 4 |
| Output Voltage | 24 VDC |
| Current Limiting | Yes |
| Maximum Current per Channel | 1.5 A |
| Dimensions (L x W x H) | 200 x 118 x 75 mm |
| 重量 | 0.56 kg |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | 5% to 95% RH (non-condensing) |
| Mounting | DIN Rail or Panel Mount |
| Certifications | CE, UL, RoHS |
| Country / Origin | USA |
| 保証 | 1 Year |
Product Applications
The FC-TSDOL-0424C module is utilized in various industrial applications where safe and reliable digital output control is critical:
-
Process Automation: Controlling valves, motors, and actuators in chemical, oil & gas, and pharmaceutical industries.
-
Safety Systems: Implementing emergency shutdown procedures and safety interlocks.
-
Power Generation: Managing auxiliary systems in power plants.
-
Manufacturing: Operating machinery and equipment in automated production lines.
-
Water Treatment: Controlling pumps and valves in water and wastewater facilities.
Product Advantages
-
Fail-Safe Operation: Ensures safe shutdown in case / system failures.
-
High Reliability: Designed for continuous operation in harsh industrial environments.
-
Compact Design: 保存s space in control panels.
-
Easy Integration: Compatible with Honeywell DCS platforms and standard industrial protocols.
-
Current Limiting: Protects connected devices from overcurrent conditions.
-
Robust Construction: Withstands temperature extremes and high humidity.
よくある質問 (FAQ)
-
What is the primary function / the FC-TSDOL-0424C module?
It provides four channels / safe digital output at 24 VDC, with current limiting for controlling field devices. -
Is the module compatible with Honeywell’s Experion PKS system?
Yes, it is designed for seamless integration with Experion PKS and other Honeywell DCS platforms. -
Can the module be mounted on a DIN rail?
Yes, it supports both DIN rail and panel mounting options. -
What is the maximum current output per channel?
Each channel can handle up to 1.5 A with current limiting to protect connected devices. -
Is the module suitable for use in high-temperature environments?
Yes, it operates reliably in temperatures ranging from -40°C to +70°C. -
Does the module have any certifications?
It is certified for CE, UL, and RoHS compliance. -
What is the weight / the module?
The module weighs 0.56 kg. -
Can the module be used in safety-critical applications?
Yes, it is designed for fail-safe operations, making it suitable for safety-critical systems. -
Is the module available with a warranty?
We provide one year warranty. -
Where is the module manufactured?
The FC-TSDOL-0424C is manufactured in the USA.
