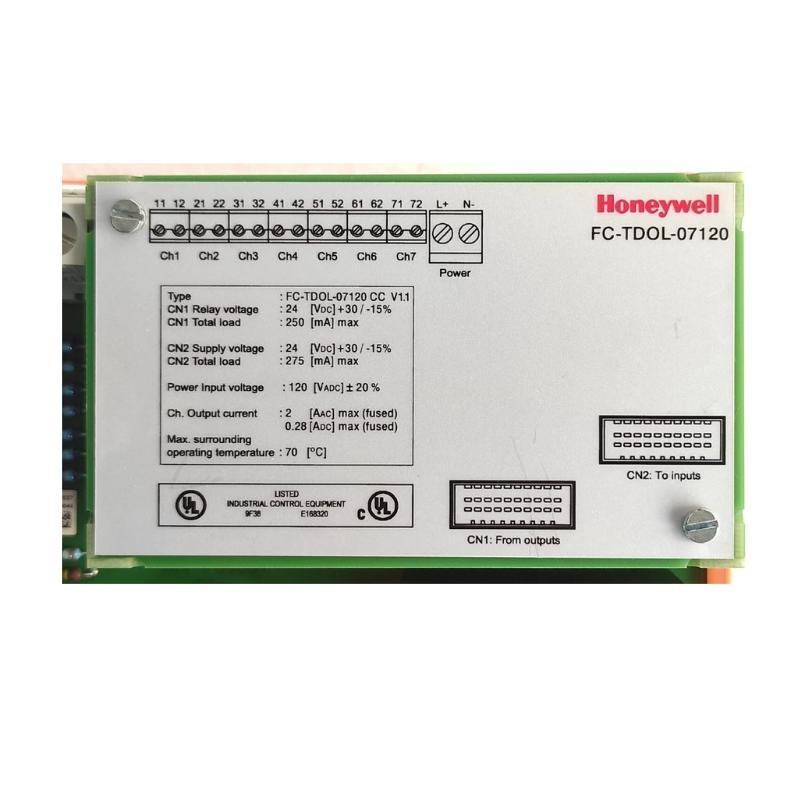

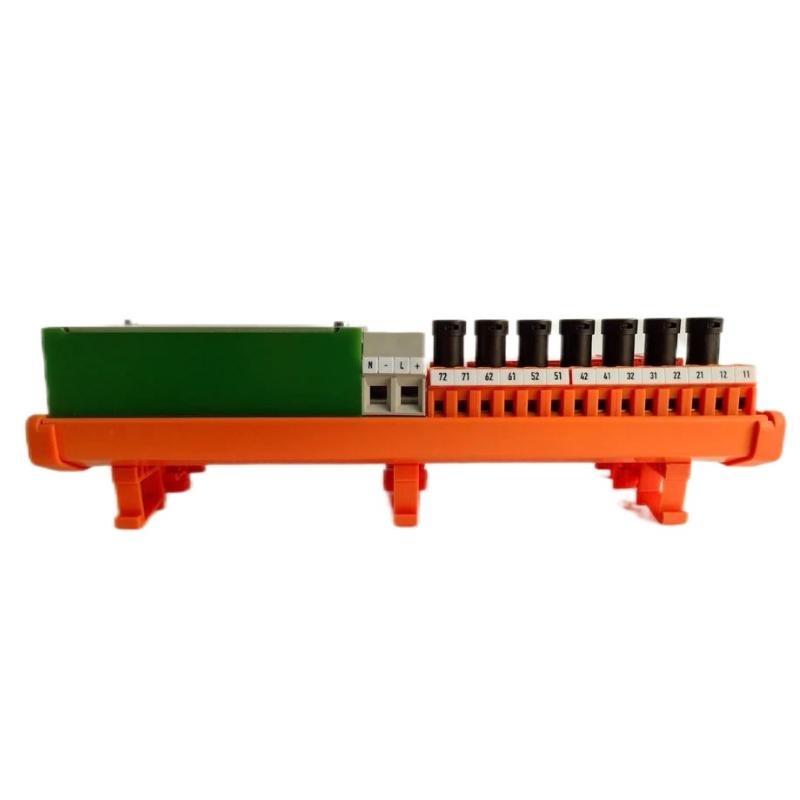

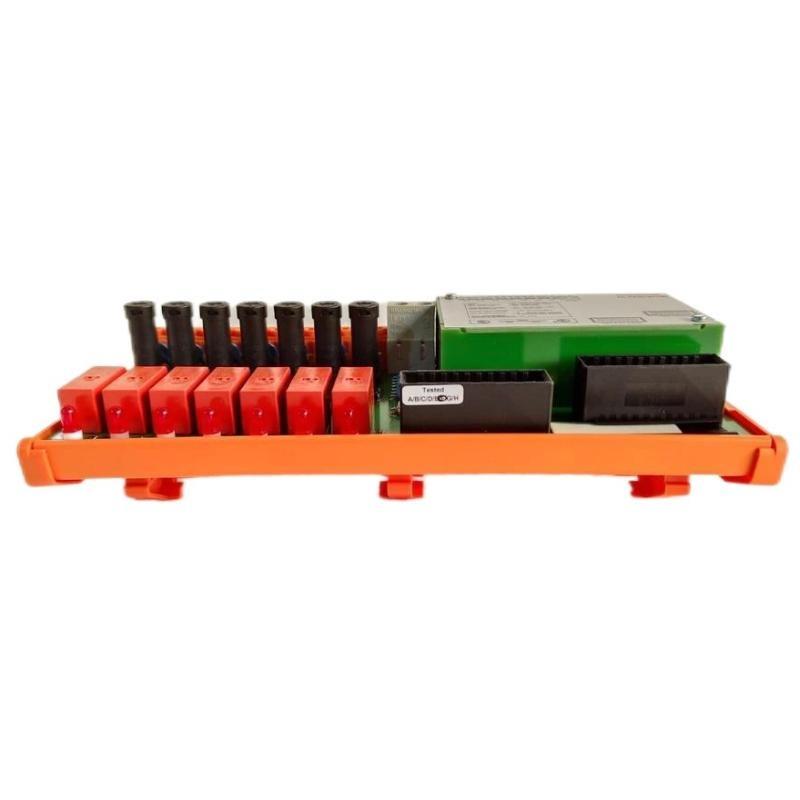

Honeywell FC-TDOL-07120 Analog Output Modules

Product Overview

The Honeywell FC-TDOL-07120 is a high-performance analog output module designed to provide precise analog control signals in critical industrial applications. It is part / the Honeywell Safety Manager SC S300 IOTA system and is engineered to support safety-critical environments requiring SIL3 compliance and redundancy.

With 12 independent analog output channels, the FC-TDOL-07120 provides a 4–20 mA signal range that is ideal for controlling a wide range / industrial devices, such as actuators, variable speed drives, and other process control equipment. Its high accuracy, redundancy features, and built-in diagnostics make it suitable for demanding process automation tasks in industries such as oil & gas, chemical processing, and power generation.

Key Features

• 12 independent analog output channels (4–20 mA output range)

• SIL3 certification as per IEC 61508 for safety systems

• Precision 4–20 mA output with high accuracy

• Integrated diagnostics for fault detection, loop monitoring, and system health checks

• Optically isolated outputs to ensure electrical protection

• Redundant system and module support for enhanced fault tolerance

• Hot-swappable design for ease / maintenance without downtime

• Channel-level diagnostics for open-loop detection, drift monitoring, and fault alerting

• Compact design with minimal space requirements

• Fully compatible with Honeywell Safety Manager SC S300 IOTA system

• Seamless integration with Honeywell’s Experion PKS

Technical Specifications

Industry Applications

The FC-TDOL-07120 is specifically designed for mission-critical applications across various industries, where precise and reliable control is required:

• Oil & Gas – Control valves, flow meters, pressure regulators, ESD systems

• Chemical Processing – Reactor temperature control, dosing systems

• Power Generation – Turbine speed control, steam pressure regulation

• Pharmaceutical – Batch process control, pressure and temperature management

• Water & Wastewater – Flow rate control, level management

• Mining & Metals – Furnace temperature regulation, motor speed control

• Food & Beverage – Ingredient dosing, temperature and pressure control

Product Advantages

• High reliability and accuracy in delivering analog control signals for critical systems

• 12 channels / output with 4–20 mA range, perfect for controlling multiple actuators or drives simultaneously

• SIL3-certified to meet the most stringent safety requirements for industrial processes

• Integrated diagnostics for continuous health monitoring and fault detection at the channel level

• Hot-swappable design allows for module replacement without interrupting system operations

• Redundant design ensures high availability and fault tolerance in critical environments

• Compact design minimizes space requirements in control cabinets and panels

• Seamless integration with Honeywell’s control platforms like Experion PKS and Safety Manager SC

よくある質問 (FAQ)

1. Q: What is the function / the FC-TDOL-07120 module?
   A: It is an analog output module designed to provide 12 channels / 4–20 mA output to control industrial devices such as actuators and valves.

2. Q: Can this module be used in safety-critical systems?
   A: Yes, the module is SIL3 certified and compliant with IEC 61508 for use in safety instrumented systems.

3. Q: What is the output signal range / the module?
   A: The module provides a 4–20 mA output signal for each / its 12 channels.

4. Q: Is the module compatible with redundant configurations?
   A: Yes, it supports module and system redundancy, ensuring continued operation in case / failure.

5. Q: How many output channels does the module provide?
   A: The module provides 12 independent output channels.

6. Q: What are the typical applications for this module?
   A: It is used in industries such as oil & gas, chemical processing, power generation, and pharmaceuticals, for controlling valves, motors, and other equipment.

7. Q: Does the module provide diagnostic features?
   A: Yes, the FC-TDOL-07120 includes self-diagnostics to monitor loop health and detect faults such as open circuits or drift.

8. Q: Can the module be replaced without system downtime?
   A: Yes, the module is hot-swappable, allowing you to replace it without shutting down the system.

9. Q: What type / isolation is used in this module?
   A: The module uses optical isolation to protect each output channel from electrical interference.

10. Q: What is the power consumption / the module?
    A: The power consumption is approximately 8 W.
