Product Overview

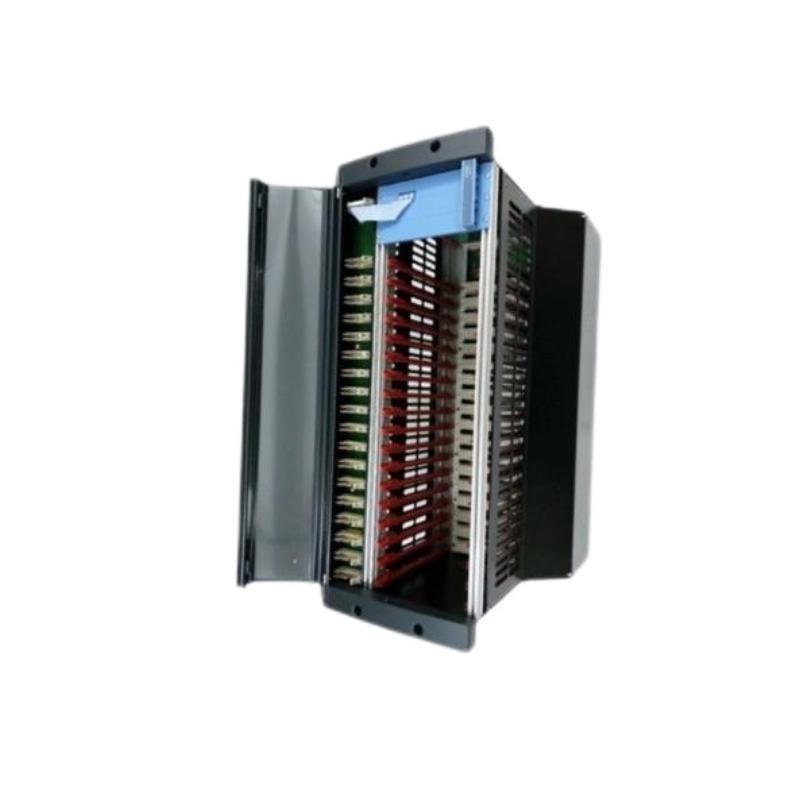

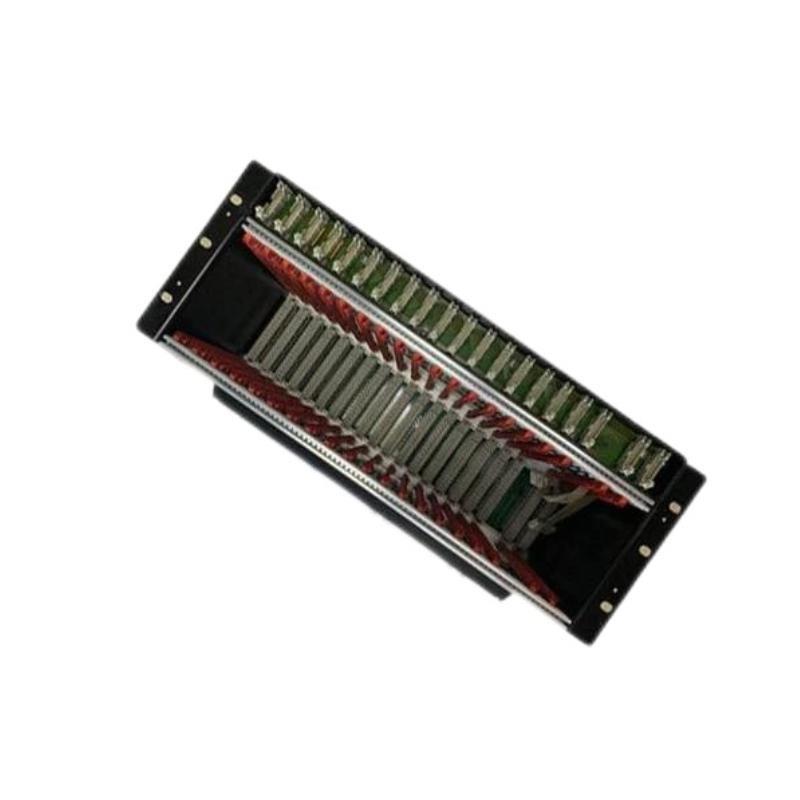

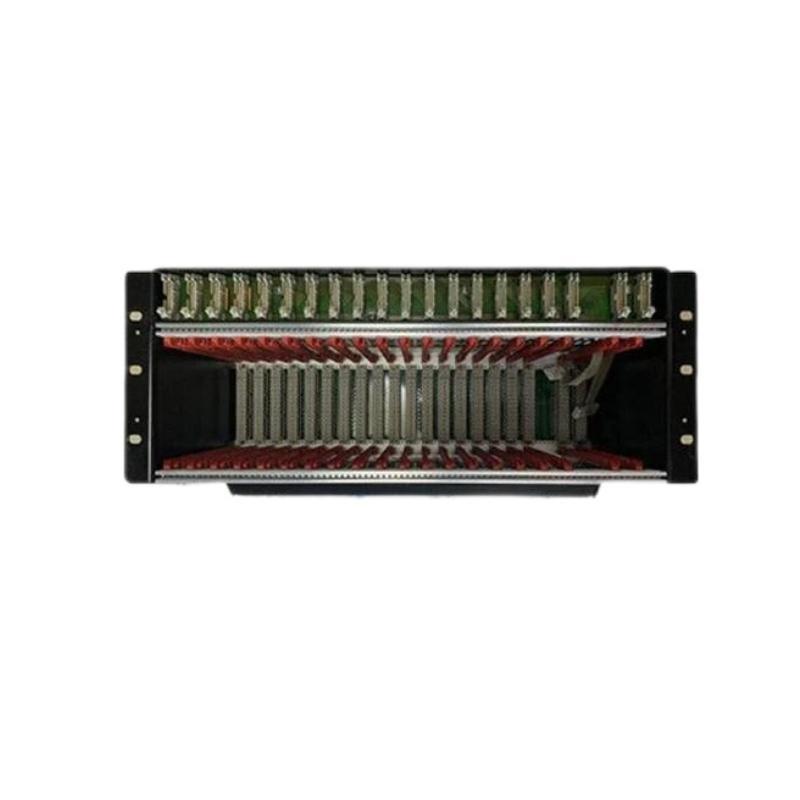

The Honeywell FC-IOCHAS-0001S is a non-redundant I/O module chassis designed for use in Honeywell’s Fail Safe Controller (FSC), Safety Manager, and Experion PKS control systems. It provides a durable and space-efficient infrastructure for hosting and connecting Honeywell’s I/O modules, forming the backbone / local or distributed I/O installations.
This chassis is ideal for cost-sensitive or non-critical applications where full redundancy is not required, yet reliable communication and secure mounting / I/O modules remain essential. Designed with modularity in mind, the FC-IOCHAS-0001S includes an integrated backplane for power and data distribution, hot-swappable support, and high signal integrity.
It is used extensively in utility plants, chemical facilities, and general manufacturing environments, providing safe, organized, and scalable I/O deployment within Honeywell’s process control infrastructure.
Key Features
-
Compact, Non-redundant Chassis for I/O module mounting
-
Integrated Passive Backplane for clean power and signal routing
-
サポートs Multiple I/O Modules in a single slot-based configuration
-
Hot-Swappable Module Capability to minimize downtime
-
DIN Rail and Panel Mount Options for flexible installation
-
High Signal Integrity with low-noise backplane design
-
Modular Expansion Ready for growing control systems
-
Compatible with Safety Manager and FSC platforms
-
Cost-Effective Alternative to redundant configurations
Technical Specifications
| Parameter | Specification |
|---|---|
| モデル Number | FC-IOCHAS-0001S |
| Product Type | Non-redundant I/O Module Chassis |
| System Compatibility | Honeywell Safety Manager, FSC, Experion PKS |
| Slot Capacity | Typically supports 8–12 I/O modules |
| Redundancy サポート | No (non-redundant configuration) |
| Backplane Type | Passive signal and power backplane |
| Hot-Swappable Modules | Yes |
| Power Input | 24 VDC (nominal), supplied via system power interface |
| Power Distribution | Internal bus through backplane |
| Operating Temperature | -20°C to +60°C (-4°F to +140°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Humidity Range | 5% to 95%, non-condensing |
| Cooling Method | Passive air cooling |
| Construction Material | Industrial-grade steel or aluminum alloy |
| Mounting Method | DIN rail or panel-mount compatible |
| Ingress Protection | IP20 standard (higher with cabinet enclosure) |
| Dimensions | 222.4 x 482.6 x 280 mm |
| 重量 | 8.5 kg |
| Certifications | CE, UL, CSA, RoHS compliant |
Industry Applications
-
General Manufacturing: Non-critical process automation and I/O management
-
Water and Wastewater: Modular I/O connectivity for treatment and distribution systems
-
Pharmaceuticals: Cost-effective control solutions for validated environments
-
Food and Beverage: Safe and reliable I/O mounting for process automation
-
Utilities and Infrastructure: Distributed control for pumping, lighting, and backup systems
-
HVAC and Energy Systems: Modular system design for temperature and flow control applications
Product Advantages
-
Cost-Effective Design: Ideal for systems where redundancy is not necessary
-
Space-Saving Footprint: Compact structure suitable for tight control cabinets
-
Reliable Backplane: Provides safe power and signal routing between modules
-
Easy System Integration: Works seamlessly with Honeywell control environments
-
Maintenance-Friendly: Hot-swappable capability minimizes process interruptions
-
Modular Scalability: サポートs future I/O expansion without structural changes
-
Rugged and Industrial-Grade: Built to withstand vibration, temperature swings, and harsh conditions
よくある質問 (FAQ)
-
Q: What is the FC-IOCHAS-0001S used for?
A: It is a non-redundant I/O chassis used to house Honeywell I/O modules in Safety Manager, FSC, and Experion systems. -
Q: How is it different from the FC-IOCHAS-0001R?
A: The FC-IOCHAS-0001S supports non-redundant configurations only, while the “R” version includes redundant I/O path support. -
Q: Is it suitable for critical safety applications?
A: It is better suited for non-critical or less safety-intensive systems, though still meets Honeywell industrial reliability standards. -
Q: How many I/O modules can be installed in the chassis?
A: Typically 8 to 12 modules, depending on system design and controller compatibility. -
Q: Does it allow hot-swapping / modules?
A: Yes, modules can be inserted or replaced without shutting down the system. -
Q: What types / mounting are supported?
A: Both DIN rail and panel mounting options are supported. -
Q: Is it compatible with all Honeywell I/O modules?
A: It is compatible with most standard Honeywell FSC and Safety Manager I/O modules. -
Q: Does it include power distribution?
A: Yes, the backplane includes integrated power distribution from a 24V DC source. -
Q: Can I use it in harsh environments?
A: Yes, it is built with industrial-grade materials and operates across a wide temperature range. -
Q: Is this chassis part / a SIL-certified system?
A: While the chassis itself is not SIL-certified, it can be part / a SIL2/SIL3 system when used with Honeywell’s certified I/O modules and controllers.
Related or Similar Honeywell モデルs
| モデル Number | 説明 |
|---|---|
| FC-IOCHAS-0001R | Redundant I/O Module Chassis |
| FC-IO-0001 | I/O Expansion Module |
| FC-PDIO-1624 | Mixed Digital I/O Module |
| FC-PSU-UNI24V | 24V Power Supply Module |
| FC-TDIO51 | Digital I/O Interface Module |
| FC-DO-0824 | 8-Channel Digital Output Module |
Popular Honeywell Automation Modules (Same ブランド)
| モデル Number | 説明 |
|---|---|
| CC-TDIL01 | Digital Input Module for C300 Systems |
| CC-TAOX11 | Analog Output Module |
| CC-TDOR01 | Relay Output Module |
| CC-PAIH01 | Analog Input HART Module |
| CC-TCNT01 | Counter Module for Event Detection |
| CC-POW01 | Power Supply Module for Control Cabinets |
