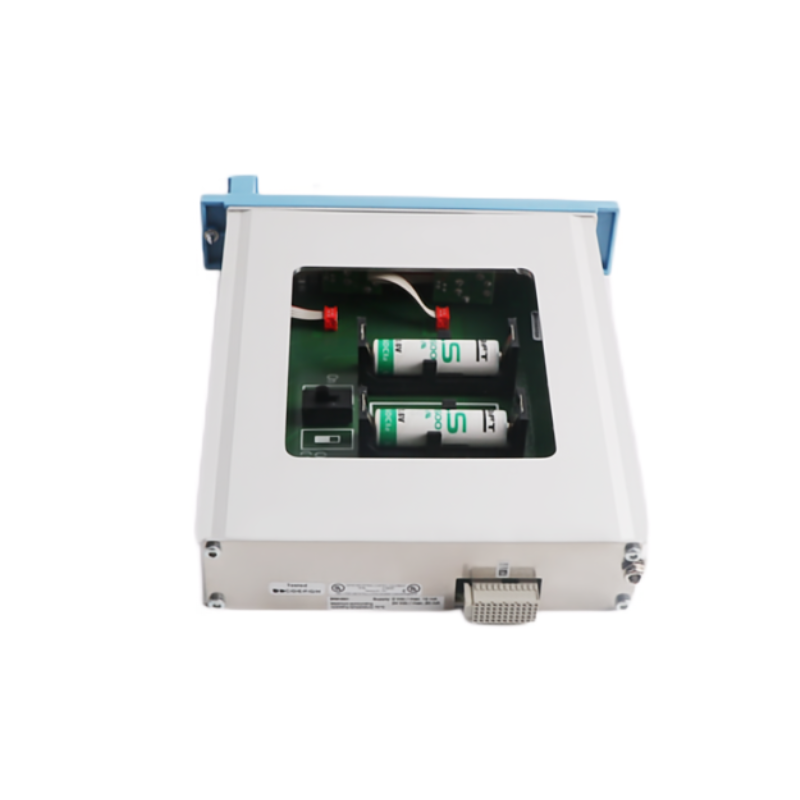

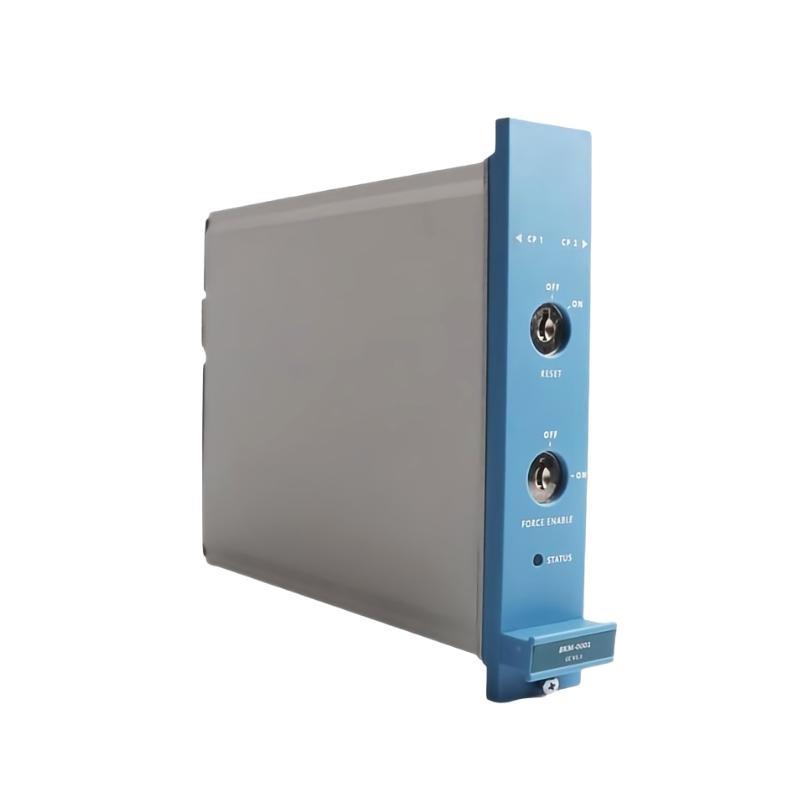

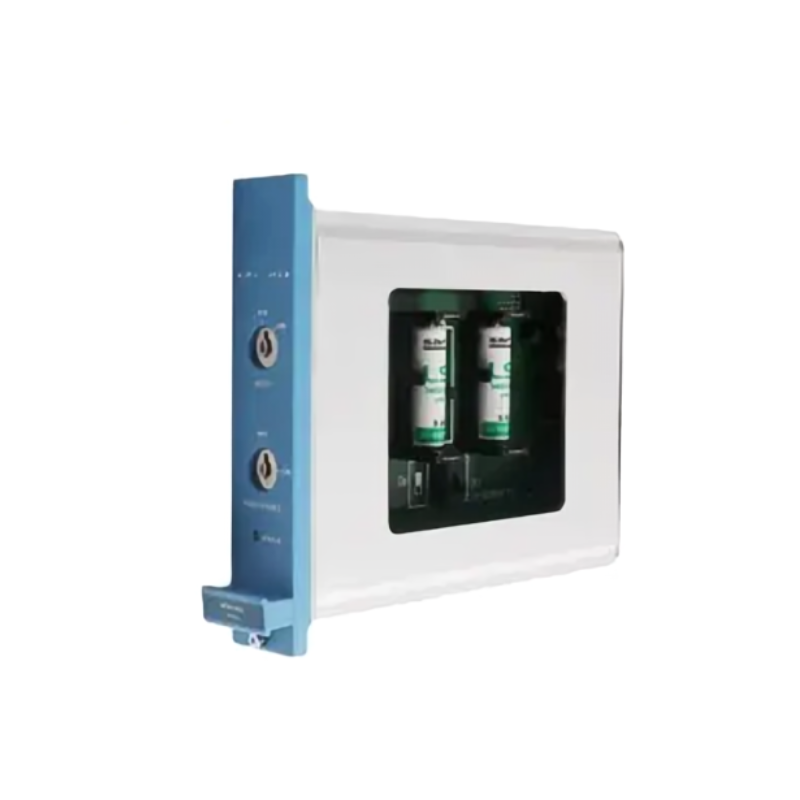

The Honeywell FC-BKM-0001 Battery And Key Switch Module is an essential accessory component designed for Honeywell’s Fail Safe Controller (FSC) and Safety System platforms. This module combines a reliable backup battery with a hardware key switch, providing crucial system-level functions including power backup, manual override control, and secure operational state management.
It enables operators to enforce system security and operational integrity by using a keyed switch to select system states (such as Run, Test, or Stop), while the internal battery provides backup power to retain critical volatile memory data during power failures. The FC-BKM-0001 plays an indispensable role in ensuring the availability, safety, and recoverability / safety-critical process applications.
This module is engineered for use in high-demand industries such as oil & gas, petrochemical, refining, power generation, pharmaceuticals, metals & mining, and pulp & paper, where functional safety, compliance, and plant uptime are mission-critical. The rugged design and certifications make it well-suited for harsh industrial environments and hazardous zones.
製品仕様
| Parameter | Specification |
|---|---|
| Product Name | Honeywell FC-BKM-0001 Battery And Key Switch Module |
| 型番 | FC-BKM-0001 |
| System Compatibility | Honeywell FSC (Fail Safe Controller) Systems, Experion PKS |
| Module Type | Battery & Key Switch Combination Module |
| Key Switch Functions | RUN / TEST / STOP positions (manual selection) |
| Backup Battery Type | Integrated rechargeable battery |
| Battery Voltage | Nominal 3.6 VDC |
| Battery Capacity | Designed for sufficient retention during controller shutdowns |
| Battery Chemistry | Lithium or NiMH, depending on version |
| System Interface | Backplane-connected |
| Diagnostics | Status indication via LEDs |
| Power Supply | 24 VDC system power |
| Power Consumption | < 3 W typical |
| Operating Temperature Range | -20°C to +60°C (-4°F to +140°F) |
| Storage Temperature Range | -40°C to +85°C (-40°F to +185°F) |
| Humidity Range | 5% to 95% RH (non-condensing) |
| Shock / Vibration Compliance | IEC 60068 compliant |
| Dimensions (H x W x D) | 120 x 80 x 50 mm |
| 重量 | 0.45 kg |
| Mounting Method | DIN rail or panel mount |
| Flame Rating | UL 94V-0 |
| Certifications | CE, UL, CSA, ATEX Zone 2, IECEx |
Applications
-
Manual control / FSC system operational modes (Run, Test, Stop)
-
Backup power to retain volatile memory during system power outages
-
Process safety systems in oil & gas (upstream, midstream, downstream)
-
Emergency shutdown systems (ESD) for high-integrity plants
-
Functional safety implementations in chemical manufacturing
-
High-availability power generation plant safety systems
-
Process safety for pharmaceutical manufacturing
-
Mining and metals refining automation safety
-
Pulp & paper process control and safety shutdowns
-
Control systems requiring manual override security for auditability
Product Advantages
-
Integrated battery and key switch: Combines two critical safety functions in a single module
-
Enables safe, auditable mode switching: Provides hardware-based Run / Test / Stop control with physical key
-
Ensures process memory retention: Backup battery maintains volatile data integrity during power outages
-
Failsafe design: Certified for use in SIL-rated safety systems
-
LED status indication: Provides clear feedback to operators and maintenance technicians
-
Rugged industrial design: Performs reliably in high-vibration and temperature-extreme environments
-
Flexible mounting: サポートs DIN rail or panel installations for retr/it or new builds
-
Wide industry usage: Proven in global installations across energy, chemicals, and industrial sectors
-
Redundant power support: Works within 24 VDC redundant power architectures
-
Certified for hazardous areas: Meets ATEX Zone 2 and IECEx compliance for global deployment
よくある質問 (FAQ)
-
What does the FC-BKM-0001 module do?
It combines a backup battery for volatile memory retention with a secure manual key switch to select the FSC system operating mode. -
How many positions does the key switch have?
The key switch supports three positions: RUN, TEST, and STOP. -
Is the battery rechargeable?
Yes — the module includes an integrated rechargeable battery. -
What happens to system data if the power fails?
The internal battery ensures that volatile controller memory is retained during power failures. -
Can this module be mounted on DIN rail?
Yes — it supports both DIN rail and panel mounting. -
Is the module suitable for hazardous areas?
Yes — it is ATEX Zone 2 and IECEx certified. -
Is the module compatible with FSC systems?
Yes — it is designed specifically for Honeywell FSC (Fail Safe Controller) systems and works with Experion PKS. -
How is module status indicated?
Through LED indicators on the front panel for operator visibility. -
Does it require an external power supply?
It operates from standard 24 VDC system power. -
What is the battery’s voltage?
The battery operates at a nominal 3.6 VDC for memory retention.
Related モデルs (Same Series or Product Line)
| モデル Number | 説明 |
|---|---|
| FC-PDB-0002 | Power Distribution Board for FSC |
| FC-PSU-0001 | FSC Power Supply Module |
| FC-PSU-0002 | Redundant Power Supply Module |
| FC-CPU-0001 | FSC Main CPU Module |
| FC-RLY-0002 | Relay Output Module |
| FC-DOX-0001 | Digital Output Module for FSC |
Popular Honeywell モデルs (Same ブランド)
| モデル Number | 説明 |
|---|---|
| C300 Controller | Advanced Process Controller |
| HC900 Hybrid Controller | Hybrid Process and Safety Controller |
| FSC 10101 | High Integrity Safety Controller |
| RM7800 | Integrated Burner Management Control Module |
| UCN I/O Rack | Universal Control Network I/O Rack |
| S9000 PLC | Modular Safety PLC for industrial automation |
