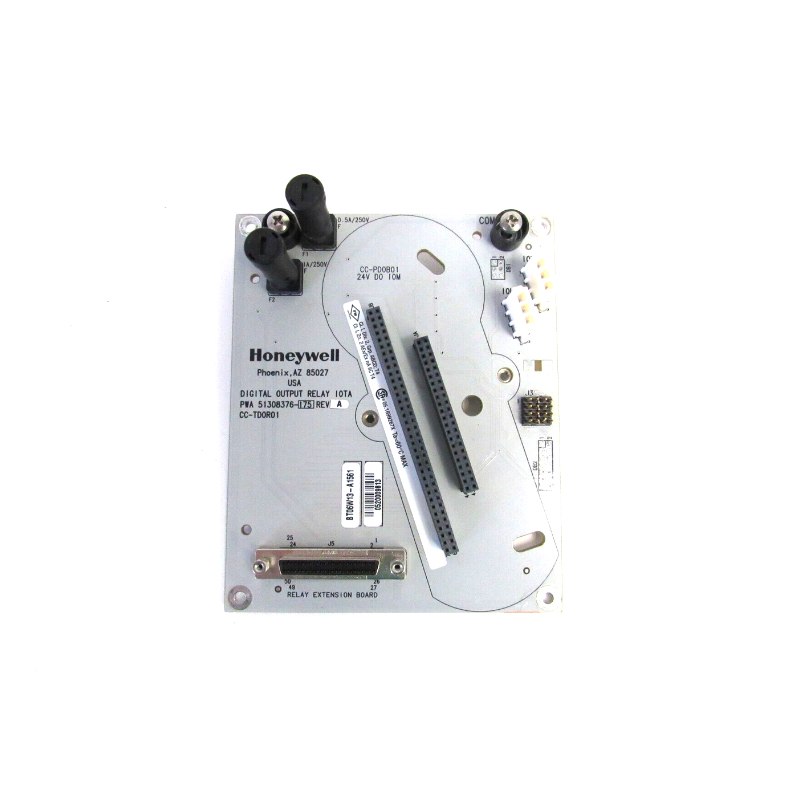

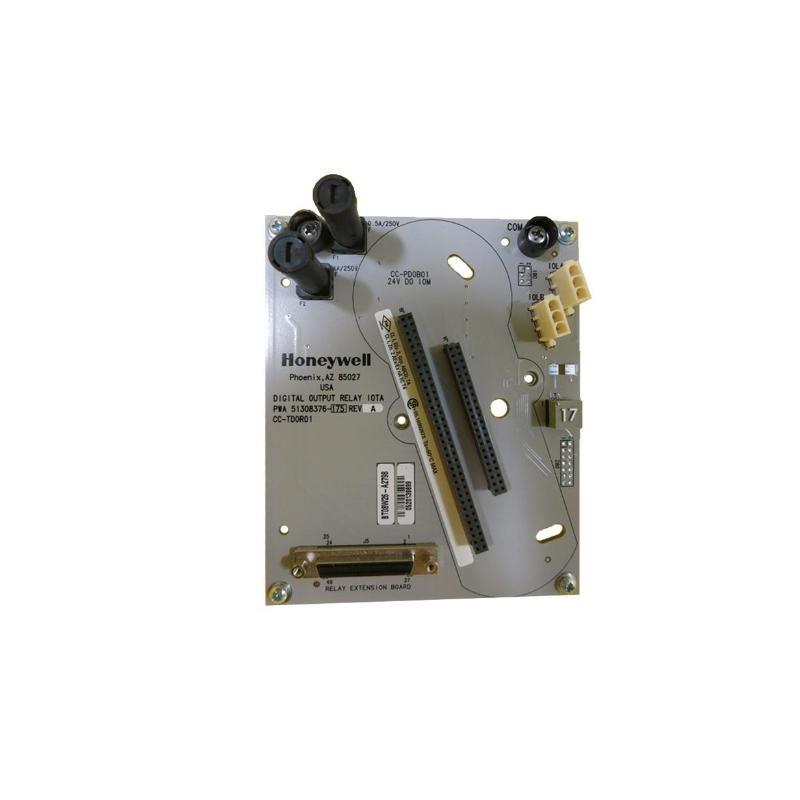

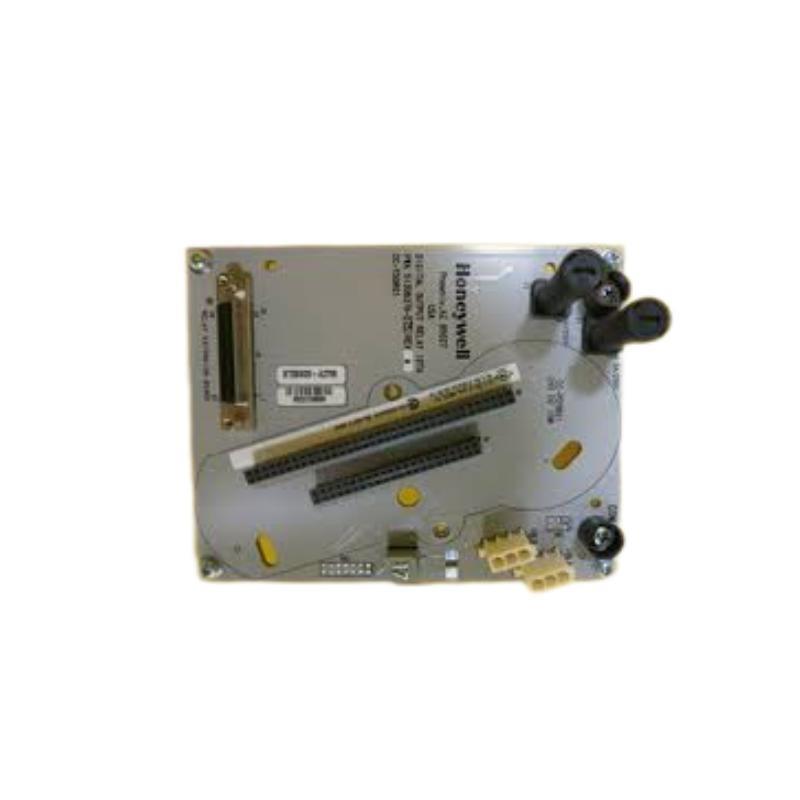

The Honeywell CC-TD0R01 is a high-performance I/O module designed for use in Honeywell’s Experion PKS and C300 control systems. It functions as a Digital Output Redundant module, providing secure, reliable, and fast digital signal switching in safety-critical industrial automation environments. This module is engineered for dual-redundancy applications where continuous operation and fail-safe functionality are essential.
With robust diagnostic features, hot-swap capability, and tight integration into the Experion system architecture, the CC-TD0R01 supports efficient plant operations and ensures long-term system sustainability.
Technical Parameters
| Parameter | Details |
|---|---|
| モデル | CC-TD0R01 |
| Type | Digital Output Redundant Module |
| I/O Type | Discrete Output (24V DC) |
| Output Channels | 16-channel digital output |
| Output Voltage Range | 18 – 30V DC |
| Output Current Rating | 0.5A per channel (max) |
| Redundancy サポート | Yes, dual-redundant capable |
| Module Status Indication | LED indicators for channel status and fault detection |
| System Compatibility | Honeywell C300 / Experion PKS systems |
| Hot Swappable | Yes |
| Backplane Power Consumption | < 5W |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95% non-condensing |
| Installation | Mounted on Universal I/O Base |
| Dimensions | 242 x 50 x 110 mm |
| 重量 | 0.45kg |
| Compliance | CE, RoHS, UL, CSA |
Product Applications
-
Oil & Gas Refineries – Used in burner management, valve actuation, and safety interlocks.
-
Petrochemical Plants – Ideal for process control where digital signal switching reliability is critical.
-
Power Generation Facilities – Employed in turbine control systems and plant-wide automation.
-
Pharmaceutical Manufacturing – Applied in validation-critical and batch control operations.
-
Water Treatment Plants – Controls pumps, valves, and other field actuators in SCADA environments.
-
Steel and Metal Processing – Enables real-time actuation and signal feedback for heavy equipment.
Product Advantages
-
Redundant Design: Built-in support for fault-tolerant redundant configurations improves uptime and reliability.
-
Hot-Swappable Module: Enables module replacement without system shutdown or data loss.
-
Integrated Diagnostics: Real-time fault detection and LED status indicators enhance maintenance efficiency.
-
Compact Footprint: Slim module design fits into high-density cabinet installations.
-
Seamless Integration: Fully compatible with Honeywell Experion and C300 systems, reducing engineering overhead.
-
High Output Channel Density: Offers up to 16 outputs per module for scalable system expansion.
FAQ (よくある質問)
Q1: What is the main function / the CC-TD0R01 module?
A1: It serves as a 16-channel digital output module for switching field devices in industrial automation systems.
Q2: Is this module suitable for safety-critical applications?
A2: Yes, it supports redundancy and diagnostic functions ideal for critical environments.
Q3: Can this module be used with non-Honeywell systems?
A3: It is specifically designed for Honeywell Experion PKS and C300 systems and may not be compatible elsewhere.
Q4: Does the CC-TD0R01 support hot-swap functionality?
A4: Yes, it allows module replacement without system power-down.
Q5: How many output channels are available on the module?
A5: The module provides 16 discrete digital output channels.
Q6: What is the operating temperature range?
A6: It operates from -40°C to +70°C.
Q7: Is the module compliant with global safety and environmental standards?
A7: Yes, it complies with CE, RoHS, UL, and CSA standards.
Q8: Can this module be mounted on any base?
A8: It must be installed on a compatible Honeywell Universal I/O base.
Q9: What happens if one part / the redundant pair fails?
A9: The system automatically switches to the healthy module without affecting operation.
Q10: What is the power consumption / this module?
A10: Less than 5 watts from the backplane.
Related or Similar モデルs (Same Series or Functionally Compatible)
| モデル | 説明 | Channels | Function Type |
|---|---|---|---|
| CC-TDIL01 | Digital Input Redundant Module | 16 | Digital Input |
| CC-TD0B01 | Digital Output Module (Non-redundant) | 16 | Digital Output |
| CC-TDI0R01 | Redundant Digital Input Module | 16 | Digital Input |
| CC-TAIX01 | Analog Input Module | 8 | Analog Input |
| CC-TAOX01 | Analog Output Module | 8 | Analog Output |
| CC-PAIH01 | High-density Analog Input Module | 16 | Analog Input |
Popular Honeywell Modules (Same ブランド, Widely Used)
| モデル | Function | Channels | Size (mm) | 重量 |
|---|---|---|---|---|
| CC-PDOB01 | Digital Output Module | 16 | 123 × 24.8 × 125 | 220g |
| CC-PDIL01 | Digital Input Module | 16 | 123 × 24.8 × 125 | 220g |
| CC-PFB401 | Fieldbus Interface Module | 2 Ports | 124 × 26 × 127 | 230g |
| CC-PAOH01 | Analog Output Module | 8 | 123 × 24.8 × 125 | 215g |
| CC-TCF901 | ControlNet Interface Module | Dual Port | 123 × 25 × 125 | 225g |
| CC-PAIH01 | Analog Input High-Density Module | 16 | 123 × 24.8 × 125 | 220g |
