製品紹介

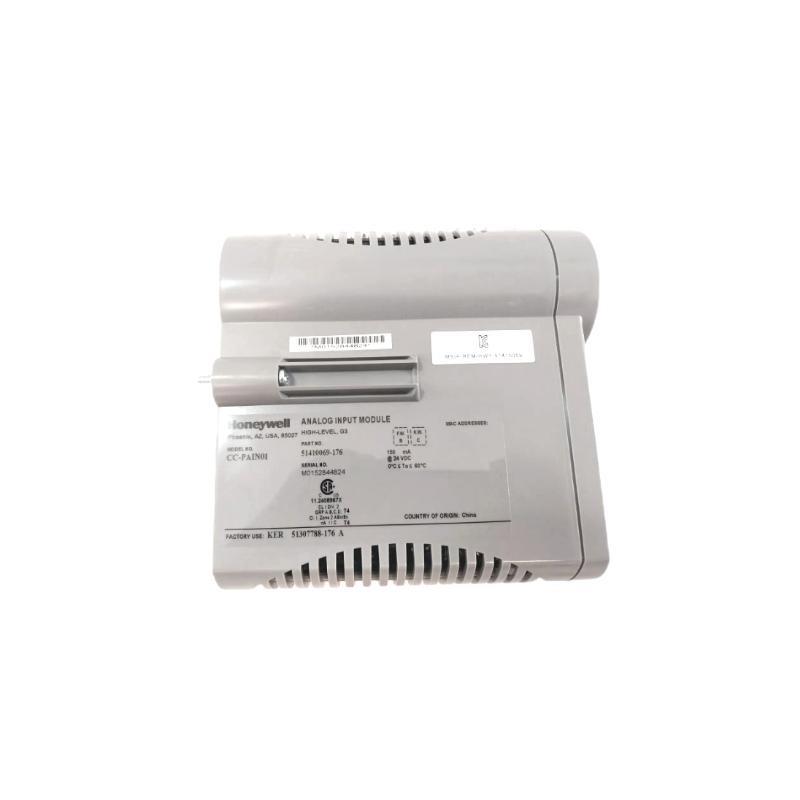

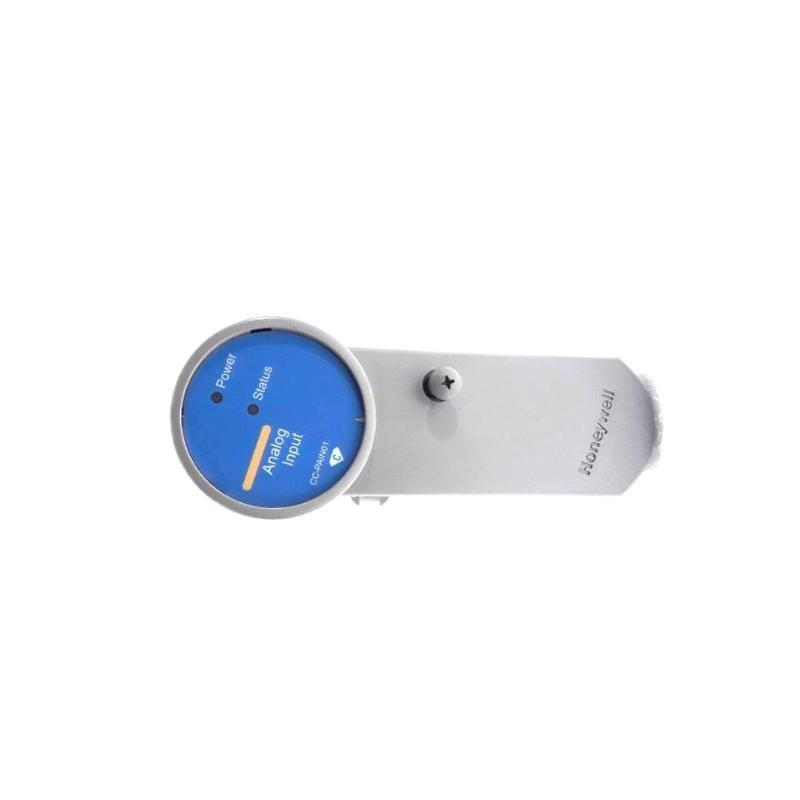

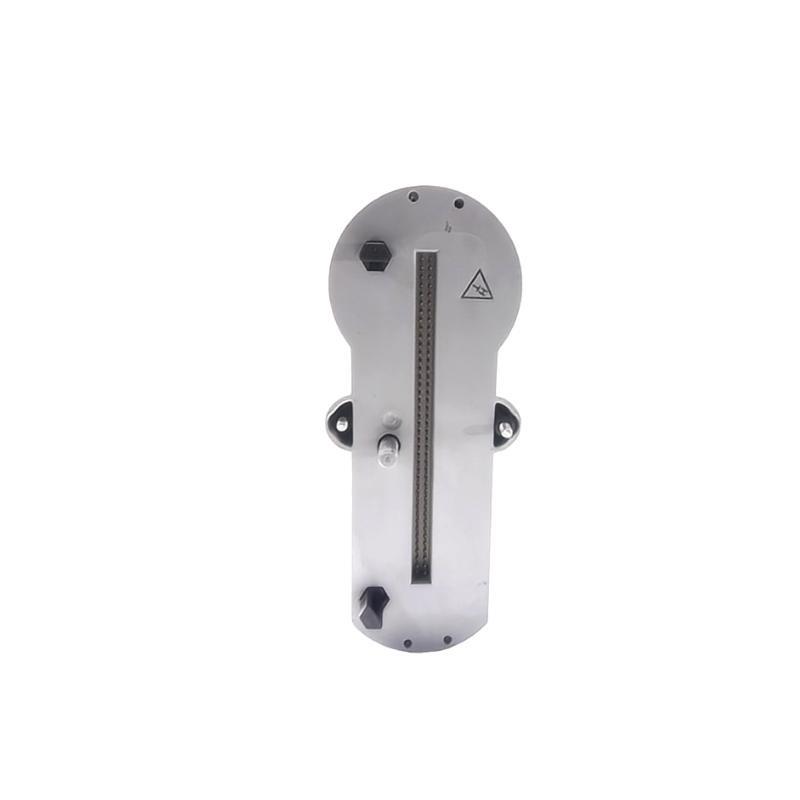

The Honeywell CC-PAIN01 (51410069-175) is a high-performance analog input module designed for Honeywell’s C300 controller within the Experion Process Knowledge System (PKS). It facilitates the integration / analog field devices by converting their signals into digital data for precise monitoring and control. The module supports 16 single-ended channels and is optimized for 4–20 mA current inputs, making it suitable for various industrial applications.
製品仕様
| Parameter | Details |
|---|---|
| モデル Number | CC-PAIN01 |
| 型番 | 51410069-175 |
| Input Channels | 16 (Single-Ended) |
| Input Type | Current (2-wire or self-powered transmitters) |
| Input Range | 4–20 mA (through 200 Ω) |
| A/D Converter Resolution | 16 bits |
| Normal Mode Rejection Ratio (60 Hz) | 20 dB |
| Common Mode Rejection Ratio (dc to 60 Hz) | 70 dB (500 Ω source imbalance) |
| Maximum Normal Mode Input | ±30 Volts |
| Crosstalk (dc to 60 Hz) | -60 dB (channel-to-channel) |
| Input Scan Rate | 50 ms |
| Hardware Accuracy (@ CMV = 0 V) | ±0.075% / full-scale (23.5°C ± 2°C); ±0.15% / full-scale (0 to 60°C) |
| Power Supply | 24 VDC |
| Dimensions (HxWxD) | 63.5 x 124.46 x 307.34 mm |
| 重量 | 0.299 kg |
| Operating Temperature Range | 0°C to 60°C |
| Certifications | CE, RoHS |
| 保証 | 12 months |
Applications
-
Industrial Process Control: Monitoring and controlling variables such as temperature, pressure, and flow in industries like chemical, petrochemical, and manufacturing.
-
Energy Management Systems: Accurate data acquisition for optimizing energy consumption and efficiency.
-
Building Automation: Integration with HVAC systems for environmental control in commercial buildings.
-
Water and Wastewater Treatment: Monitoring parameters like pH, turbidity, and flow rates.
-
Food and Beverage Industry: Ensuring quality control by monitoring critical process variables.
Product Advantages
-
High Accuracy: Ensures precise data acquisition with minimal error margins.
-
Robust Design: Engineered to withstand industrial environments with high imm台y to electrical noise.
-
Fast Loop Scanning: 50 ms scan rate allows for real-time monitoring and quick response.
-
Optional Redundancy: Enhances system reliability by supporting redundant configurations.
-
Non-Incendive Field Power: Safe operation in hazardous environments without the need for external marshalling.
-
Comprehensive Self-Diagnostics: Continuous monitoring for optimal performance and easy maintenance.
-
Compact Size: Space-efficient design suitable for various installation scenarios.
よくある質問 (FAQs)
-
What types / input signals does the CC-PAIN01 support?
The module supports 4–20 mA current inputs from 2-wire or self-powered transmitters.
-
How many input channels are available on the CC-PAIN01?
It /fers 16 single-ended input channels.
-
What is the resolution / the analog-to-digital converter?
The module features a 16-bit A/D converter for high-precision measurements.
-
Is the CC-PAIN01 suitable for use in hazardous environments?
Yes, it provides non-incendive field power, making it safe for use in Class 1, Division 2 hazardous locations.
-
Does the module support redundancy?
Yes, it /fers optional redundancy to enhance system reliability.
-
What is the input scan rate / the CC-PAIN01?
The module has an input scan rate / 50 milliseconds.
-
What are the dimensions and weight / the module?
It measures 63.5 x 124.46 x 307.34 mm and weighs 0.299 kg.
-
What is the operating temperature range?
The module operates within a temperature range / 0°C to 60°C.
-
Are there any certifications associated with the CC-PAIN01?
Yes, it is certified with CE and RoHS standards.
-
What is the warranty period for the CC-PAIN01?
It comes with a 12-month warranty.
Related モデルs (Same Series or Function)
| モデル | 説明 | Channels | Input Type | Protocol |
|---|---|---|---|---|
| CC-PAIH01 | High-Level Analog Input Module | 16 | 4–20 mA | HART |
| CC-PAIH02 | High-Level Analog Input Module | 16 | 4–20 mA | HART |
| CC-PAOH01 | Analog Output Module | 8 | 4–20 mA | HART |
| CC-PAIM01 | Low-Level Analog Input Module | 16 | Thermocouple/RTD | – |
| CC-PAON01 | Analog Output Module | 16 | 4–20 mA | HART |
| CC-PDIL01 | Pulse Digital Input Module | 16 | Pulse | FTE |
Popular Honeywell モデルs (Same ブランド)
| モデル | 説明 | Function | Application |
|---|---|---|---|
| CC-PCNT01 | Pr/ibus Communication Interface | Communication | Industrial Networking |
| CC-PWRR01 | Redundant Power Supply Module | Power Supply | Controller & I/O Power |
| CC-TCNT01 | ControlNet Network Module | Networking | Plant-Wide Control |
| CC-IOC091 | I/O Control Processor | I/O Management | DCS Interface Controller |
| CC-PUIO01 | Universal I/O Module | Mixed I/O | Flexible Analog/Digital |
| CC-PDOB01 | Relay Output Module | Digital Output | Solenoid/Relay Control |
