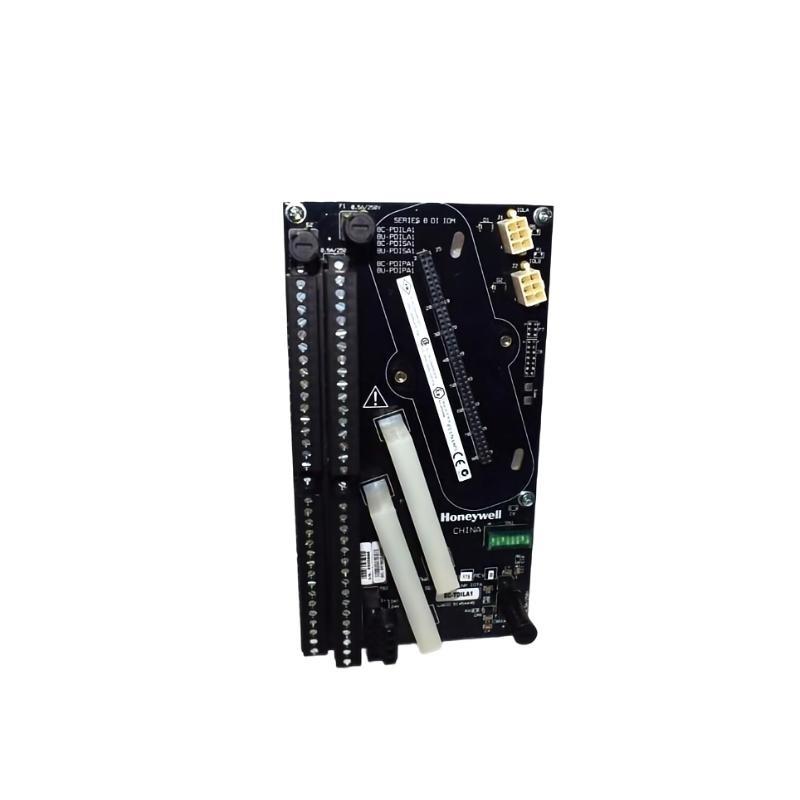

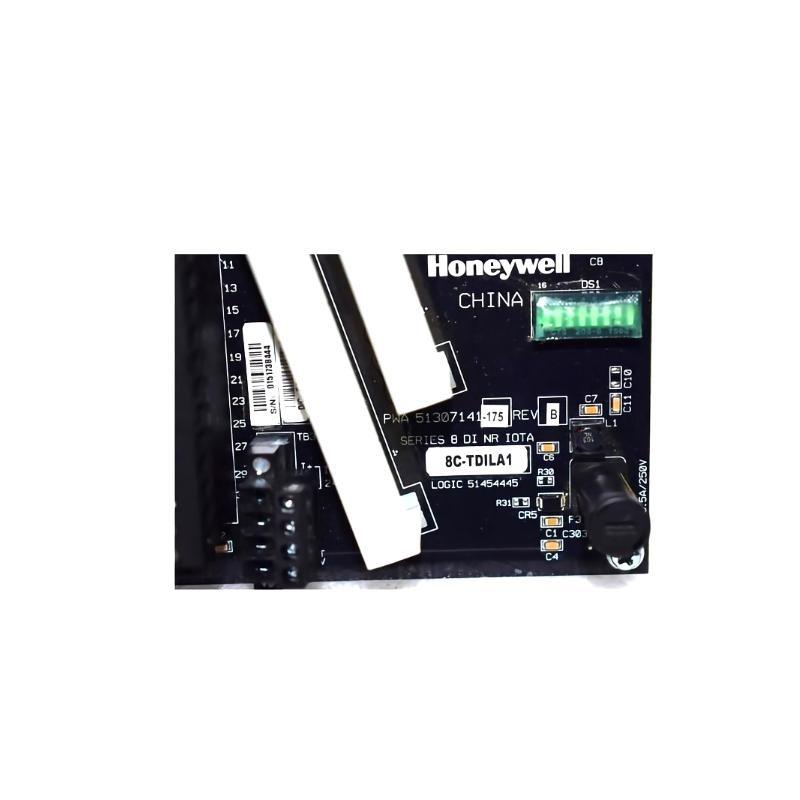

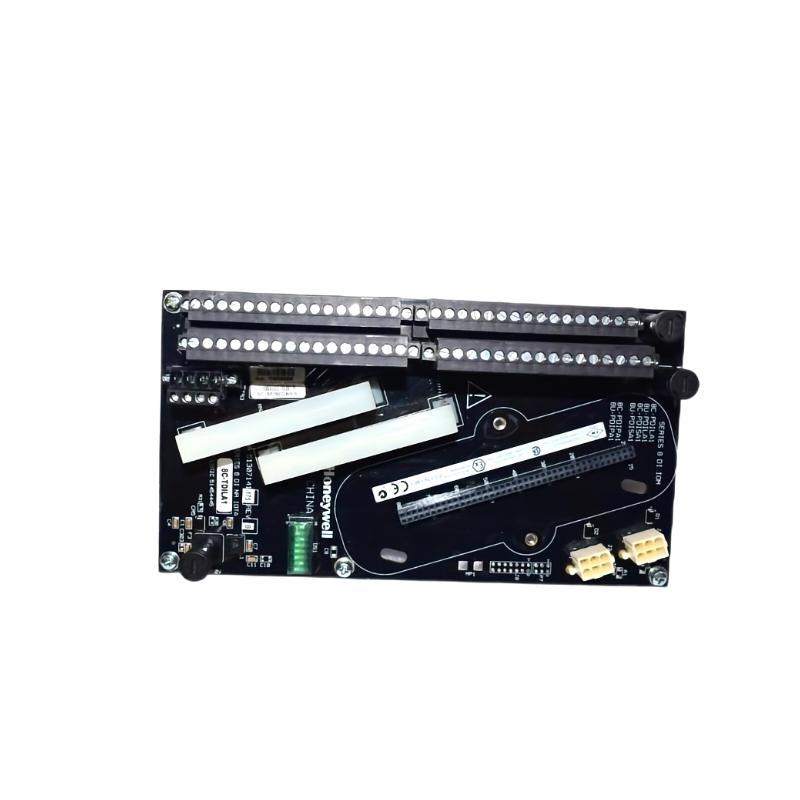

Honeywell 8C-TDILA1 51307141-175 Digital Input Module

製品紹介

The Honeywell 8C-TDILA1 (part number 51307141-175) is a high-quality digital input module specifically engineered for integration into Honeywell’s TDC3000 and Experion Process Knowledge System (PKS) control platforms. This module plays a vital role in industrial automation by providing reliable detection and processing / discrete digital input signals from field devices such as switches, contacts, and sensors.

Designed with robustness and precision in mind, the 8C-TDILA1 ensures accurate signal acquisition even in electrically noisy industrial environments. Its advanced isolation capabilities protect system integrity by minimizing cross-talk and interference between channels. This module supports effective monitoring / process equipment status and alarm conditions, thereby enhancing operational safety and process control accuracy.

Its compact modular design allows for easy installation and maintenance within standard Honeywell I/O racks. The 8C-TDILA1 is widely adopted in sectors demanding high availability and reliability, including petrochemical plants, power generation, water treatment, and manufacturing industries.

製品仕様

Product Applications

• Process Control: Monitoring on//f signals from valves, limit switches, and safety interlocks in refineries and chemical plants.

• Power Plants: Collecting status signals from turbines, breakers, and alarm systems to support reliable energy production.

• Water and Wastewater: Detecting operational states / pumps, level switches, and alarms in municipal and industrial treatment facilities.

• Oil and Gas: Supervising field device statuses such as emergency shutdown switches and position indicators in upstream and downstream processes.

• Manufacturing: Digital input collection from machinery, safety stops, and production line status indicators.

• Building Automation: Managing input signals from security systems, fire alarms, and HVAC controls.

Product Advantages

• High Channel Count: 16 inputs per module provide dense I/O capability, reducing rack space usage.

• Superior Electrical Isolation: Prevents electrical interference ensuring signal integrity and system stability.

• Wide Operating Temperature Range: Designed for industrial environments, tolerates 0 to 60 °C with robust shock and vibration resistance.

• Compatibility: Works seamlessly with Honeywell’s legacy and current DCS platforms, including TDC3000 and Experion PKS.

• Flexible Signal Handling: Accepts both dry and wet contact inputs, facilitating broad field device compatibility.

• Fast and Reliable: Response times under 10 ms enable timely process monitoring and control.

• Compact and Rugged Design: Facilitates easy installation within control cabinets while resisting harsh physical conditions.

• Comprehensive Certification: Compliance with major international safety and quality standards ensures dependable operation.

• Ease / Maintenance: Modular rack design and clear labeling simplify troubleshooting and module replacement.

• Proven Track Record: Trusted by industries worldwide for critical process monitoring applications.

よくある質問 (FAQ)

1. Q: How many digital inputs does the 8C-TDILA1 module support?
   A: It supports 16 discrete digital input channels.

2. Q: What types / signals can be connected to this module?
   A: It accepts both dry and wet contact signals including open and closed contacts.

3. Q: What is the typical input voltage required?
   A: Nominal input voltage is 24 V DC, with operational capability down to 12 V DC.

4. Q: Is this module compatible with Experion PKS systems?
   A: Yes, it is compatible with Honeywell Experion PKS and TDC3000 platforms.

5. Q: What is the response time for input detection?
   A: The response time is typically less than 10 milliseconds.

6. Q: Can this module operate in harsh industrial environments?
   A: Yes, it is designed for temperatures ranging from 0 to 60 °C and can handle vibration and shock.

7. Q: What are the physical dimensions and weight / this module?
   A: Dimensions are 51 x 267 x 178 mm, weighing about 0.5 kg.

8. Q: Does the module /fer electrical isolation?
   A: Yes, it provides channel-to-channel and channel-to-backplane isolation to protect signal integrity.

9. Q: How is the module mounted and connected?
   A: It is rack-mounted and connects via the control system’s backplane bus.

10. Q: What certifications does this module carry?
    A: It is certified under UL, CE, and CSA standards depending on region and configuration.
