製品紹介

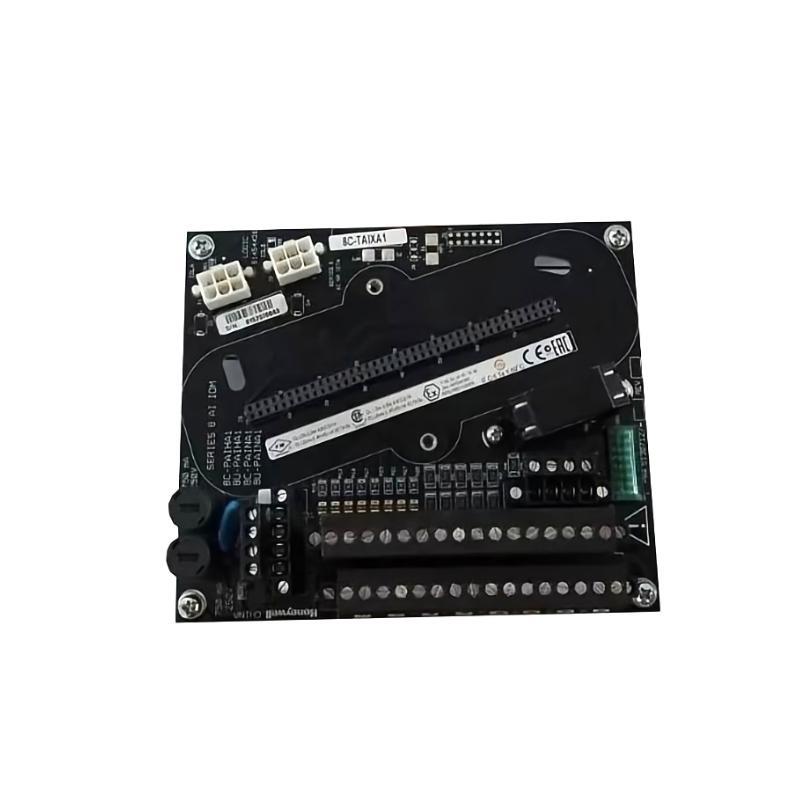

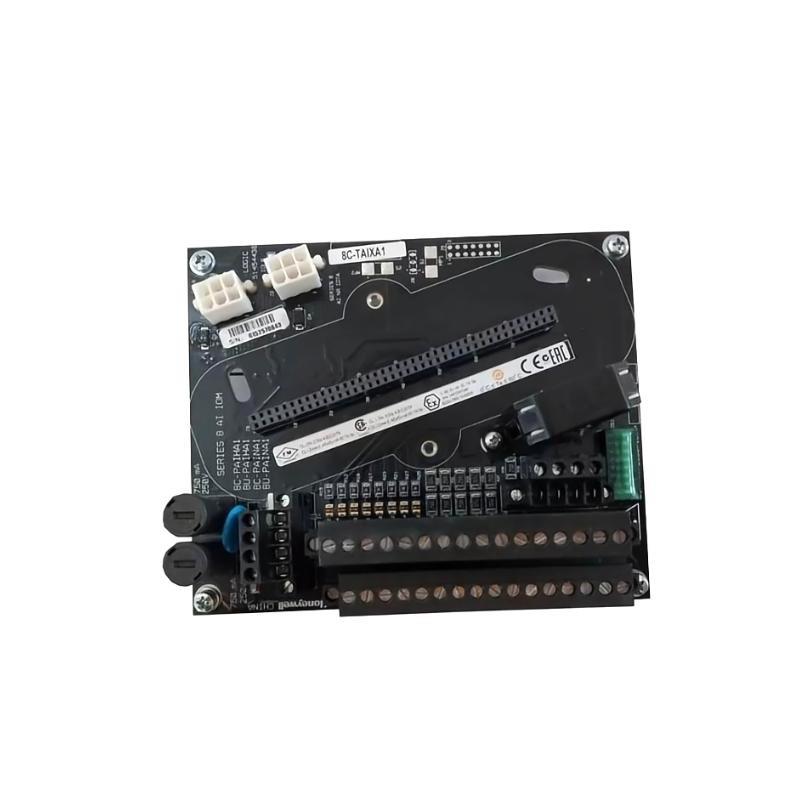

The Honeywell 8C-TAIXA1 (51307127-175) is a versatile analog input module designed to integrate with Honeywell’s Experion Process Knowledge System (PKS) and other distributed control systems. It provides reliable analog signal acquisition from field devices such as transmitters and sensors, converting various analog signals into precise digital data that can be utilized by control systems for process automation.
This module is crafted for use in challenging industrial environments, where durability and accuracy are paramount. It supports multiple input types and ranges, allowing it to interface flexibly with a wide variety / sensors. Built with a rugged construction and advanced electrical isolation, the 8C-TAIXA1 ensures signal integrity and system protection against electrical interference.
製品仕様
| Parameter | Details |
|---|---|
| モデル Number | 8C-TAIXA1 (51307127-175) |
| Module Type | Analog Input Module |
| Input Channels | 8 channels |
| サポートed Input Signals | 4-20 mA current, 0-10 V voltage, resistance inputs |
| Input Range | Configurable: 0-20 mA, 4-20 mA, 0-10 V, others |
| Accuracy | ±0.05% / full scale |
| Resolution | 16-bit Analog to Digital Converter (ADC) |
| Input Impedance | >250 Ω (current), >1 MΩ (voltage) |
| Response Time | Less than 100 milliseconds |
| Isolation | Optical isolation between inputs and control system |
| Wiring | Screw terminal blocks |
| Mounting | DIN rail or panel mounting |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95% non-condensing |
| Dimensions (W × H × D) | 220 x 120 x 152.4 mm |
| 重量 | 0.3 kg |
| Certifications | CE, UL (depending on configuration) |
| Compatible Systems | Honeywell Experion PKS, other Honeywell DCS systems |
Applications
The Honeywell 8C-TAIXA1 Analog Input Module is employed in a wide range / industrial and process control environments, including but not limited to:
-
Oil & Gas: Monitoring pressure, temperature, and flow sensors for safe and efficient operations.
-
Chemical and Petrochemical Plants: Acquisition / analog signals from critical process variables ensuring quality and safety.
-
Power Generation: Input module for controlling boilers, turbines, and auxiliary systems by collecting real-time analog data.
-
Water and Wastewater Treatment: Accurate measurement / pH, conductivity, turbidity, and other analog signals in treatment plants.
-
Pharmaceutical Manufacturing: Process control through precise analog measurements ensuring product consistency and compliance.
-
Food & Beverage: Monitoring / process parameters in automated production lines to maintain hygiene and quality standards.
-
General Industrial Automation: Used in factory automation systems for collecting sensor signals and providing feedback for control.
Advantages
-
High Precision: Offers an accuracy / ±0.05% ensuring dependable data for critical control processes.
-
Versatile Input サポート: Accepts various analog input types such as 4-20 mA, 0-10 V, and resistance signals.
-
Robust Construction: Designed for reliable operation in harsh industrial environments with strong electrical isolation.
-
Flexible Installation: サポートs both DIN rail and panel mounting to accommodate different cabinet layouts.
-
Quick Response: Low latency signal processing with a response time under 100 milliseconds.
-
Electrical Noise Imm台y: Optical isolation helps prevent signal distortion caused by transient voltages or electrical noise.
-
Easy Maintenance: Screw terminal wiring facilitates fast installation and trouble-free servicing.
-
Compatibility: Seamlessly integrates with Honeywell Experion PKS and other Honeywell Distributed Control Systems.
-
Compact Size: Space-efficient form factor enables dense installation without compromising accessibility.
-
Certified Reliability: Meets relevant international safety and EMC standards, assuring compliance and operational safety.
よくある質問 (FAQ)
-
What types / analog inputs does the 8C-TAIXA1 support?
It supports 4-20 mA current, 0-10 V voltage, and resistance inputs. -
How many input channels does this module have?
There are 8 independent analog input channels. -
What level / accuracy does the module provide?
The accuracy is ±0.05% / full scale. -
What are the physical dimensions and weight / the module?
Dimensions: 220 x 120 x 152.4 mm; 重量: 0.3 kg. -
Is the module electrically isolated from the control system?
Yes, it has optical isolation for each input channel. -
What is the operational temperature range?
The module operates between -20°C and +70°C. -
Can it be mounted on a DIN rail?
Yes, it supports DIN rail and panel mounting options. -
Which Honeywell control systems are compatible with this module?
Compatible with Honeywell Experion PKS and other Honeywell DCS systems. -
How fast does the module respond to input signal changes?
It has a response time / less than 100 milliseconds. -
Does this module comply with any industry standards?
Yes, it is CE and UL certified depending on configuration.
Related モデルs (Same Series or Similar Functionality)
| モデル Number | 説明 | Type | Channels | Application |
|---|---|---|---|---|
| 8C-TAIX60 | Basic Analog Input Module | Analog Input | 8 | Honeywell DCS |
| 8C-TAIX61 | Enhanced Analog Input Module | Analog Input | 8 | Process Control |
| 8C-TAIMA1 | Low-Level Analog Input Assembly | Analog Input | Multi | Experion PKS |
| 8C-TDOXA1 | Digital Output Module | Digital Output | 16 | Control Systems |
| 8C-TDIWA1 | Discrete Input Module | Digital Input | 8 | Field Signal Input |
| 8C-TAIX62 | High Accuracy Analog Input Module | Analog Input | 16 | Advanced Monitoring |
Popular Honeywell モデルs (Same ブランド)
| モデル Number | 説明 | Type | Channels | Compatible Systems |
|---|---|---|---|---|
| HC900-DC08 | HC900 Digital Input Module | Digital Input | 8 | HC900, Experion PKS |
| HC900-AC16 | HC900 Analog Input Module | Analog Input | 16 | HC900, Experion PKS |
| 8C-TAOEA1 | Analog Output Termination Assembly | Analog Output | Multi | Experion PKS |
| 8C-TAIMA1 | Low-level Analog Input Assembly | Analog Input | Multi | Experion PKS |
| 8C-TDIMA1 | Digital Input Termination Assembly | Digital Input | Multi | Honeywell DCS |
| UDC3200 | Universal Digital Controller | Process Controller | N/A | Multiple Applications |
