Product Overview

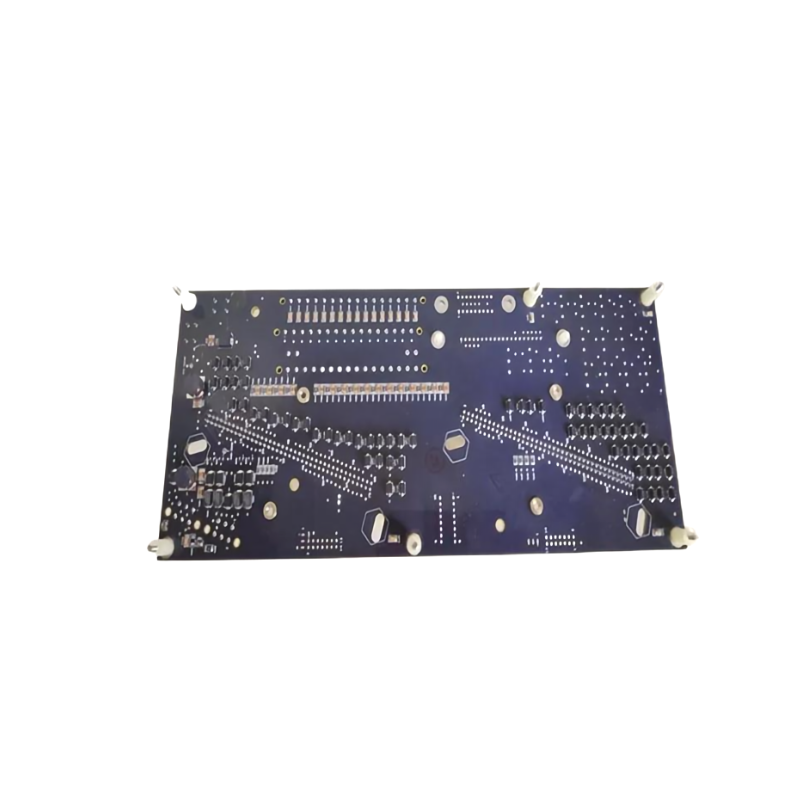

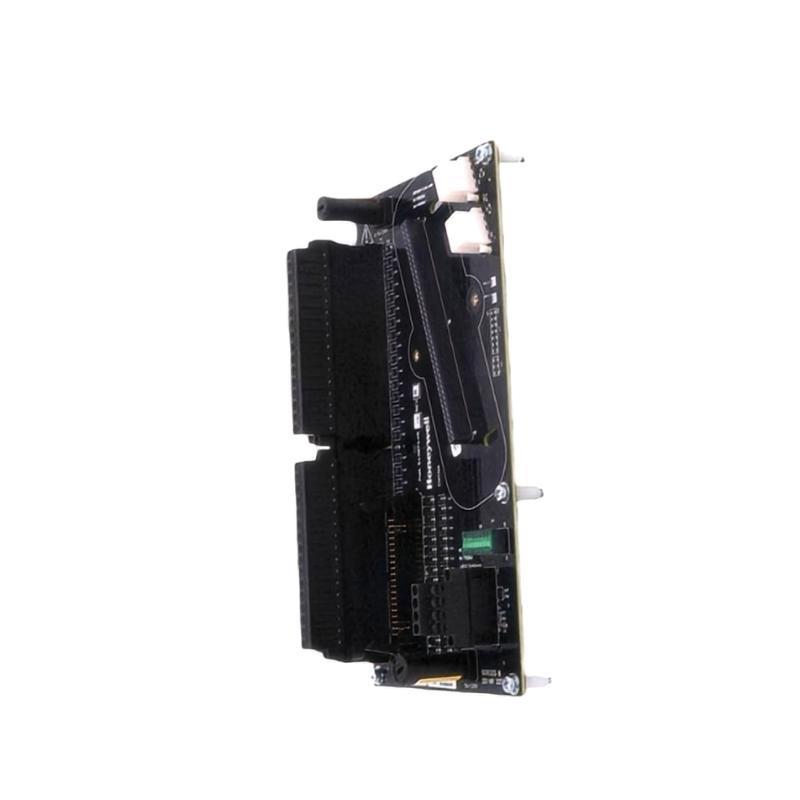

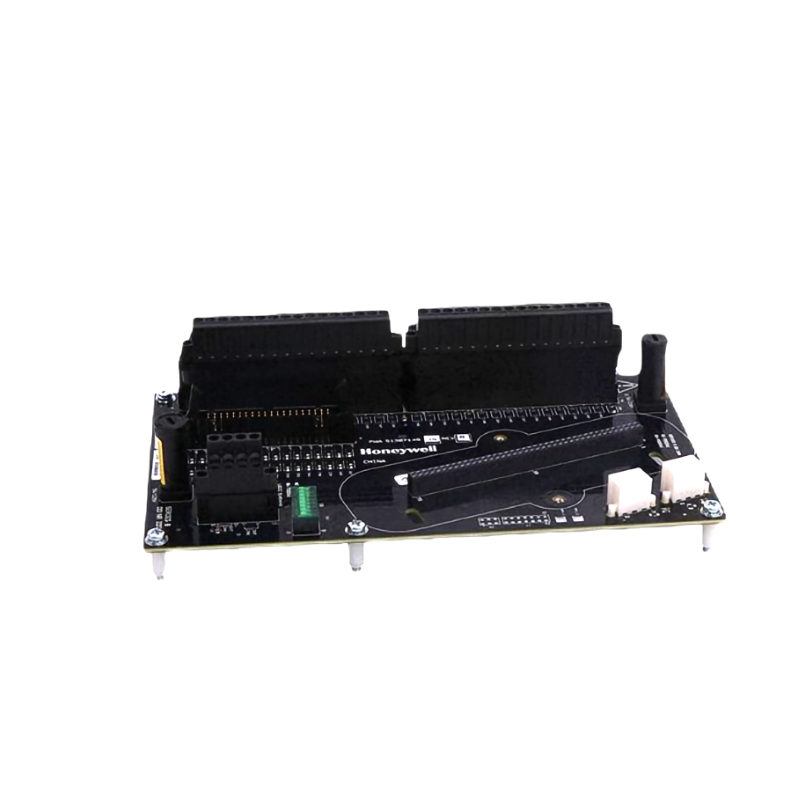

The Honeywell 8C-TAIDB1 51307133-175 is an analog input module designed for industrial automation systems. It is part / Honeywell’s Series 8 I/O family and is commonly used within the Experion PKS system. This module is engineered to interface with various analog signals, including thermocouple temperature sensors, providing reliable analog signal processing in industrial applications.
Technical Specifications
| Parameter | Specification |
|---|---|
| メーカー | Honeywell |
| モデル Number | 8C-TAIDB1 |
| Alternate 型番 | 51307133-175 |
| Input Channels | 16 (Single-ended or Differential) |
| Input Signal Type | 0-10 V or 4-20 mA |
| A/D Converter Resolution | 16 bits |
| Input Range | 1 to 5 V, 4-20 mA (through 250 Ω) |
| Voltage Rating | 24 VDC |
| Module Current Rating | 310 mA |
| Normal Mode Rejection Ratio | 19 dB at 60 Hz |
| Input Scan Rate | 50 ms |
| Operating Temperature | 0 to 60°C |
| Storage Temperature | -40 to 85°C |
| Dimensions | 220 x 120 x 304.8 mm |
| 重量 | 0.7 kg |
| Enclosure Rating | IP65 |
| Certifications | CE, Class I Division 2, Group A, B, C, D; T4 |
Applications
The Honeywell 8C-TAIDB1 module is suitable for a wide range / industrial applications, including:
-
Chemical processing
-
Oil and gas refineries
-
Power generation
-
Pharmaceutical manufacturing
-
Food and beverage processing
Advantages
-
High Accuracy: Provides precise analog signal measurements with 16-bit resolution.
-
Flexible Configuration: サポートs both single-ended and differential inputs, accommodating various sensor types.
-
Robust Design: Operates reliably in harsh industrial environments with an IP65 enclosure rating.
-
Self-Diagnostics: Features extensive self-diagnostic capabilities to ensure continuous operation.
-
Redundancy サポート: Offers optional redundancy for enhanced system reliability.
よくある質問 (FAQs)
-
What types / signals can the 8C-TAIDB1 module accept?
The module can accept 0-10 V or 4-20 mA analog signals, supporting both single-ended and differential inputs.
-
Is the module compatible with HART protocol?
Yes, the 8C-TAIDB1 module is HART-capable, allowing for communication with HART-enabled devices.
-
What is the operating temperature range / the module?
The module operates within a temperature range / 0 to 60°C.
-
Does the module support hot-swapping?
Yes, the module supports removal and insertion under power, facilitating maintenance without system downtime.
-
What is the resolution / the analog-to-digital converter?
The module features a 16-bit A/D converter for high-resolution signal processing.
-
What certifications does the module have?
The module is certified for CE and Class I Division 2, Group A, B, C, D; T4 hazardous locations.
-
Can the module be used in redundant configurations?
Yes, the module /fers optional redundancy to enhance system reliability.
-
What is the weight / the module?
The module weighs 0.42 kg.
-
What is the enclosure rating / the module?
The module has an IP65 enclosure rating, providing protection against dust and water ingress.
-
Is the module compatible with Honeywell’s Experion PKS system?
Yes, the 8C-TAIDB1 module is designed for integration with Honeywell’s Experion PKS system.
Related モデルs
| モデル Number | 説明 |
|---|---|
| 8C-TAIDB2 | Analog Input Module with enhanced features |
| 8C-TAIDB3 | Analog Input Module for high-precision applications |
| 8C-TAIDB4 | Analog Input Module with extended temperature range |
| 8C-TAIDB5 | Analog Input Module for hazardous environments |
| 8C-TAIDB6 | Analog Input Module with fast scan rate |
| 8C-TAIDB7 | Analog Input Module with additional diagnostic capabilities |
