製品紹介

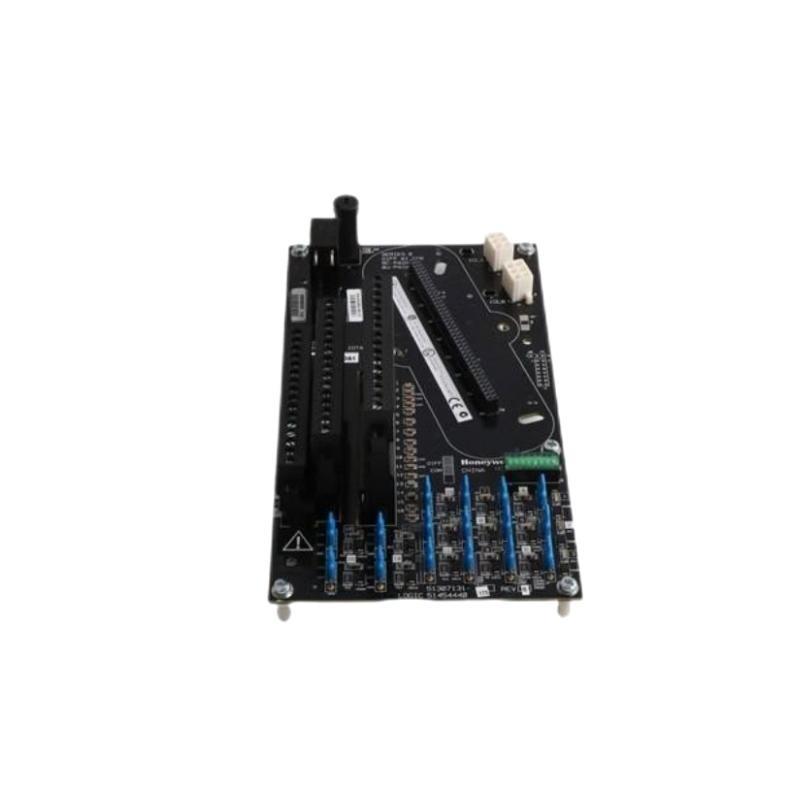

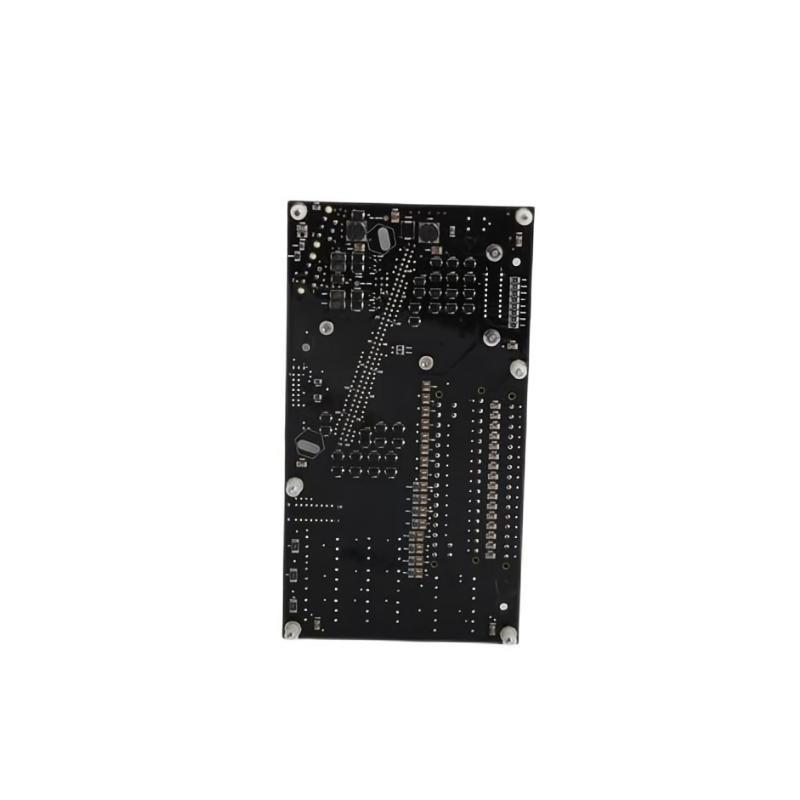

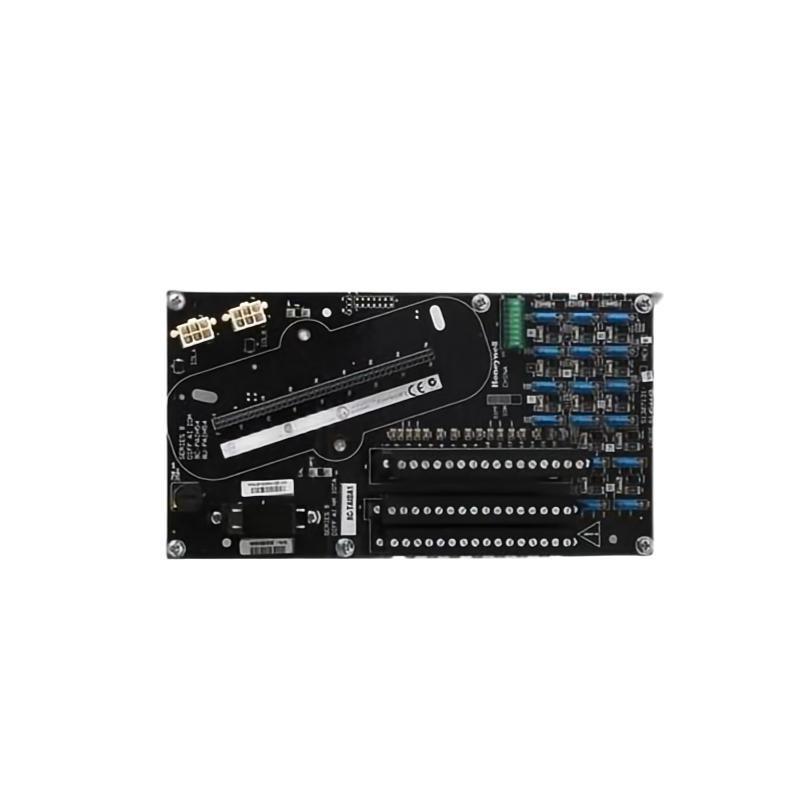

The Honeywell 8C-TAIDA1 51307131-175 Analog Input Module is a robust, industrial-grade I/O module engineered for high-performance data acquisition in critical process automation environments. As part / the C300 Process Controller architecture within the Experion PKS system, it delivers accurate, real-time signal processing and seamless integration into distributed control systems.
This module is designed to accept standard analog current signals from field devices such as transmitters and sensors, converting them into digital data for system monitoring and control. With advanced channel isolation, noise filtering, and fault diagnostics, the 8C-TAIDA1 enhances system reliability while reducing maintenance time and costs. It is an ideal choice for industries requiring precision input monitoring and scalable I/O configurations.
製品仕様
| Parameter | Specification |
|---|---|
| モデル Number | 8C-TAIDA1 |
| 型番 | 51307131-175 |
| Signal Type | Analog Input (Differential) |
| Number / Channels | 16 channels per module |
| Input Signal Range | 0–20 mA, 4–20 mA (configurable) |
| Signal Type サポートed | Current Loop Inputs |
| Input Resolution | 16-bit |
| Channel Isolation | Channel-to-channel and channel-to-ground |
| Input Impedance | 250 Ohms (typical) |
| Accuracy | ±0.1% / span at 25°C |
| Sampling Rate | 100 ms per channel (typical) |
| Diagnostics | Per-channel diagnostics, open wire detection |
| Power Supply | Via backplane from system chassis |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | 5%–95% RH non-condensing |
| Mounting Type | DIN Rail / Panel Mount |
| Dimensions (H × W × D) | 220 x 120 x 228.6 mm |
| 重量 | 0.6 kg |
| Certifications | CE, UL, CSA, ATEX, GOST-R |
| System Compatibility | Honeywell Experion PKS, C300, ControlEdge |
Product Applications
The 8C-TAIDA1 module is widely used across process industries requiring reliable and accurate analog signal input. Below are the primary applications:
-
Oil & Gas Refineries: Monitoring / pipeline pressure, flow, and temperature data across various processing 台s.
-
Chemical Processing Plants: Data acquisition from temperature, flow, and pH transmitters in batch and continuous operations.
-
Power Generation Facilities: Measurement / generator output, turbine performance, and cooling system parameters.
-
Pharmaceutical Industry: Cleanroom and bioreactor monitoring with high-accuracy analog signal capture.
-
Water & Wastewater Treatment: Supervising pump stations, tank levels, chemical dosing systems.
-
Pulp & Paper Manufacturing: Monitoring analog signals from process instruments in stock preparation and paper forming.
Product Advantages
-
High-Density Input: 16 differential analog input channels reduce hardware footprint and simplify wiring.
-
Precision and Stability: 16-bit resolution with excellent signal accuracy over temperature variations.
-
Enhanced Diagnostics: Built-in fault detection features like open wire, signal failure, and overrange alerts.
-
Robust Isolation: Ensures electrical separation between channels, preventing cross-talk and signal interference.
-
Industrial Reliability: Built to operate in demanding conditions, meeting global safety and durability standards.
-
Flexible Integration: Seamlessly integrates into Honeywell’s Experion and ControlEdge systems, with easy engineering via Control Builder tools.
-
Modular Architecture: サポートs hot-swapping, allowing maintenance or upgrades without system downtime.
-
Global Compliance: Fully certified for deployment in industrial facilities worldwide.
よくある質問 (FAQ)
-
Q: What is the main function / the 8C-TAIDA1 module?
A: It receives analog current signals (typically 4–20 mA) from field devices and converts them into digital data for processing by Honeywell control systems. -
Q: How many analog inputs are supported by the module?
A: The module supports 16 independent differential analog input channels. -
Q: Is this module suitable for redundant system configurations?
A: Yes, it can be configured in redundant setups within the C300 controller platform. -
Q: Can the module be hot-swapped during operation?
A: Yes, hot-swapping is supported, allowing replacement without system shutdown. -
Q: What diagnostics features are available?
A: The module includes open wire detection, input overrange, and internal fault monitoring for each channel. -
Q: What environments is this module designed for?
A: It is suitable for industrial environments with operating temperatures from 0°C to +60°C and up to 95% RH humidity. -
Q: Is the module compatible with other Honeywell I/O systems?
A: It is designed for the C300 and ControlEdge platforms and integrates fully with Experion PKS. -
Q: What certifications does it have?
A: CE, UL, CSA, ATEX, and GOST-R certified for global use. -
Q: What is the resolution / signal measurement?
A: It /fers a 16-bit resolution for high-accuracy signal acquisition. -
Q: What is the weight / the 8C-TAIDA1 module?
A: The module weighs 0.6 kg.
Related モデルs (Same Series or Compatible)
| モデル | 説明 | Signal Type | Channels | System Compatibility |
|---|---|---|---|---|
| 8C-TAID61 | Analog Input Module | Analog Input | 16 | C300 / Experion PKS |
| 8C-PAINA1 | High-Accuracy Analog Input | Analog Input | 8 | C300 |
| 8C-PAINA2 | Extended Range Analog Input | Analog Input | 16 | C300 / Safety Manager |
| 8C-TAIX61 | Analog Input, Extended Temp Range | Analog Input | 16 | Experion PKS / ControlEdge |
| 8C-PAONA1 | Analog Output Module | Analog Output | 8 | ControlEdge |
| 8C-TDIL51 | Digital Input Module | Digital Input | 16 | C300 |
Popular Honeywell モデルs (Same ブランド)
| モデル | 説明 | Signal Type | Channels | Dimensions (mm) |
|---|---|---|---|---|
| CC-TAIX01 | Analog Input Module | Analog Input | 8 | 249 x 24 x 118 |
| CC-TAOX01 | Analog Output Module | Analog Output | 8 | 249 x 24 x 118 |
| CC-TDIL01 | Digital Input Module | Digital Input | 16 | 249 x 24 x 118 |
| CC-TDOD01 | Digital Output Module | Digital Output | 16 | 249 x 24 x 118 |
| CC-PDIL01 | Pulse Input Module | Pulse Input | 8 | 249 x 24 x 118 |
| CC-PDOB01 | Pulse Output Module | Pulse Output | 8 | 249 x 24 x 118 |
