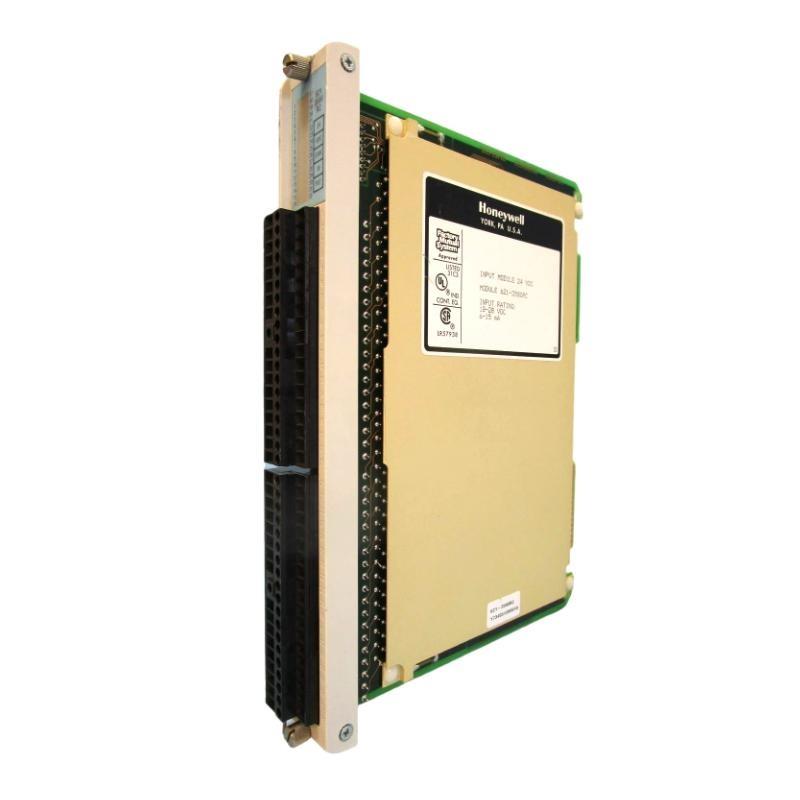

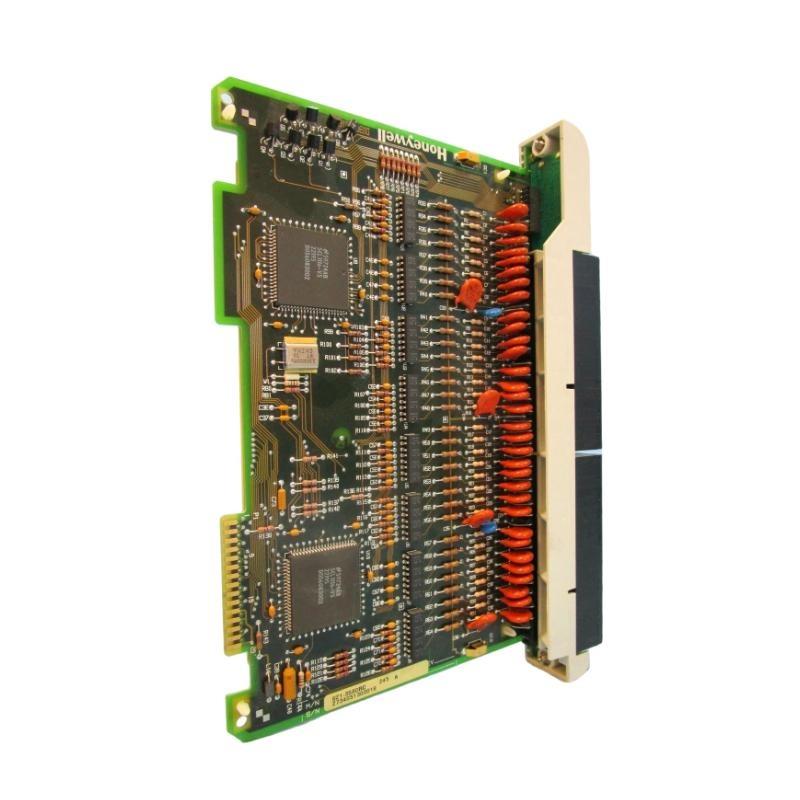

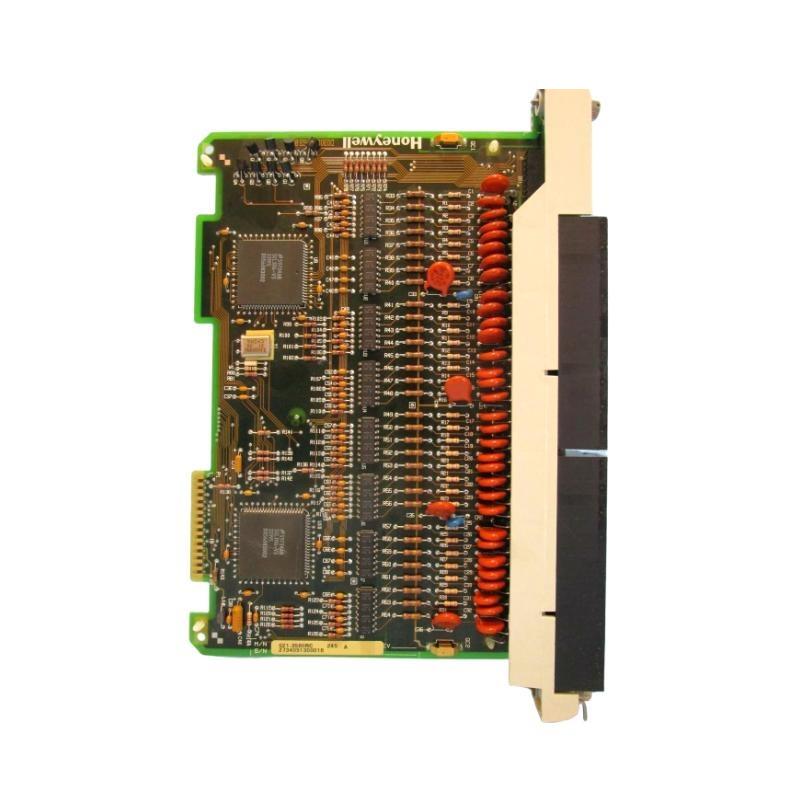

The Honeywell 621-3580RC Input Module is a high-performance analog input module designed to meet the demanding needs / process automation environments. Engineered specifically for Honeywell’s TDC 3000 control systems, this module plays a vital role in capturing and digitizing analog signals from field instruments for processing within the distributed control system.
This module features multiple isolated analog input channels that support current and voltage signal types, including 4–20 mA and 0–10 V, /fering great flexibility for various industrial applications. It’s robust, reliable, and built to operate seamlessly in harsh conditions—ensuring that critical analog measurements are accurately captured and reliably transmitted for processing and analysis.
The 621-3580RC is widely utilized in industries such as oil and gas, power generation, water treatment, and chemical manufacturing, where real-time data accuracy and system reliability are paramount. Equipped with diagnostic capabilities and built-in safety features, it minimizes system downtime while ensuring high operational continuity.
Technical Specifications
| Parameter | Details |
|---|---|
| モデル Number | 621-3580RC |
| メーカー | Honeywell |
| Product Type | Analog Input Module |
| System Compatibility | TDC 3000 Series |
| Number / Channels | 8 Analog Input Channels |
| Input Signal Types | 4–20 mA, 0–10 V (S/tware Selectable) |
| Input Impedance | > 250 Ω (Current), > 1 MΩ (Voltage) |
| Resolution | 12-bit |
| Channel Isolation | Galvanic Isolation per Channel |
| Accuracy | ±0.1% Full Scale |
| Scan Time | < 10 ms per channel |
| Diagnostics | Signal integrity monitoring, wiring check |
| Power Supply | 24 VDC (Nominal) |
| Mounting Style | Rack Mounted |
| Cooling Requirements | Natural Convection (Fan Optional) |
| Operating Temperature | 0°C to +60°C (32°F to 140°F) |
| Storage Temperature | -40°C to +85°C (-40°F to 185°F) |
| Humidity Range | 5% to 95% RH (Non-condensing) |
| Protection Rating | IP20 (must be enclosed for higher protection) |
| Dimensions (L×W×H) | 120 × 80 × 50 mm |
| 重量 | 0.5 kg |
| Certifications | CE, UL Listed, RoHS Compliant |
Product Applications
The Honeywell 621-3580RC Input Module finds applications in a wide range / industries and process environments, including:
-
Oil & Gas Processing
Gathers sensor data such as flow, pressure, and temperature in upstream and downstream operations. -
Power Generation Facilities
Captures data from steam temperature, water levels, and pressure instrumentation in turbines and boilers. -
Water & Wastewater Treatment
Monitors water quality metrics such as turbidity, pH levels, and chemical dosing rates. -
Chemical Manufacturing
Provides accurate data input from various analog field instruments to support precise chemical blending and reactions. -
Pharmaceutical Production
Enables compliant data monitoring for batch processes and cleanroom control systems. -
Food & Beverage Plants
Tracks critical temperature, humidity, and flow parameters for consistent production and safety compliance.
Product Advantages
-
Reliable Signal Accuracy
Offers precise analog data collection with minimal drift, enhancing the accuracy / process controls. -
Flexible Signal サポート
Accepts both current and voltage inputs, supporting a wide variety / field instrumentation. -
Channel Isolation for Protection
Individual galvanic isolation safeguards channels from mutual interference and signal cross-talk. -
High System Availability
サポートs fast diagnostics and easy replacement to reduce downtime in critical systems. -
Robust Environmental Tolerance
Operates reliably in high-temperature, high-humidity industrial environments. -
Compact Design
Slim pr/ile supports high-density rack installation, saving valuable control cabinet space. -
Diagnostic Intelligence
Alerts operators to wiring faults and signal degradation for proactive maintenance. -
TDC 3000 Compatibility
Integrates directly with existing Honeywell systems, reducing setup time and investment.
よくある質問 (FAQ)
1. What signal types can the 621-3580RC process?
The module supports 4–20 mA current and 0–10 V voltage analog inputs, selectable via s/tware.
2. Is each input channel isolated?
Yes, all input channels are galvanically isolated to protect against electrical noise and signal interference.
3. Can the module be configured remotely?
Yes, configuration can be performed through the TDC 3000 system interface.
4. How many input channels does it support?
It supports 8 analog input channels.
5. Does the module support diagnostic features?
Yes, it includes onboard diagnostics for fault detection such as open loop and signal loss.
6. Can it operate in high humidity conditions?
Yes, it operates effectively in 5%–95% relative humidity, non-condensing.
7. What is the expected operational lifespan?
When used under standard conditions, the module typically lasts 10+ years.
8. Is hot-swapping supported?
No, the module should be powered down before removal or installation.
9. How does it integrate with legacy Honeywell systems?
It is designed to plug directly into TDC 3000 racks and integrate seamlessly with control logic.
10. What maintenance is required?
Minimal maintenance is needed. Regular visual inspections and system-level diagnostics are recommended.
Related モデルs (Same Series or Functional Group)
| モデル Number | 説明 | Signal Type | System Compatibility |
|---|---|---|---|
| 621-3560RC | Analog Input Module | 4–20 mA / 0–10 V | Honeywell TDC 3000 |
| 621-3502 | Analog Input Module | Analog | Honeywell TDC 3000 |
| 621-3552RC | Analog Input Module | Current/Voltage | Honeywell TDC 3000 |
| 621-3560 | Analog Output Module | 4–20 mA | Honeywell TDC 3000 |
| 621-3300 | Digital Input Module | Discrete | Honeywell TDC 3000 |
| 621-1100 | Diagnostic Module | System Diagnostics | Honeywell TDC 3000 |
Popular Honeywell Modules (Same ブランド)
| モデル Number | 型番 | Function | System/Application |
|---|---|---|---|
| CC-TAIX01 | 51405038-375 | Analog Input Module | Honeywell Experion C300 |
| CC-PAOH01 | 51405039-175 | Analog Output Module | Honeywell DCS |
| CC-TDIL01 | 51405040-175 | Digital Input Module | Discrete Input Control |
| MC-TAMR03 | 80363969-150 | Universal Input Receiver | Field Instrument Interface |
| CC-TDOD01 | 51405042-175 | Digital Output Module | Logic Output Control |
| CC-PDIL01 | 51405040-275 | Digital Input Module | Field Signal Integration |
