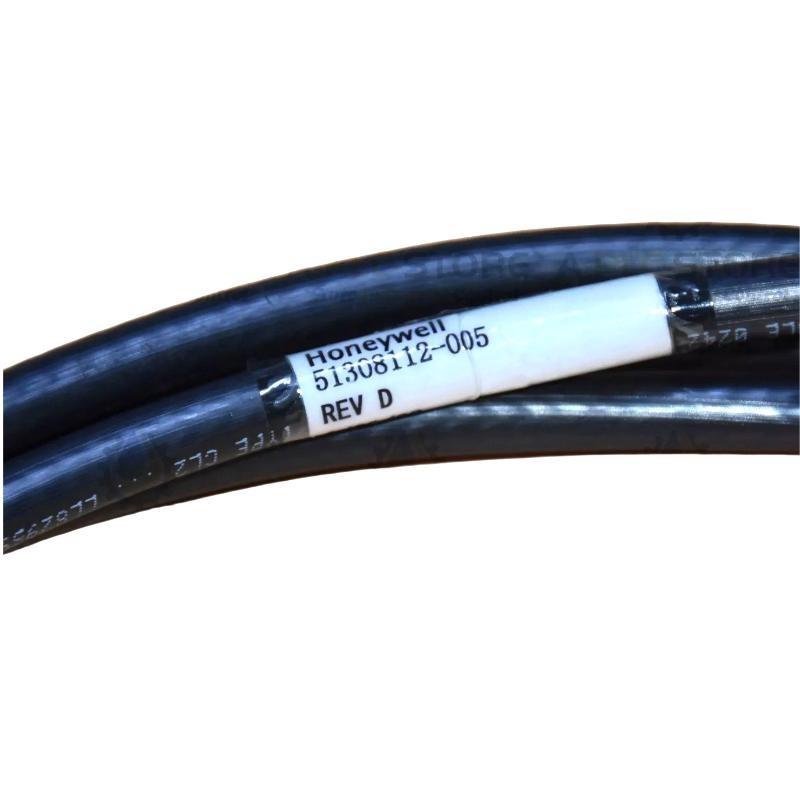

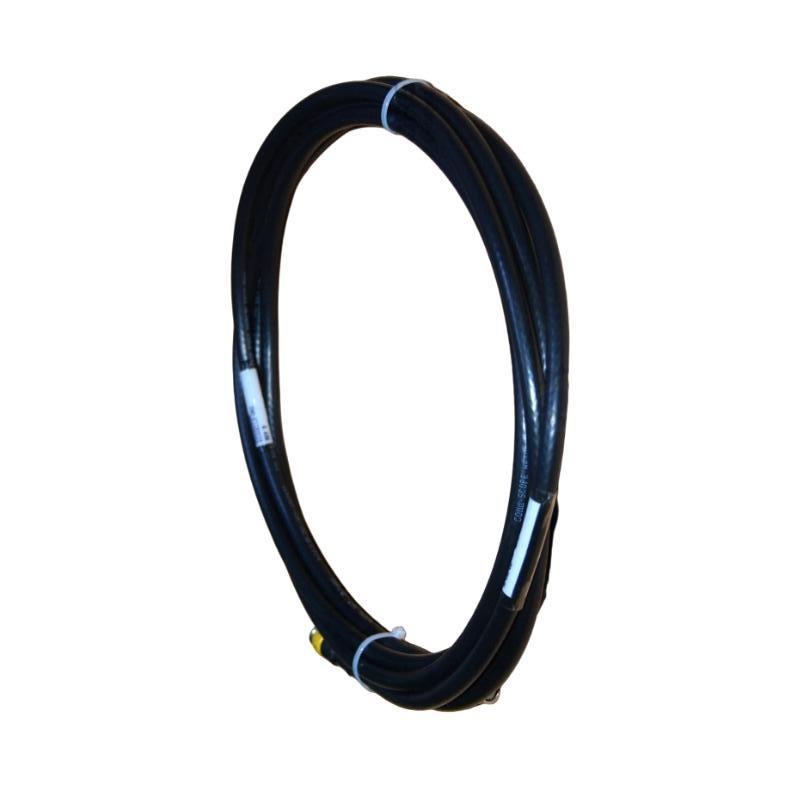

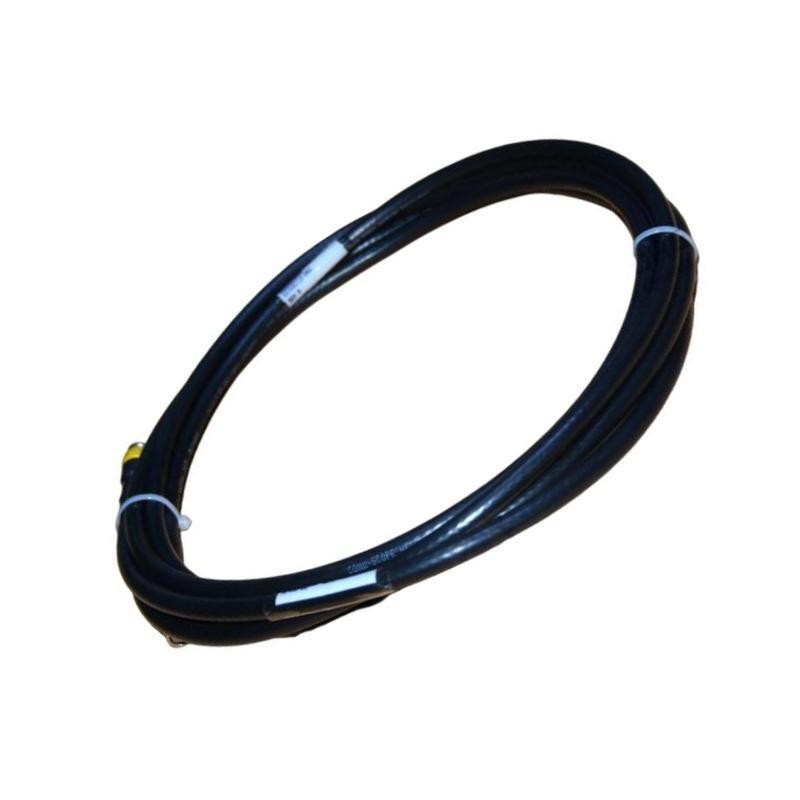

The Honeywell 51308112-005 LCN Coaxial Cable Kit is a specialized communication cable kit designed for Local Control Network (LCN) connections within Honeywell’s Distributed Control Systems (DCS). It is engineered to ensure high-speed, interference-free data transmission between critical control modules, operator stations, and network interface components.
With its coaxial design, the 51308112-005 provides excellent signal integrity and low attenuation over its 5-meter length, making it ideal for reliable data communication in high-noise industrial environments. The cable kit is constructed with premium shielding and robust insulation to protect against electromagnetic interference (EMI) and mechanical stress, ensuring consistent performance in mission-critical automation systems.
製品仕様
| Parameter | Details |
|---|---|
| Product モデル | Honeywell 51308112-005 LCN Coaxial Cable Kit |
| Cable Type | Coaxial Industrial Communication Cable |
| Cable Length | 5 meters |
| Conductor Material | High-purity Copper |
| Conductor Type | Solid or Stranded Center Conductor |
| Shielding | Double Shielded (Foil and Braided Shield) |
| Insulation Material | Foam PE or Low-Loss Dielectric |
| Outer Jacket | Industrial-grade PVC or Polyethylene |
| Operating Voltage | Up to 300 V |
| Characteristic Impedance | 75 Ω ±3% (typical for LCN coaxial networks) |
| Signal サポート | High-speed digital data for LCN networks |
| Operating Temperature | –20°C to +80°C |
| Flame Retardant | UL VW-1 or equivalent |
| Compliance Standards | UL, CE, RoHS, IEC |
| 重量 | 0.454 |
Product Applications
The Honeywell 51308112-005 LCN Coaxial Cable Kit is designed for high-performance networking in Honeywell DCS systems. Key applications include:
-
Local Control Network (LCN): Provides secure and stable connectivity between LCN nodes, operator stations, and controllers.
-
DCS Networking: Ensures high-speed and low-noise data transmission in critical process automation networks.
-
Control Panel Integration: Used for short-distance, high-integrity network wiring inside control cabinets.
-
Retr/it and Upgrades: Fully compatible with Honeywell legacy LCN infrastructure for system modernization.
-
Industrial Process Plants: Suitable for high-EMI environments such as refineries, power plants, and manufacturing facilities.
Product Advantages
-
Superior Signal Integrity: Coaxial construction with double shielding minimizes signal loss and external interference.
-
Optimized for LCN Systems: Designed to meet Honeywell’s stringent requirements for Local Control Network communication.
-
Rugged Industrial Design: Resistant to temperature variations, mechanical stress, and electromagnetic noise.
-
Consistent Performance: Ensures stable and reliable data transmission for mission-critical applications.
-
Easy Integration: Compatible with Honeywell DCS and legacy LCN networks without additional adapters.
-
Standards Compliant: Meets UL, CE, RoHS, and IEC safety and quality standards for industrial communication cables.
FAQ
-
What is the characteristic impedance / the 51308112-005 LCN Coaxial Cable?
The cable is designed with a characteristic impedance / 75 Ω ±3%, optimized for Honeywell LCN communication. -
Can the cable be used for both new and legacy Honeywell LCN systems?
Yes, it is fully compatible with both modern and older LCN infrastructures. -
Does the 51308112-005 provide EMI and RFI protection?
Yes, it features double shielding (foil and braided) to minimize electromagnetic and radio frequency interference. -
Is the cable suitable for high-speed digital data transmission?
Yes, the coaxial design supports high-speed and low-attenuation digital signals required by LCN networks. -
What type / conductor is used in the cable?
It uses a high-purity copper center conductor with either solid or stranded construction, depending on the variant. -
What is the recommended operating temperature range?
The cable operates reliably between –20°C and +80°C. -
Is the 51308112-005 RoHS compliant?
Yes, it meets RoHS as well as UL, CE, and IEC standards. -
Does the cable require special termination for LCN systems?
Yes, proper 75 Ω termination is required for optimal performance in LCN networks. -
Can the cable be used in environments with high electromagnetic noise?
Absolutely, its dual shielding makes it ideal for high-EMI industrial environments. -
Is the 51308112-005 suitable for short-distance high-integrity network wiring?
Yes, its 5-meter length and coaxial design make it perfect for panel-to-panel and module-to-module connections.
Related モデルs (Same Series or Similar)
| モデル | 説明 | Key Features |
|---|---|---|
| Honeywell 51308112-003 | LCN Coaxial Cable Kit (3 m) | Shorter version for close-range connections |
| Honeywell 51308112-010 | LCN Coaxial Cable Kit (10 m) | Extended reach for large control panels |
| Honeywell 51308111-002 | LCN Network Coaxial Cable | Optimized for legacy LCN nodes |
| Honeywell 51308113-001 | LCN Shielded Coaxial Cable | Enhanced shielding for high-EMI environments |
| Honeywell 51308110-005 | Industrial Coaxial Communication Cable | General-purpose coaxial for DCS systems |
| Honeywell 51308114-004 | LCN High-Performance Coaxial Cable | Low-attenuation cable for critical networks |
Popular モデルs from the Same ブランド
| モデル | Product Type | Application |
|---|---|---|
| Honeywell 51308103-003 | Industrial Communication Cable | Signal cable for Honeywell DCS modules |
| Honeywell 51308106-100 | Industrial Signal Cable | Used for controller and I/O interconnections |
| Honeywell 51403422-150 | Communication Interface Cable | Links control modules in process networks |
| Honeywell 51309512-001 | System Signal Cable | Designed for process automation wiring |
| Honeywell 51309218-200 | Field Device Communication Cable | Sensor and actuator communication |
| Honeywell 51308087-200 | Legacy System Integration Cable | Backward-compatible with Honeywell systems |
