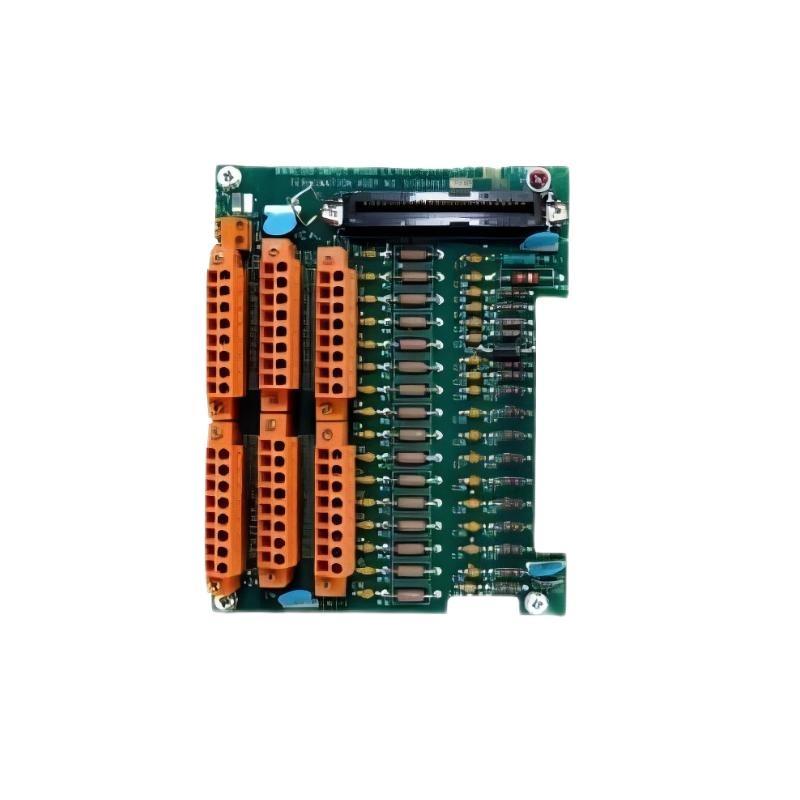

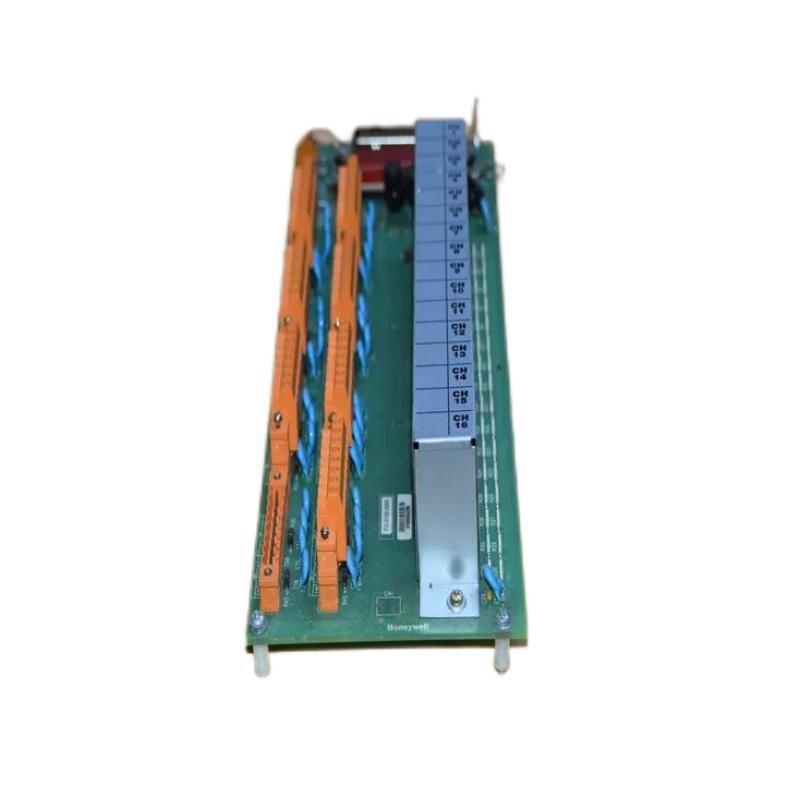

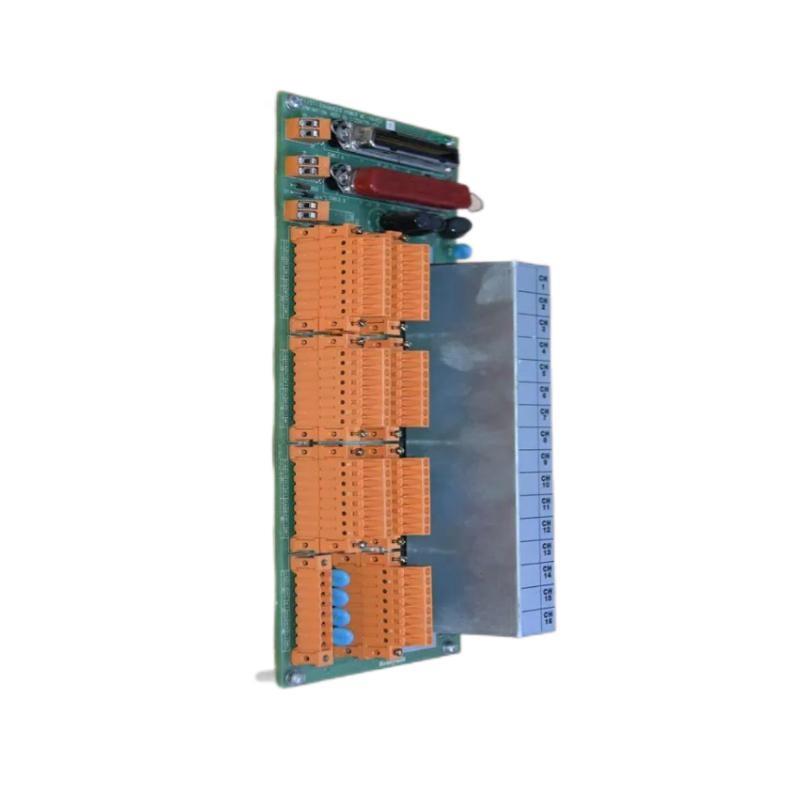

The Honeywell 51204170-250 High-Level Analog Input Module is a robust and precise module designed to interface with high-level analog signals in industrial automation systems. This module is used to acquire and process analog signals from various field instruments such as pressure transmitters, temperature sensors, flow meters, and other types / process measurement devices. It is ideal for use in environments where high accuracy and reliability are paramount.
With the ability to handle high-level analog inputs, the module /fers excellent signal conditioning and processing capabilities, providing valuable data to control systems for further analysis and decision-making. The module is specifically designed for integration into Honeywell’s C200 and C300 control systems, making it highly compatible with Honeywell’s Distributed Control Systems (DCS).
The 51204170-250 module is essential for industries like chemical processing, oil & gas, power generation, and water treatment, where continuous monitoring and accurate control are necessary. Its durable design and high-performance characteristics make it suitable for long-term operations in harsh environments.
製品仕様
| Parameter | Specification |
|---|---|
| モデル Number | 51204170-250 |
| Module Type | High-Level Analog Input Module |
| Input Type | 4-20 mA, 0-10 V |
| Channels | 8 Analog Input Channels |
| Input Range | 4-20 mA, 0-10 V |
| Accuracy | ±0.1% / Full Scale |
| Input Impedance | > 10 MΩ |
| Signal 状態ing | Linearization, Filtering, Amplification |
| Dimensions (H x W x D) | 100 x 40 x 60 mm |
| 重量 | 0.5 kg |
| Power Supply | 24 V DC ±10% |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Mounting Type | DIN Rail |
| Compliance | CE, UL, RoHS |
| Certifications | Ex-rated versions available upon request |
| Response Time | < 5 ms |
Product Applications
The Honeywell 51204170-250 High-Level Analog Input Module is versatile and is utilized across various industries for applications that require precise analog input signal processing. Some / the key applications include:
-
Process Control Systems: The module is ideal for acquiring data from field instruments like temperature, pressure, and flow transmitters in industries such as chemical processing, oil refineries, and power generation. The signals are processed to control and monitor industrial processes in real-time.
-
Industrial Automation: Used to interface with sensors that monitor the condition / industrial machinery and equipment, such as pressure sensors in compressors, level sensors in tanks, and flow meters in pipelines.
-
Oil & Gas Industry: The module is used to monitor and control vital parameters such as pressure, flow, and temperature in /fshore rigs, refineries, and gas pipelines.
-
Water Treatment Systems: In water treatment facilities, it is used to process analog signals from sensors that monitor water quality, flow rates, and chemical dosages.
-
HVAC Control Systems: It processes signals from sensors like temperature sensors, humidity sensors, and pressure transmitters in heating, ventilation, and air conditioning systems to ensure optimal system performance.
-
Energy Monitoring: Used in energy generation plants to monitor key process variables and ensure efficient operations. It helps monitor steam temperature, pressure, and flow in power stations.
Product Advantages
-
High Accuracy: The 51204170-250 module /fers excellent accuracy, with a tolerance / ±0.1% / full scale. This ensures that the processed analog signals are precise, making it ideal for applications requiring exact measurements.
-
Flexible Input Types: The module can handle both 4-20 mA and 0-10 V inputs, allowing for integration with a variety / field instruments used in industrial applications.
-
Signal 状態ing: This module provides built-in signal conditioning capabilities, including amplification, filtering, and linearization, which are necessary to process signals from field devices with different output characteristics.
-
High Channel Density: With 8 channels in a single module, it allows for efficient data acquisition from multiple devices without requiring additional modules, optimizing panel space.
-
Rugged Design: The 51204170-250 is built to withstand harsh environments, with an operating temperature range / -20°C to +60°C and the ability to operate in both indoor and outdoor environments.
-
Easy Installation: The module can be mounted on a DIN rail, which simplifies installation and allows for modular, flexible system configurations.
-
Ex-rated Versions 対応可能: For hazardous areas, Ex-rated versions / the module can be provided, ensuring safe operation in explosive or flammable environments.
-
Long-Term Reliability: Designed for industrial applications, the module provides reliable, long-term performance, minimizing the need for maintenance and reducing operational downtime.
よくある質問 (FAQ)
-
Q: What is the purpose / the Honeywell 51204170-250 High-Level Analog Input Module?
A: This module is designed to acquire and process high-level analog signals from field instruments like pressure transmitters, temperature sensors, and flow meters for integration into industrial control systems. -
Q: What types / input signals can the module handle?
A: The 51204170-250 module can handle 4-20 mA and 0-10 V input signals. -
Q: How many channels does the Honeywell 51204170-250 have?
A: The module has 8 analog input channels. -
Q: What is the accuracy / the analog inputs?
A: The module provides an accuracy / ±0.1% / full scale. -
Q: What is the response time / this module?
A: The response time / the 51204170-250 is less than 5 milliseconds. -
Q: Can the module be used in hazardous areas?
A: Yes, Ex-rated versions / this module are available for use in explosive or hazardous environments. -
Q: What is the power supply requirement for the Honeywell 51204170-250?
A: The module requires a 24 V DC power supply with a tolerance / ±10%. -
Q: What is the operating temperature range / the module?
A: The module operates within a temperature range / -20°C to +60°C. -
Q: What is the mounting method for the module?
A: The 51204170-250 module can be mounted on a DIN rail for easy and flexible installation. -
Q: What are the dimensions and weight / the module?
A: The dimensions are 100 x 40 x 60 mm, and the weight is 0.5 kg.
Related or Similar モデルs (Same Series/Function)
| モデル Number | 説明 | Channels | Input Type | Compatible Systems |
|---|---|---|---|---|
| 51204171-250 | High-Level Analog Input Module | 8 | 4-20 mA, 0-10 V | Honeywell C200 Series |
| 51204172-250 | High-Level Analog Input Module with Enhanced Accuracy | 16 | 4-20 mA, 0-10 V | Honeywell C300 Series |
| 51204174-250 | Multi-Channel Analog Input Module | 16 | 4-20 mA, 0-10 V | Honeywell C300 Series |
| 51204173-250 | Analog Input Module for Industrial Systems | 8 | 4-20 mA, 0-10 V | Honeywell C500 Series |
| 51204175-250 | High-Level Analog Input Module with Enhanced Signal 状態ing | 8 | 4-20 mA, 0-10 V | Honeywell C100 Series |
| 51204176-250 | Universal High-Level Analog Input Module | 8 | 4-20 mA, 0-10 V | Honeywell C200 Series |
Popular モデルs from Honeywell ブランド
| モデル Number | 説明 | Channels | Input Type | Compatible Systems |
|---|---|---|---|---|
| 51204168-250 | Universal Analog Input Module | 8 | 4-20 mA, 0-10 V | Honeywell C300 Series |
| 51204170-150 | High-Performance Analog Input Module | 16 | 4-20 mA, 0-10 V | Honeywell DCS Systems |
| 51204169-250 | Multi-Channel Analog Input Module | 16 | 4-20 mA, 0-10 V | Honeywell C200 Series |
| 51204171-150 | High-Level Signal Input Module | 8 | 4-20 mA, 0-10 V | Honeywell C500 Series |
| 51204177-250 | Analog Signal 状態ing Module | 8 | 4-20 mA, 0-10 V | Honeywell Control Systems |
| 51204178-250 | High-Level Signal Acquisition Module | 8 | 4-20 mA, 0-10 V | Honeywell Process Systems |
