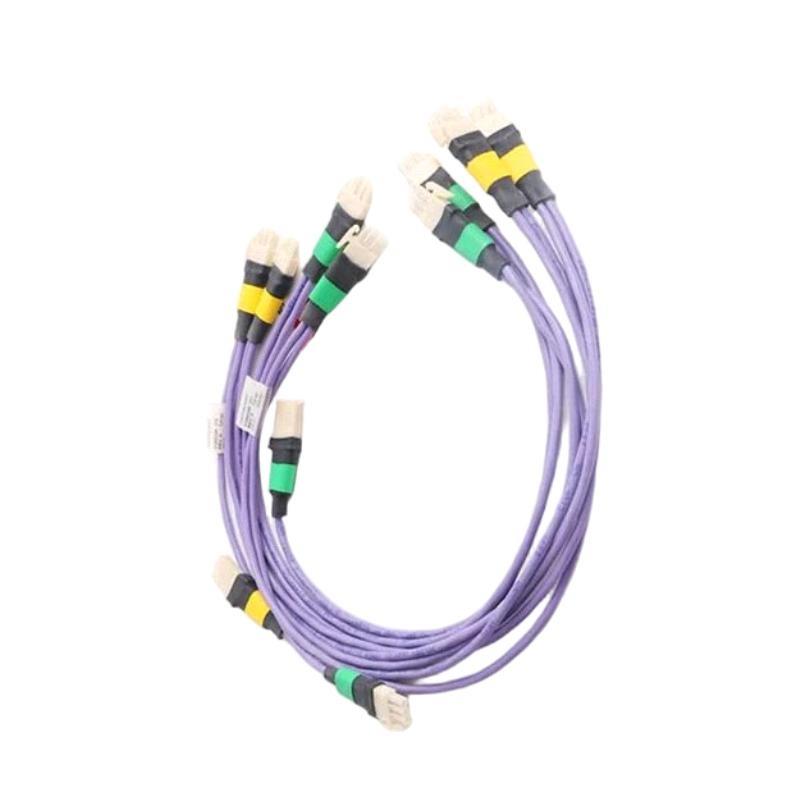

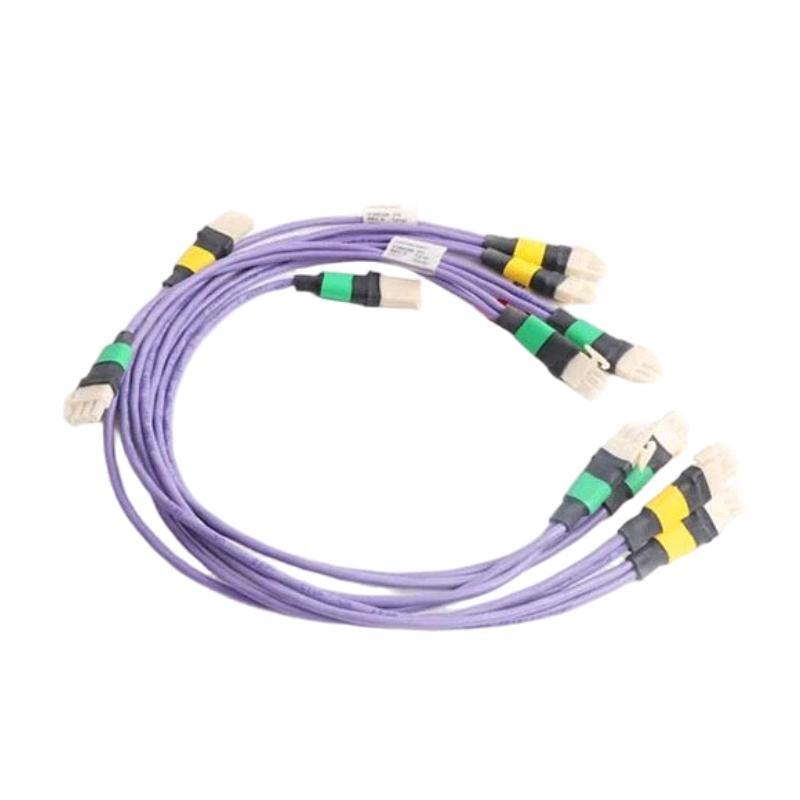

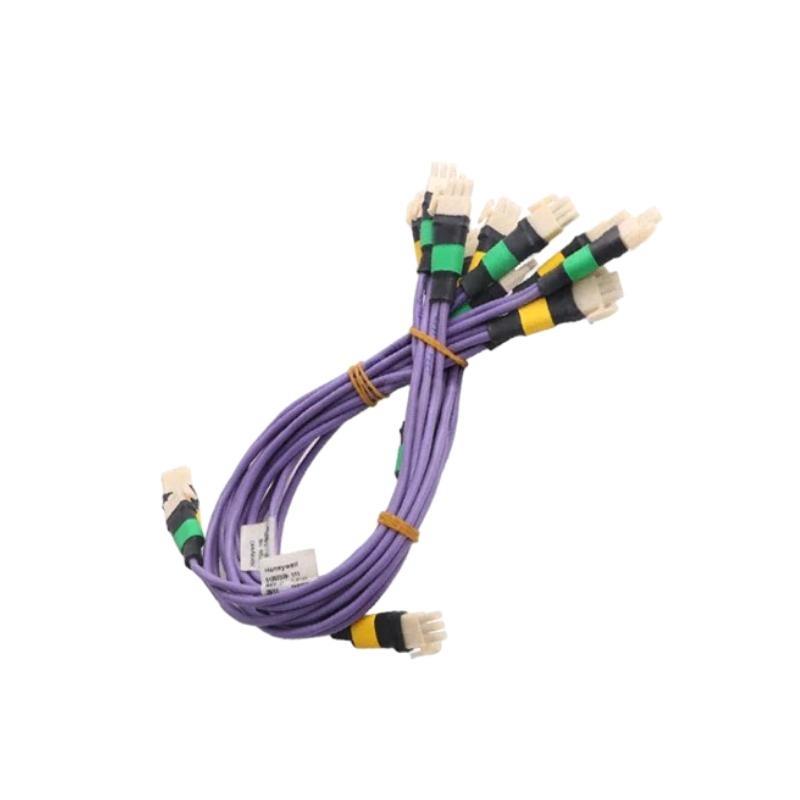

The Honeywell 51202329-110 Violet Drop Cable is a specialized industrial-grade communication cable designed to ensure reliable connectivity between Honeywell’s control system components. As part / the color-coded drop cable family used in Distributed Control Systems (DCS), the violet variant is typically used to denote a specific signal path or function in line with Honeywell’s wiring standards.
This cable is specifically tailored for applications within the Honeywell TDC 3000 and Experion PKS systems, supporting data and control signal transmissions between remote modules and controllers. With high-performance shielding, durable construction, and a factory-installed connector, the 51202329-110 guarantees consistent electrical performance, minimal signal degradation, and easy integration into complex industrial environments.
製品仕様
| Parameter | 説明 |
|---|---|
| Product Name | Violet Drop Cable |
| 型番 | 51202329-110 |
| メーカー | Honeywell |
| Cable Type | Color-coded shielded drop cable |
| Application | Communication link in Honeywell DCS systems |
| Drop Cable | 6 Drop |
| Color | Violet (for signal path identification) |
| Connector Type | Factory-installed, system-matched connector |
| Number / Conductors | 2-conductor twisted pair |
| Conductor Size | 22 AWG stranded tinned copper |
| Shielding | Foil + braided shield |
| Jacket Material | Flame-retardant PVC |
| Voltage Rating | 300V |
| Operating Temperature | -25°C to +80°C |
| Outer Diameter | 6.0 mm |
| Package 重量 | 2 kg |
| Environmental Protection | IP20 (indoor use only) |
| Certifications | UL Recognized, CE, RoHS Compliant |
| Flame Resistance | Meets UL 1581 VW-1 standard |
Applications
The 51202329-110 Violet Drop Cable is engineered for integration into a variety / Honeywell industrial control environments. It plays an essential role in organizing and transmitting signals in systems requiring precise identification and high-performance communication. Common use cases include:
-
TDC 3000 and Experion PKS Systems: Enables accurate and uninterrupted signal routing between field modules and control 台s.
-
Color-Coded Signal Identification: Violet cabling designates specific functions or system paths, aiding in easier system diagnostics and maintenance.
-
Industrial Control Cabinets: Compact and pre-configured, the cable is ideal for confined panel routing.
-
Power Generation Facilities: Used in turbine control systems and boiler automation where consistent signal quality is critical.
-
Petrochemical and Refining Plants: Withstands industrial noise environments to maintain data fidelity.
-
OEM System Integration: Preferred for building uniform, labeled, and color-coded control subsystems.
Product Advantages
-
Pre-Terminated Design: Simplifies field installation with pre-installed connectors that ensure proper orientation and contact.
-
High EMI Protection: Dual shielding prevents electromagnetic interference and cross-talk in dense wiring environments.
-
Color Identification: Violet jacket supports signal routing clarity, especially in high-density or multi-channel systems.
-
Reliable Signal Transmission: Twisted pair design with quality copper conductors ensures minimal data loss.
-
Flexible & Lightweight: Small diameter and lightweight structure allow easier handling and routing in control cabinets.
-
Long-Term Durability: Flame-retardant materials and tested insulation prolong the service life in demanding industrial conditions.
よくある質問 (FAQ)
1. What is the specific function / the violet drop cable in a Honeywell DCS?
It typically carries specific types / control or communication signals and is color-coded for easy traceability in complex wiring systems.
2. Is this cable compatible with systems outside Honeywell?
It is optimized for Honeywell TDC 3000 and Experion PKS platforms, but may be used with compatible systems that match its electrical and connector specs.
3. Why is the cable color-coded violet?
Violet is used as part / Honeywell’s color standard to distinguish specific signal paths, reducing wiring errors and aiding in diagnostics.
4. Can this cable be used in noisy industrial environments?
Yes, the double shielding (foil and braid) effectively minimizes electromagnetic interference.
5. Does the cable come with connectors pre-installed?
Yes, it features factory-installed connectors to simplify installation and ensure secure connections.
6. Is the cable flame-retardant?
Yes, it complies with UL 1581 VW-1 standards for flame resistance.
7. How flexible is the cable for tight bends in control panels?
With a diameter / approximately 6.0 mm, the cable is flexible enough for tight routing without compromising shielding.
8. Can this cable carry both analog and digital signals?
Yes, it is suitable for both signal types as long as they fall within the voltage and current limits.
9. What’s the recommended handling method during installation?
Avoid excessive pulling or bending tighter than the minimum bend radius; always route away from high-voltage lines to reduce interference.
10. How is the connector protected against accidental disconnection?
The pre-installed connector includes locking features for secure mating within Honeywell-compatible modules.
Related or Compatible モデルs
| モデル Number | 説明 | Length | Use Case |
|---|---|---|---|
| 51202329-100 | Violet Drop Cable, shorter version | 1.0 meter | Compact control panel layouts |
| 51202329-200 | Violet Drop Cable, extended version | 2.0 meters | Larger module spacing |
| 51196074-100 | Shielded Communication Cable | 1.0 meter | Controller-I/O connection |
| 51201298-290 | Multi-conductor signal cable | 2.9 meters | For longer I/O signal transmission |
| 51196742-500 | Industrial shielded communication cable | 5.0 meters | Backplane or rack-level connections |
| 51195479-300 | I/O Link Cable with high EMI protection | 3.0 meters | High-interference environments |
Popular Honeywell モデルs (Same ブランド)
| モデル Number | Product Type | Application | Key Feature |
|---|---|---|---|
| CC-PAOH01 | Analog Output Module | Experion PKS/TDC 3000 | High-resolution analog signal output |
| CC-TAIX01 | Analog Input Module | Process monitoring | Redundant, high-speed input scan |
| MU-TDOD12 | Digital Output Module | Universal I/O | 12-channel transistor output |
| TC-CCR013 | Control Processor | C3000 Controllers | Redundant design, fast cycle times |
| 51454416-100 | Power Supply Module | Control Cabinet DC power | Regulated 24V DC output |
| FC-TSDI-1624 | Digital Input Module | Signal monitoring | 16-channel discrete input |
