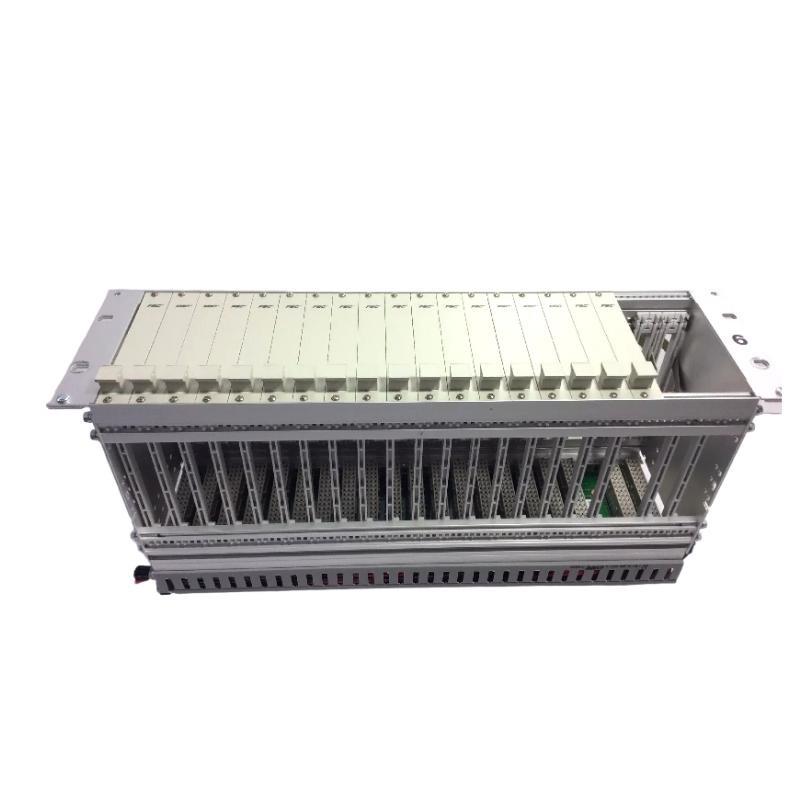

The Honeywell 10315/1/1 Rack Chassis is a purpose-built system chassis used within Honeywell’s Failsafe Controller (FSC) system, part / the larger Safety Manager architecture. This rack is designed to host multiple modules such as processor cards, I/O modules, communication interfaces, and power supply 台s in a secure and organized layout.
Specifically engineered for safety-critical and high-reliability applications, the 10315/1/1 provides a robust physical platform that supports the interconnection / FSC modules while ensuring optimal signal integrity, heat dissipation, and electromagnetic shielding. Whether deployed in process automation, emergency shutdown systems (ESD), or fire and gas detection systems (F&G), this rack /fers the foundation for building fail-safe industrial solutions.
Its durable construction, standardized slot configuration, and seamless integration into the FSC ecosystem make it essential for Honeywell’s safety systems deployed across energy, petrochemical, and utility sectors.
製品仕様
| Parameter | Details |
|---|---|
| モデル | 10315/1/1 |
| Product Type | Rack Chassis (System Base) |
| Slots | サポートs up to 15 module slots |
| Compatible Modules | Honeywell FSC modules (e.g., CPU, I/O, PSU, Comms) |
| Material | Aluminum alloy with conductive coating |
| Power Bus サポート | Integrated power rails for PSU modules |

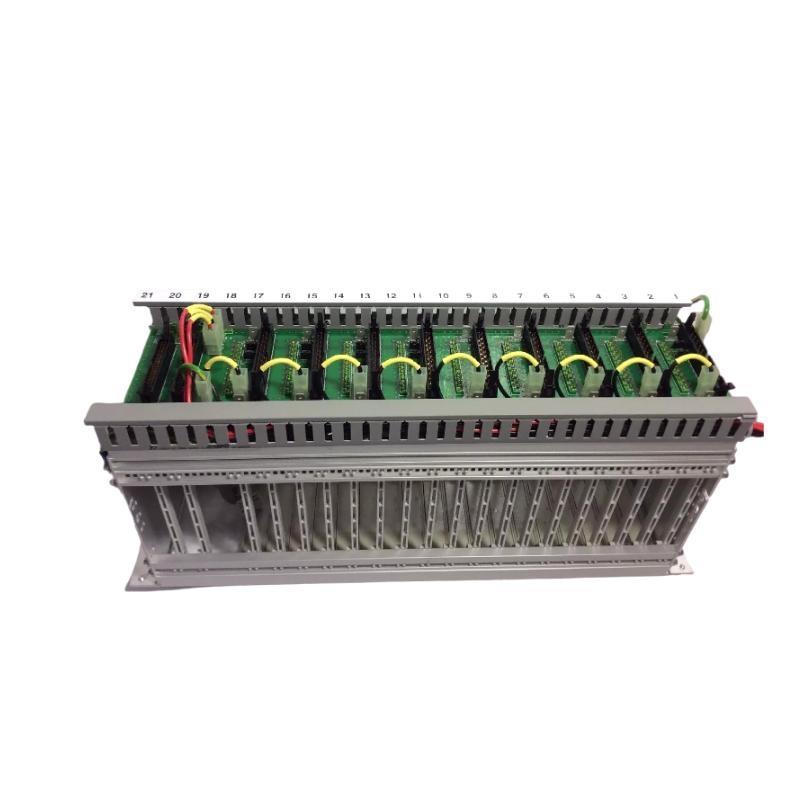

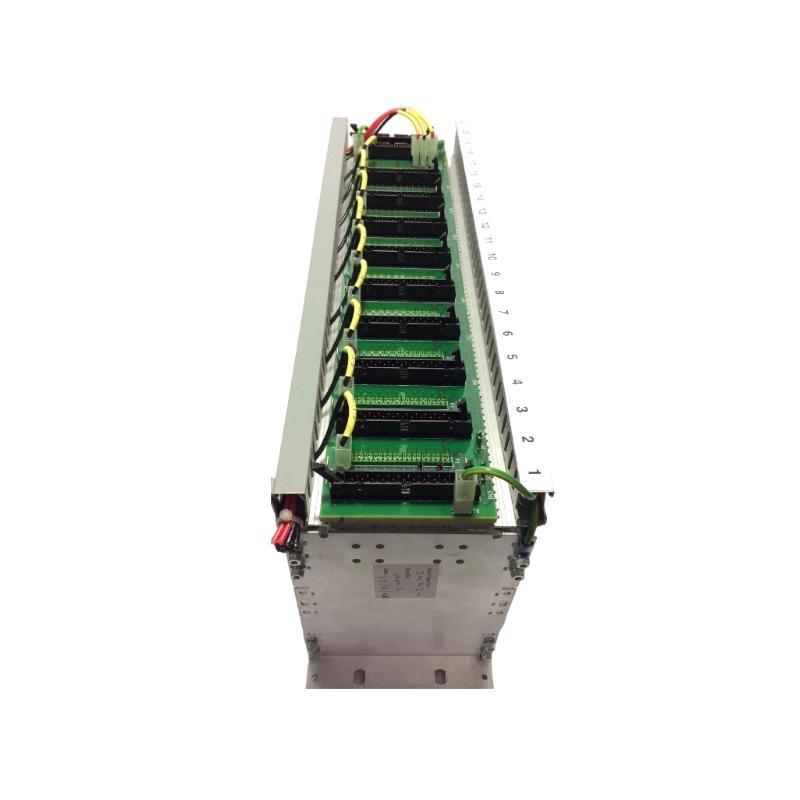

| Backplane Type | Passive backplane with copper bus traces |
| Cooling | Passive airflow (dependent on cabinet ventilation) |
| Mounting Type | 19-inch rack mount or panel mount |
| Grounding | Chassis grounding points included |
| Operating Temp. | 0°C to +60°C |
| Storage Temp. | -40°C to +85°C |
| Relative Humidity | 5% to 95% non-condensing |
| Dimensions | 19 inches |
| 重量 | 5.8 kg |
| Compliance | CE, ATEX, IECEx, SIL-ready |
Applications
The 10315/1/1 rack chassis is a core infrastructure component in Honeywell’s FSC safety system, serving industries where reliability and safety are paramount. Primary applications include:
-
Oil & Gas Facilities
As the backbone for safety logic controllers in /fshore and onshore production platforms. -
Petrochemical Refineries
サポートing distributed I/O and process safety equipment in hazardous zones. -
Power Generation Plants
Hosting modules for turbine protection and boiler safety interlocks. -
Chemical Manufacturing Plants
Managing safety logic and response mechanisms to process deviations. -
Pharmaceutical Industry
Offering regulated, fail-safe environments for validated manufacturing processes. -
Fire & Gas Detection Systems (F&G)
Housing critical response modules in fire suppression and gas leak containment systems.
Product Advantages
-
Rugged Industrial Design
Built with industrial-grade materials to withstand harsh operating conditions. -
High Slot Density
サポートs up to 15 functional modules per rack for scalability and flexibility. -
Fail-safe System Compatibility
Seamlessly integrates with Honeywell FSC components for high-integrity safety systems. -
Simplified Maintenance
Modular design allows easy replacement and installation / system cards. -
Efficient Signal Management
Internal backplane ensures optimal signal integrity and reduces wiring complexity. -
Enhanced Grounding and Shielding
Reduces electromagnetic interference (EMI) for critical signal processing. -
Standard Rack Form Factor
Compatible with standard 19-inch cabinets used in industrial control rooms. -
Low Downtime
Enables quick module replacement during maintenance or upgrades. -
Certified and Compliant
Conforms to international safety and quality certifications. -
Long Lifecycle サポート
Honeywell /fers long-term availability and support for system continuity.
よくある質問 (FAQ)
-
What is the primary purpose / the 10315/1/1 Rack Chassis?
It serves as a physical platform for hosting FSC modules in Honeywell safety systems. -
How many module slots does the chassis support?
It supports up to 15 module slots in a single rack. -
Is it compatible with redundancy setups?
Yes, it supports redundant power and CPU configurations when paired with the appropriate modules. -
Can it be mounted in a standard rack cabinet?
Yes, it is designed for 19-inch rack mount enclosures. -
Does it provide any cooling or ventilation?
It relies on passive airflow and external cabinet ventilation. -
Is the backplane active or passive?
The backplane is passive, with copper traces for signal and power distribution. -
What is the weight / the chassis?
5.8 kg. -
Can I mix different module types in one chassis?
Yes, as long as they are FSC-compatible (e.g., I/O, CPU, PSU, communications modules). -
Does the chassis include grounding mechanisms?
Yes, grounding points are included for safety and shielding. -
Is this chassis certified for hazardous environments?
Yes, it meets ATEX, IECEx, and CE standards for industrial use.
Related モデルs (Same or Compatible Series)
| モデル | Function | Slots | Key Features |
|---|---|---|---|
| 10309/2/1 | FSC I/O Base Rack | 10 | Medium-size rack for I/O module deployments |
| 10310/1/1 | System Processor Chassis | 5 | Designed for CPU and communication modules |
| 10100/1/1 | Power Supply Base | 4 | For redundant PSU installations |
| 10204/2/1 | Digital Input Module | — | Compatible I/O module |
| 10205/2/1 | Analog Output Module | — | SIL3 fail-safe analog output module |
| 10209/2/1 | Digital Output Module | — | High-speed fail-safe digital output |
Popular Honeywell モデルs (Same ブランド)
| モデル | Function | System | Key Features |
|---|---|---|---|
| CC-PAIH01 | Analog Input Module | C300 (Experion PKS) | 16 AI channels with HART support |
| CC-PCF901 | Control Processor Module | C300 | Core controller for Experion systems |
| CC-TDIL01 | Digital Input Module | C300 | High-integrity input for fail-safe applications |
| CC-PAOH01 | Analog Output Module | C300 | 8-channel analog output with diagnostics |
| 51401497-100 | Control Execution Module | TDC 3000 | Legacy controller with high performance |
| 51309218-175 | Serial Interface Module | TDC 3000 | Communication module for serial networks |
