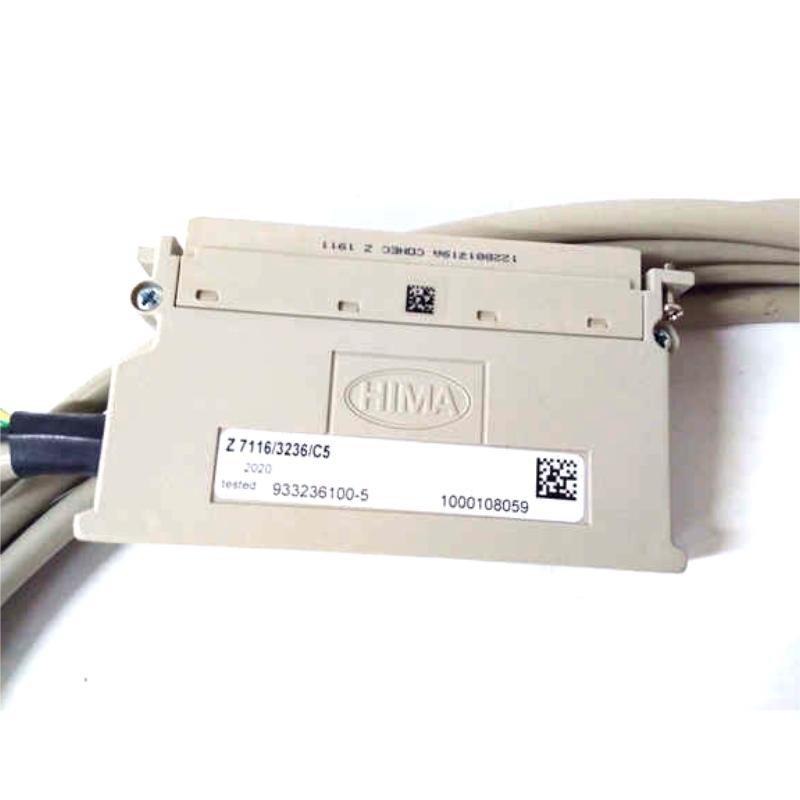

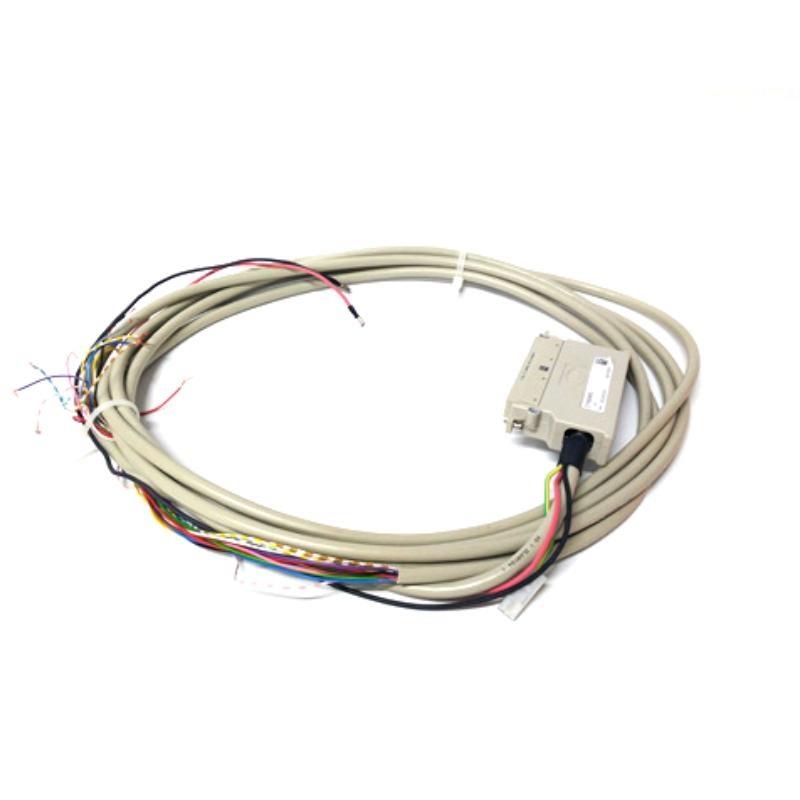

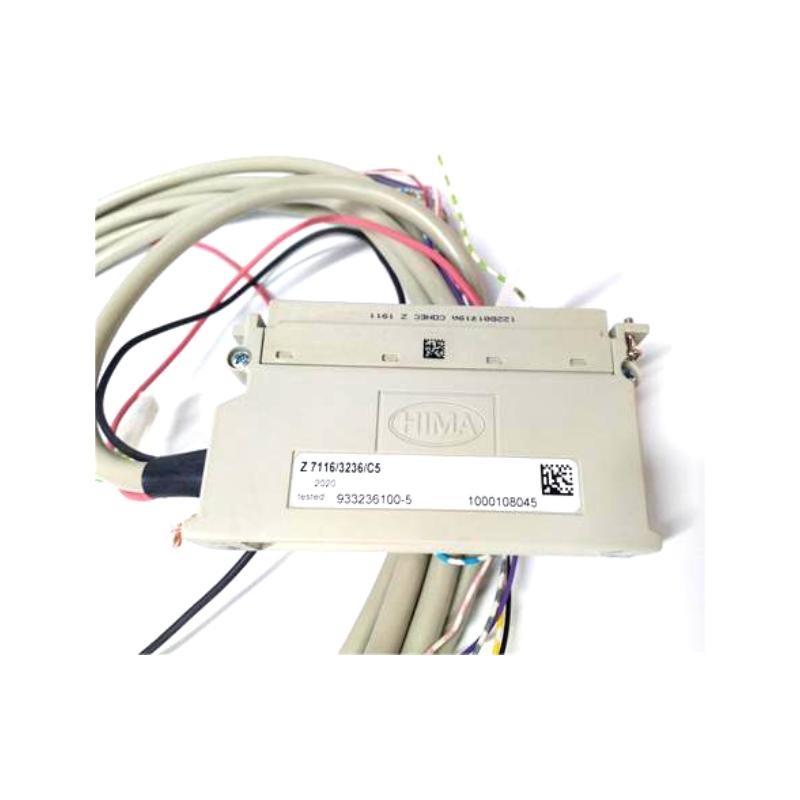

The HIMA Z7116/3236/C5 Cable Plug is an industrial-grade connector designed to facilitate secure and reliable connections in safety and automation systems. Manufactured by HIMA Paul Hildebrandt GmbH, it serves as a vital interface between control modules and field wiring in safety instrumented systems.
Built with rugged materials and engineered for precision, the Z7116/3236/C5 ensures exceptional electrical contact and mechanical robustness. Its design caters to demanding environments where system integrity and operational safety cannot be compromised. This cable plug is widely used in process industries such as oil & gas, power generation, chemical plants, and transportation infrastructure where safety automation is critical.
製品仕様
| Parameter | Details |
|---|---|
| Product Name | Z7116/3236/C5 Cable Plug |
| メーカー | HIMA Paul Hildebrandt GmbH |
| Connector Type | Multi-pin cable plug for safety system interfaces |
| Number / Pins | 32 pins |
| お問い合わせ Material | Gold-plated copper alloy |
| Housing Material | Durable industrial-grade thermoplastic |
| Rated Voltage | Up to 250V AC/DC |
| Rated Current | 5 Amps per contact |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Protection Rating | IP20 (when installed) |
| Cable Length | 5 meters |
| 重量 | 0.18 kg |
| Mounting Method | Snap-in with locking screws |
| Compliance Standards | CE, RoHS, IEC 60512, EN 61131-2 |
| Vibration Resistance | IEC 60068-2-6 compliant |
Product Applications
The HIMA Z7116/3236/C5 Cable Plug is engineered for use in systems where reliable and fail-safe communication between control devices and field equipment is essential. Its typical applications include:
-
Safety Instrumented Systems (SIS) in oil and gas refineries ensuring process safety.
-
Power Plants, connecting critical control modules with sensors and actuators.
-
Chemical Processing Facilities, for secure interfacing / hazardous area instrumentation.
-
Pharmaceutical Manufacturing, supporting compliance with stringent safety standards.
-
Railway and Transportation Systems, enabling dependable automation safety connections.
-
Water Treatment Plants, ensuring reliable control and monitoring / safety-critical equipment.
Product Advantages
-
High Reliability: Gold-plated contacts and robust materials ensure low contact resistance and long-term durability.
-
Designed for Safety Systems: Fully compatible with HIMA’s safety PLC platforms, enabling seamless integration.
-
Vibration and Shock Resistant: Meets rigorous IEC standards for vibration tolerance, suitable for harsh industrial environments.
-
Compact Design: Space-efficient dimensions facilitate installation in dense control cabinets.
-
Easy Installation: Snap-in locking mechanism with screw fixation ensures quick and secure mounting.
-
Wide Temperature Range: サポートs a broad operational temperature window for diverse environmental conditions.
-
Regulatory Compliance: Certified to meet international electrical and safety standards, supporting global deployment.
-
Low Maintenance: Durable design reduces the need for frequent inspections or replacements.
よくある質問 (FAQ)
-
What kind / systems is the Z7116/3236/C5 compatible with?
It is designed for HIMA safety PLC systems such as HIMax and HIQuad. -
How many pins does this cable plug have?
It features 32 pins for multi-channel connections. -
What is the maximum current rating per contact?
Each pin supports up to 5 Amps. -
Is the connector suitable for outdoor use?
The plug itself is rated IP20 and should be used within an enclosure to protect from moisture and dust. -
What materials are used for the contacts?
The contacts are gold-plated copper alloy to ensure excellent conductivity and corrosion resistance. -
Can the cable plug be reused after disconnection?
Yes, it is reusable provided it is not physically damaged. -
Does installation require special tools?
No, standard screwdrivers and wire preparation tools are sufficient. -
Is the connector vibration resistant?
Yes, it complies with IEC 60068-2-6 standards for vibration resistance. -
What are the weight / the plug?
It weighs about 0.18 kg. -
How can I avoid wiring errors during installation?
Always follow the wiring diagram supplied with your HIMA system and double-check each connection before powering up.
Related or Same-Series HIMA 製品
| モデル | 説明 | Notes |
|---|---|---|
| Z7116/3236/C15 | Cable plug with a slightly different pin layout | Alternative for specific modules |
| Z7116/3232/C5 | 32-pin cable plug, alternate configuration | For varying field wiring needs |
| Z7116/2432/C5 | 24-pin cable plug | Lower channel count for smaller systems |
| Z7116/3236/S05 | Shielded variant / cable plug | For EMI-sensitive environments |
| Z7116/1632/C5 | 16-pin cable plug | Smaller scale I/O connection |
| Z7116/3236/F05 | Field cable connector with flexible mounting | Space-constrained or angled installations |
Popular HIMA 製品 (Same ブランド)
| モデル | 説明 | Application |
|---|---|---|
| F8650X | HIMax CPU module for safety systems | Core processor for safety logic |
| F7133 | Digital input module for HIQuad | Reliable field input signal capture |
| F6705 | Communication module (Ethernet/RS485) | Network integration and data exchange |
| F3330 | Analog output module | Precise process control |
| F3420 | Analog input module | Signal acquisition for process variables |
| F7553 | Power supply module for HIMax systems | Stable power supply for control 台s |
