Product Overview

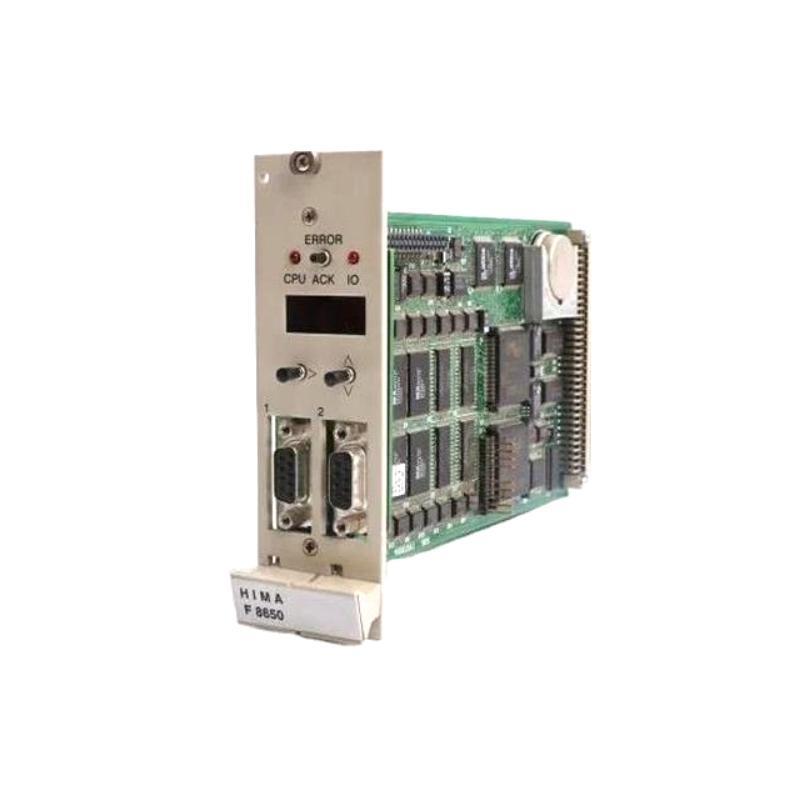

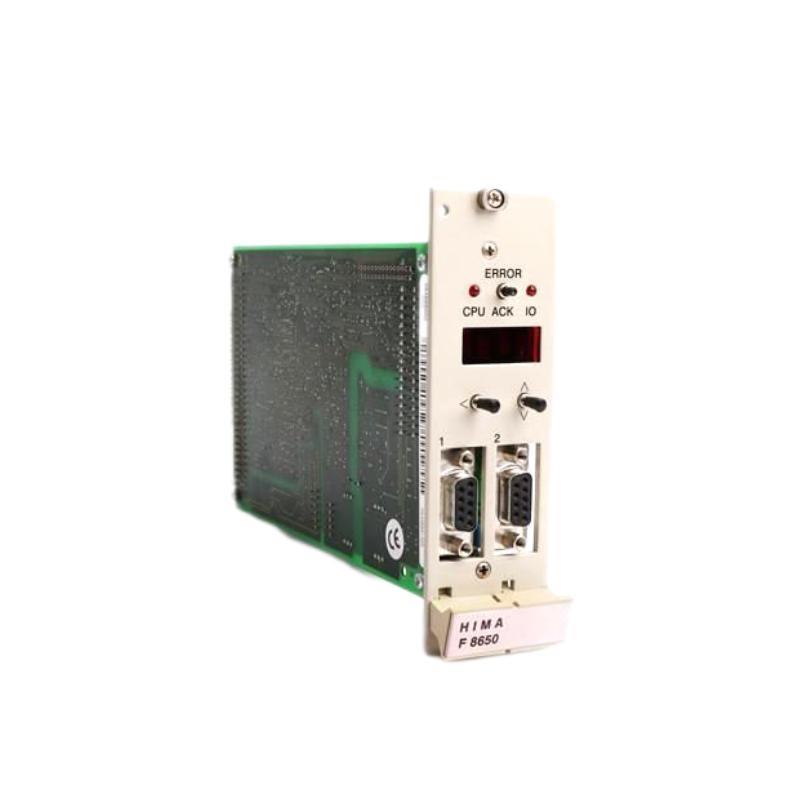

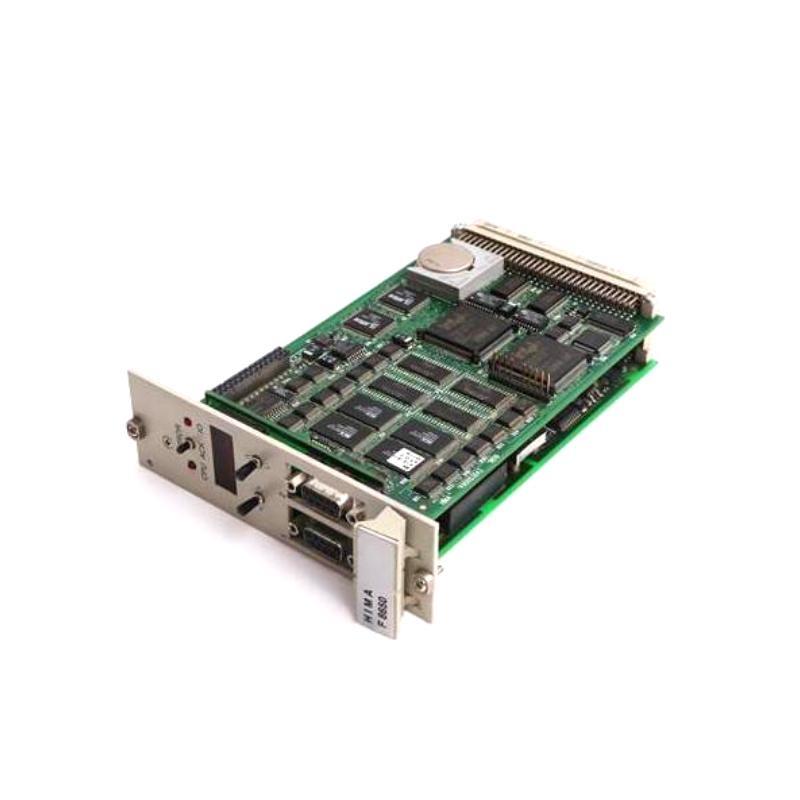

The HIMA F8650 984865002 Central Module is a safety-related CPU module designed for use in HIMA’s PES H51q-MS, -HS, and -HRS systems. It is applicable up to Safety Integrity Level 3 (SIL 3) according to IEC 61508 standards. The module features dual clock-synchronized INTEL 386EX microprocessors, each operating at 25 MHz, ensuring high reliability and performance in safety-critical applications.
Technical Specifications
| Parameter | Specification |
| モデル Number | F8650 |
| 型番 | 984865002 |
| Microprocessors | 2 × INTEL 386EX, 32-bit, 25 MHz |
| Memory per Processor | 1 MB Flash-EPROM (OS), 1 MB Flash-EPROM (User Program), 1 MB SRAM (Data) |
| Interfaces | 2 × RS-485 serial interfaces with electrical isolation |
| Diagnostic Display | 4-digit matrix display with selectable information |
| Fault Shutdown | Safety-related watchdog with 24 V output, loadable up to 500 mA, short-circuit pro/ |
| Construction | Two European standard PCBs, one PCB for diagnostic display |
| Space Requirement | 8 SU (Standard ユニットs) |
| Power Supply | 5 V / 2 A |
| Operating Temperature | -40°C to +70°C |
| Dimensions (W × H × D) | 257 x 114 x 30 mm |
| 重量 | 1.5 kg |
| Country / Origin | Germany |
Applications
The HIMA F8650 Central Module is utilized in various safety-critical industrial applications, including:
-
Process Control Systems: Managing and monitoring industrial processes in chemical, petrochemical, and pharmaceutical industries.
-
Power Generation: Ensuring safe operation / turbines, generators, and associated control systems.
-
Oil and Gas: Monitoring and controlling safety functions in /fshore and onshore facilities.
-
Transportation Systems: Implementing safety measures in railway and metro control systems.
-
Manufacturing Automation: Providing safety control in automated production lines and machinery.
Advantages
-
High Reliability: Dual redundant processors ensure continuous operation even in the event / a processor failure.
-
Safety Compliance: Certified up to SIL 3, meeting stringent safety requirements.
-
Versatile Communication: サポートs multiple fieldbus protocols, including PROFIBUS PA, Foundation Fieldbus, and HART.
-
Robust Design: Operates reliably in extreme temperatures and harsh industrial environments.
-
Comprehensive Diagnostics: Built-in diagnostic display provides real-time status and error information.
Latest News Titles
-
HIMA F8650 Central Module Enhances Safety in Industrial Automation
-
Advancements in SIL 3 Certified Control Systems with HIMA F8650
-
Integrating HIMA F8650 into Modern Process Control Architectures
-
Ensuring Operational Safety: The Role / HIMA F8650 in Power Plants
-
HIMA’s Commitment to Safety: Spotlight on the F8650 Central Module
-
Fieldbus Communication Simplified with HIMA F8650 Module
-
HIMA F8650: A Reliable Solution for Safety-Critical Applications
-
Optimizing Industrial Safety Systems with HIMA’s F8650 Module
-
HIMA F8650 Central Module: Bridging Safety and Performance
-
Implementing Redundant Safety Systems Using HIMA F8650
よくある質問 (FAQs)
-
What is the primary function / the HIMA F8650 Central Module?
-
It serves as the central processing 台 in HIMA’s safety systems, managing safety-related control functions.
-
-
Which systems are compatible with the F8650 module?
-
It is designed for use in PES H51q-MS, -HS, and -HRS systems.
-
-
What safety standards does the F8650 comply with?
-
It is certified up to SIL 3 according to IEC 61508.
-
-
What type / processors does the F8650 use?
-
It utilizes two INTEL 386EX 32-bit microprocessors, each operating at 25 MHz.
-
-
What are the memory specifications / the F8650?
-
Each processor has 1 MB Flash-EPROM for the operating system, 1 MB Flash-EPROM for user programs, and 1 MB SRAM for data storage.
-
-
What communication interfaces are available on the F8650?
-
It features two RS-485 serial interfaces with electrical isolation.
-
-
Does the F8650 have diagnostic capabilities?
-
Yes, it includes a 4-digit matrix display for real-time diagnostics and status information.
-
-
What are the power requirements for the F8650?
-
It operates on a 5 V power supply with a current draw / 2 A.
-
-
What is the operating temperature range / the F8650?
-
It functions reliably within a temperature range / -40°C to +70°C.
-
-
What are the dimensions and weight / the F8650 module?
-
The module measures 257 x 114 x 30 mm and weighs 1.5 kg.
-
