Product Overview

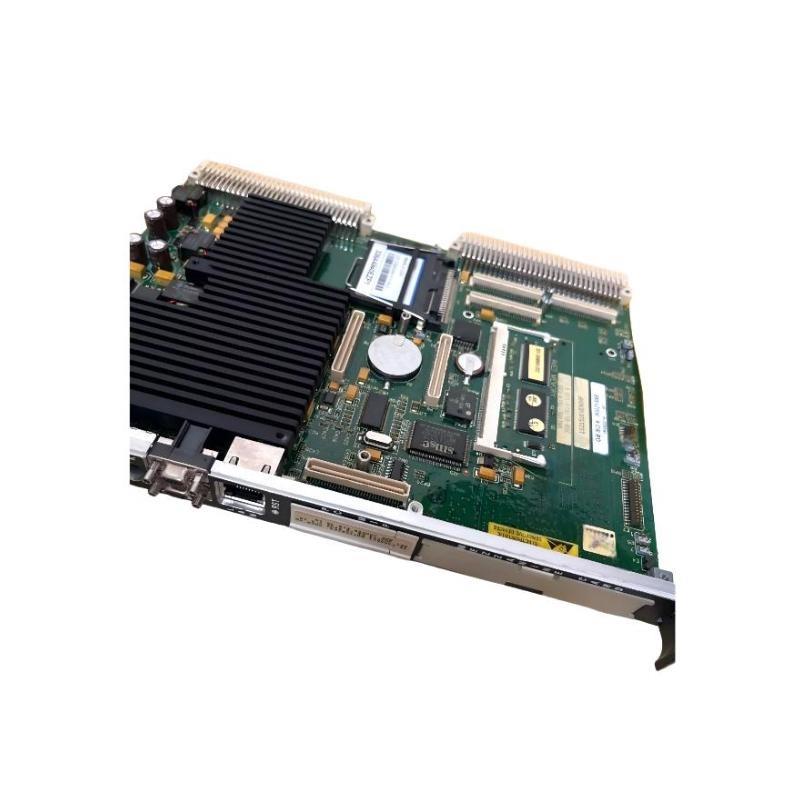

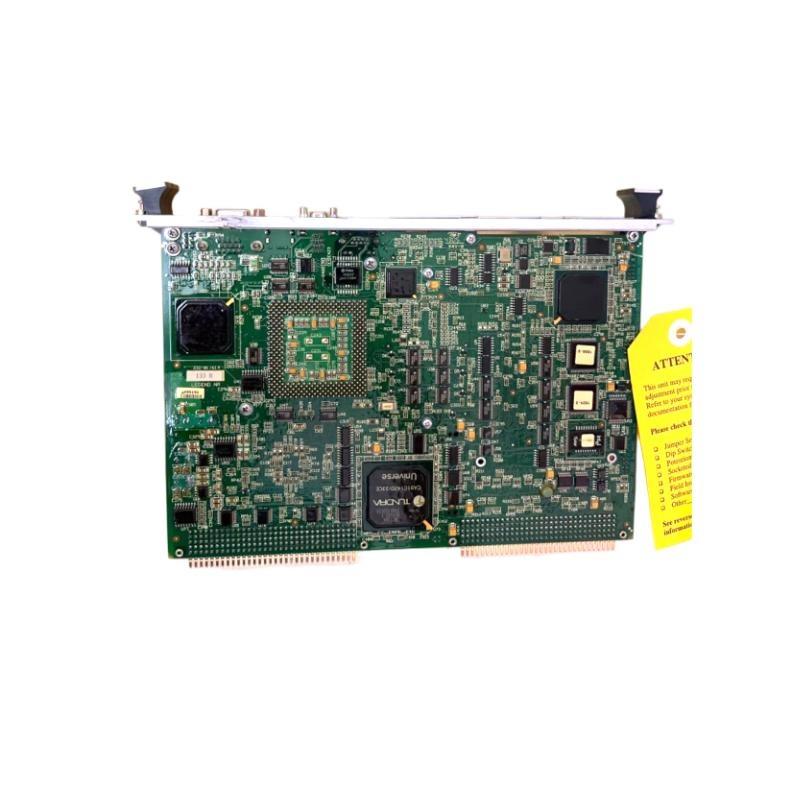

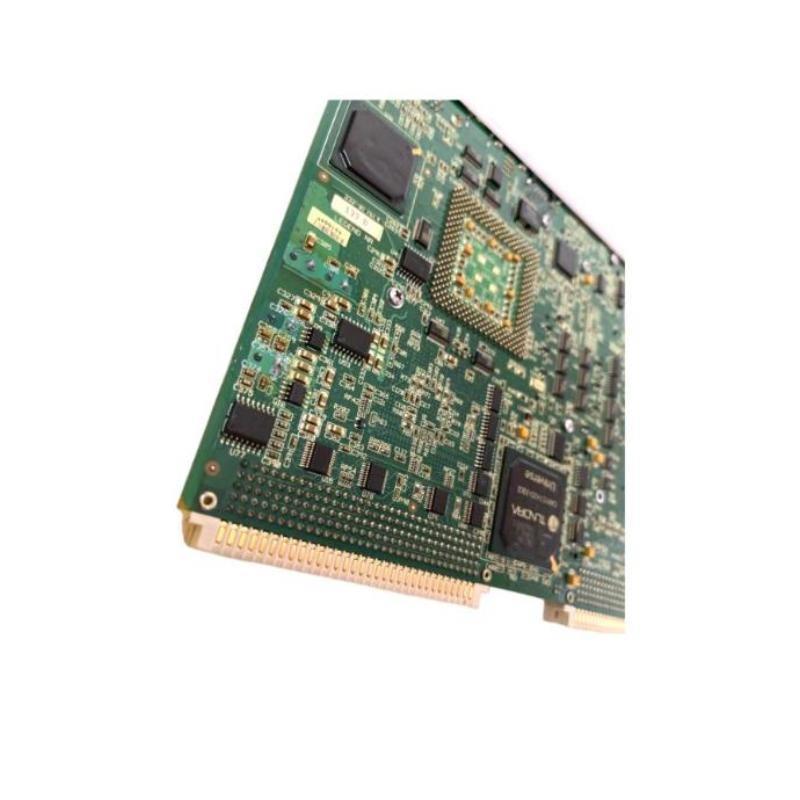

The GE IS215UCVFH2A Dual-Slot Controller Board is a cutting-edge component designed for high-performance control systems. Engineered for versatile applications in industrial automation, the IS215UCVFH2A provides reliable, scalable, and flexible solutions that meet the demands / various industries. This controller board is designed to handle dual-slot operations, /fering high-speed data processing, system diagnostics, and extensive I/O capabilities. It can be used in both new installations and as an upgrade to existing systems, ensuring compatibility with a wide range / industrial controllers and communication protocols.
Technical Specifications
The following table outlines the key technical specifications / the GE IS215UCVFH2A Dual-Slot Controller Board:
| Specification | Details |
|---|---|
| モデル | IS215UCVFH2A |
| Dimensions | 266.7 x 196.85 x 88.9 mm |
| 重量 | 1.2 kg |
| Operating Voltage | 5V DC ±5% |
| Power Consumption | 25 W |
| Operating Temperature | -20°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Humidity | 5% to 95% RH, non-condensing |
| Mounting Type | VMEbus |
| Bus Type | VME (VersaModule Eurocard) |
| I/O Ports | 4 x Serial Ports (RS-232/RS-485), 4 x Digital Inputs, 8 x Analog Inputs |
| Input Channels | 16 Digital Inputs, 8 Analog Inputs |
| Output Channels | 16 Digital Outputs, 8 Analog Outputs |
| Communication Protocol | Ethernet, Modbus RTU, CANopen |
| Diagnostics | Self-diagnostics, LED indicators |
Product Applications
The GE IS215UCVFH2A Dual-Slot Controller Board is widely applicable in industries where high-speed, reliable, and efficient control is essential. Its modular nature makes it ideal for applications such as:
-
Process Automation: Integrating the board into control systems for seamless data acquisition and real-time processing.
-
Industrial Control Systems: Used in complex automated processes, particularly in high-demand environments.
-
Data Acquisition: サポートs real-time data collection from sensors or other industrial equipment for monitoring and analysis.
-
Power Systems: Works in power generation or distribution networks to control and monitor various processes.
-
Manufacturing: Key component in assembly line control systems, enabling efficient production control and system integration.
-
Oil & Gas: Used in critical applications like /fshore rigs, where reliability and real-time control are paramount.
Product Advantages
-
High Reliability: Designed for critical applications, ensuring extended system uptime and stable operation in demanding environments.
-
Dual-Slot Configuration: Allows for enhanced processing power and additional I/O capabilities, which is ideal for high-performance tasks.
-
Scalability: The modular design allows for easy upgrades and expansion, /fering great flexibility to meet specific system needs.
-
Self-Diagnostics: Built-in diagnostic features and LED indicators make maintenance easier by providing real-time system health monitoring.
-
Wide Temperature Range: The controller operates in a broad temperature range (-20°C to 70°C), making it suitable for various environmental conditions.
-
Comprehensive I/O サポート: Extensive input and output channels support a wide range / sensors and actuators, enabling versatile integration in various systems.
FAQ
1. What is the power supply voltage for the GE IS215UCVFH2A controller board?
The power supply voltage for the GE IS215UCVFH2A is 5V DC ±5%.
2. What communication protocols are supported by this controller board?
This controller board supports Ethernet, Modbus RTU, and CANopen communication protocols, ensuring compatibility with various control systems.
3. How many input channels does the IS215UCVFH2A support?
The IS215UCVFH2A supports 16 digital inputs and 8 analog inputs, /fering a broad range / integration possibilities.
4. Can this board operate in harsh environmental conditions?
Yes, the board is rated for operating temperatures from -20°C to 70°C and can handle environments with humidity levels ranging from 5% to 95% RH, non-condensing.
5. Does the IS215UCVFH2A include built-in diagnostics?
Yes, the controller features self-diagnostics and LED indicators to provide real-time monitoring / the system’s health and performance.
6. How does the dual-slot configuration benefit the IS215UCVFH2A?
The dual-slot configuration enables the board to process more data and connect more I/O modules, which is beneficial for high-performance applications.
7. What types / outputs does this controller board support?
The IS215UCVFH2A supports 16 digital outputs and 8 analog outputs, providing ample control capabilities for various industrial processes.
8. What is the maximum power consumption / the controller?
The IS215UCVFH2A has a maximum power consumption / 25 W, making it energy-efficient for its performance level.
9. Is the IS215UCVFH2A compatible with other GE control products?
Yes, the IS215UCVFH2A is designed for seamless integration with other GE control products, making it ideal for expanding or upgrading existing systems.
10. Can the GE IS215UCVFH2A controller be used in power generation systems?
Yes, this controller board is suitable for power generation and distribution systems, where precise control and reliability are crucial.
Related モデルs
| モデル Number | 説明 |
|---|---|
| IS215UCVFH12A | Dual-slot controller board with enhanced I/O and processing capabilities |
| IS215UCVFH20A | Advanced VME controller with dual-slot support and increased I/O options |
| IS215UCVFH30A | High-performance dual-slot controller board designed for real-time data processing |
| IS215UCVFH40A | VME controller board with advanced communication protocols and additional I/O channels |
| IS215UCVFH50A | Dual-slot controller with extended temperature range for harsh environments |
| IS215UCVFH60A | High-capacity VME controller with expanded processing power and flexible I/O integration |
