製品紹介

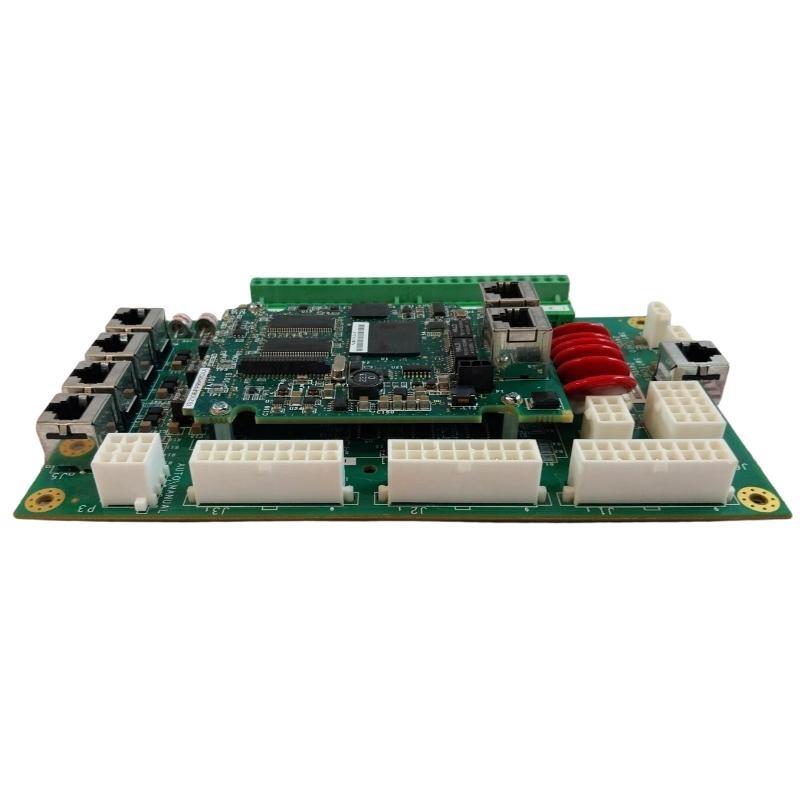

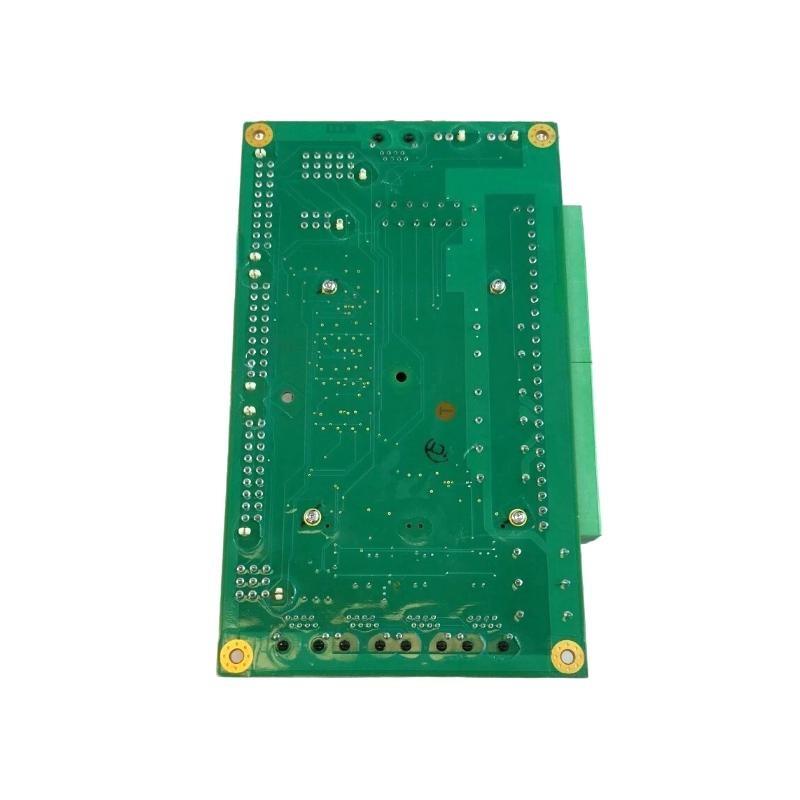

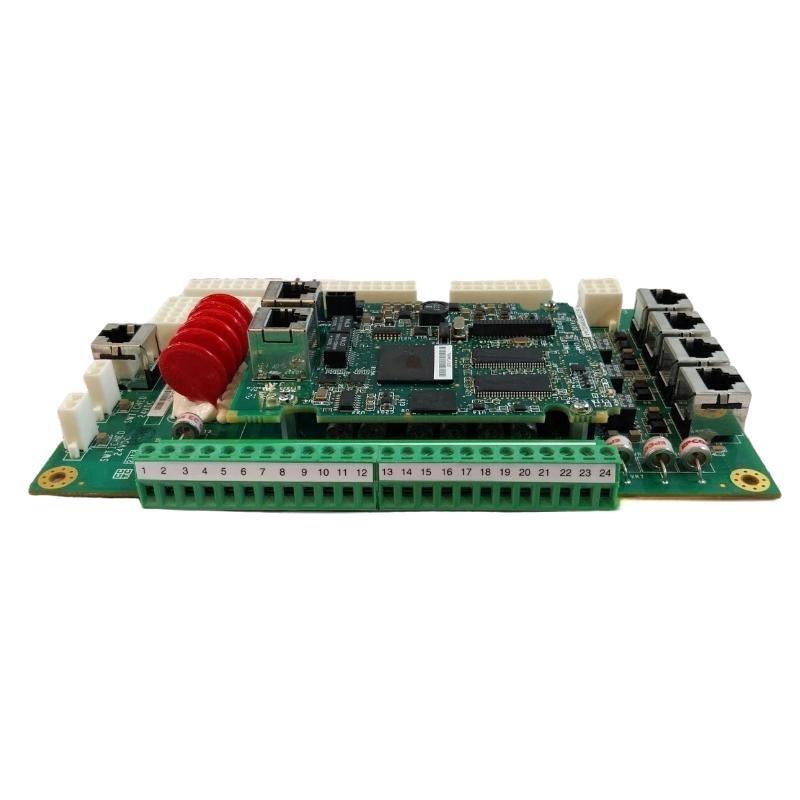

The GE IS210BPPH2BLD Printed Circuit Board (PCB) is a high-reliability control board engineered for GE’s Mark VIe turbine and industrial automation platforms. Designed to serve as a central interface for signal processing and power distribution, this board combines dense multilayer construction with advanced noise-suppression features. It provides stable operation in harsh industrial environments such as gas and steam turbine control rooms, power plants, and critical process facilities. Its robust layout and precision-engineered components ensure accurate data handling and long-term operational stability.
製品仕様
| Parameter | 説明 |
|---|---|
| モデル Number | IS210BPPH2BLD |
| Product Type | High-density printed circuit control board |
| Function | Signal conditioning, logic interfacing, and power routing |
| Series | GE Mark VIe Control System |
| Input Voltage Range | 24 V DC nominal (18–32 V DC operating window) |
| Output Interfaces | Multiple differential and single-ended I/O channels |
| Clock/Logic Speed | Up to 66 MHz embedded controller bus |
| Operating Temperature | –40 °C to +70 °C |
| Humidity Range | 0–95 % non-condensing |
| Vibration Resistance | Up to 5 g, 10–2000 Hz |
| Shock Resistance | 30 g, 11 ms half-sine |
| PCB Layers | 8-layer FR4 with 2 oz copper and conformal coating |
| Diagnostics | On-board status LEDs and built-in self-test |
| Cooling | Natural convection or forced-air assisted |
| Dimensions (W×H×D) | 240 × 120 × 25 mm |
| 重量 | 1.25 kg |
| Mounting | Rack or panel mounting with secure grounding |
| Compliance | RoHS, CE, UL recognized |
Applications
The IS210BPPH2BLD PCB is deployed in numerous industrial sectors:
-
Turbine Control Systems: Core logic interface for Mark VIe gas and steam turbine controllers.
-
Power Generation Plants: Manages I/O data flow and power routing to protection relays and sensors.
-
Industrial Automation: Provides precise signal conditioning for distributed control systems.
-
Oil & Gas Operations: サポートs SCADA and compressor control modules in remote environments.
-
Process Manufacturing: Ensures stable instrumentation control in chemical, paper, and steel plants.
Advantages
-
High Signal Integrity: Eight-layer design with optimized ground planes minimizes electromagnetic interference.
-
Robust Protection: Built-in transient suppression and ESD safeguards protect downstream equipment.
-
Diagnostic Transparency: LED indicators and self-test firmware simplify maintenance and fault isolation.
-
Wide Environmental Tolerance: Reliable operation under extreme temperature, vibration, and humidity conditions.
-
Seamless Integration: Native compatibility with GE Mark VIe and other GE automation ecosystems.
-
Long Service Life: High-grade FR4 substrate and conformal coating extend operational longevity.
よくある質問 (FAQ)
-
What type / bus communication is supported by the IS210BPPH2BLD?
It supports a high-speed internal backplane bus compatible with Mark VIe system architecture. -
How is signal integrity maintained across the multilayer board?
Ground and power planes are strategically placed to reduce crosstalk and maintain low impedance paths. -
Does the board provide galvanic isolation between I/O sections?
Yes, opto-isolators are used for critical I/O channels to prevent ground loops. -
What diagnostic protocols are available for remote monitoring?
It supports Mark VIe diagnostic communications and Modbus/TCP for supervisory systems. -
How does the board handle power surges or transient spikes?
Integrated TVS diodes and surge suppressors protect sensitive circuitry. -
Is there onboard firmware for self-testing?
Yes, embedded firmware runs power-on self-tests and reports status to the control processor. -
What is the maximum supported data throughput?
Up to 66 MHz logic bus frequency, supporting high-speed real-time control loops. -
Can the board be hot-swapped in a live system?
It can be hot-inserted if the backplane segment is properly de-energized and configured for redundancy. -
What grounding scheme is recommended for installation?
A single-point earth ground with low impedance is recommended to minimize noise. -
How is thermal management ensured without active cooling?
Large copper planes and strategic component placement enable efficient heat dissipation under natural convection.
Related モデルs – Same Series or Function
| モデル | 説明 |
|---|---|
| IS210BPPH2BRD | Variant with redundant interface circuitry |
| IS210BPPG1A | General-purpose logic and signal conditioning board |
| IS210BPPH1B | Earlier version supporting legacy Mark VI systems |
| IS210BPPAH2C | Advanced processor interface PCB |
| IS210BPPCG1A | Compact board for space-constrained control cabinets |
| IS210BPPJH2D | High-density I/O interface board |
Popular GE Control System モデルs
| モデル | 説明 |
|---|---|
| IS200DSPXH1D | Digital signal processor board for Mark VIe |
| IS200STCIH6A | Simplex contact input terminal board |
| IS200TRPGH2B | Primary trip terminal board with redundant trip channels |
| IS200VCRCH1B | VME communication controller for turbine control |
| IS210AEPSG2B | High-efficiency power board |
| IS210VSPAH1A | Monitoring assembly module for vibration analysis |
