製品紹介

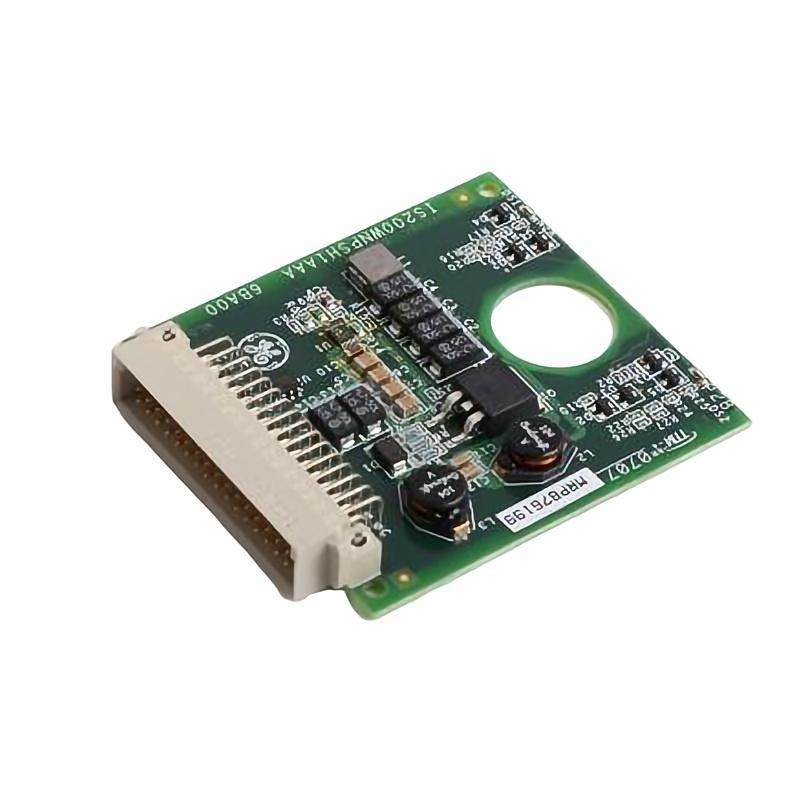

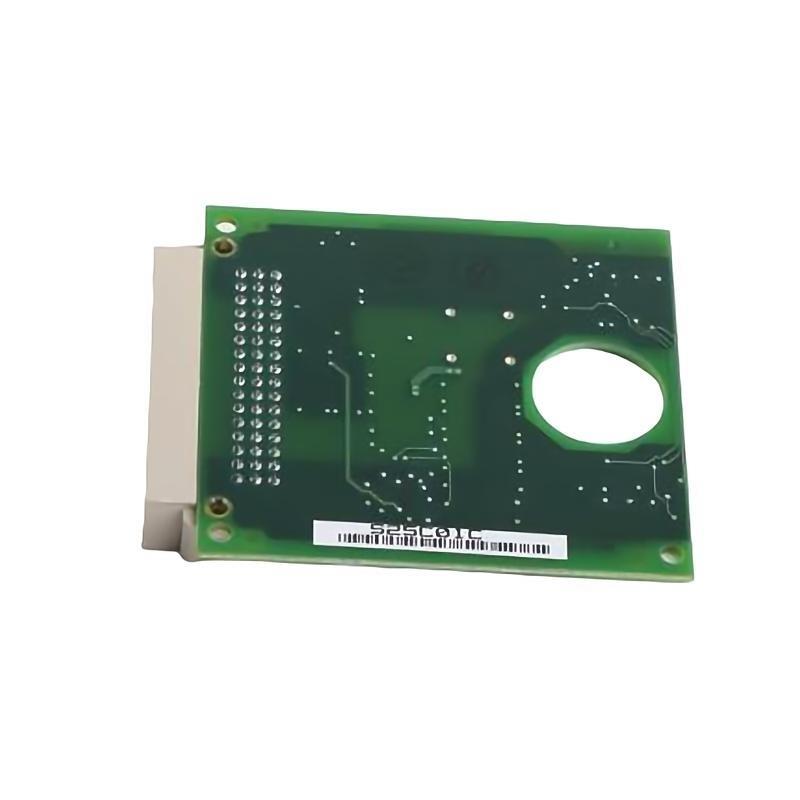

The GE IS200WNPSH1AAA is a high-performance Power Supply Daughterboard designed for use in GE’s Mark VI and Mark VIe turbine control systems. This board plays a crucial role in ensuring stable and reliable power distribution across control circuits within the system. Built to handle demanding industrial environments, the IS200WNPSH1AAA is engineered with high-quality components to maintain operational efficiency and safety under continuous load conditions.
This daughterboard interfaces with main power modules and facilitates the regulation, conversion, and monitoring / voltage inputs and outputs. It supports vital functions such as voltage sensing, power isolation, and status feedback, making it a core component in critical control infrastructures, particularly in gas turbines, steam turbines, and drives control applications.
製品仕様
| Parameter | Details |
|---|---|
| モデル Number | IS200WNPSH1AAA |
| Product Type | Power Supply Daughterboard |
| メーカー | General Electric (GE) |
| Series | Mark VI / Mark VIe |
| Function | Power distribution, voltage sensing, status feedback |
| Power Input Range | Typically 28 VDC nominal (from primary power board) |
| Voltage Regulation | Internal linear regulators and voltage reference feedback |
| Output Monitoring | Yes – via feedback circuits to control system |

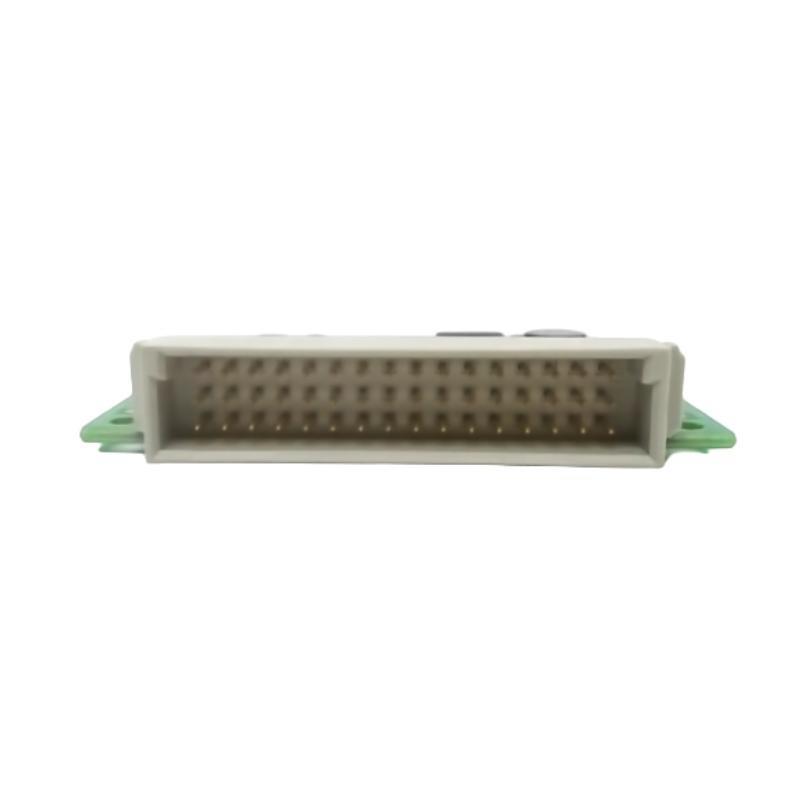

| Connector Type | Multi-pin onboard connectors, ribbon cable compatible |
| Onboard Components | Diodes, resistors, capacitors, ICs for regulation and feedback |
| Redundancy サポート | Yes – supports redundant power architecture |
| Cooling Method | Passive (board-level thermal dissipation) |
| Operating Temperature | -30°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95% non-condensing |
| Board Material | Multi-layer PCB, conformal coated for protection |
| Mounting Style | Embedded/Daughterboard mounting within system chassis |
| 重量 | 0.45 kg |
| Dimensions (L x W x H) | 123 x 129 x 30 mm |
| Compliance | RoHS, CE |
| Part Status | Active / Field Replaceable ユニット (FRU) |
Applications
The IS200WNPSH1AAA is widely used in various GE control systems where precise and reliable power management is crucial. Key applications include:
-
Gas and Steam Turbine Control Systems
-
Generator Excitation Systems
-
Process Automation Systems
-
Industrial Drives and Motors
-
Redundant Power Distribution Architectures
-
Energy and Utility Sector Instrumentation
Product Advantages
-
Robust Engineering: Built with industrial-grade components to withstand harsh operational conditions.
-
High Reliability: サポートs mission-critical systems requiring uninterrupted power delivery.
-
Precise Voltage Monitoring: Delivers accurate feedback to control 台s, enhancing diagnostics.
-
Compatibility: Seamlessly integrates with GE’s Mark VI/VIe control systems.
-
Redundancy Ready: サポートs failover configurations to ensure uptime in high-reliability environments.
-
Compact and Efficient: Small footprint ensures easy integration without consuming valuable system space.
-
Serviceability: Designed as a Field Replaceable ユニット (FRU) for quick on-site maintenance or upgrades.
FAQ
-
What voltage levels can the IS200WNPSH1AAA handle?
It is typically designed to operate with a 28 VDC input but may tolerate slight variations depending on system configuration. -
Does this board support redundant power inputs?
Yes, it is capable / supporting redundant power systems, enabling uninterrupted control operation. -
How is voltage feedback communicated to the main controller?
Through onboard circuits and connectors that send voltage status signals back to the control processor. -
Is the board hot-swappable?
No, it must be powered down before removal or installation to avoid system damage. -
Can this daughterboard be used in non-GE systems?
It is optimized for GE Mark VI/VIe systems; use in other systems is not recommended without extensive validation. -
What protective features are present on this board?
Includes onboard fusing, transient voltage suppression, and conformal coating to resist moisture and dust. -
How is the board connected to the main system?
Via standard ribbon cables and multi-pin connectors designed for GE backplane configurations. -
Does it regulate voltage internally or rely on the main board?
It includes linear regulators to stabilize voltage locally before distribution. -
Can this board operate in high-vibration environments?
Yes, when properly mounted within GE systems, it performs reliably in industrial vibration conditions. -
What kind / diagnostics can be performed through this board?
Voltage monitoring and error signals can be routed to the main controller for fault detection and analytics.
