製品紹介

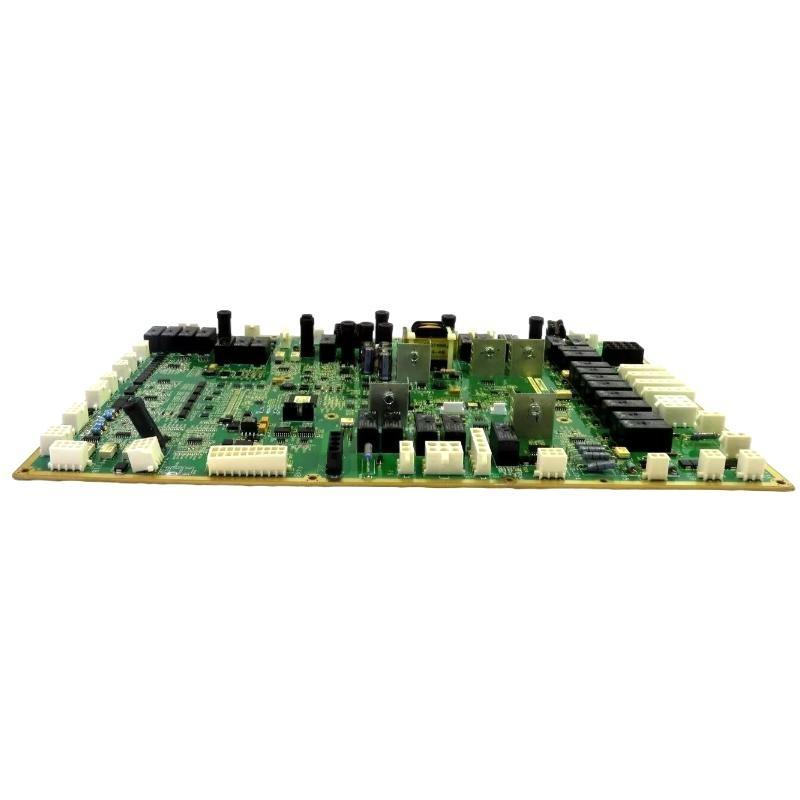

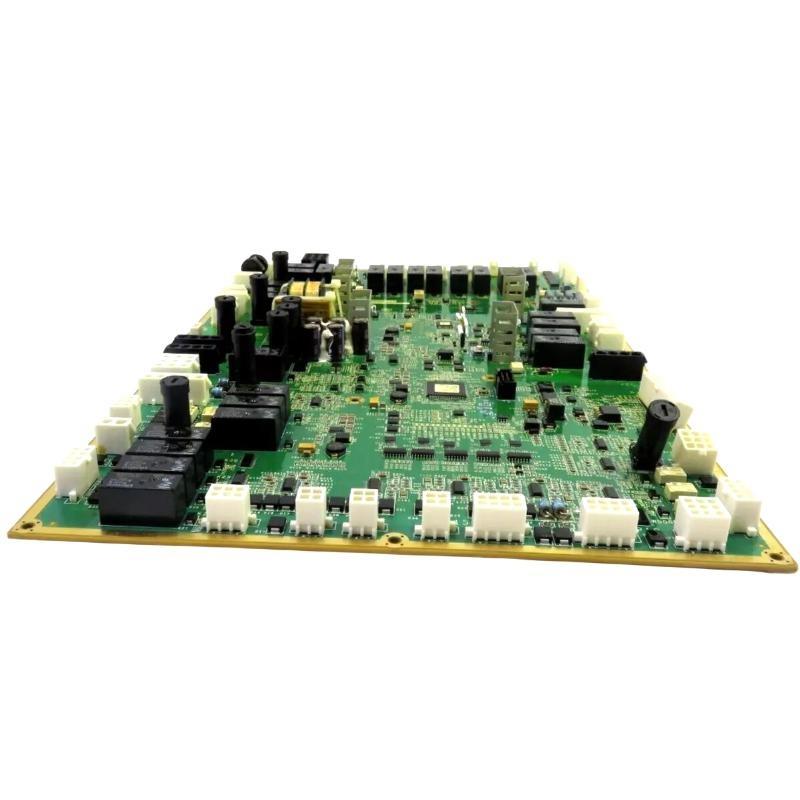

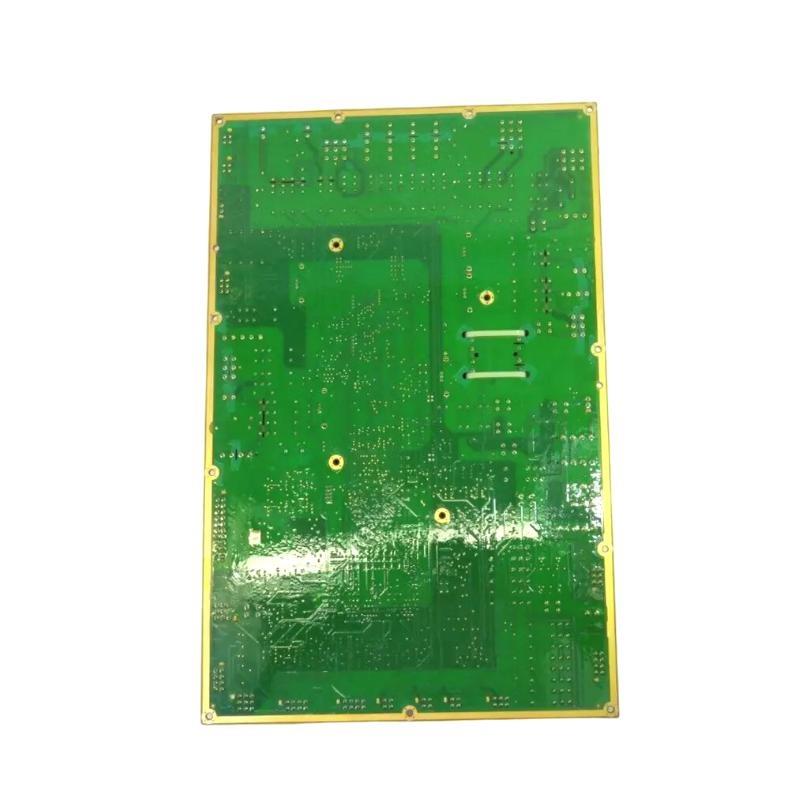

The GE IS200WETBH1ABA is a high-performance Analog Output Module that belongs to the WETB (Wide-range Electronic Transducer – B) family under the Mark VIe control system platform by General Electric (GE). This module is designed for converting and conditioning analog input signals from field instruments and providing electrically isolated, accurately scaled analog outputs to the control processors. It ensures optimal signal fidelity, protection, and adaptability in critical industrial applications.
The IS200WETBH1ABA is /ten integrated within the EX2100 and Mark VIe I/O architecture, making it a key part / GE’s control solutions for turbine control, generator excitation, and complex process control systems. This module /fers reliable operation in harsh electrical environments and delivers precision signal processing capabilities for both current and voltage analog outputs.
製品仕様
| Parameter | 説明 |
|---|---|
| モデル Number | IS200WETBH1ABA |
| メーカー | General Electric (GE) |
| Product Type | Analog Output Module |
| Series | Mark VIe / EX2100 |
| Primary Function | Converts and outputs analog signals to control systems |
| Signal Output | 4–20 mA or ±10V analog signals (configurable per channel) |
| Number / Channels | Typically 8–16 (depending on system configuration) |
| Input Interface | Receives conditioned signal data from WETA input stage |
| Output Isolation | Yes – Optical and galvanic isolation |
| Redundancy サポート | Compatible with redundant control architectures |
| Communication Interface | GE proprietary backplane protocol |
| Diagnostic Features | LED indicators, fault detection, watchdog timers |
| Firmware Configuration | Through GE ToolboxST s/tware |
| Power Supply | 28V DC typical |
| Mounting Type | Rack-mountable or chassis mount in control cabinet |
| Operating Temperature | -30°C to +65°C |
| Humidity Tolerance | 5–95% RH non-condensing |
| Certifications | CE, UL, RoHS compliant (application-specific) |
| Cooling Method | Passive convection |
| Dimensions (L x W x H) | 178 x 51 x 305 mm |
| 重量 | 1.4 kg |
Product Applications
The IS200WETBH1ABA is utilized in a broad range / industrial and energy applications, where analog output precision and reliability are essential:
-
Gas and Steam Turbine Control Systems
Delivers analog signals to actuators, servos, and control valves as part / the closed-loop turbine regulation process. -
Generator Excitation Systems (EX2100)
Used to control field excitation via analog output commands to voltage regulators and power electronics. -
Industrial Process Automation
Transmits analog setpoints and commands to field devices, including VFDs, control valves, and signal converters. -
SCADA and DCS Integration
Provides analog feedback signals to higher-level supervisory systems in remote control architectures. -
Oil & Gas Applications
Operates in environments with high electrical noise, vibration, and temperature fluctuation, ensuring process continuity. -
Redundant Safety Systems
Suitable for dual-channel, fault-tolerant systems where analog output integrity is mission-critical.
Product Advantages
-
Precision Analog Output Delivery
Outputs high-resolution analog signals (±10V or 4–20mA), enabling accurate actuator or controller response. -
Built-in Isolation and Safety
Each output is isolated to prevent ground loops and protect downstream devices. -
Diagnostic Capabilities
Integrated diagnostics allow for real-time signal health monitoring, aiding in proactive maintenance and reliability. -
Flexible Output Configurations
サポートs voltage or current output formats, configurable based on application needs. -
Seamless GE System Integration
Fully compatible with GE Mark VIe and EX2100 controllers, allowing quick commissioning. -
Rugged Industrial Design
Built to operate in harsh industrial environments, maintaining performance over a wide temperature range.
FAQ
-
What analog output ranges does the IS200WETBH1ABA support?
It supports configurable output ranges, typically 4–20 mA and ±10V, suitable for most industrial devices. -
Are the analog outputs electrically isolated?
Yes, all analog output channels are isolated to prevent signal interference and ensure safety. -
Can output formats be configured on a per-channel basis?
Yes, each channel can be individually configured for current or voltage output via ToolboxST. -
Does the module support redundant control paths?
Yes, it can operate in redundant systems with automatic failover capabilities. -
What type / diagnostics are built into the module?
The module includes fault detection circuits, signal quality monitoring, and onboard LED indicators. -
How is this module programmed or calibrated?
It is configured through GE ToolboxST s/tware, allowing calibration and diagnostics via Ethernet. -
Is the output rate or update frequency adjustable?
Output update frequency is managed by the controller, and the module supports high-speed updates. -
What is the load driving capacity / the analog outputs?
The module is capable / driving standard industrial loads up to 500 ohms for current outputs. -
Is there any protection against short circuits or overloads?
Yes, the module includes protection features such as current limiting and thermal cut/fs. -
How does this module communicate with the controller?
Communication is handled via GE’s proprietary backplane protocol in the Mark VIe system.
Related モデルs (Same Series or Functionality)
| モデル Number | 説明 | Series | Functionality |
|---|---|---|---|
| IS200WETAH1AFC | Analog interface module for WETA system | Mark VIe | Signal 状態ing |
| IS200WETAH1ABB | Earlier version / WETA interface board | EX2100 | Analog Input Module |
| IS200WETBH1BAA | Variant / WETB output module | Mark VIe | Analog Output Module |
| IS200TRLYH1B | Relay output module | Mark VIe | Digital Output Switching |
| IS200TREGH1B | Emergency trip interface board | Mark VIe | Safety Interlock |
| IS200TBCIH1CBB | Terminal board for contact I/Os | Mark VIe | Discrete Signal Interface |
Popular GE モデルs (Same ブランド, High Usage)
| モデル Number | 説明 | Application | Series |
|---|---|---|---|
| IS200DSPXH1D | Digital Signal Processor Module | Turbine Control | Mark VIe |
| IS215UCVEM09A | Universal Embedded Controller | Central Processing | Mark VIe |
| IS200VCMIH1BBC | VCMI Communication Interface | Controller Communications | Mark VIe |
| IS200AEADH1A | Analog Expansion Module | Field Input Expansion | EX2100 |
| IS200SPROH1AAA | Overspeed Protection Interface | Turbine Overspeed Control | Mark VIe |
| IS200JPDHG1AAA | Power Distribution Interface | Power Handling | Mark VIe |
