製品紹介

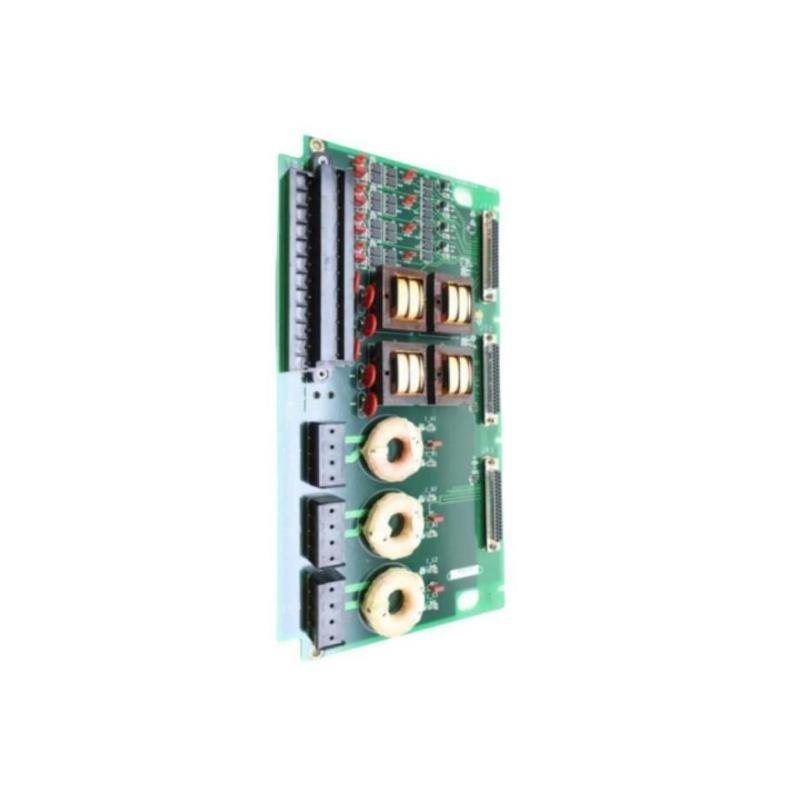

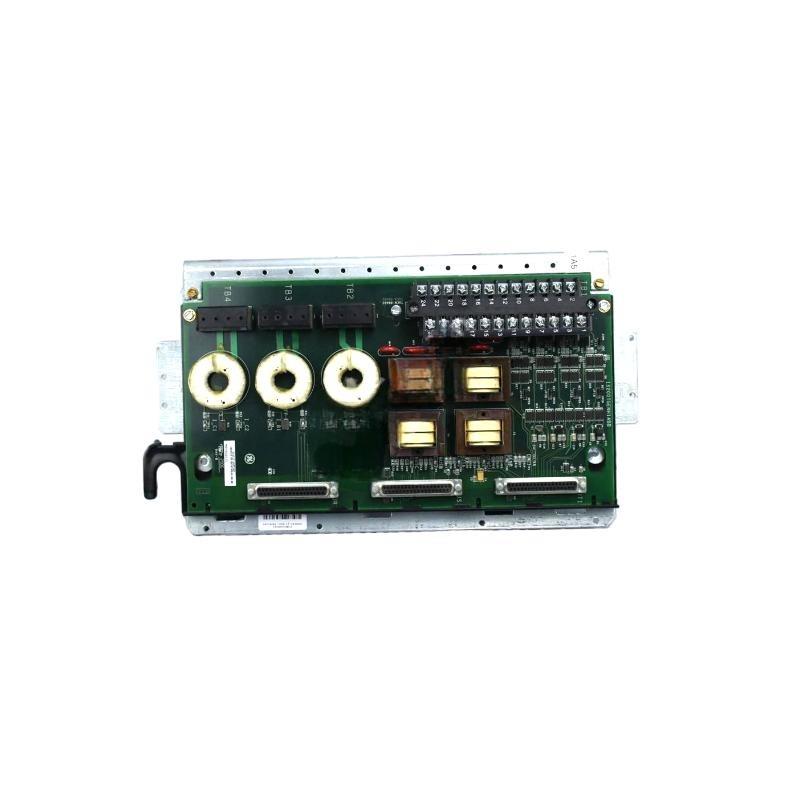

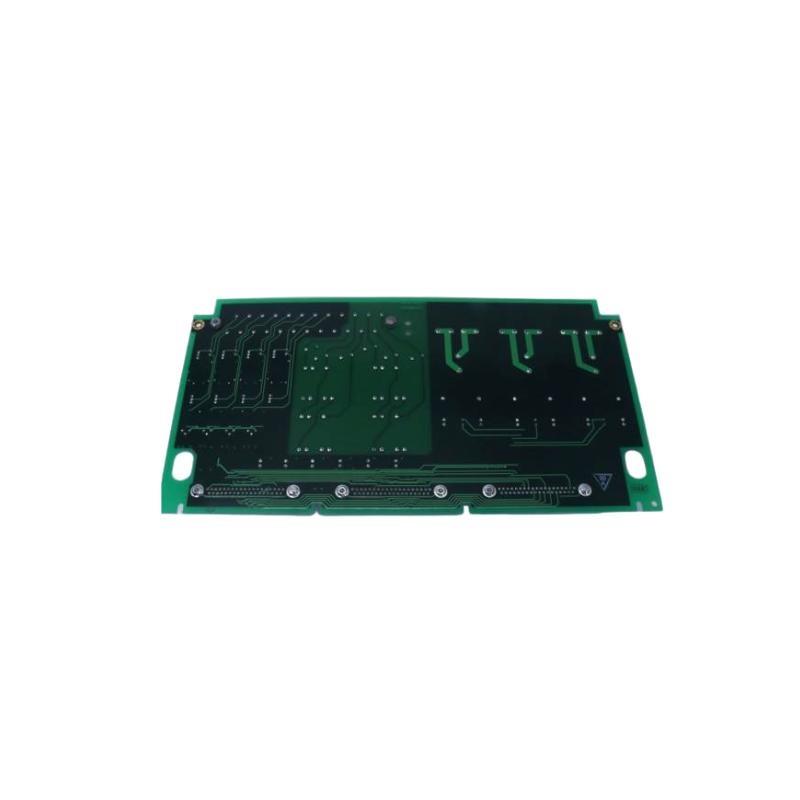

The GE IS200TGENH1A is a terminal board designed for use with generator monitoring systems. As part / GE’s Turbine Control System, the IS200TGENH1A provides reliable signal connection and electrical isolation for generator monitoring applications. This terminal board is engineered to ensure precise data transmission, allowing continuous monitoring and performance optimization / generators, ensuring both efficiency and safety in critical power systems.
With its compact and durable design, the GE IS200TGENH1A provides secure and easy access to input/output connections, /fering high reliability in environments where power generation is critical. Its dimensions are 381 x 228.6 x 76.2 mm, and it weighs 1.8 kg, which makes it suitable for integration into control panels and field equipment.
This terminal board is designed to handle high current and voltage levels associated with generator monitoring, and it provides clear and secure connections to the rest / the system. Its easy integration with other GE components makes it a perfect choice for systems requiring real-time performance monitoring and diagnostic capabilities.
製品仕様
| Parameter | Details |
|---|---|
| モデル | IS200TGENH1A |
| Type | Terminal Board Generator Monitoring System |
| Dimensions (L x W x H) | 381 x 228.6 x 76.2 mm |
| 重量 | 1.8 kg |
| Input/Output Type | Signal Inputs and Outputs |
| Connector Type | Phoenix お問い合わせ Terminal Block |
| Operating Temperature | -40°C to +70°C |
| Power Supply | 24V DC |
| Mounting | Panel Mount, DIN Rail Compatible |
| Environmental Protection | IP20 (for internal use) |
| Max Current | 10A |
| Max Voltage | 600V |
Applications
The GE IS200TGENH1A Terminal Board is used primarily in generator monitoring systems. Its robust design makes it ideal for applications in industries where power generation, machinery reliability, and real-time data monitoring are critical. Some / the key applications include:
-
Power Generation Systems: The terminal board plays a crucial role in monitoring the health and efficiency / power-generating equipment such as gas turbines, steam turbines, and generators.
-
Industrial Automation: It supports control systems that ensure the seamless operation / machinery in industrial plants, providing reliable signal transmission for monitoring generator performance.
-
Energy Facilities: Widely used in hydroelectric and wind power plants, where constant monitoring / generator performance and output is required to ensure smooth operation.
-
Marine and Offshore Applications: Used in marine vessels and /fshore rigs, where generators must be continuously monitored for potential faults, preventing downtime and ensuring safety.
-
Oil and Gas: Critical for monitoring backup generators and emergency power systems, ensuring continued power supply to facilities in the event / a primary power failure.
-
Backup Power Systems: Common in UPS (uninterruptible power supply) systems, ensuring that backup generators are operating optimally when needed.
Product Advantages
-
Reliable Signal Transmission: The IS200TGENH1A terminal board /fers secure connections for generator monitoring systems, ensuring that real-time data is transmitted accurately to control systems for timely analysis and decision-making.
-
Versatile Compatibility: The terminal board is fully compatible with GE’s turbine control systems and other components within the GE automation ecosystem, making integration seamless and easy.
-
High Durability: The terminal board is built to withstand harsh industrial conditions, with an operating temperature range / -40°C to +70°C, making it suitable for use in both hot and cold environments.
-
Compact Design: With 381 x 228.6 x 76.2 mm dimensions and a 1.8 kg weight, the board is compact enough for easy integration into control panels or existing generator systems, without taking up unnecessary space.
-
Enhanced Safety: The GE IS200TGENH1A terminal board helps to enhance safety by providing clear signals for fault detection, ensuring that maintenance personnel are alerted to any potential issues with the generator.
-
Reliable Power Supply: Operating on a 24V DC supply, the terminal board /fers stable and consistent power, essential for the continuous and uninterrupted monitoring / generators.
-
High Voltage and Current Handling: It can handle up to 600V and 10A, making it suitable for high-power generator systems, ensuring reliable data transmission even under load.
-
Ease / Installation: The panel mount or DIN rail installation options make it easy to incorporate the terminal board into both new and existing control systems.
よくある質問 (FAQs)
Q1: What is the input type for the GE IS200TGENH1A terminal board?
A1: The GE IS200TGENH1A terminal board supports signal inputs and outputs, making it ideal for use in generator monitoring systems.
Q2: What are the dimensions / the GE IS200TGENH1A?
A2: The terminal board measures 381 x 228.6 x 76.2 mm, providing a compact yet robust design for integration into control panels.
Q3: What is the maximum voltage the GE IS200TGENH1A can handle?
A3: The terminal board can handle up to 600V, making it suitable for high-power generator systems.
Q4: How much does the GE IS200TGENH1A weigh?
A4: The GE IS200TGENH1A weighs 1.8 kg, making it manageable for installation and maintenance.
Q5: What is the power supply requirement for the GE IS200TGENH1A terminal board?
A5: The terminal board operates on a 24V DC power supply, providing a stable source / power for continuous operation.
Q6: What temperature range can the GE IS200TGENH1A operate in?
A6: The GE IS200TGENH1A terminal board operates within a temperature range / -40°C to +70°C, suitable for both high and low-temperature industrial environments.
Q7: Can the GE IS200TGENH1A handle both low and high-power applications?
A7: Yes, the terminal board is designed to handle up to 10A and 600V, making it suitable for both low and high-power generator systems.
Q8: Is the GE IS200TGENH1A terminal board compatible with GE’s turbine control systems?
A8: Yes, the IS200TGENH1A terminal board is fully compatible with GE turbine control systems and integrates seamlessly with other GE components.
Q9: How is the GE IS200TGENH1A mounted?
A9: The terminal board can be mounted using either panel mounting or DIN rail mounting, /fering flexibility in installation.
Q10: Can the GE IS200TGENH1A be used in energy generation facilities?
A10: Yes, the terminal board is ideal for use in power generation systems, such as hydroelectric and wind power plants, where constant generator monitoring is required.
Related モデルs
| モデル | 説明 | Input Type | Dimensions (mm) | 重量 (kg) |
|---|---|---|---|---|
| IS200TGENH2A | Terminal Board for Generator Monitoring (Dual Channel) | Signal Input | 381 x 228.6 x 76.2 | 1.9 |
| IS200TGENH3A | Terminal Board for Generator Monitoring (Advanced) | Signal Input | 400 x 240 x 80 | 2.0 |
| IS200TGENH4A | Generator Monitoring Input Terminal | Signal Input | 380 x 230 x 78 | 1.7 |
| IS200TGENH5A | Compact Generator Monitoring Terminal | Signal Input | 375 x 225 x 75 | 1.6 |
| IS200TGENH6A | High Power Generator Monitoring Terminal | Signal Input | 385 x 230 x 80 | 2.1 |
| IS200TGENH7A | Flexible Generator Monitoring Terminal | Signal Input | 390 x 240 x 85 | 2.2 |
Popular GE モデルs
| モデル | 説明 | Input Type | Dimensions (mm) | 重量 (kg) |
|---|---|---|---|---|
| IS200TBCIH1A | Digital I/O Termination Board | Digital Input | 35 x 125 x 130 | 0.3 |
| IS200EHDAG1A | I/O Expansion Module | Analog Input | 50 x 150 x 150 | 0.55 |
| IS200TCQBH1A | Control Module for GE Systems | Analog Input | 50 x 160 x 150 | 0.6 |
| IS200TBCIH2A | Digital Input Terminal Board | Digital Input | 45 x 130 x 145 | 0.48 |
| IS200DSPXH1A | Signal Processing ユニット | Analog Input | 55 x 160 x 160 | 0.7 |
| IS200RTHFH1A | Remote Terminal for GE Systems | Digital Input | 50 x 155 x 155 | 0.55 |
