製品紹介

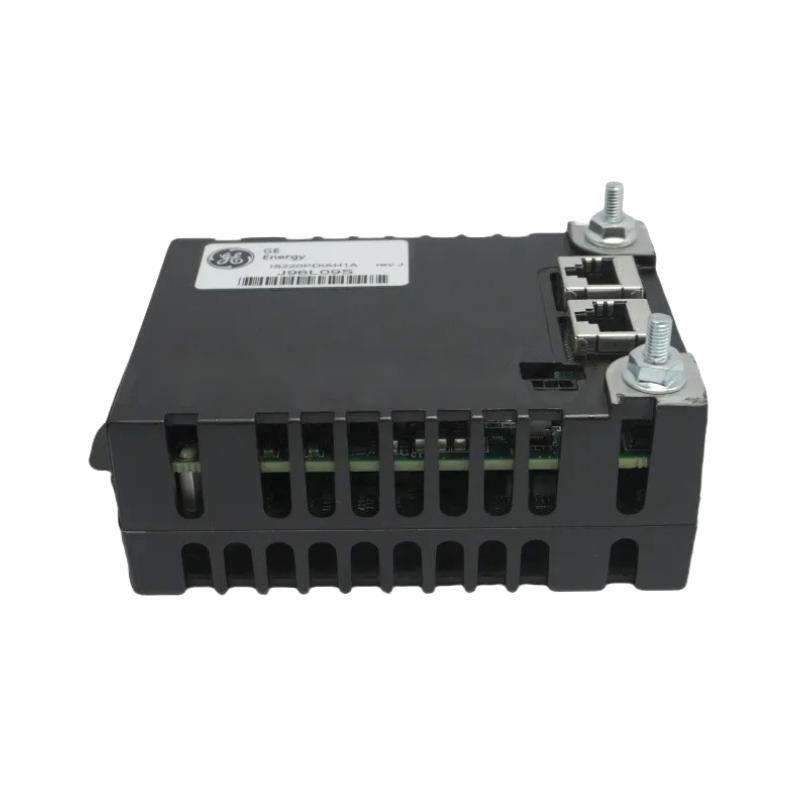

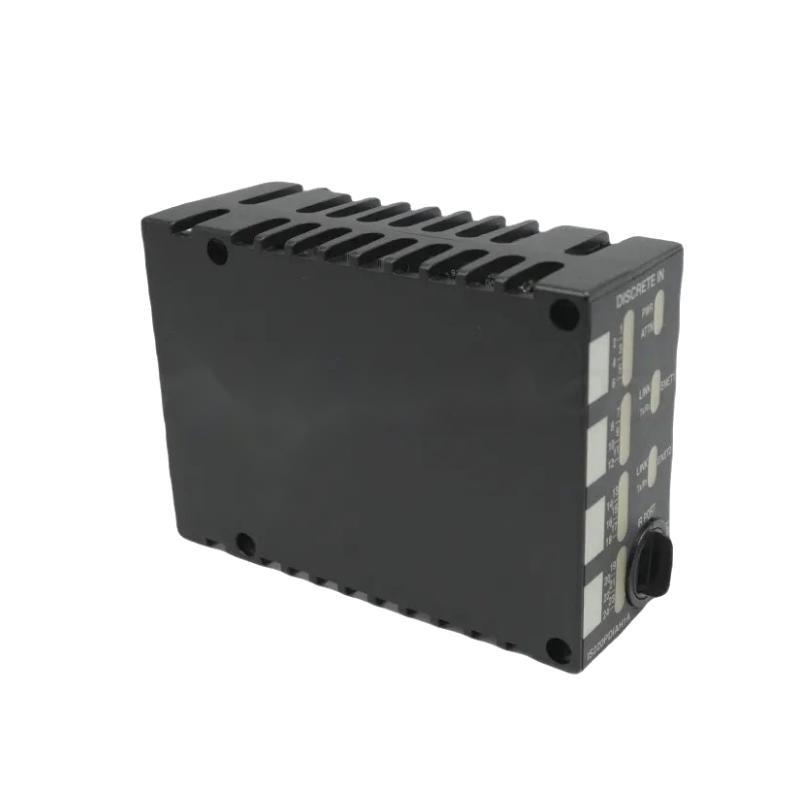

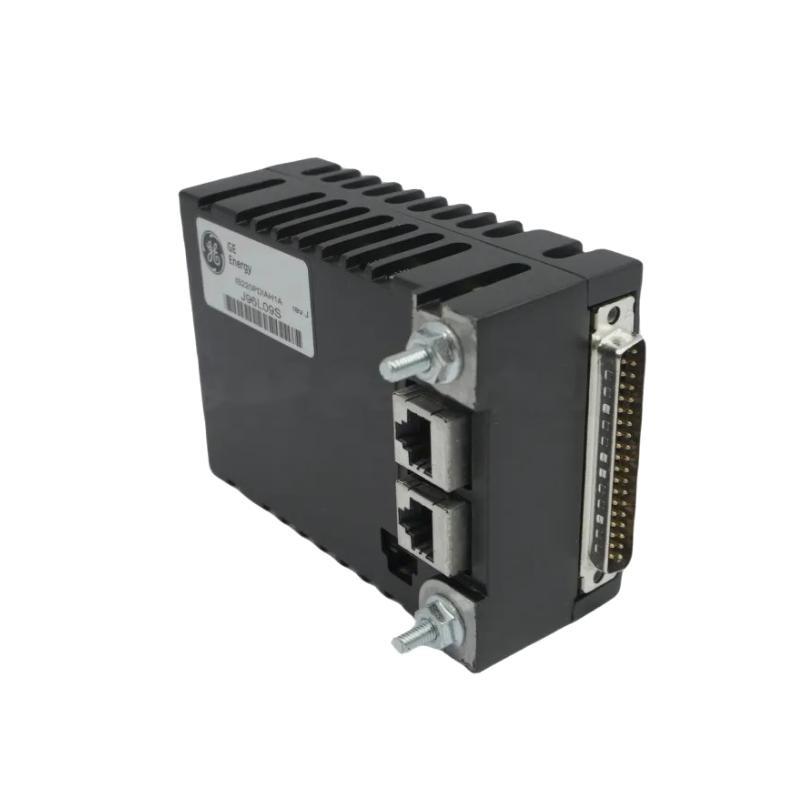

The GE IS200PDIOH1A is a Digital/Discrete I/O Protection Board designed for integration within the GE Speedtronic Mark VI / Mark VIe turbine control systems. It serves as a critical interface that processes discrete digital I/O signals (e.g. trip contacts, interlocks) related to turbine protection logic.
This board connects to terminal blocks and communicates via the IONet backplane (through the VCMI module), enabling fast, deterministic exchange / status and control signals. It is typically used in redundancy-critical protection systems—such as emergency trip logic—where accurate digital signal handling and high reliability are essential for safe turbine operation.
製品仕様
| Parameter | 説明 |
|---|---|
| モデル | IS200PDIOH1A |
| 型番 | IS200PDIOH1A |
| Function | Turbine Protection Discrete I/O Interface |
| Input Types | Digital discrete inputs (trip, status contacts) |
| Output Types | Digital discrete outputs (alarms, trip enable) |
| Channel Count | Up to 16 input/output channels (depending on installed terminal boards) |
| Signal Type | TTL / contact closure discrete logic signals |
| Isolation | Channel-to-ground isolation |
| Diagnostics | Fault detection, logic integrity checking |
| Redundancy サポート | Yes; supports redundant input logic paths |
| Communication Interface | IONet via VCMI module |
| System Compatibility | GE Mark VI and Mark VIe |
| Mount Type | VME rack-mounted card |
| Hot-Swap Capability | No (requires system shutdown) |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | −40 °C to +85 °C |
| Humidity Range | 5% to 95% RH, non-condensing |
| PCB Coating | Standard conformal coating |
| Dimensions (W × H × D) | 127 x 127 x 132 mm |
| 重量 | 0.4 kg |
| Certifications | CE, UL, RoHS compliant |
Product Applications
The IS200PDIOH1A Protection Board is commonly deployed in mission-critical protection systems across turbine control platforms. Typical uses include:
-
Emergency Trip Logic: Receiving and processing redundancy trip contact closures during overspeed or fault conditions.
-
Protection Interlocks: Monitoring discrete signals from vibration sensors, overspeed detectors, or fire shutdown circuits.
-
Alarm and Status Reporting: Driving discrete output signals to instrumentation annunciators or backup systems.
-
Safety Instrumented Functions: Operating as part / redundant safety loops for turbine or generator protection.
-
Balance / Plant Integration: Handling plant-level interlocks relative to auxiliary equipment via discrete I/O.
-
SCADA/DCS Integration: Feeding discrete statuses into supervisory systems for monitoring and control.
Product Advantages
-
Fast Digital I/O Processing: Ensures rapid detection and communication / discrete protection signals.
-
Redundancy‑Ready Design: サポートs dual-path logic for fault tolerance in critical shutdown circuits.
-
Robust Isolation: Protects against signal interference, ground loops, and noise in industrial environments.
-
Integrated Diagnostics: Detects wiring faults, signal inversion, and logic discrepancies for preventive maintenance.
-
Seamless System Integration: Engineered for compatibility with GE Mark VI/VIe IONet architecture.
-
Modular Architecture: Enables flexible system configuration by combining discrete I/O boards and terminal boards.
-
Reliable Performance: Built to withstand vibration, temperature fluctuations, and high humidity environments.
-
Simplified Serviceability: Clear interface and fault indicators reduce diagnostic time.
よくある質問 (FAQ)
-
What discrete signal types are supported by IS200PDIOH1A?
Inputs accept contact closures, high/low logic; outputs drive discrete alarms or enable signals. -
Does the board provide channel isolation?
Yes, channel-to-ground isolation is provided; channel-to-channel isolation depends on the chassis layout. -
Can this board operate in a redundant safety configuration?
Yes, it supports redundant trip logic and dual-path discrete signal processing. -
How are faults or logic errors reported?
Built-in diagnostics flag faults via VCMI communication to the controller and can drive LED indicators on terminal boards. -
Is this board hot-swappable?
番号 It requires system shutdown for installation or removal. -
Which communication protocol is used?
Discrete I/O and diagnostics are sent over IONet via the VCMI card in the controller rack. -
Does it support both input and output channels?
Yes – it handles discrete inputs (e.g., contact closures) and outputs (e.g., alarm/enabling signals). -
What terminal boards are typically used with IS200PDIOH1A?
Compatible terminal boards include discrete input and relay output terminal boards (e.g., IS200STCIH series). -
Is wiring-to-terminal board mapping verified?
Yes—diagnostic checks verify terminal board IDs, wiring integrity, and logic consistency. -
Can it be used in non-turbine industrial systems?
While optimized for GE Mark VI/VIe, it may be adapted to other discrete safety logic environments with custom integration.
Related モデルs (Same Series or Similar Function)
| モデル | 型番 | Function | Type | System Compatibility |
|---|---|---|---|---|
| IS200STCIH1ADD | GE terminal board | Discrete Input Terminal Board | Digital Input Board | GE Mark VI/VIe |
| IS200TRLYH1B | GE relay output | Relay Output Board | Discrete Output Module | GE Mark VI/VIe |
| IS200TREGH1B | GE trip relay board | Emergency Trip Relay Board | Safety Output Board | GE Mark VI/VIe |
| IS200PAICH1B | GE analog input | Analog Input 状態ing Board | Analog Protection Module | GE Mark VI/VIe |
| IS200PAOCH1B | GE analog output | Analog Output Board | Analog Protection Module | GE Mark VI/VIe |
| IS200DSPXH1D | GE signal processor | Digital Signal Processing Board | Processing Module | GE Mark VI |
Popular GE モデルs
| モデル | 型番 | Function | Type | System Compatibility |
|---|---|---|---|---|
| IS215VCMIH2C | Communication card | VME Communication Interface Module | VCMI Communication Module | GE Mark VI/VIe |
| IS200SPROH2A | Protection board | Emergency Protection Terminal Board | Trip Logic Terminal Board | GE Mark VIe |
| IS200STAIH2ACB | Analog input board | Analog Input Terminal Board | Analog Input Module | GE Mark VI/VIe |
| IS200TTVBAH2A | Vibration board | Vibration Input Terminal Board | Sensor Input Module | GE Mark VI |
| IS200EPSMG1A | Exciter power supply | Exciter Power Supply Module | Power Supply | GE Mark VI |
| IS200DVOPKH1AAA | Digital I/O board | Digital Voltage Output Panel | Output Logic Board | GE Mark VI |
