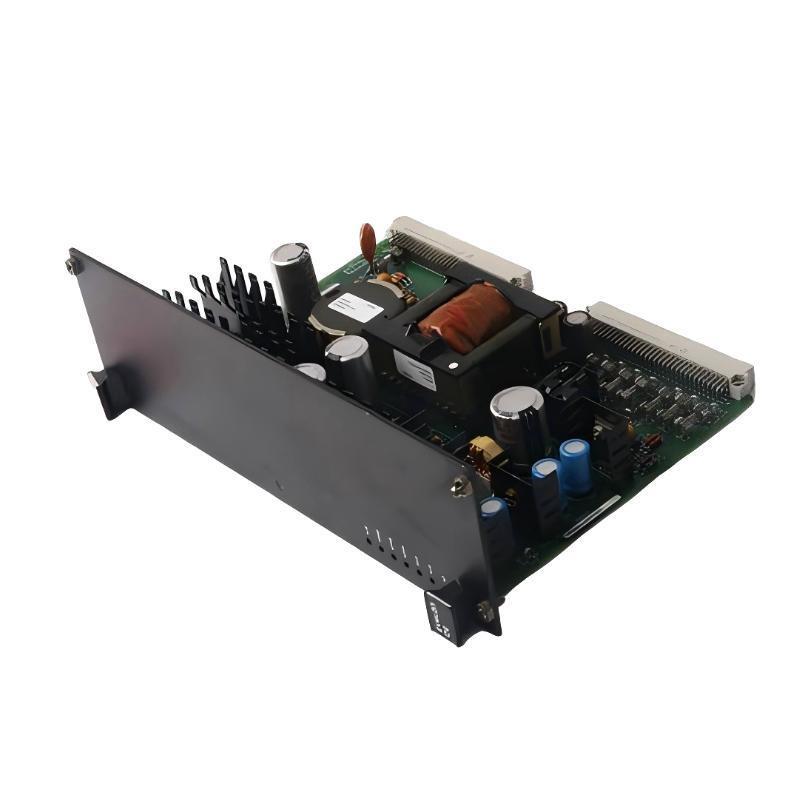

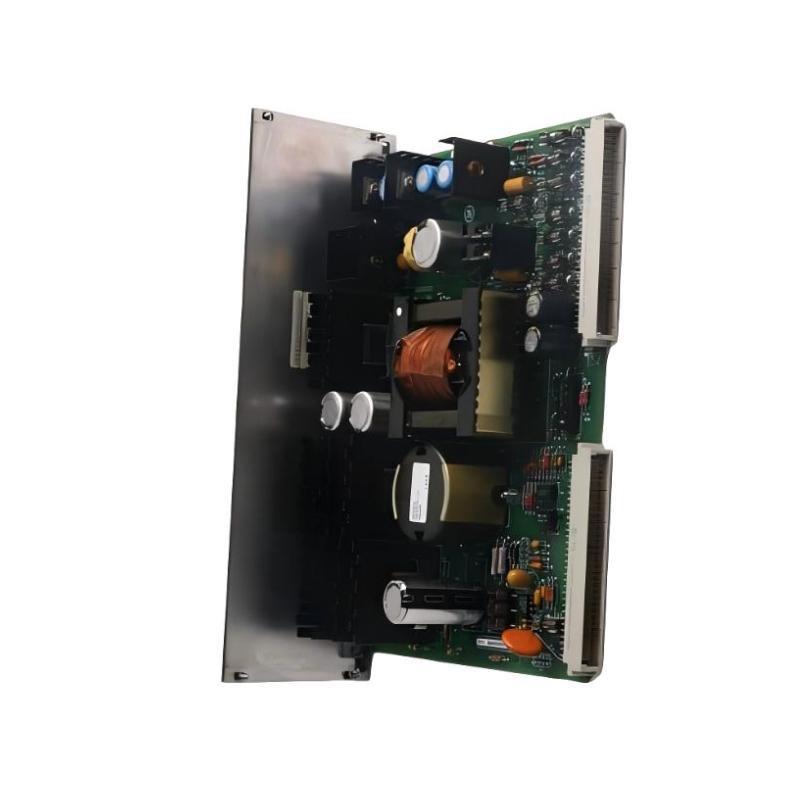

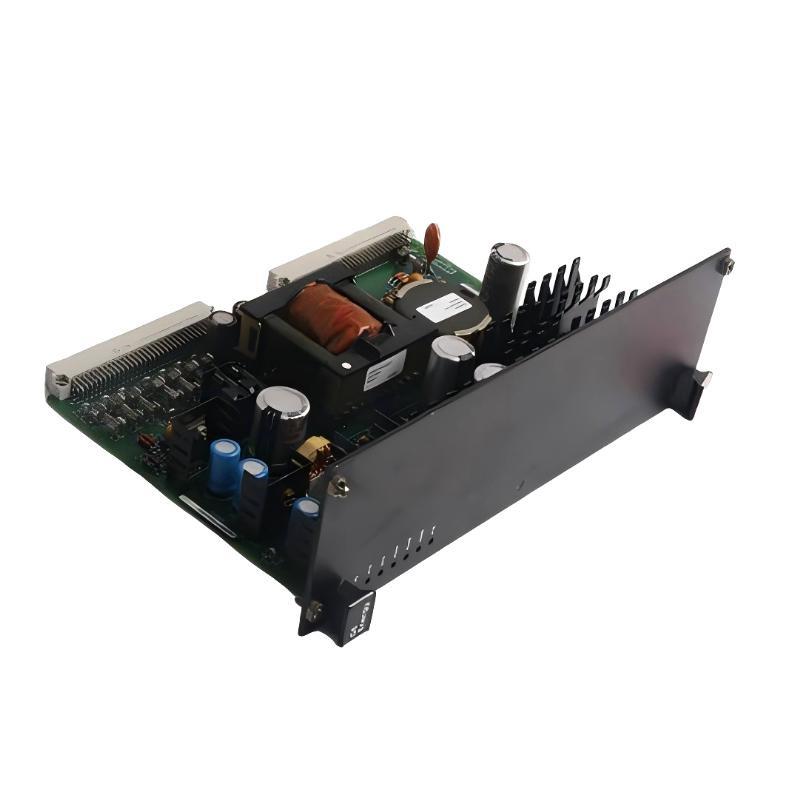

The GE IS200JPDMG1R Power Distribution Board is a high-reliability electrical distribution module designed for industrial automation and control systems. This board ensures efficient power distribution to multiple components, providing protection, stability, and isolation for sensitive electronic devices. Engineered for rigorous industrial environments, it integrates seamlessly into GE IS200 series control systems, delivering robust performance even under heavy electrical loads and variable operating conditions.
The board incorporates advanced circuit protection, precise power routing, and modular design to facilitate easy maintenance and expansion. Its design emphasizes safety, operational reliability, and minimal downtime, making it suitable for applications in critical industries such as power generation, manufacturing, and process control.
Product Parameters
| Parameter | 説明 |
|---|---|
| Product モデル | IS200JPDMG1R |
| メーカー | GE |
| Product Type | Power Distribution Board |
| Input Voltage | 24–125 VDC nominal (application-dependent) |
| Output Voltage | 24 VDC isolated outputs for multiple channels |
| Number / Channels | Up to 8 power outputs |
| Protection | Overcurrent, short-circuit, and surge protection |
| Power Rating | 500 W typical load distribution |
| Efficiency | ≥ 95% typical |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5–95%, non-condensing |
| Mounting | DIN rail or panel mount compatible |
| Communication Interface | Optional remote monitoring via IS200 bus |
| Environmental Protection | IP20 internal protection, insulated components |
| Dimensions | 200 × 150 × 50 mm |
| 重量 | 0.8 kg |
Product Applications
The IS200JPDMG1R is designed for distribution and management / DC power in industrial automation and control systems. Typical applications include:
-
Industrial Automation Systems: Provides stable power to PLCs, I/O modules, and auxiliary devices.
-
Power Generation Control: Distributes regulated DC power to control boards and monitoring equipment.
-
Process Control Industries: Supplies power to sensors, actuators, and signal conditioning modules.
-
Manufacturing Equipment: Ensures reliable power distribution for robotic and conveyor control modules.
-
Transportation and Marine Systems: Provides isolated power to control and monitoring 台s.
-
Energy and Utility Monitoring: Integrates into larger IS200 systems for efficient power management.
The board allows precise control over power allocation, minimizing the risk / overloading individual components while supporting system scalability.
Product Advantages
The GE IS200JPDMG1R Power Distribution Board /fers several technical and operational advantages:
-
Reliable Power Distribution: Ensures stable voltage and current for sensitive devices.
-
Integrated Protection: Protects against overcurrent, short circuits, and voltage surges.
-
High Efficiency: Minimizes energy losses and heat generation.
-
Modular Design: Facilitates easy maintenance and expansion within IS200 systems.
-
Environmental Tolerance: Operates reliably under wide temperature and humidity ranges.
-
Isolation Between Channels: Reduces electrical interference between connected devices.
-
Compatibility: Fully compatible with other IS200 series modules for seamless integration.
-
Compact Footprint: Efficient layout allows installation in space-constrained panels.
-
Monitoring Capability: Optional remote monitoring for voltage, current, and fault status.
-
Enhanced Safety: Insulated components and robust design minimize electrical hazards.
FAQ
-
What voltage range does the IS200JPDMG1R support for input?
The board accepts a nominal input voltage / 24–125 VDC, depending on system configuration. -
How many output channels are available on this board?
It provides up to 8 isolated power outputs for distribution to multiple devices. -
Does the board include protection features?
Yes, it integrates overcurrent, short-circuit, and surge protection for all outputs. -
Can it be used with other GE IS200 modules?
Yes, it is fully compatible with IS200 series modules for seamless integration. -
What is the maximum power load it can handle?
The board can distribute up to 500 W total load across its outputs. -
Is the board suitable for high-humidity environments?
Yes, it operates reliably at 5–95% relative humidity, non-condensing. -
How is the board mounted in a control panel?
It supports DIN rail or panel mounting depending on installation requirements. -
Can it support remote monitoring / voltage and current?
Yes, optional communication via IS200 bus allows monitoring / key parameters. -
What operating temperatures can the board tolerate?
It functions reliably from -20°C to +70°C under normal operating conditions. -
Does the board provide electrical isolation between channels?
Yes, each output channel is electrically isolated to reduce interference and improve system reliability.
Related モデルs (Same Series or Similar Type)
| モデル | 説明 |
|---|---|
| IS200JPDMG1 | Standard IS200 Power Distribution Board |
| IS200JPDMG2 | High-capacity distribution board for extended loads |
| IS200JPDMG3 | Isolated output version with enhanced protection |
| IS200JPDMG4 | Modular distribution board with remote monitoring |
| IS200JPDMG5 | Compact design for space-constrained installations |
| IS200JPDMG6 | Enhanced efficiency board for critical industrial systems |
Popular モデルs from the Same ブランド
| モデル | Product Type | 説明 |
|---|---|---|
| IS200JPDMG1R | Power Distribution Board | Provides stable DC power for IS200 modules |
| IS200JPSM1 | Signal Monitoring Module | Monitors and conditions input signals |
| IS200JPCM1 | Control Module | Executes PLC logic for automation systems |
| IS200JPIM1 | I/O Module | Connects sensors and actuators to the control system |
| IS200JPOM1 | Output Module | Drives relays and actuators in industrial applications |
| IS200JPBM1 | Bus Module | Interfaces IS200 modules for system communication |
