製品紹介

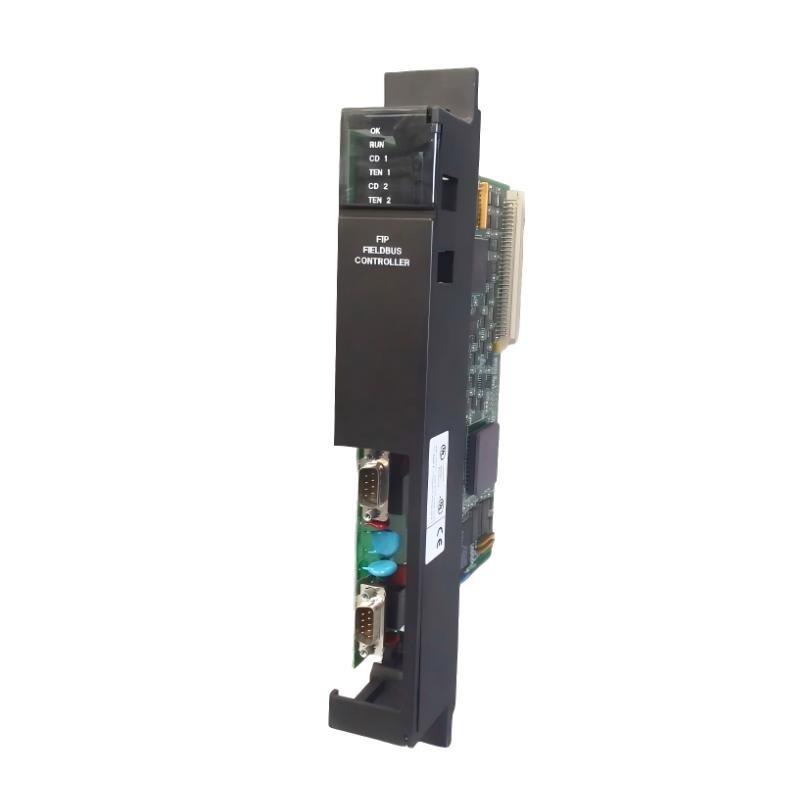

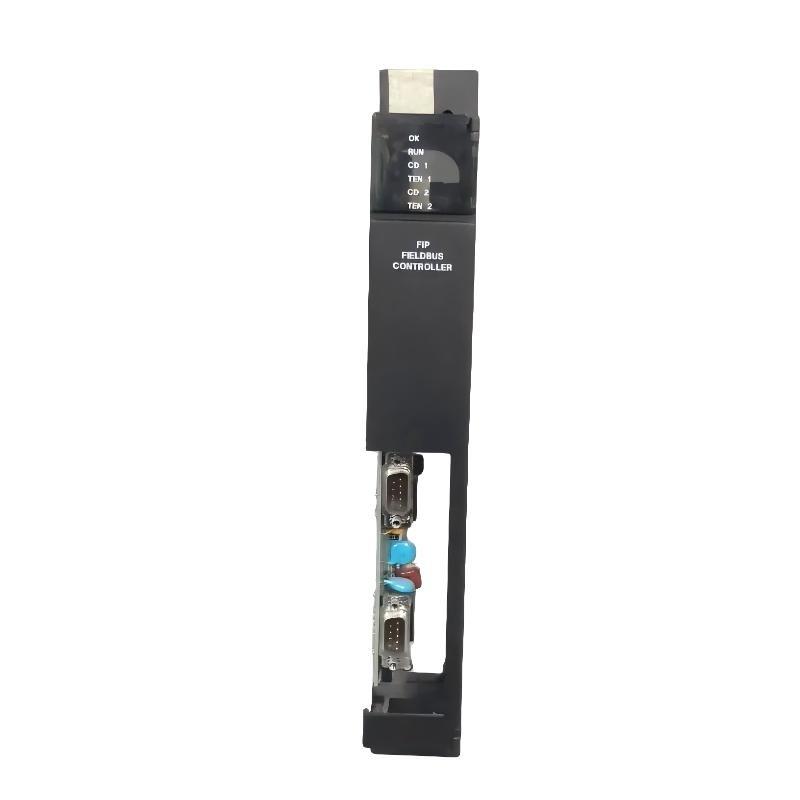

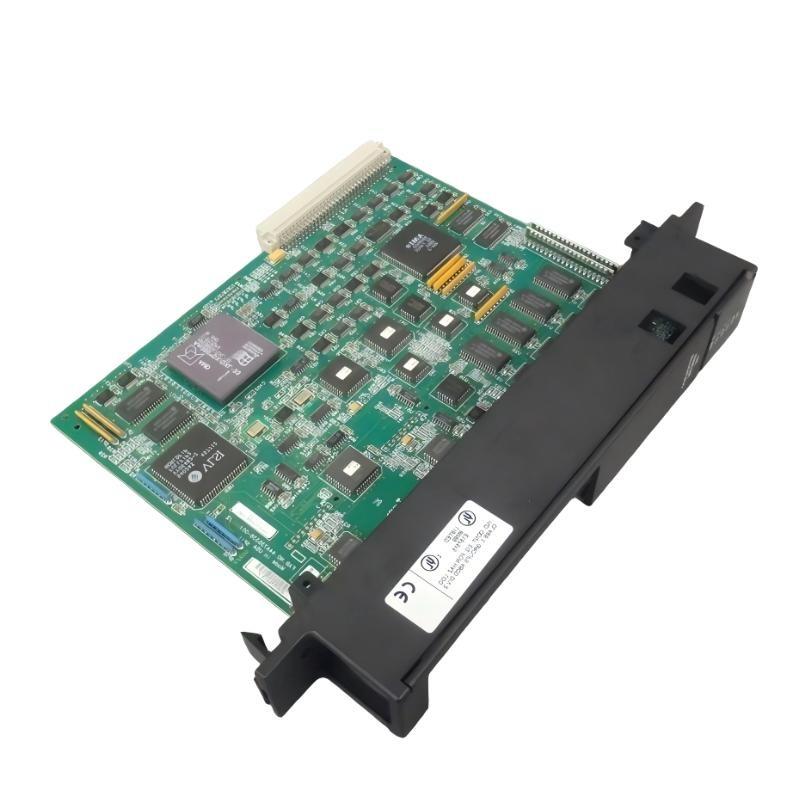

The GE IC697BEM742 FIP Bus Controller is a high-performance Fieldbus Interface Processor (FIP) communication module designed for use with the GE Fanuc Series 90-70 PLC system. It serves as an intelligent interface between the PLC central processing 台 and the Factory Instrumentation Protocol (FIP) network, providing reliable, high-speed communication for distributed control and automation systems.
The IC697BEM742 module enhances system connectivity by enabling deterministic communication between the main PLC and field-level devices such as intelligent I/O modules, sensors, and actuators. It supports cyclic and acyclic data transmission, ensuring both real-time control and parameter exchange capabilities.
With its rugged construction, the IC697BEM742 is built to perform under demanding industrial environments. It /fers comprehensive diagnostics, high imm台y to electrical interference, and flexible configuration options, making it suitable for large-scale, mission-critical control systems.
製品仕様
| Parameter | 説明 |
|---|---|
| Product モデル | GE IC697BEM742 |
| メーカー | GE Fanuc Automation |
| Product Type | FIP Bus Controller Module |
| サポートed Network Protocol | Factory Instrumentation Protocol (FIP) |
| Communication Speed | 1 Mbit/s |
| Communication Type | Master/Slave (FIP Master station) |
| Data Transmission Modes | Cyclic and acyclic |
| サポートed Devices | Remote I/O modules, field instruments, intelligent devices |
| Maximum Number / Nodes | 255 devices per FIP segment |
| Bus Medium | Shielded twisted pair cable |
| Maximum Bus Length | 2 km (with proper termination and cable type) |
| Bus Termination | 120 Ω resistors at both ends / the bus line |
| Network Topology | Linear bus or tree configuration |
| Diagnostic Features | Communication error logging, device timeout detection, node diagnostics |
| Module Interface | Direct connection to Series 90-70 PLC backplane |
| CPU Compatibility | All GE Series 90-70 CPUs |
| Isolation Voltage | 1500 V (bus to system isolation) |
| Power Supply Voltage | +5 VDC (supplied by backplane) |
| Power Consumption | 3.8 W (typical) |
| LED Indicators | RUN, ERR, BUS ACT, STATUS |
| Firmware Upgrade | サポートed via PLC configuration tools |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5–95% non-condensing |
| Vibration Resistance | 2 g, 10–150 Hz |
| Shock Resistance | 15 g, 11 ms half-sine pulse |
| Dimensions | 172 × 33 × 142 mm |
| 重量 | 0.54 kg |
| Mounting Type | Rack-mounted, Series 90-70 baseplate |
| Compliance | UL, CE, CSA certified |
Product Applications
The GE IC697BEM742 is widely used in distributed control networks, providing an efficient communication interface between PLCs and field-level equipment. Its versatility and reliability make it suitable for numerous industrial automation sectors, including:
-
Process Control Systems: Real-time monitoring and control / distributed sensors, transmitters, and actuators in refineries and chemical plants.
-
Power Generation: Synchronization and data communication between turbine control systems and plant monitoring devices.
-
Manufacturing Automation: Integration / intelligent devices, robotic control systems, and distributed I/O modules.
-
Water and Wastewater Management: Reliable data exchange between remote field sensors and central control 台s.
-
Oil and Gas Facilities: Safe and robust communication for pipeline and wellhead monitoring systems.
-
Transportation and Infrastructure: Supervisory control and data acquisition (SCADA) applications for traffic or tunnel management.
Product Advantages
-
High-Speed FIP Communication: Delivers deterministic, time-critical communication at up to 1 Mbit/s for fast control response.
-
Large Network Capacity: サポートs up to 255 connected field devices per FIP segment.
-
Industrial-Grade Reliability: Resistant to vibration, temperature fluctuation, and electrical interference.
-
Comprehensive Diagnostics: Built-in monitoring / communication integrity, node errors, and timeouts for predictive maintenance.
-
Flexible Configuration: Allows both cyclic data exchange for real-time control and acyclic exchange for device parameterization.
-
Easy System Integration: Compatible with all GE Fanuc Series 90-70 CPUs and seamlessly integrates into existing systems.
-
High Electrical Isolation: Ensures signal integrity and protects the controller from field disturbances.
-
Upgradeable Firmware: サポートs firmware updates without removing the module from the PLC rack.
-
Low Maintenance Design: Designed for continuous operation and minimal service requirements.
-
Global Compliance: Meets international industrial standards for performance and safety.
FAQ
-
What communication protocol is used by the IC697BEM742 module?
The module uses the Factory Instrumentation Protocol (FIP) for field-level communication. -
What is the maximum number / devices that can be connected to one FIP network?
A single FIP segment can support up to 255 devices. -
What communication speed does the module support?
The IC697BEM742 operates at a transmission rate / 1 Mbit per second. -
Does the module support both cyclic and acyclic data transmission?
Yes, it supports cyclic data for real-time control and acyclic data for configuration and diagnostics. -
What type / cable is recommended for the FIP bus network?
A shielded twisted pair cable designed for industrial bus communication is recommended. -
How does the module handle communication errors or timeouts?
It includes internal diagnostics that detect, log, and report communication errors to the PLC CPU. -
Is the IC697BEM742 compatible with all Series 90-70 PLC CPUs?
Yes, it is fully compatible with all GE Fanuc Series 90-70 CPU models and baseplates. -
Can the firmware / the module be updated in-system?
Yes, firmware updates can be performed directly through the PLC programming s/tware via the backplane. -
What is the electrical isolation level between the bus and the PLC system?
The isolation voltage is rated at 1500 V to ensure system protection and signal reliability. -
What LED indicators are available on the front panel / the module?
It provides status LEDs for RUN, ERR, BUS ACT (bus activity), and STATUS for easy diagnostics.
Related モデルs (Same Series)
| モデル | 説明 | Protocol | Speed | Application |
|---|---|---|---|---|
| IC697BEM741 | FIP Bus Controller Module | FIP | 1 Mbit/s | Field-level distributed control |
| IC697BEM731 | PROFIBUS-DP Master Module | PROFIBUS-DP | 12 Mbit/s | High-speed fieldbus master |
| IC697BEM733 | PROFIBUS-DP Slave Module | PROFIBUS-DP | 12 Mbit/s | Slave device integration |
| IC697BEM713 | Genius Bus Controller Module | Genius Bus | 153.6 Kbit/s | Remote I/O communication |
| IC697CMM711 | Communications Coprocessor Module | Ethernet/Serial | 10/100 Mbps | PLC-to-PLC communication |
| IC697PCM711 | Programmable Coprocessor Module | Serial | 115.2 Kbit/s | Custom communication applications |
Popular GE モデルs (Same ブランド)
| モデル | 説明 | Product Type | Key Feature |
|---|---|---|---|
| IC697CPU772 | High-Performance CPU | PLC Processor | 32-bit processor with Ethernet capability |
| IC697MDL240 | Digital Input Module | 24 VDC Input | 32-channel isolated input |
| IC697MDL940 | Digital Output Module | 120/240 VAC Output | Relay-type outputs for industrial loads |
| IC697PWR711 | Power Supply Module | PLC Power Supply | 120/240 VAC input, 100 W output |
| IC697ALG234 | Analog Input Module | Voltage/Current Input | ±10 VDC or 4–20 mA signal input |
| IC697CHS750 | PLC Baseplate | 5-Slot Rack | Compatible with Series 90-70 modules |
