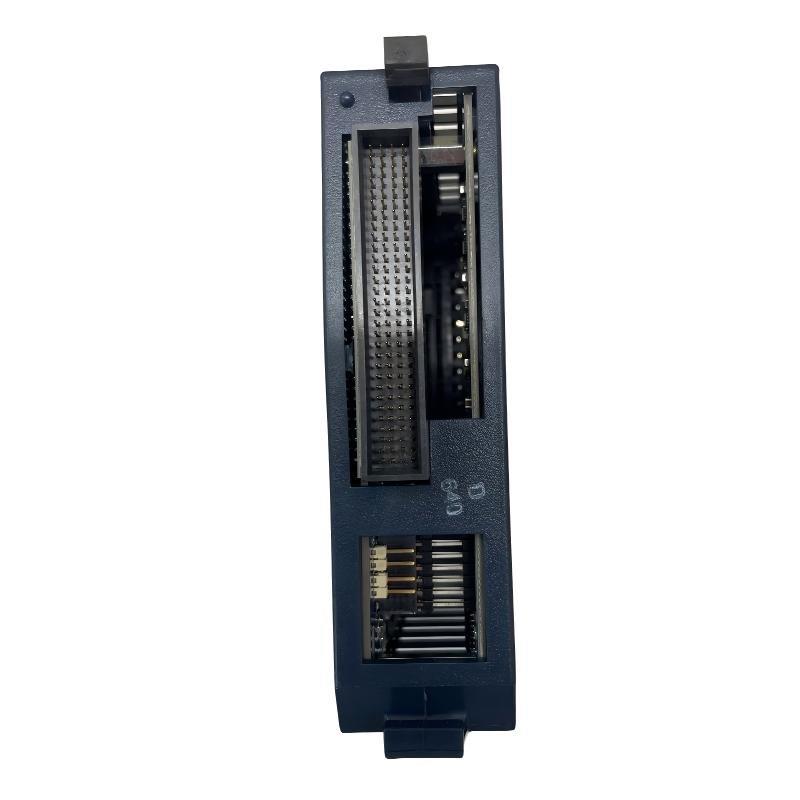

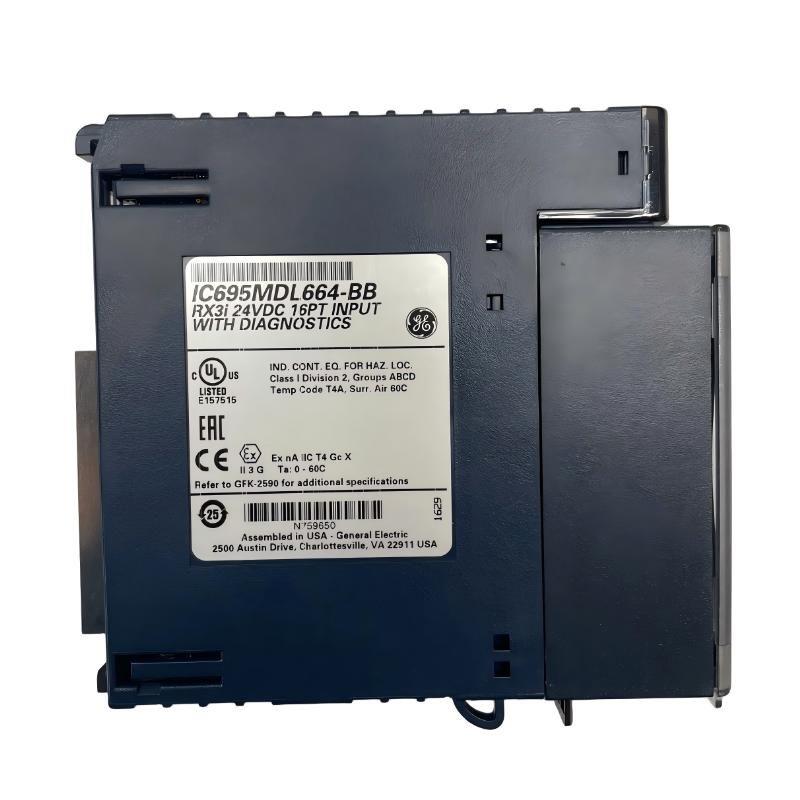

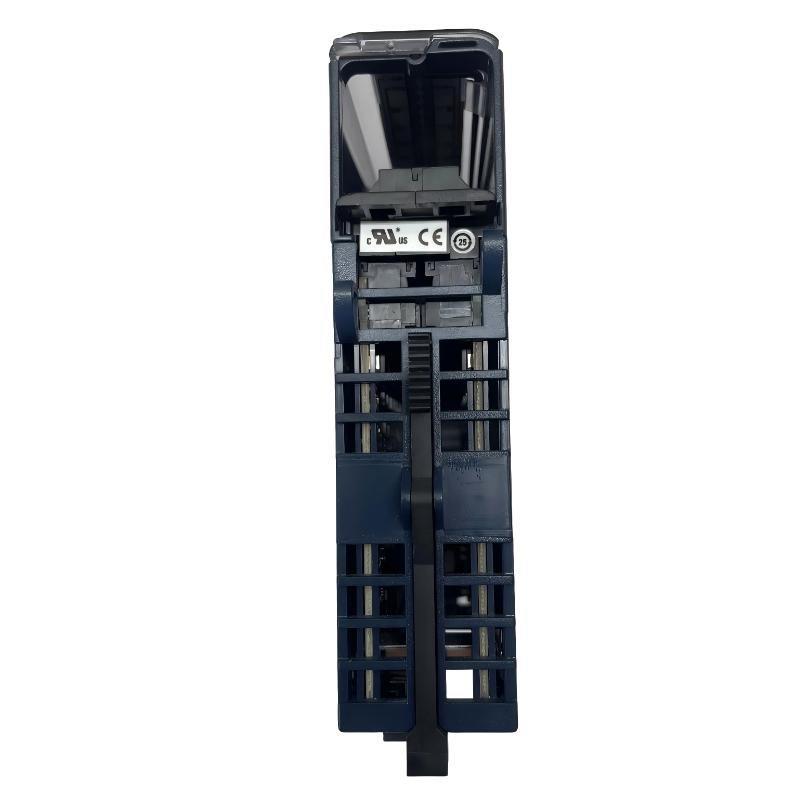

The GE IC695MDL664 Smart Digital Input Module is an advanced discrete input module designed for GE PACSystems RX3i control platforms. It provides high-performance signal acquisition with enhanced diagnostic capabilities, making it suitable for critical industrial automation applications where reliability and system visibility are essential.
With 16 positive logic digital input points, the IC695MDL664 is optimized for monitoring field signals such as switches, sensors, and status contacts. Its smart diagnostic features allow real-time monitoring / input conditions, helping operators quickly identify wiring faults, signal inconsistencies, and abnormal operating states. The module supports configurable input filtering, allowing users to tailor response times based on application requirements.
製品仕様
| Parameter | Specification |
|---|---|
| モデル | IC695MDL664 |
| Product Type | Smart Digital Input Module |
| Series | GE PACSystems RX3i |
| Input Points | 16 channels |
| Input Type | Positive logic digital inputs |
| Input Voltage | 24 V DC (range 20–30 V DC) |
| Input Filter Time | 0.5–100 ms selectable |
| Diagnostics | Advanced input diagnostics |
| Current Consumption | 225 mA @ 5 V DC / 95 mA @ 3.3 V DC |
| Mounting Type | Panel or DIN rail mounting |
| Function | Discrete signal acquisition |
| Operating Environment | Industrial automation systems |
| Dimensions | 145 × 34 × 140 mm |
| 重量 | 0.25 kg |
Applications
• Industrial Automation Systems:
Monitors digital signals from sensors, switches, and control devices with high reliability.
• Process Control Systems:
Provides real-time input status for process monitoring and control logic execution.
• Machine Control Applications:
Ensures accurate detection / machine states and operational conditions.
• Distributed Control Systems (DCS):
サポートs large-scale signal acquisition with advanced diagnostics.
• Safety and Monitoring Systems:
Helps detect abnormal input conditions and supports system protection strategies.
Advantages
• Advanced Diagnostic Capability:
Provides real-time fault detection, improving maintenance efficiency and system uptime.
• Flexible Input Filtering:
Selectable response time (0.5–100 ms) allows adaptation to different signal conditions.
• Reliable Positive Logic Inputs:
Ensures stable and accurate signal detection in industrial environments.
• Compact and Flexible Mounting:
サポートs both panel and DIN rail installation for easy integration.
• Efficient Power Consumption:
Optimized current usage for improved system efficiency.
• Seamless RX3i Integration:
Fully compatible with GE PACSystems RX3i architecture.
