製品紹介

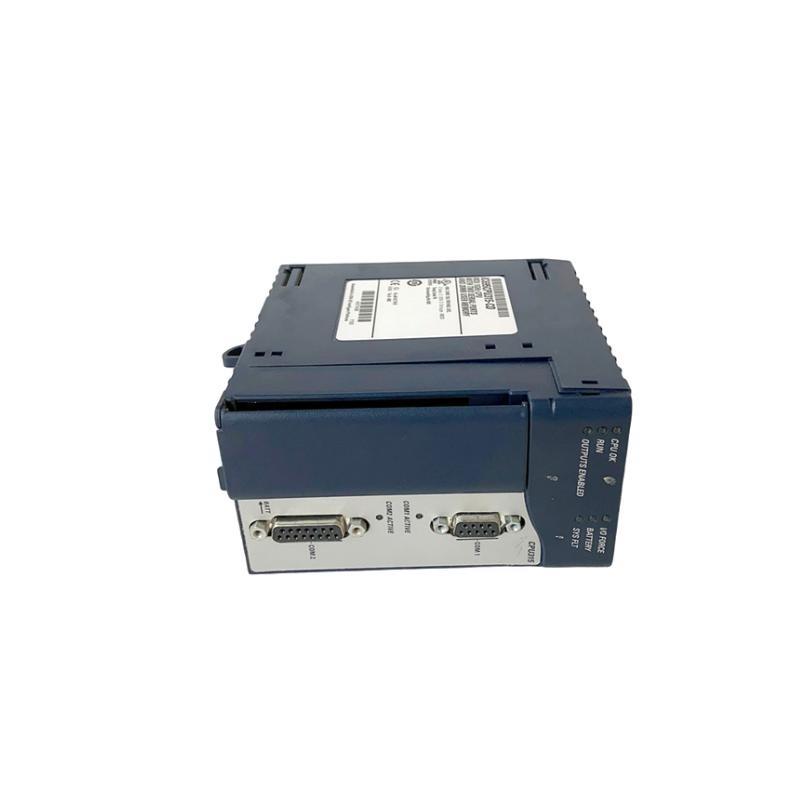

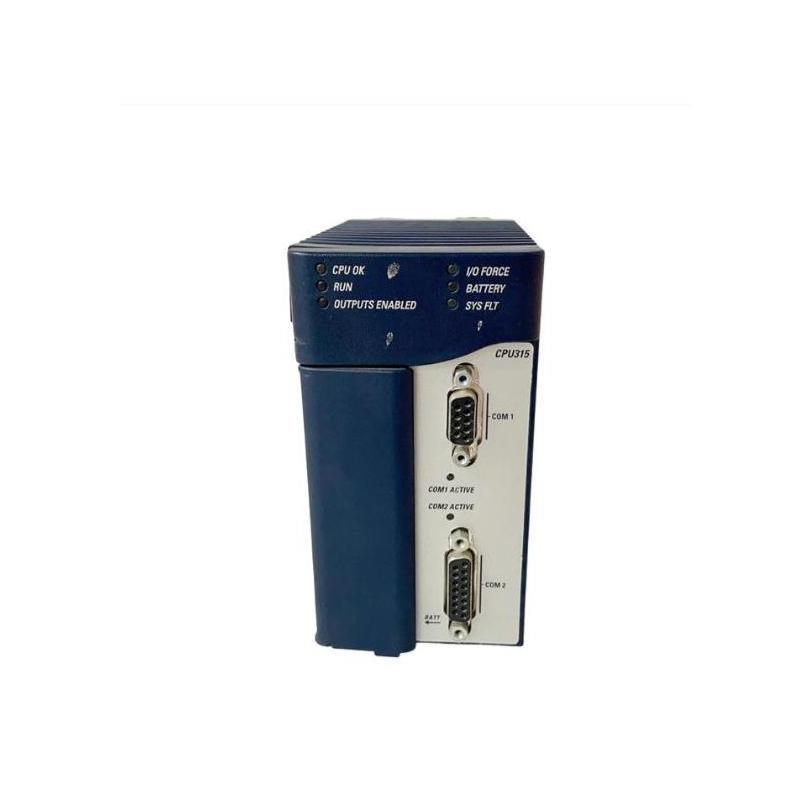

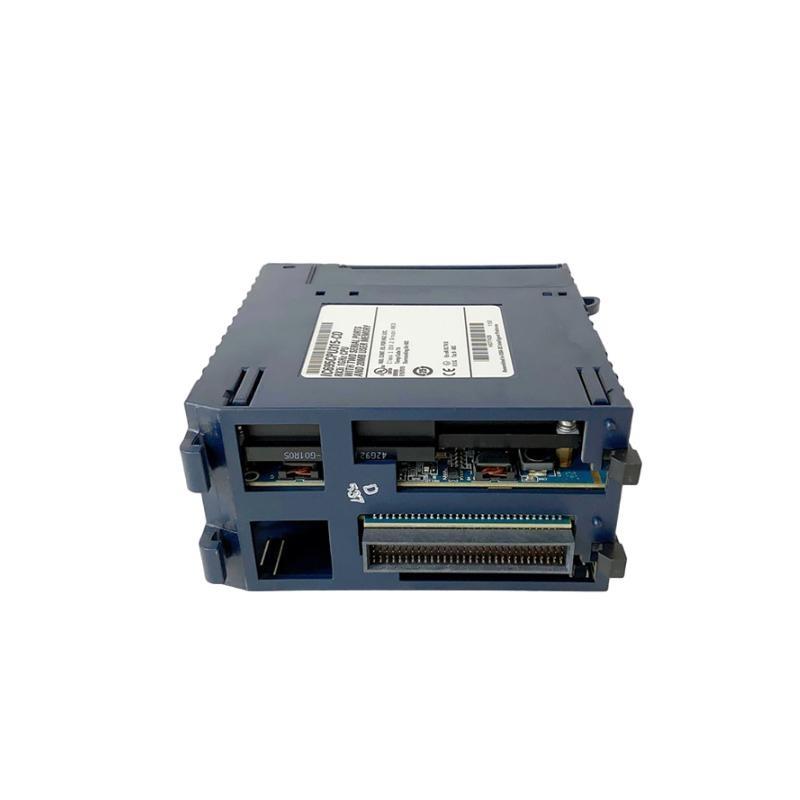

The GE IC695CPU315 RX3i CPU Controller Module is a powerful and highly reliable processor module from GE’s PACSystems RX3i series. Designed for demanding industrial environments, it provides deterministic control, real-time processing, and seamless connectivity. This module integrates seamlessly into industrial automation architectures and is especially valued for its scalability, speed, and robustness.
The IC695CPU315 is built with a high-speed Intel processor and features abundant memory resources, making it suitable for high-end automation tasks, including complex sequencing, data manipulation, and integration with enterprise-level systems. With native support for Ethernet communications and compatibility with various industrial protocols, the IC695CPU315 ensures efficient data handling and flexible networking.
製品仕様
| Specification | Details |
|---|---|
| モデル Number | IC695CPU315 |
| Series | PACSystems RX3i |
| Processor | Intel Celeron-M, 1.0 GHz |
| Memory (User RAM) | 20 MB |
| Flash Memory | 20 MB |
| I/O Capacity | Up to 512 program blocks, each up to 128 KB |
| Backplane Compatibility | Universal backplane (IC695CHSxxx) |
| Serial Port | 1 RS-232 / RS-485 configurable port |
| Ethernet Port | 1 x 10/100 Ethernet (IC695ETM001 required for native Ethernet functionality) |
| USB Port | 1 USB for firmware and program downloads |
| Protocol サポート | Modbus, SNP, Ethernet/IP, SRTP |
| Programming S/tware | Pr/icy Machine Edition – Logic Developer |
| Operating Temperature | -40°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Humidity | 5% to 95% non-condensing |
| Power Supply Voltage | 24V DC |
| Typical Power Consumption | 30 Watts |
| Protection Rating | IP65 |
| Dimensions (H x W x D) | 152.4 x 132.08 x 40.64 mm |
| 重量 | 0.7 kg |
Applications
The IC695CPU315 is widely adopted in industries requiring high-performance control systems. Below are typical applications:
-
Manufacturing Automation: Coordinates sequencing, process timing, and material handling operations.
-
Oil & Gas Processing: Manages complex logic for compressors, separators, and drilling systems.
-
Food & Beverage Industry: Automates filling, labeling, and packaging systems with precision.
-
Water and Wastewater Treatment: Controls pumps, valves, and treatment processes with remote monitoring capabilities.
-
Power Generation: Enables control and monitoring / turbines, boilers, and auxiliary systems.
-
Pharmaceutical Manufacturing: Provides tight control and data tracking for compliance and quality assurance.
Product Advantages
-
Robust Performance: With a 1.0 GHz Intel processor and ample memory, the CPU can handle complex logic and high-speed operations.
-
Modular and Scalable: The RX3i platform allows easy expansion through additional modules without interrupting the system.
-
High Reliability: Industrial-grade build and wide temperature range operation make it dependable in harsh environments.
-
Flexible Communications: Integrated ports and wide protocol support /fer unmatched connectivity across plant systems.
-
Efficient Programming: Compatible with Pr/icy Machine Edition, /fering advanced debugging and programming tools.
-
Security Features: サポート for secure firmware updates and user access control mechanisms.
よくある質問 (FAQ)
-
Is the IC695CPU315 hot-swappable?
No, while I/O modules in the RX3i system may be hot-swappable, the CPU itself requires a power-down for replacement. -
What s/tware is needed to program the IC695CPU315?
The CPU is programmed using GE’s Pr/icy Machine Edition Logic Developer s/tware. -
Does the module support redundant configurations?
Yes, the RX3i system allows for redundancy setups for both CPU and power supply, depending on the architecture used. -
What is the maximum number / I/O modules supported?
It can support hundreds / I/O points depending on backplane configuration and memory usage. -
Can the IC695CPU315 connect to SCADA systems?
Yes, using Modbus or Ethernet/IP, it can integrate directly with SCADA and HMI systems. -
Is a battery required for the CPU?
Yes, a battery (typically IC693ACC302) is used to retain data such as real-time clock and memory-backed values. -
What kind / maintenance is required?
Periodic inspection, firmware updates, and battery replacement are the primary maintenance actions. -
How does it handle firmware upgrades?
Firmware upgrades can be done via the USB port or Ethernet using Pr/icy Machine Edition. -
Can this CPU be used in marine environments?
While the module is rugged, marine certification must be verified. It is generally used with enclosures in such environments. -
Does the IC695CPU315 support remote diagnostics?
Yes, via Ethernet it supports remote access, status monitoring, and diagnostics.
Related モデルs (Same Series)
| モデル | 説明 |
|---|---|
| IC695CPU310 | RX3i CPU with 300 MHz processor |
| IC695CPU320 | RX3i CPU with enhanced performance |
| IC695CPE305 | RX3i Ethernet-enabled CPU, compact size |
| IC695CPE310 | High-performance RX3i CPU with USB and Ethernet |
| IC695CPE330 | Advanced RX3i CPU with integrated web server |
| IC695CPE400 | High-end RX3i CPU with enhanced memory and processing |
Popular GE Automation モデルs
| モデル | 説明 |
|---|---|
| IC693CPU364 | Versamax CPU module with Ethernet |
| IC697CGR935 | Redundant CPU for Series 90-70 systems |
| IC695PSA040 | RX3i power supply module |
| IC695ALG600 | RX3i analog input module (8 channels) |
| IC695ETM001 | RX3i Ethernet module |
| IC693CHS397 | 5-slot CPU baseplate for Versamax series |
