製品紹介

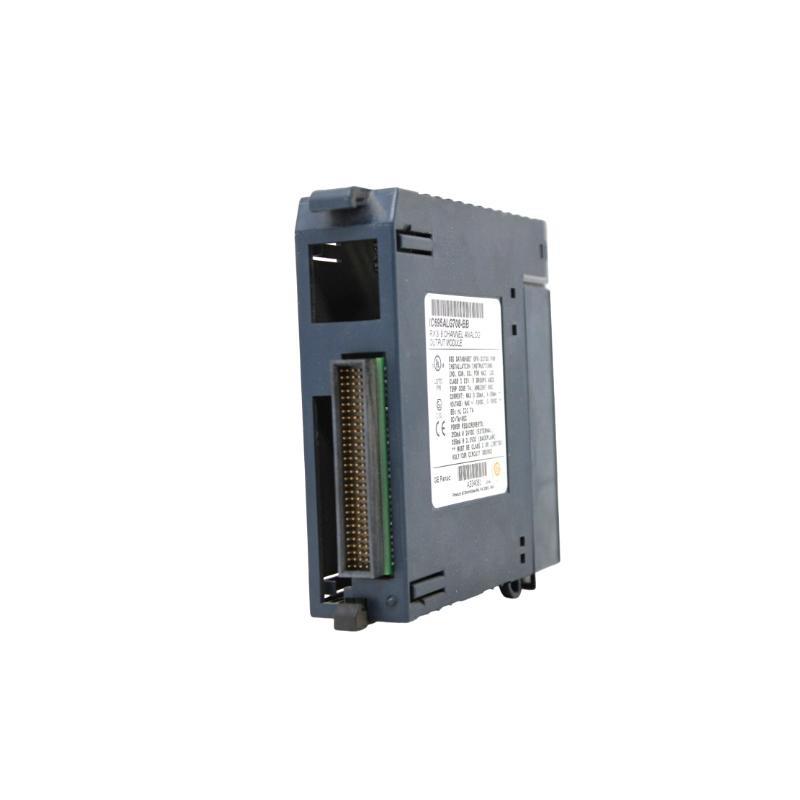

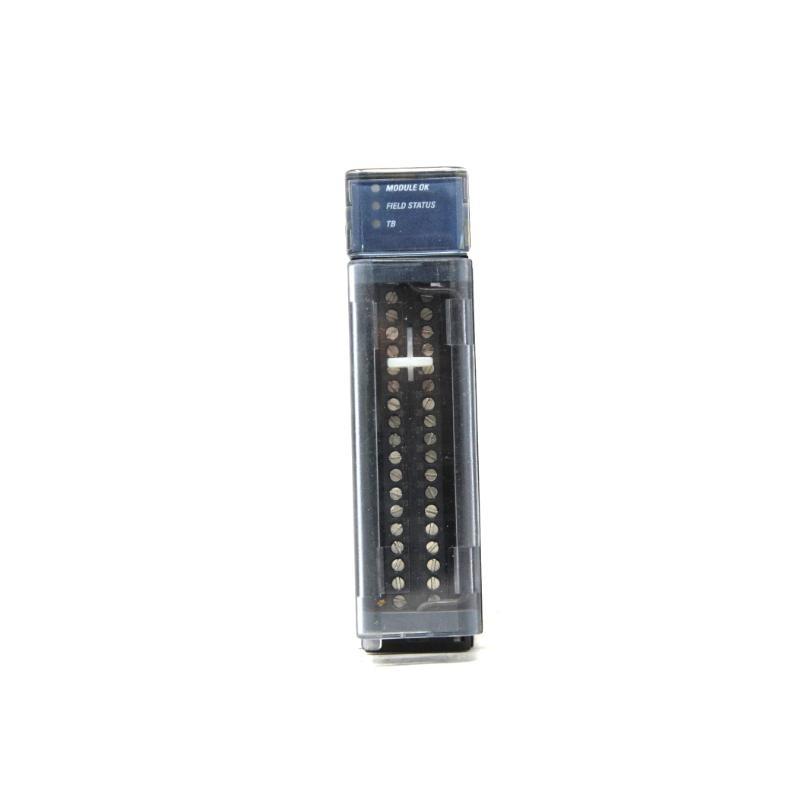

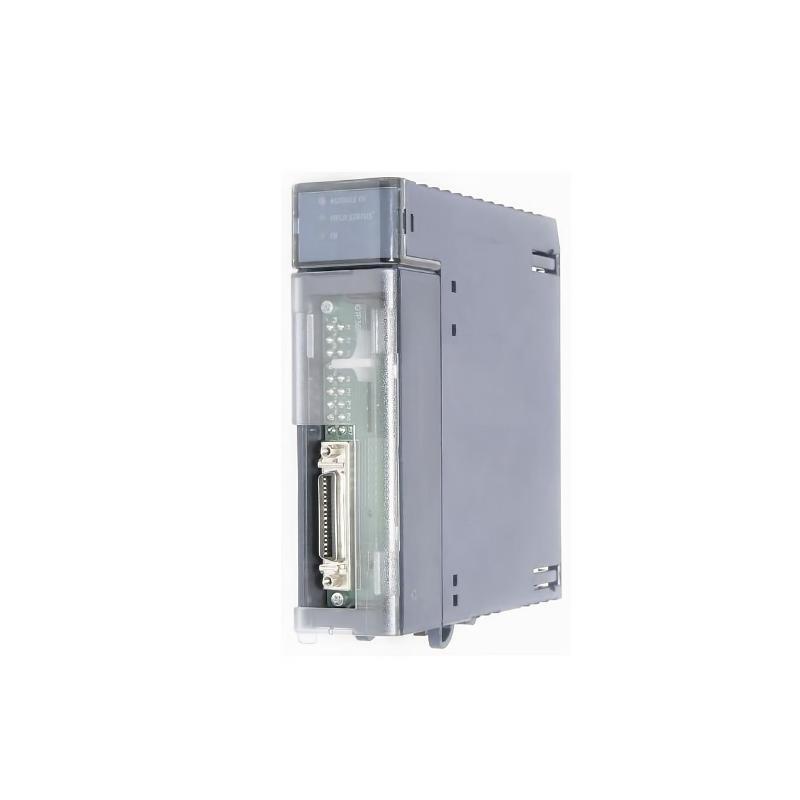

The GE IC695ALG708 is an 8-channel, non-isolated analog output module designed for the PACSystems RX3i series. It provides both voltage and current outputs, making it versatile for various industrial applications. This module is engineered to deliver precise and reliable analog signals to control devices such as actuators, valves, and drives.
製品仕様
| Parameter | Specification |
|---|---|
| モデル Number | IC695ALG708 |
| メーカー | GE Automation / Emerson Automation |
| Series | PACSystems RX3i |
| Output Channels | 8 non-isolated |
| Output Signal Ranges | Voltage: ±10V, 0–10V<br>Current: 0–20mA, 4–20mA |
| Resolution | ±10V: 15.9 bits<br>0–10V: 14.9 bits<br>0–20mA: 15.9 bits<br>4–20mA: 15.6 bits |
| Update Rate | 8 milliseconds |
| Output Load | Voltage: ≥2 kΩ<br>Current: ≤850 Ω |
| Power Requirements | 3.3V at 375 mA; 24V at 250 mA |
| Power Dissipation | 7.25 W maximum |
| Output Protection | -30V for 60 seconds<br>+30V for one hour |
| Calibrated Accuracy | ±0.15% / full scale at 25°C<br>±0.30% at 60°C |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% non-condensing |
| Dimensions (W x H x D) | 34 x 145 x 140 mm |
| 重量 | 0.5 kg |
| Mounting | DIN Rail Mounting |
| Certifications | UL, CE, CSA |
Product Applications
-
Industrial Automation: Controls actuators, valves, and drives in manufacturing processes.
-
Process Control Systems: Provides precise analog signals for monitoring and controlling process variables.
-
Energy Sector: Used in power generation and distribution systems for accurate control / electrical parameters.
-
Building Automation: Manages HVAC systems and lighting controls through analog outputs.
-
Water and Wastewater Treatment: Controls pumps, valves, and chemical dosing systems.
Product Advantages
-
High Precision: Offers high-resolution outputs for accurate control.
-
Versatility: サポートs both voltage and current outputs, accommodating various devices.
-
Fast Response: 8 ms update rate ensures timely signal delivery.
-
Robust Protection: Built-in overvoltage and overcurrent protection enhances reliability.
-
Easy Integration: Seamlessly integrates with PACSystems RX3i series.
-
Compact Design: Space-saving form factor suitable for various installations.
よくある質問 (FAQ)
-
What output signal ranges does the IC695ALG708 support?
It supports voltage outputs / ±10V and 0–10V, and current outputs / 0–20mA and 4–20mA. -
How many output channels are available on this module?
The module provides 8 non-isolated analog output channels. -
What is the resolution / the analog outputs?
The resolution varies: ±10V at 15.9 bits, 0–10V at 14.9 bits, 0–20mA at 15.9 bits, and 4–20mA at 15.6 bits. -
What is the update rate for the outputs?
The module updates all outputs approximately every 8 milliseconds. -
What are the power requirements for the module?
It requires 3.3V at 375 mA and 24V at 250 mA. -
Does the module have built-in protection features?
Yes, it includes overvoltage protection / -30V for 60 seconds and +30V for one hour. -
What is the calibrated accuracy / the outputs?
The outputs have a calibrated accuracy / ±0.15% / full scale at 25°C and ±0.30% at 60°C. -
What is the operating temperature range?
The module operates between 0°C and +60°C. -
What are the dimensions and weight / the module?
It measures 34 x 145 x 140 mm and weighs 0.5 kg. -
Is the module compatible with other PACSystems RX3i components?
Yes, it is designed to integrate seamlessly with the PACSystems RX3i series.
Related モデルs
| モデル Number | 説明 | Notes |
|---|---|---|
| IC695ALG704 | 4-Channel Analog Output Module | Offers fewer output channels for smaller applications. |
| IC695ALG600 | Universal Analog Input Module | サポートs voltage, current, RTD, and thermocouple inputs. |
| IC695ALG616 | 16-Channel Analog Input Module | High-density input module for extensive monitoring. |
| IC695ALG608 | 8-Channel Analog Input Module | Offers high-resolution inputs for precise measurements. |
| IC695ALG626 | Analog Input Module with HART Communication | Enables digital communication with HART-enabled devices. |
| IC695ALG808 | 8-Channel Isolated Analog Output Module | Provides channel-to-channel isolation for enhanced protection. |
Popular GE モデルs
| モデル Number | 説明 | Application Area |
|---|---|---|
| IC695CPU310 | RX3i CPU Module | Central processing 台 for PACSystems RX3i. |
| IC695PSA040 | RX3i Power Supply Module | Provides power to RX3i modules. |
| IC695CHS012 | 12-Slot RX3i Universal Backplane | Facilitates module connectivity and communication. |
| IC695ETM001 | Ethernet Interface Module | Enables network communication for RX3i systems. |
| IC695CPE305 | RX3i CPU with Ethernet | Combines processing and networking capabilities. |
| IC695ALG708 | 8-Channel Analog Output Module | Provides analog output signals for control applications. |
