製品紹介

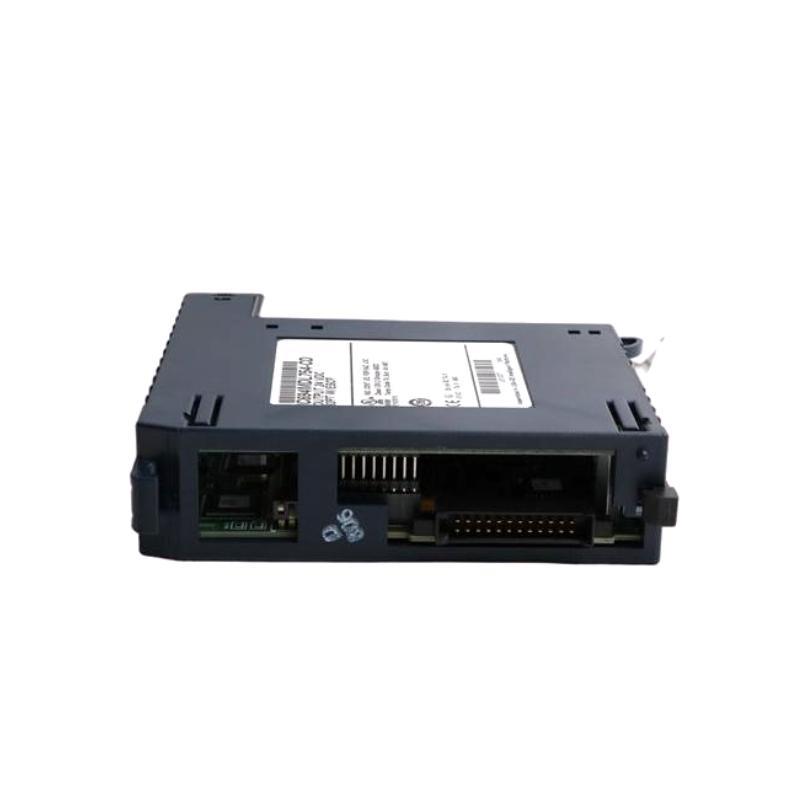

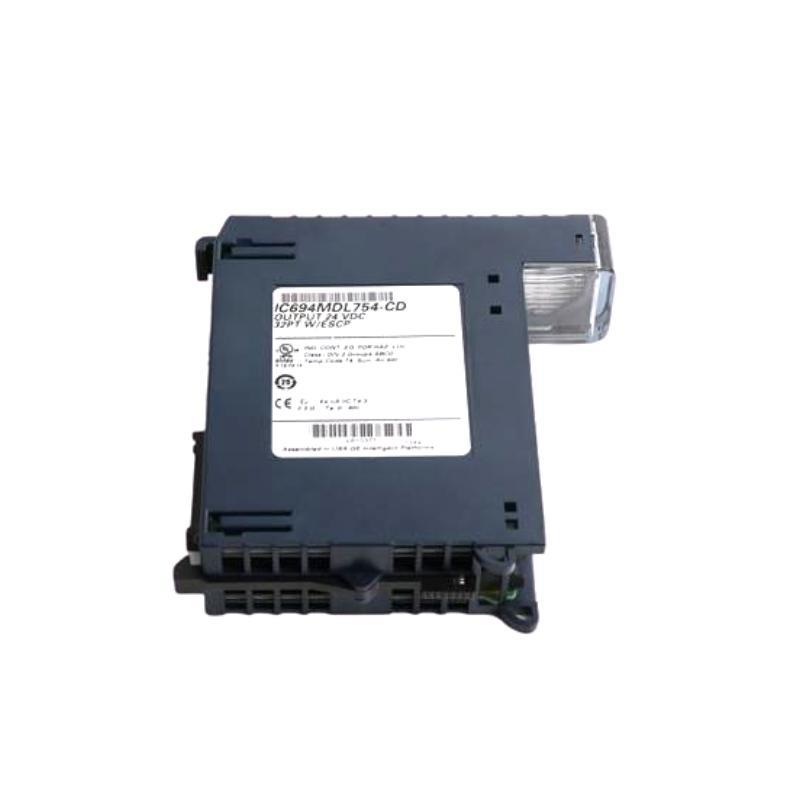

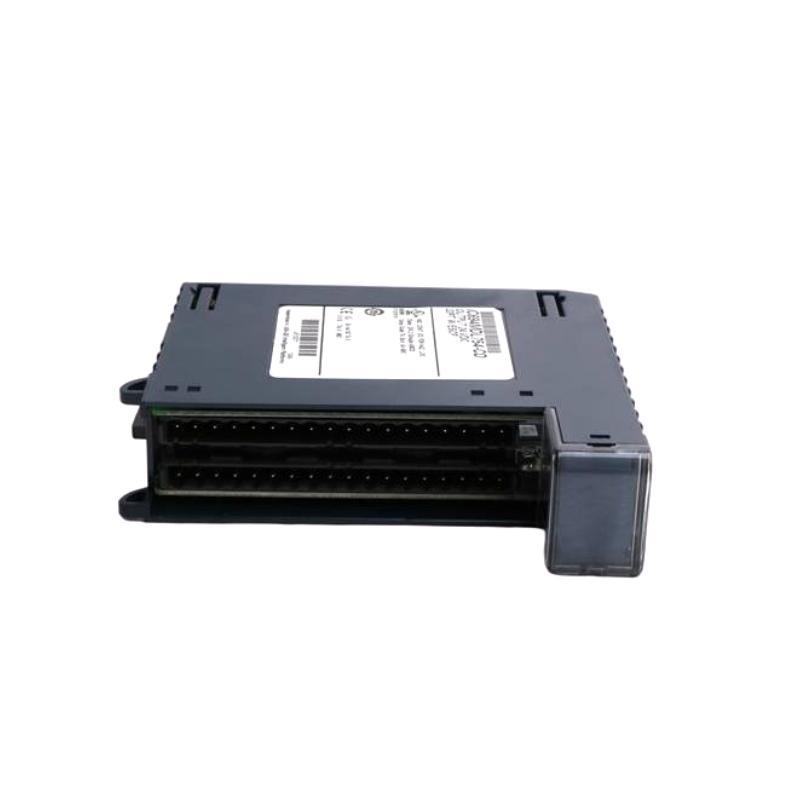

The GE IC694MDL754-CC is a 32-point, 12/24 VDC Positive Logic Output Module designed for the PACSystems™ RX3i series. It provides two isolated groups / 16 outputs each, enabling flexible and reliable control in industrial automation applications. Each output can source up to 0.75 A, making it suitable for driving a variety / loads. The module features Electronic Short Circuit Protection (ESCP) and is designed to interface seamlessly with RX3i controllers.
Technical Specifications
| Parameter | Specification |
| モデル Number | IC694MDL754-CC |
| Output Type | Positive Logic (Sourcing) |
| Number / Output Points | 32 (2 isolated groups / 16) |
| Nominal Output Voltage | 12/24 VDC |
| Output Voltage Range | 10.2 to 30 VDC |
| Output Current per Point | 0.75 A |
| Inrush Current | 3.0 A for 10 ms |
| On-州 Voltage Drop | 0.3 VDC maximum |
| Off-州 Leakage Current | 0.1 mA maximum |
| Response Time (On/Off) | 0.5 ms maximum |
| Backplane Power Consumption | 300 mA at 5 VDC |
| Isolation (Field to Backplane) | 250 VAC continuous; 1500 VAC for 1 minute |
| Group-to-Group Isolation | 250 VAC continuous; 1500 VAC for 1 minute |
| Dimensions (W x H x D) | 34 x 145 x 140 mm |
| 重量 | 0.381 kg |
| Certifications | UL, CE, ATEX Zone 2, UL HAZLOC, DNV, ABS, GL, KRS, LR |
Applications
The IC694MDL754-CC module is suitable for a wide range / industrial applications, including:
-
Manufacturing automation systems
-
Process control applications
-
Material handling equipment
-
Packaging machinery
-
Energy management systems
Advantages
The IC694MDL754-CC /fers several benefits that enhance its suitability for industrial applications:
-
High Output Density: Provides 32 discrete outputs, reducing the need for multiple modules.
-
Isolated Output Groups: Two isolated groups / 16 outputs each enhance system flexibility and safety.
-
Fast Response Time: Quick on//f response times (0.5 ms) ensure timely control actions.
-
Robust Design: Built to withstand industrial environments with appropriate certifications.
-
Ease / Integration: Compatible with PACSystems RX3i series, facilitating seamless integration into existing systems.
Latest Industry Update
As part / Emerson’s acquisition / GE Intelligent Platforms, the PACSystems RX3i product line—including the IC694MDL754-CC—is now integrated into Emerson’s broader portfolio / automation solutions, ensuring continued support and innovation for industrial control systems.
よくある質問 (FAQ)
-
What is the primary function / the IC694MDL754-CC module?
It provides 32 discrete DC voltage output points for controlling various industrial devices. -
How are the outputs organized in the module?
The 32 outputs are arranged in two isolated groups / 16, each with its own common. -
What type / logic does the module use?
It utilizes positive logic (sourcing) for output control. -
What is the maximum current per output point?
Each point can handle up to 0.75 A. -
Does the module /fer short circuit protection?
Yes, it includes Electronic Short Circuit Protection (ESCP) to safeguard against overcurrent conditions. -
Can the module be mounted on a DIN rail?
Yes, it supports both panel and DIN rail mounting options. -
What are the dimensions and weight / the module?
It measures 34 x 145 x 140 mm mm and weighs 0.381 kg. -
Is the module compatible with other GE Fanuc PLCs?
It is specifically designed for the PACSystems RX3i series. -
What certifications does the module have?
It holds certifications including UL, UL HAZLOC, CE, ATEX Zone 2, ABS, BV, DNV, GL, KRS, and LR. -
What happens to the outputs when the CPU is stopped?
All 32 outputs are forced OFF when the CPU is stopped.
