製品紹介

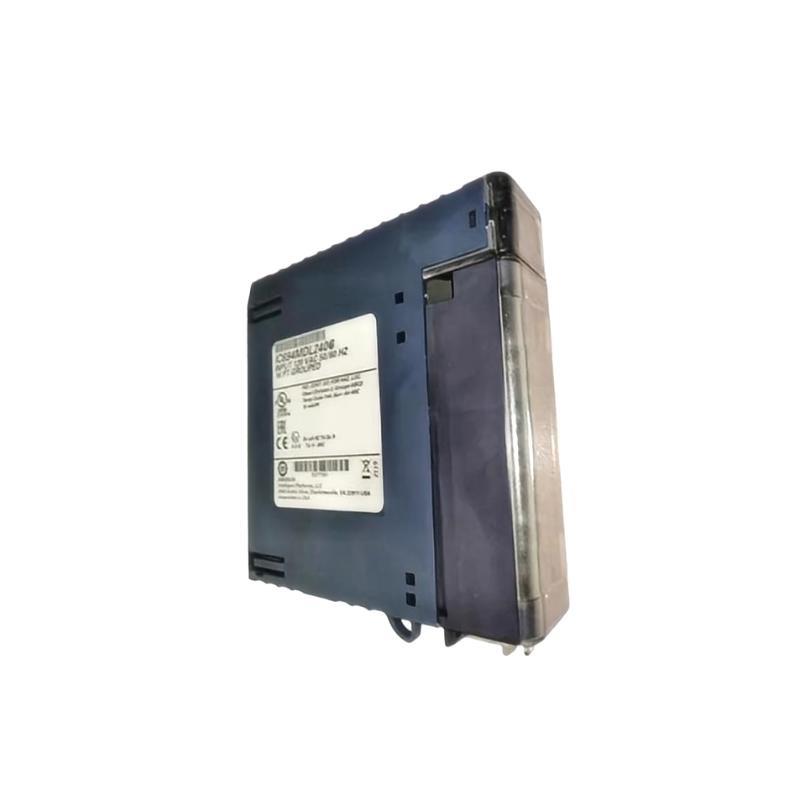

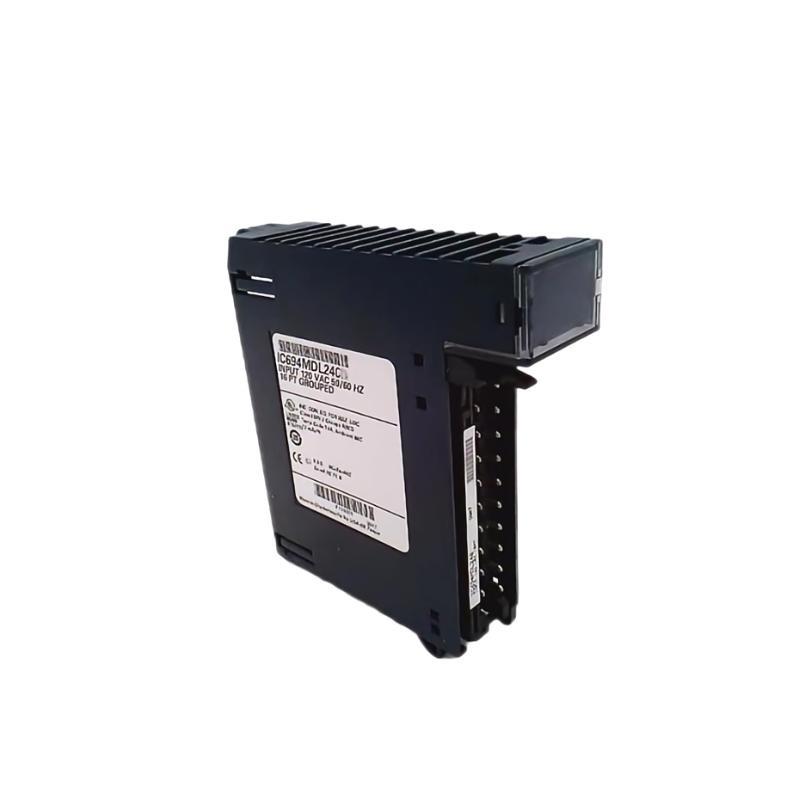

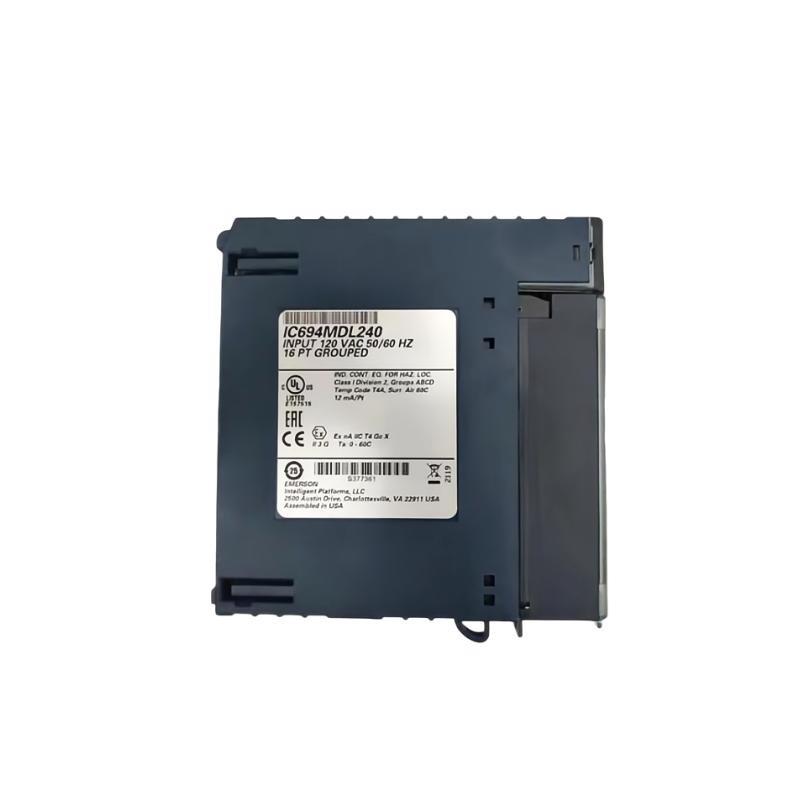

The GE IC694MDL240 is a high-performance AC voltage output module designed for use within the GE PACSystems RX3i Series. With 16 individually isolated outputs, this module is capable / delivering standard line voltage outputs (120/240 VAC), making it suitable for a wide variety / industrial automation applications. It provides reliable actuation / output devices like lamps, relays, contactors, and solenoids that operate on alternating current.
The IC694MDL240 is built to withstand the rigors / industrial environments, /fering both electrical isolation and solid-state reliability. With field-proven engineering from General Electric, it integrates seamlessly with RX3i programmable automation controllers (PACs), contributing to efficient and robust control systems. Each output is individually fused, ensuring higher protection levels for both the module and connected field devices.
製品仕様
| Parameter | Specification |
|---|---|
| メーカー | GE Automation (General Electric) |
| Series | PACSystems RX3i |
| モデル Number | IC694MDL240 |
| Module Type | Discrete Output Module |
| Number / Outputs | 16 |
| Output Type | AC Voltage |
| Output Voltage Range | 85 to 264 VAC |
| Nominal Output Voltage | 120/240 VAC |
| Frequency | 47 to 63 Hz |
| Output Current per Point | 0.5 A (maximum) |
| Output Current per Module | 8 A total (maximum) |
| Minimum Load | 10 mA |
| Inrush Current Capability | 5 A for 500 ms |
| Output Type | Triac (solid-state switching) |
| Isolation | 250 VAC between field and backplane, and between groups |
| Output Protection | Individual fuses (replaceable) |
| Status Indicators | 16 LEDs (one per output channel) |
| Backplane Current Consumption | 150 mA @ 5 VDC |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | 5% to 95% non-condensing |
| Dimensions (H x W x D) | 34 x 145 x 140 mm |
| 重量 | 0.24 kg |
| Mounting Type | DIN-rail or panel mounting |
| Approvals/Certifications | UL, CE, CSA, RoHS |
Product Applications
The IC694MDL240 is utilized in numerous industrial sectors where controlling AC-powered devices is essential. The following are common application areas:
-
Factory Automation
-
Conveyor Systems
-
Packaging and Filling Lines
-
Building Management and HVAC
-
Power Utility Control Systems
-
Wastewater and Water Treatment Plants
-
Lighting Control in Industrial Facilities
-
Oil and Gas Processing and Distribution
Its rugged design and high current-handling capability make it a trusted module for switching and controlling heavy-duty field devices.
Product Advantages
-
High Voltage Output Capability: サポートs 120 and 240 VAC outputs, which are widely used in industrial and commercial environments.
-
Individually Isolated Channels: Each output is isolated, minimizing the risk / electrical faults affecting multiple channels.
-
Fuse Protection on Every Channel: Enhances system safety and simplifies maintenance.
-
Solid-州 Triac Switching: Provides durability with no mechanical wear, ensuring longer module life.
-
Clear Diagnostics: Individual LED indicators per channel allow for quick troubleshooting.
-
High Inrush Capability: Able to handle temporary current surges during startup / inductive loads.
-
Reliable Integration: Seamlessly fits into RX3i PAC architectures with full s/tware compatibility via Pr/icy Machine Edition.
-
Industrial Hardened: Designed for use in environments with fluctuating temperatures, humidity, and electrical noise.
よくある質問 (FAQ)
-
Q: What kind / devices can be controlled using the IC694MDL240?
A: It can control AC-powered devices such as contactors, relays, solenoid valves, and indicator lights. -
Q: Does the module support both 120V and 240V outputs?
A: Yes, it supports nominal output voltages / 120 and 240 VAC. -
Q: Are the outputs individually protected?
A: Yes, each output channel has its own replaceable fuse for added safety. -
Q: What switching technology does this module use?
A: It uses solid-state triac switching, which /fers high reliability and no mechanical wear. -
Q: Can the module handle inductive loads with high inrush current?
A: Yes, it supports up to 5A inrush for 500 milliseconds per output. -
Q: How can I verify the status / each output?
A: Each output has a corresponding LED indicator that shows its ON/OFF status. -
Q: Is the IC694MDL240 hot-swappable?
A: Yes, it supports hot-swap capability within a properly configured RX3i system. -
Q: What happens if an output fuse blows?
A: The corresponding output will cease to function until the fuse is replaced. -
Q: How is the module mounted in a system?
A: It can be mounted on a DIN rail or panel using standard RX3i baseplates. -
Q: Is configuration required via s/tware?
A: Basic configuration is handled through Pr/icy Machine Edition when defining hardware in the RX3i controller setup.
