製品紹介

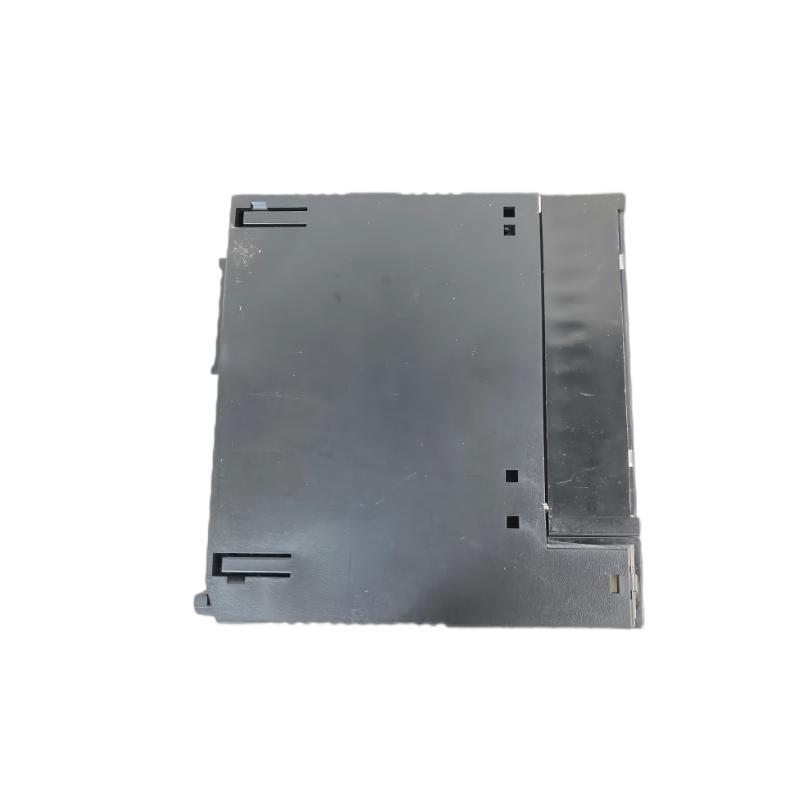

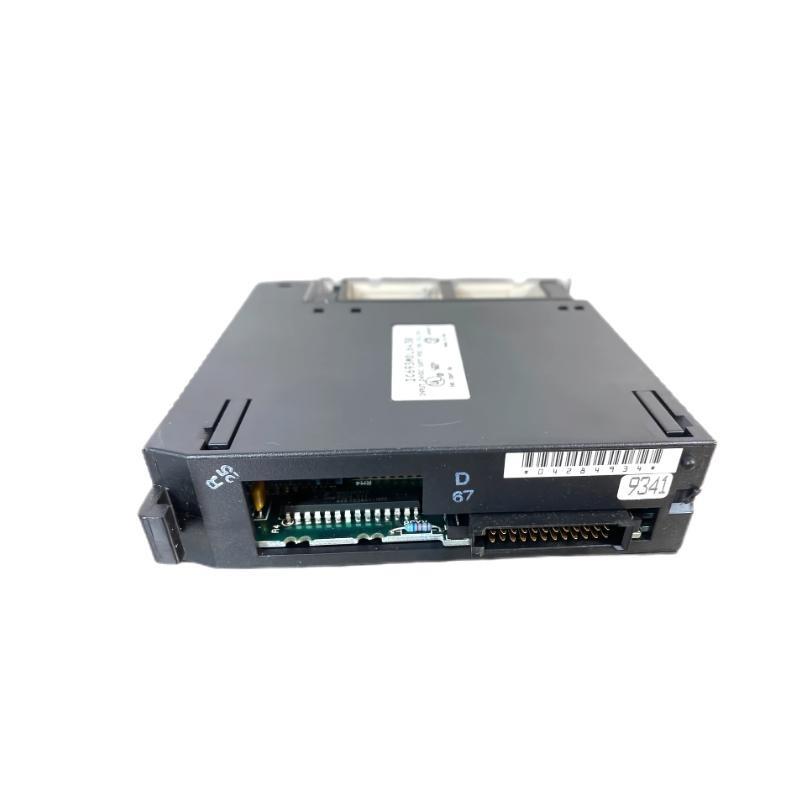

The GE IC693MDL643 is a 24VDC Positive Logic Input Module, designed for use with the GE Fanuc Series 90-30 PLC system. This industrial-grade module provides 16 discrete input points, grouped into four isolated groups / four inputs each. The module is specifically built to detect the presence / 24VDC voltage levels as ON signals, using positive logic, which means the module recognizes a high-level DC signal (typically >11V) as an active input.
Engineered for high reliability in demanding industrial environments, this input module is ideal for connecting a wide range / field devices like push buttons, limit switches, and other binary sensors. It is mounted in the I/O slot / a Series 90-30 baseplate and communicates seamlessly with the CPU via the system’s backplane.
The IC693MDL643 is a cost-effective and efficient choice for integrating discrete input monitoring into your automation solution, /fering galvanic isolation, fast response time, and robust signal detection.
製品仕様
| Parameter | 説明 |
|---|---|
| Product Type | Discrete Input Module |
| Module Type | Positive Logic (Sourcing) Input |
| Number / Input Points | 16 |
| Input Voltage Range | 0 to 30 VDC |
| Input Voltage (Nominal) | 24 VDC |
| ON Voltage Threshold | >11 VDC |
| OFF Voltage Threshold | <5 VDC |
| Input Current @ 24VDC | 7 mA (typical per point) |
| Isolation | 1500 V RMS between field side and logic side |
| Group Isolation | 4 groups / 4 inputs, each group isolated |
| Input Type | Current Sourcing (positive logic) |
| Input Response Time | 7 ms (typical) |
| Backplane Current Consumption | 80 mA from +5V supply |
| LED Indicators | Yes, one per input point |
| Diagnostics | None |
| Mounting | Standard Series 90-30 I/O Slot |
| Operating Temperature Range | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature Range | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity | 5% to 95% non-condensing |
| Dimensions (H x W x D) | 119 x 33 x 132 mm |
| 重量 | 1.36 kg |
| Approvals & Certifications | UL, CE, CSA, Class I Div 2 (when used with rated systems) |
Product Applications
The GE IC693MDL643 module is widely used across various industrial sectors where discrete input monitoring is critical. Common applications include:
-
Manufacturing Automation: Detecting signals from sensors, safety devices, and operator controls.
-
Material Handling Systems: Monitoring limit switches and position sensors on conveyor systems.
-
Packaging Equipment: Tracking product detection sensors and actuator status.
-
Utilities and Water Treatment: Supervising float switches and relay contacts.
-
Food and Beverage Plants: Integrating washdown-rated control panels using DC input devices.
-
Machinery Control: Capturing interlock, door, and emergency stop statuses.
This module is particularly suitable for facilities where clean 24VDC control signals are used and positive logic signal flow is required.
Product Advantages
-
High Isolation Levels: Ensures protection between logic and field sides, increasing system safety.
-
Compact Form Factor: Fits into GE Series 90-30 systems without requiring additional real estate.
-
Quick and Accurate Response: 7 ms typical response time ensures real-time monitoring.
-
Group Isolation: Allows for functional grouping / inputs, minimizing the impact / electrical faults.
-
Reliable Positive Logic Design: Compatible with sourcing sensors, widely used in modern control systems.
-
LED Indicators per Point: Simplifies diagnostics and maintenance.
-
Backplane Communication: No separate wiring or configuration is needed beyond standard I/O slot usage.
-
UL and CE Certified: Ensures compliance with international industrial standards.
よくある質問 (FAQ)
-
Q: What voltage range can the IC693MDL643 safely detect?
A: It operates effectively from 0 to 30 VDC, with 24 VDC being the nominal input voltage. -
Q: Can this module be used with NPN (sinking) sensors?
A: No, it is designed for sourcing (PNP) input devices using positive logic. -
Q: Does this module provide input filtering?
A: It /fers basic debounce filtering with a 7 ms typical response time to prevent false triggers. -
Q: Can the module inputs be used for AC voltage detection?
A: No, it is strictly intended for DC voltage input only. -
Q: Are the input points electrically isolated from each other?
A: Yes, the 16 inputs are arranged in 4 groups, each group being electrically isolated from the others. -
Q: How is this module installed into a Series 90-30 system?
A: It plugs into an available I/O slot on the backplane / a Series 90-30 baseplate. -
Q: Does the module require any special configuration s/tware?
A: No special s/tware is needed; it is configured using GE Pr/icy Machine Edition or compatible PLC s/tware. -
Q: What kind / indicators are available on the module?
A: Each input point has an associated LED for real-time status display. -
Q: Can this module operate in hazardous locations?
A: It is suitable for Class I Division 2 environments when installed in compliant systems. -
Q: What happens if an input voltage falls between 5V and 11V?
A: The state may be undefined or unpredictable; valid ON is >11V, and valid OFF is <5V.
Related モデルs (Same Series or Function)
| モデル Number | 説明 | Input Type | Input Points | Voltage | Logic Type |
|---|---|---|---|---|---|
| IC693MDL645 | 24VDC Negative Logic Input Module | Sinking | 16 | 24VDC | Negative |
| IC693MDL646 | Isolated 24VDC Input Module | Sourcing | 8 | 24VDC | Positive |
| IC693MDL640 | 120VAC Input Module | AC Input | 16 | 120VAC | AC |
| IC693MDL634 | 115VAC Isolated Input Module | AC Input | 8 | 115VAC | AC |
| IC693MDL241 | 24VDC Output Module | Sourcing Output | 8 | 24VDC | Positive |
| IC693MDL930 | 120/240VAC Input Module | AC Input | 16 | 120/240VAC | AC |
Popular GE Fanuc モデルs (Same ブランド)
| モデル Number | 説明 | Function | Input/Output | Voltage | Special Feature |
|---|---|---|---|---|---|
| IC693CPU374 | CPU Module with Ethernet | CPU | N/A | N/A | Built-in Ethernet |
| IC693ALG223 | Analog Input Module (4-20mA) | Analog Input | 4 | 24VDC | Current Input |
| IC693PWR321 | Power Supply Module | Power Supply | N/A | 120/240VAC | Standard Series 90-30 PSU |
| IC693MDL930 | Discrete Input Module, High Voltage | Digital Input | 16 | 240VAC | High Voltage Isolation |
| IC693MDL740 | Relay Output Module | Digital Output | 8 | 120/240VAC | Relay お問い合わせs |
| IC693APU300 | High-Speed Counter Module | Special Function | 2 | N/A | High-Speed Counting |
