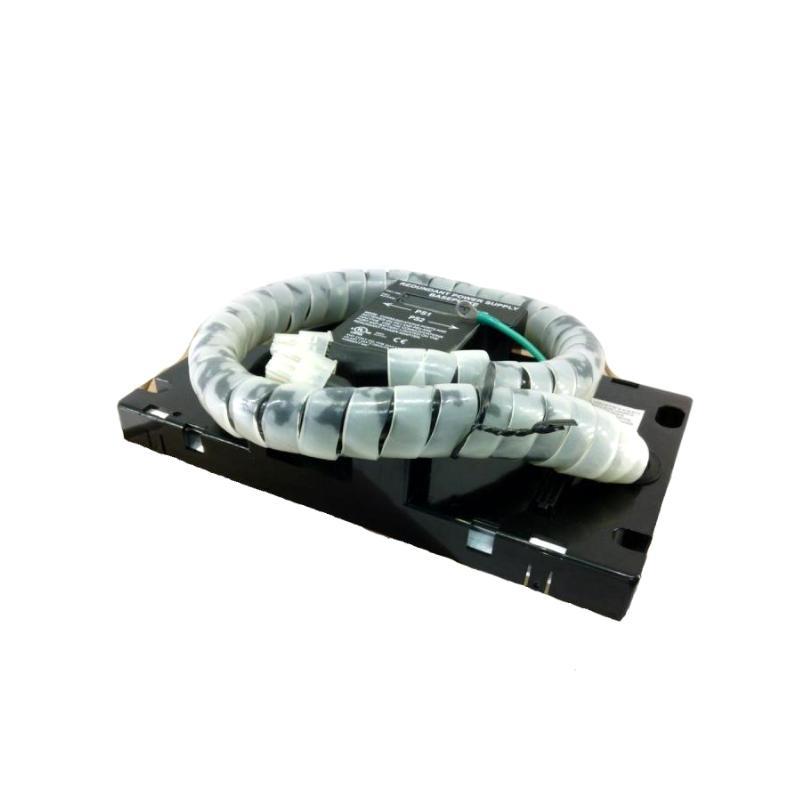

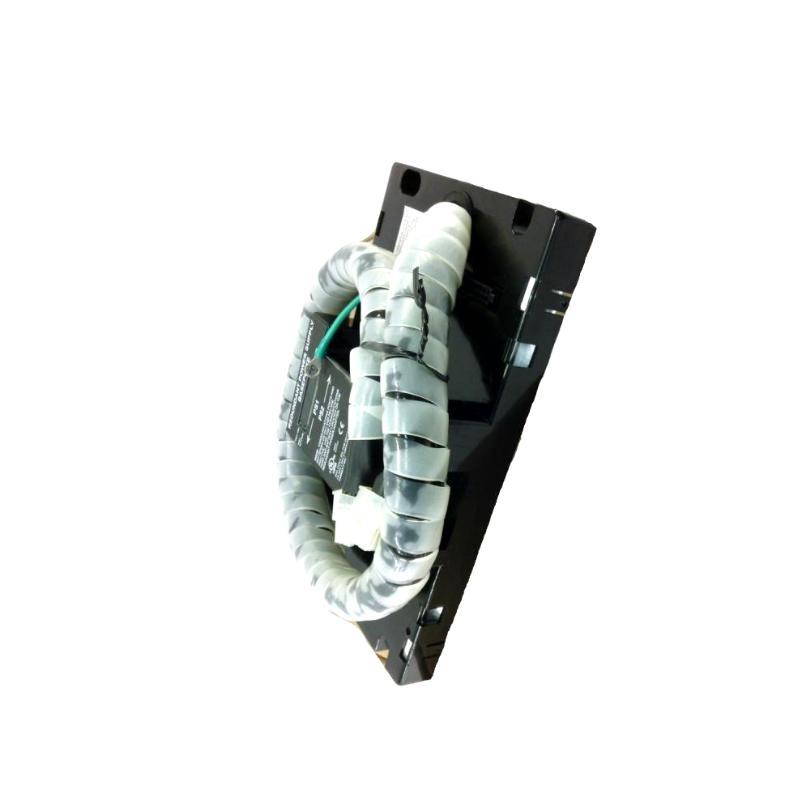

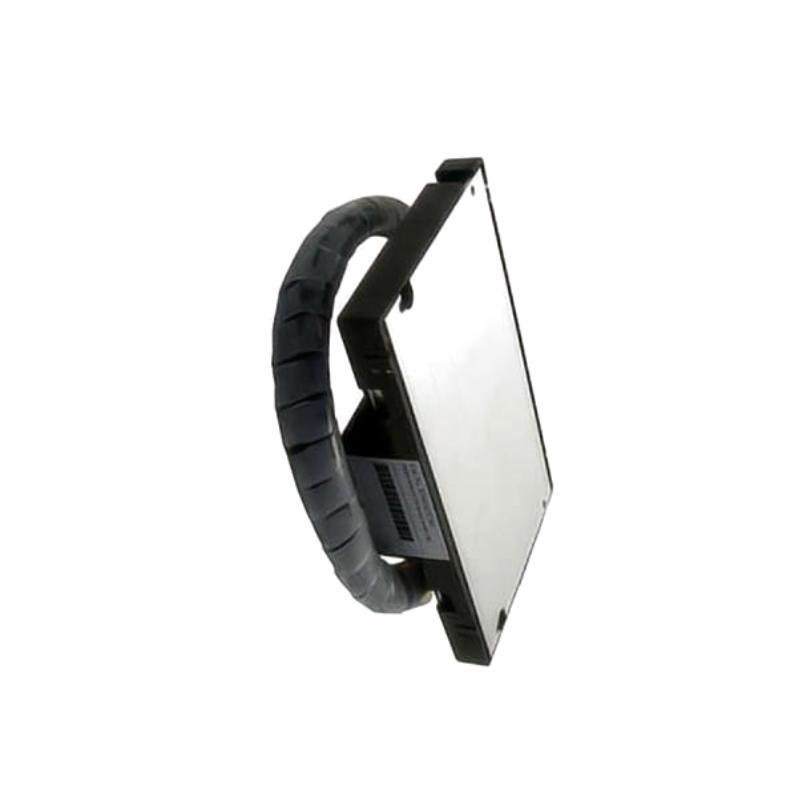

The GE IC693ACC341 is a redundant power supply baseplate designed for the GE Fanuc Series 90-30 Programmable Logic Controller (PLC) system. This accessory enhances system reliability by enabling dual power supply configurations, ensuring continuous operation even in the event / a primary power supply failure. Designed with high-integrity system performance in mind, this baseplate is ideal for mission-critical control applications where uninterrupted power is non-negotiable.
Incorporating this module into a PLC architecture allows users to seamlessly switch between two installed power supplies without impacting control operations. This capability is particularly valuable in sectors like oil & gas, chemical processing, manufacturing, and utility operations, where downtime can lead to significant losses.
Technical Specifications
| Parameter | Details |
|---|---|
| モデル Number | IC693ACC341 |
| メーカー | GE Automation (GE Fanuc) |
| Product Type | Redundant Power Supply Baseplate |
| Compatible Series | GE Fanuc Series 90-30 |
| Function | Enables use / two power supplies for redundancy |
| Power Supply Compatibility | IC693PWR321, IC693PWR330, IC693PWR331 |
| Max Number / Power Supplies | 2 (Primary + Backup) |
| Mounting Style | Rack-mount (DIN rail optional via adapter) |
| System Switching Logic | Automatic switching upon primary power failure |
| Indicator LEDs | Power supply status indicators (Primary/Backup active) |
| Operating Temperature Range | 0°C to 60°C |
| Storage Temperature Range | -40°C to 85°C |
| Humidity Range | 5% to 95% non-condensing |
| Dimensions (H × W × D) | 215 x 130 x 142 mm |
| 重量 | 0.907 kg |
| Certifications | UL, CE, CSA, RoHS compliant |
| Material | Industrial-grade metal with insulation barrier |
Product Applications
The IC693ACC341 Redundant Power Supply Baseplate is used in high-availability industrial control systems, where power stability and failover protection are essential. Common application areas include:
-
Process Control Systems – Ensures continuous controller operation in refineries, water treatment plants, and chemical industries.
-
Manufacturing Plants – サポートs uninterrupted control / production lines, robotics, and automated machinery.
-
Power Generation Facilities – Protects control logic and monitoring devices from single power source failure.
-
Utilities and Infrastructure – Increases system uptime in water, gas, and electrical grid control systems.
-
Transportation Systems – Used in rail automation and critical signaling infrastructure.
-
SCADA Systems – Enhances reliability for supervisory control and data acquisition environments.
Product Advantages
-
High Reliability: Allows for uninterrupted system operation via automatic failover to a secondary power supply.
-
Plug-and-Play Integration: Directly compatible with existing Series 90-30 racks and power modules.
-
Visual Status Indicators: On-board LED indicators /fer real-time power source diagnostics for maintenance teams.
-
Reduced Downtime: Mitigates the impact / unexpected power supply failure by providing seamless transition.
-
Industrial Durability: Designed to withstand harsh environments with high thermal and electrical endurance.
-
Improved System Uptime: Ideal for mission-critical applications that demand 24/7 availability.
-
Standards-Compliant: Certified for use in regulated environments, including hazardous industrial applications.
よくある質問 (FAQ)
-
What is the primary function / the IC693ACC341 baseplate?
It enables redundant power supply configurations for GE Series 90-30 PLC systems to enhance system uptime. -
Can I use any GE power supply with this baseplate?
番号 It is specifically compatible with models like IC693PWR321, IC693PWR330, and IC693PWR331. -
How does the switching mechanism work?
The baseplate automatically switches to the backup power supply if the primary fails, without manual intervention. -
Is there an LED indicator for power source status?
Yes, the 台 includes LED indicators showing which power supply is currently active. -
Can this baseplate be used in outdoor environments?
It is recommended for indoor or cabinet-mounted environments, unless installed in a properly rated enclosure. -
What type / mounting is supported?
The IC693ACC341 is rack-mountable and may be adapted for DIN rail installation with additional hardware. -
Does it support hot-swapping / power supplies?
Power supplies can be replaced safely with minimal system impact, provided the secondary 台 is active. -
What happens if both power supplies fail?
If both power supplies are non-functional, the baseplate cannot provide power—redundancy only covers single-point failure. -
Is the baseplate compatible with newer GE PACSystems?
It is primarily designed for the Series 90-30 family and may not support newer GE platforms without adaptation. -
How much space does the 台 take in a control panel?
With a 215 x 130 x 142 mm, it fits in standard 19” racks or industrial control panels.
Recommended モデルs – Same Series or Related Accessories
| モデル | 説明 |
|---|---|
| IC693PWR321 | Standard power supply, 30W, for Series 90-30 |
| IC693PWR330 | High-capacity power supply, 60W |
| IC693PWR331 | Enhanced power supply with battery backup |
| IC693CHS391 | 10-slot baseplate for 90-30 series |
| IC693ACC302 | Battery module for memory retention |
| IC693CPU364 | CPU module with Ethernet and serial interfaces |
