System Integration Overview

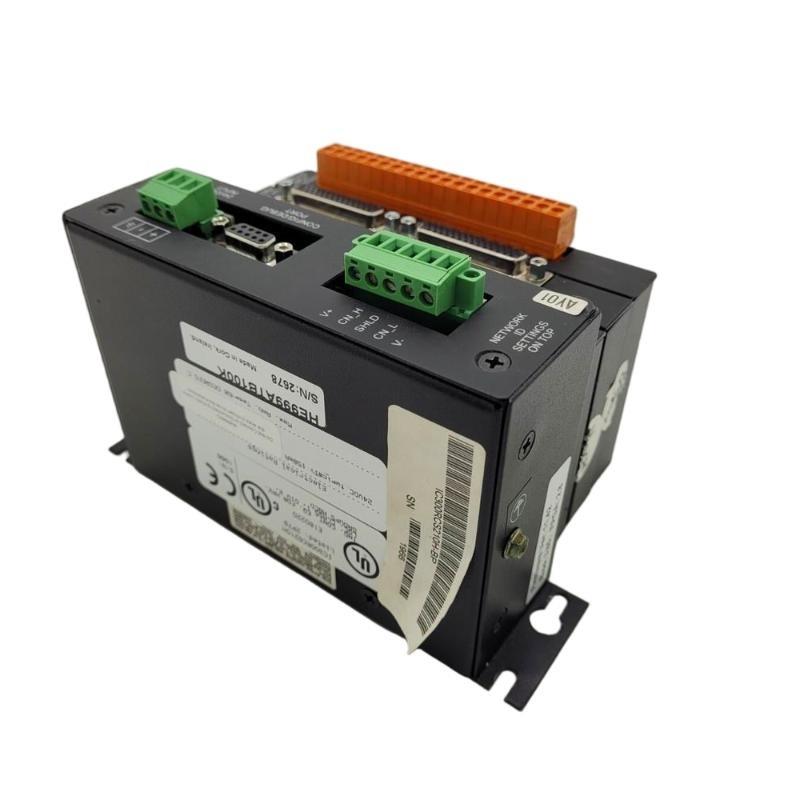

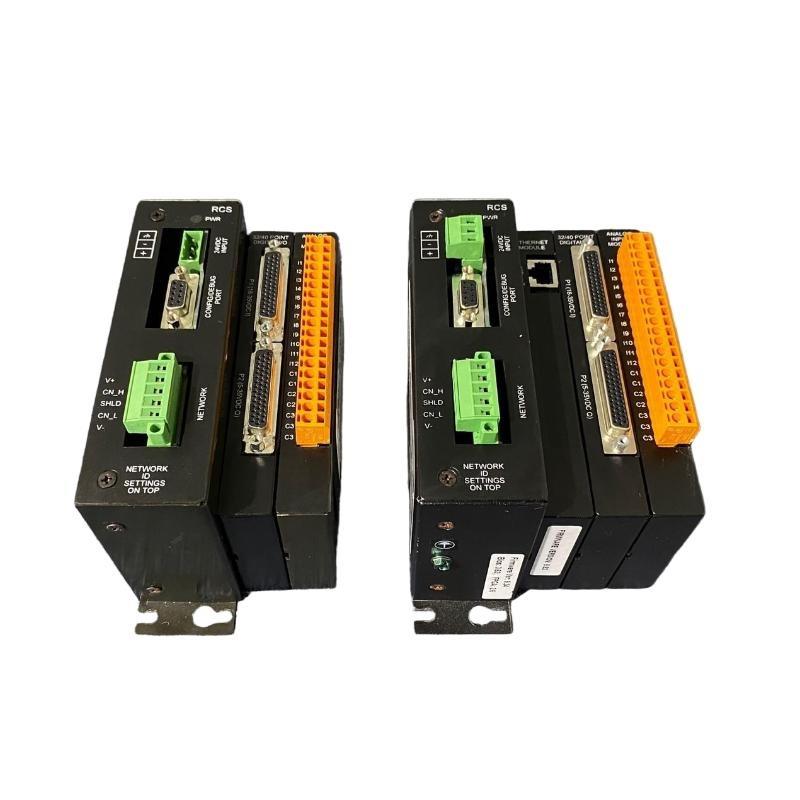

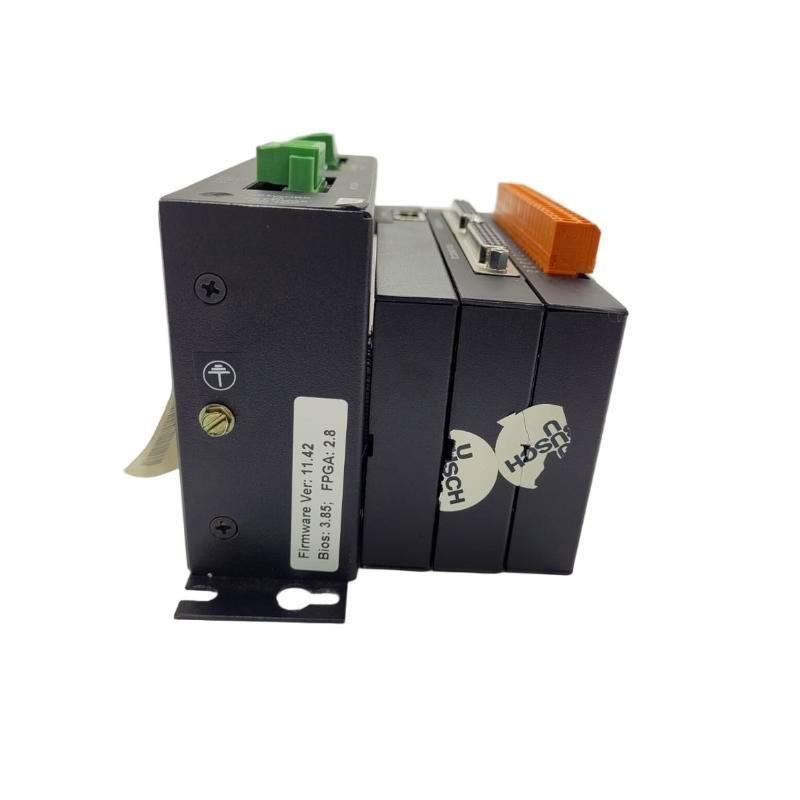

The GE IC300RCS210H is a Remote I/O Communication Module designed for the IC300 Series PLC platform. It serves as a gateway between the main CPU and distributed I/O modules, allowing modular expansion over long distances. From a system integration perspective, this module simplifies network topology by centralizing communication logic while maintaining compatibility across multiple IC300 I/O racks.
The IC300RCS210H supports high-speed serial communication and ensures deterministic data exchange, making it ideal for industrial automation architectures requiring distributed control with minimal latency.
Technical Specifications
| Parameter | 説明 |
|---|---|
| モデル Number | IC300RCS210H |
| ブランド | GE / Fanuc |
| Module Type | Remote I/O Communication Module |
| サポートed I/O Racks | IC300 Series |
| Bus Protocol | Proprietary IC300 serial communication |
| Communication Ports | RS-232 / RS-485 |
| Addressing | DIP switch configurable |
| Power Supply | 5 VDC / 24 VDC (rack powered) |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | –40°C to +85°C |
| Isolation | Optical isolation between CPU and field I/O |
| Dimensions (H × W × D) | 110 mm × 35 mm × 120 mm |
| 重量 | ≈ 0.45 kg |
| Mounting | DIN-rail or rack slot, IC300 compatible |
Applications / Use Scenarios
-
Linking distributed IC300 I/O racks to central CPU modules
-
Modular factory automation networks where distance exceeds direct CPU wiring limits
-
Machine control systems with multiple remote stations
-
Systems requiring high-reliability communication and data integrity
-
Retr/it or expansion projects for IC300 Series legacy installations
Advantages / Engineering Benefits
-
Reliable distributed communication across multiple IC300 racks
-
DIP-switch configurable addressing simplifies network integration
-
Optical isolation enhances system robustness against voltage spikes and noise
-
サポートs RS-232 and RS-485 serial connections for flexible wiring
-
Compact design fits standard IC300 rack form factor
-
Reduces wiring complexity by centralizing communication to remote I/O modules
