製品紹介

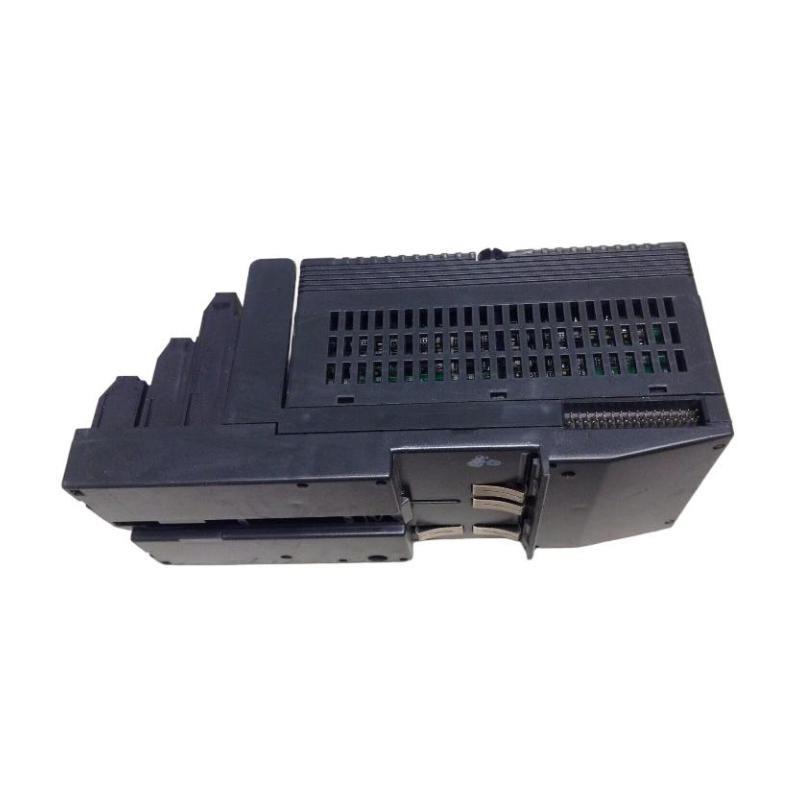

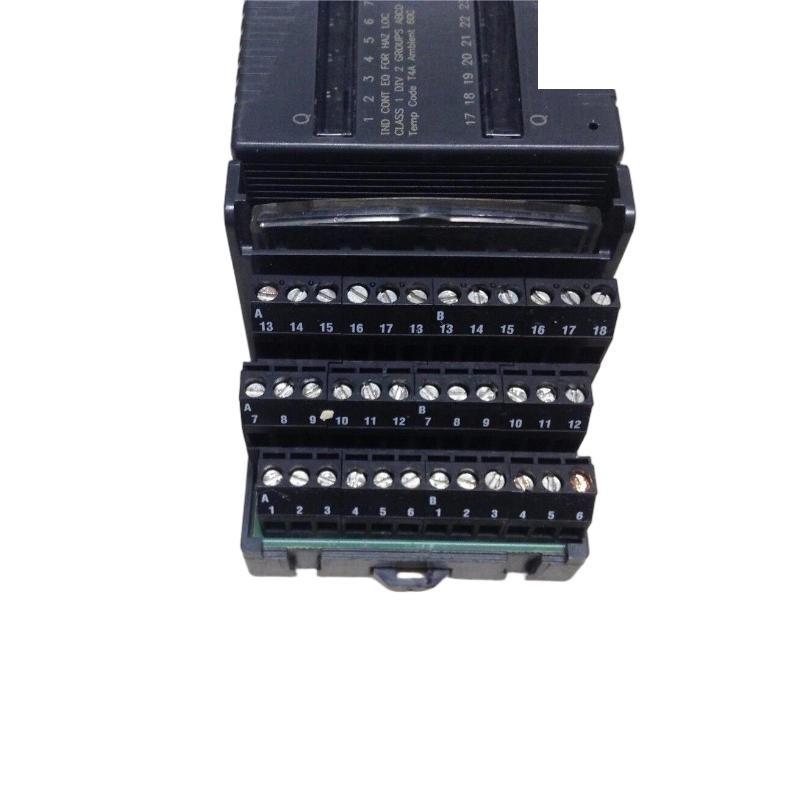

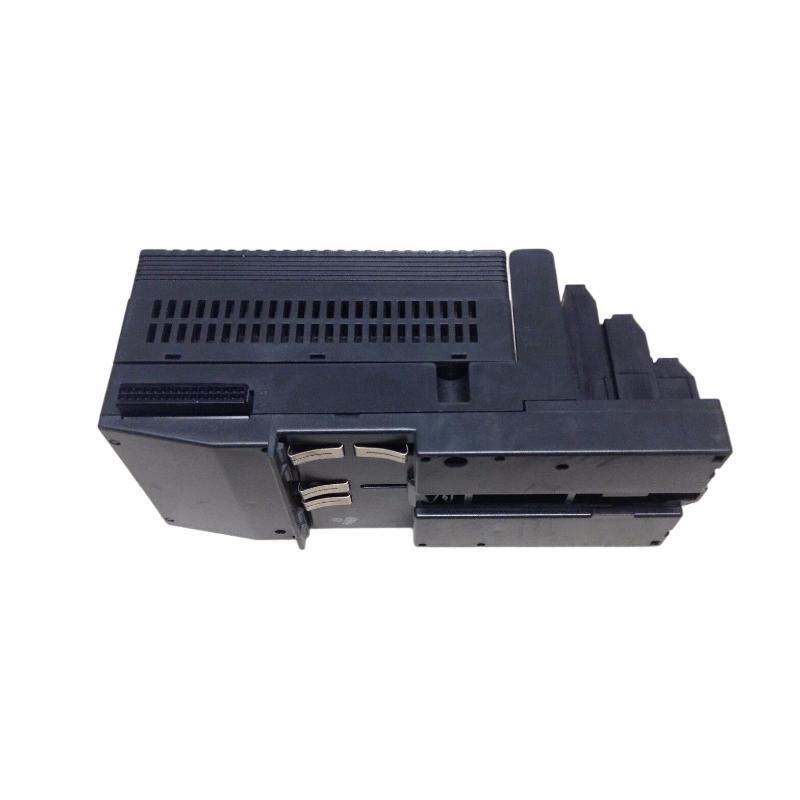

The GE IC200MDL742 VersaMax Discrete Output Module is an essential component in the VersaMax PLC system, designed for providing reliable digital output control. This module /fers 8 discrete output points, allowing operators to control various field devices such as motors, actuators, solenoids, and relays in industrial automation systems. The outputs are digital, meaning they can either be in an on or /f state, suitable for controlling devices that require simple binary control signals.
Compact in design and easy to install on DIN rails, the IC200MDL742 module is ideal for use in both small-scale and large-scale control systems. Its high reliability and flexible output options make it an indispensable part / discrete control applications in industries such as manufacturing, building automation, and process control. Additionally, the module supports status feedback for each output, helping with easier diagnostics and faster troubleshooting in industrial environments.
製品仕様
| Specification | Details |
|---|---|
| モデル | IC200MDL742 |
| Module Type | Discrete Output Module |
| Number / Outputs | 8 Outputs |
| Output Type | Digital (Discrete) |
| Output Current | 0.5 A per Output |
| Mounting Type | DIN Rail |
| Dimensions | 110 x 66.8 x 50 mm |
| 重量 | 0.15 kg |
| Operating Voltage | 24 VDC |
| Status Indicators | Yes, for each output |
| Operating Temperature Range | -20°C to 60°C |
Product Applications
The GE IC200MDL742 VersaMax Discrete Output Module is widely used across various industries that require reliable and simple digital control / field devices. Some / its common applications include:
-
Motor and Pump Control: The module is used for controlling motors and pumps in automation systems, enabling simple on//f control to regulate equipment in a variety / environments.
-
Lighting and HVAC Systems: In building automation, the module is used to control lighting systems and HVAC (Heating, Ventilation, and Air 状態ing) systems, providing an easy way to manage on//f states for these devices.
-
Control / Solenoids and Relays: The module is ideal for controlling solenoids, relays, and other devices that require discrete on//f switching in applications such as packaging, conveyor systems, and assembly lines.
-
Alarm Systems: In alarm or emergency systems, the module is used to activate devices like sirens or warning lights, /fering a straightforward way to trigger such devices based on specific conditions.
-
Industrial Automation: The module is frequently employed in factory automation for controlling machinery, sensors, and actuators in production lines, ensuring timely operation / critical devices.
Product Advantages
-
Compact and Space-efficient: With its compact size (110 x 66.8 x 50 mm), the IC200MDL742 fits into tight spaces, making it suitable for installations where space is limited. Its DIN rail mounting allows easy integration into existing control systems.
-
Versatile Control: The module provides 8 discrete output points, making it versatile enough to control a wide range / field devices such as relays, actuators, and solenoids in a variety / automation applications.
-
Clear Status Feedback: Equipped with LED status indicators for each output, it allows operators to easily monitor the status / each output point, making troubleshooting more efficient.
-
Reliable Performance: The module can handle 0.5 A per output, making it ideal for controlling both low and medium power devices. It /fers high reliability in industrial settings, where equipment uptime is crucial.
-
Wide Operating Temperature: With an operating temperature range / -20°C to 60°C, the module can function reliably in diverse environments, including extreme conditions.
-
Cost-Effective Solution: Offering high reliability at an affordable price, the IC200MDL742 is a cost-effective solution for digital output control in VersaMax-based systems.
FAQ
1. How many output points does the IC200MDL742 module have?
The IC200MDL742 /fers a total / 8 discrete output points.
2. What is the maximum output current per point?
Each output channel on the IC200MDL742 can handle a maximum output current / 0.5 A.
3. What devices can be controlled with the IC200MDL742 module?
The module can be used to control motors, solenoids, relays, actuators, and other devices that require digital on//f control.
4. How are the output points controlled?
The output points on the IC200MDL742 are controlled by the VersaMax PLC system, which sends digital signals to switch the devices on or /f.
5. Does the IC200MDL742 have feedback indicators for output status?
Yes, the IC200MDL742 is equipped with LED status indicators for each output, allowing operators to monitor the status / each output channel.
6. What is the operating voltage / the IC200MDL742 module?
The IC200MDL742 operates with a 24 VDC power supply.
7. Can the IC200MDL742 be used in extreme temperatures?
Yes, the IC200MDL742 operates within a temperature range / -20°C to 60°C, making it suitable for use in a variety / industrial environments.
8. How is the IC200MDL742 mounted?
The module is designed for DIN rail mounting, which allows easy and secure installation in control panels.
9. Is the IC200MDL742 module suitable for controlling high-power devices?
The module is generally suitable for controlling low to medium power devices with a maximum output current / 0.5 A per point.
10. Can the IC200MDL742 be used with other PLC systems?
The IC200MDL742 is specifically designed for use with VersaMax PLC systems and may not be compatible with other PLC systems unless they support similar input/output protocols.
Recommended モデルs from the Same Series or 関連製品
| モデル | 説明 |
|---|---|
| IC200MDL743 | VersaMax Discrete Output Module with higher output capacity |
| IC200MDL745 | Discrete output module for high-power control systems |
| IC200MDL746 | Extended discrete output module for larger systems |
| IC200MDL747 | Compact module with 16 output points |
| IC200MDL748 | Digital output module with integrated diagnostics |
| IC200MDL749 | Versatile output module with additional features |
Popular モデルs from GE
| モデル | 説明 |
|---|---|
| IC200UDR001 | VersaMax Micro Controller Processor |
| IC200UDR120 | VersaMax Micro Controller with integrated I/O |
| IC200UEM001 | VersaMax Micro Ethernet Module |
| IC200UEX222 | VersaMax Expansion Module |
| IC200UDR020 | VersaMax Micro Controller with high-speed processing |
| IC200UEI008 | VersaMax Micro Expansion Module with analog input |
