製品紹介

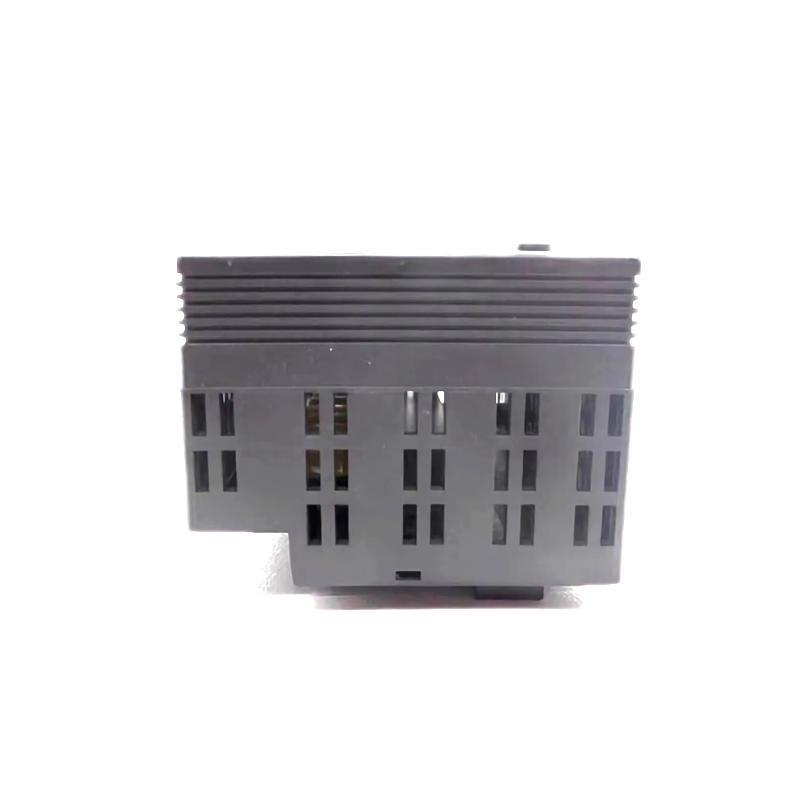

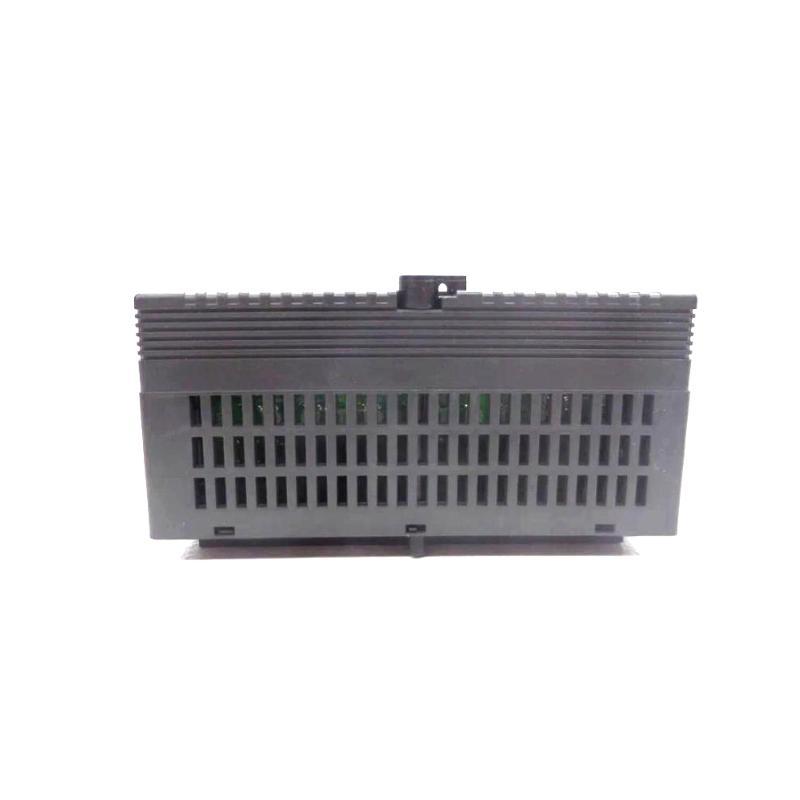

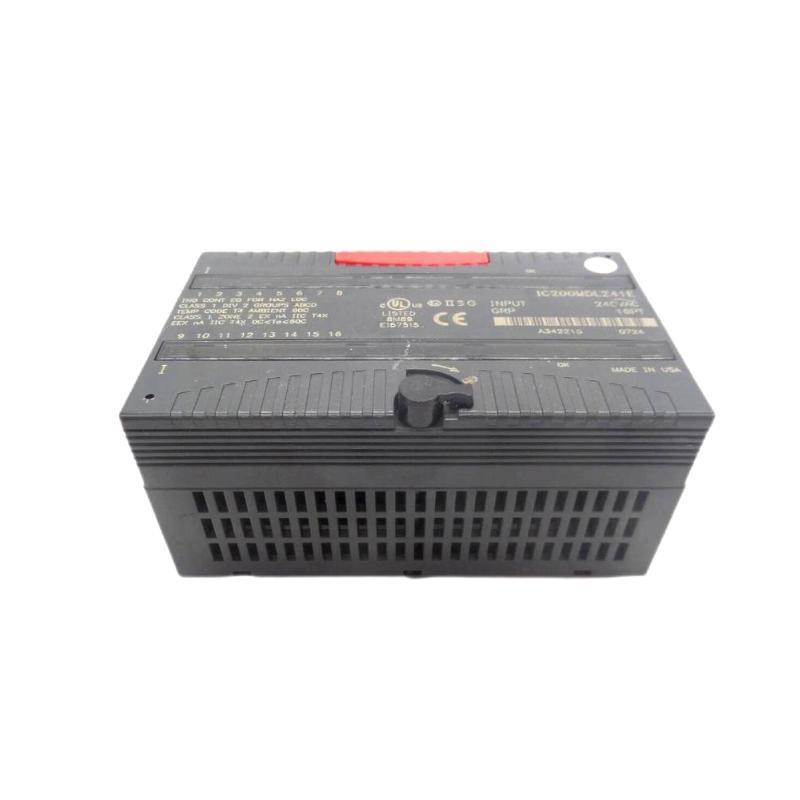

The GE IC200MDL241E is a 24V DC discrete input module from the renowned VersaMax series, manufactured by General Electric (GE). It is designed to provide reliable and efficient input signal acquisition from field devices to the programmable logic controller (PLC). The module features 16 input points, grouped into two sets / eight, and supports positive logic (sourcing type). As a key component in the GE VersaMax automation platform, this module /fers scalable functionality suitable for a wide range / industrial automation tasks.
With compact dimensions and a plug-and-play architecture, the IC200MDL241E is ideal for installations where space, performance, and reliability are critical. It supports a variety / industrial sensors, switches, and push-buttons, and is compatible with both main and expansion backplanes within the VersaMax I/O system.
製品仕様
| Parameter | Details |
|---|---|
| メーカー | GE Automation (General Electric) |
| Product Series | VersaMax |
| モデル Number | IC200MDL241E |
| Module Type | Discrete Input Module |
| Input Type | DC Input (Sourcing / Positive Logic) |
| Number / Input Points | 16 |
| Input Voltage Range | 0 to 30V DC (Nominal: 24V DC) |
| Input Threshold | ON ≥ 11V, OFF ≤ 5V |
| Current Draw | 6 mA per point at 24V DC |
| Input Delay | 0.5 ms ON / 1.5 ms OFF typical |
| Isolation | 1500V AC (field to logic) |
| LED Indicators | One per channel (16 total) |
| Backplane Current | 65 mA (typical) |
| Wiring | Removable terminal block, 18–22 AWG |
| Mounting Type | DIN Rail or Panel Mount |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Humidity | 5% to 95% non-condensing |
| Dimensions (W x H x D) | 66.8 × 163.5 × 70 mm |
| 重量 | 0.36 kg |
| Approvals | UL, CE, CSA, RoHS compliant |
Applications
The IC200MDL241E finds use in a variety / industrial environments and automation systems where reliable signal acquisition is essential:
-
Factory Automation – Used in PLC systems for machine control and feedback from sensors and switches.
-
Packaging Lines – Captures input from push-buttons, safety switches, and limit sensors.
-
Water & Wastewater Treatment – Monitors pump status, flow switches, and level indicators.
-
Food & Beverage Processing – Interfaces with hygienic sensors and process controls.
-
Material Handling Systems – Input for conveyor systems, motor starters, and gate positions.
-
HVAC Systems – Integration with pressure switches and airflow sensors for control logic.
Advantages
-
Compact Design – Space-saving footprint ideal for panel installations.
-
High Signal Integrity – 1500V AC isolation enhances protection from field surges.
-
Fast Response – Input delay / just 0.5 ms ensures real-time performance.
-
Scalable I/O – Easily integrates into the VersaMax platform for flexible expansion.
-
LED Diagnostics – Per-point LED indicators provide instant status feedback.
-
Wide Voltage Range – Tolerates a broad range / input voltages, enhancing versatility.
-
Robust Build – Engineered for long-term industrial use in harsh environments.
-
Ease / Maintenance – Hot-swappable design allows module replacement without shutting down the system.
-
Trusted ブランド – Backed by GE’s global reliability and long-term product support.
-
Global Certifications – Meets international safety and compliance standards.
よくある質問 (FAQ)
-
What type / devices can be connected to the IC200MDL241E input points?
→ The module is compatible with dry contact switches, PNP sensors, push-buttons, and other DC logic-level devices. -
Is the IC200MDL241E module hot-swappable?
→ Yes, it can be removed or replaced while powered, reducing downtime during maintenance. -
Does this module support negative logic (sinking)?
→ No, the IC200MDL241E is a positive logic (sourcing) module only. -
Can I use this module in hazardous environments?
→ While it is robust, ensure environmental ratings and certifications comply with your industry’s safety standards. -
What is the maximum cable length supported for input signals?
→ This depends on wire gauge and noise levels, but typically up to 50 meters is supported for 24V DC signals. -
How is the module installed?
→ It mounts on a VersaMax base and snaps onto a DIN rail or can be panel-mounted. -
How can I identify if an input is active?
→ Each channel has an individual LED indicator that lights up when the input is ON. -
Is external power needed for the module?
→ Yes, an external 24V DC power source is required for field devices. -
What is the expected lifetime / the module?
→ When used within recommended conditions, it can last over 10 years with minimal failure rate. -
Can it be used in temperature-controlled environments like cold storage?
→ Yes, as long as the operating temperature stays within the 0°C to 60°C range.
