製品紹介

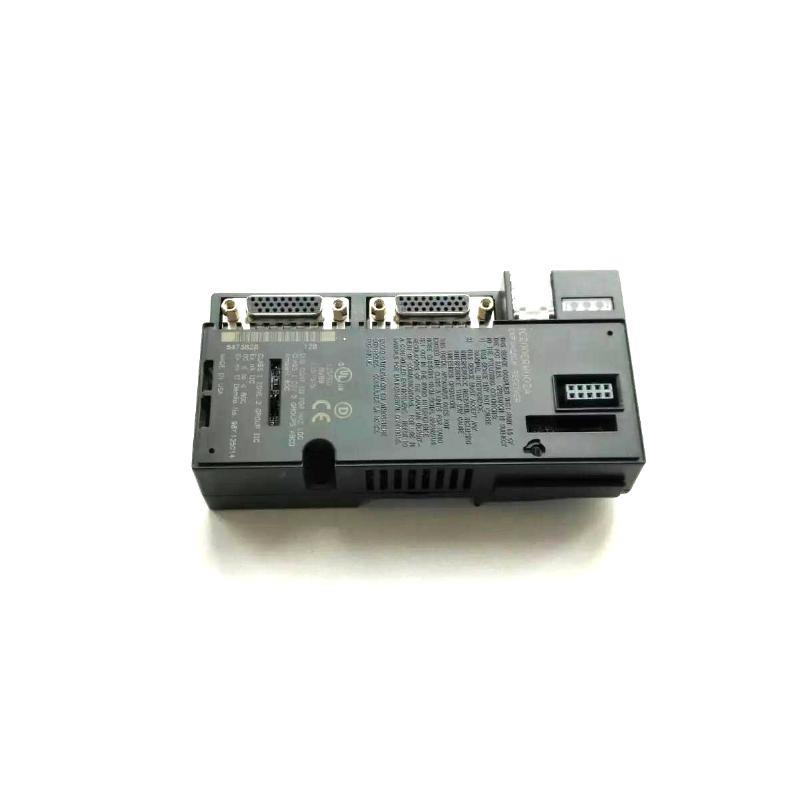

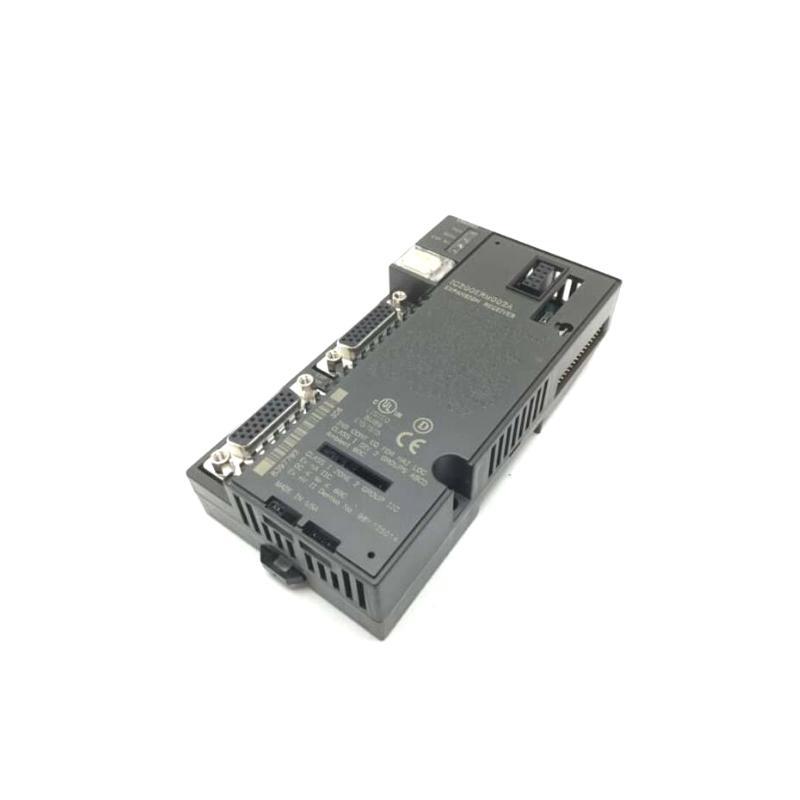

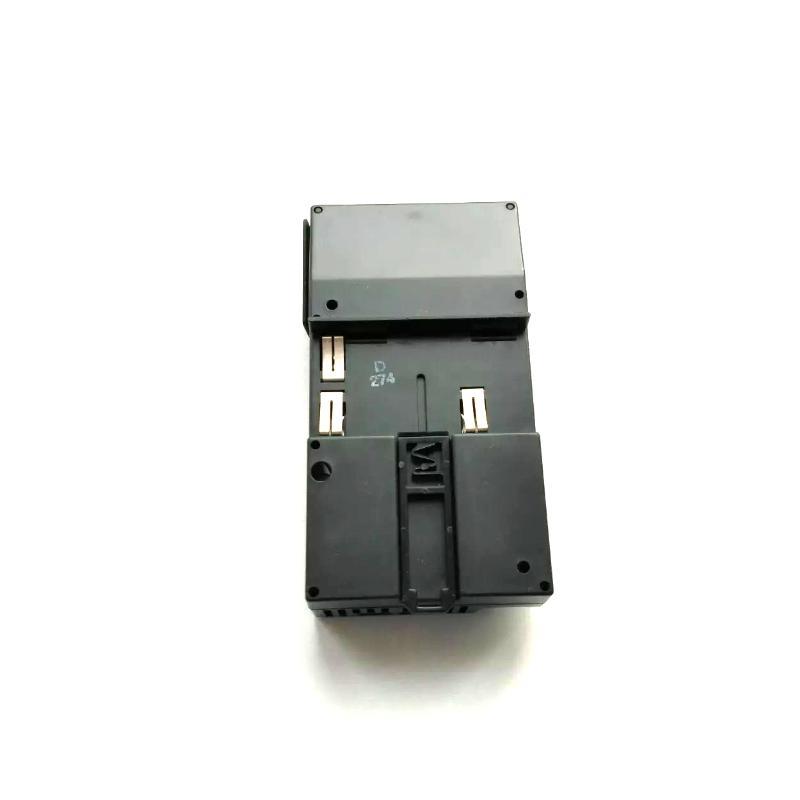

The GE Fanuc IC200ERM002C is a non-isolated Expansion Receiver Module designed for the VersaMax series / programmable logic controllers (PLCs). This module facilitates the expansion / I/O capabilities by interfacing additional modules to the main PLC system, thereby enhancing its functionality and flexibility in various industrial applications.
製品仕様:
| Parameter | 説明 |
|---|---|
| モデル Number | IC200ERM002C |
| メーカー | GE Fanuc |
| Series | VersaMax |
| Type | Non-Isolated Expansion Receiver Module |
| Communication Ports | Two 26-pin female D-shell expansion ports |
| Power Consumption | 5V backplane: 70 mA; 3.3V backplane: 20 mA |
| LED Indicators | Three on-board LEDs indicating device status |
| Mounting Options | DIN rail or panel mounting |
| Expansion Capability | サポートs up to 7 groups with a maximum / 8 modules per group |
| Isolation | Non-isolated configuration |
| Dimensions | 66.8 x 128 x 50 mm |
| 重量 | 0.222 kg |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
Product Applications:
The IC200ERM002C module is employed in various industrial sectors to enhance the scalability and adaptability / control systems. Its primary applications include:
-
Manufacturing Automation: Integrating additional input and output modules to accommodate complex manufacturing processes.
-
Process Control Systems: Expanding the control capabilities in industries such as chemical processing, oil and gas, and power generation.
-
Material Handling: Enhancing the control / conveyor systems, robotic arms, and other automated material handling equipment.
-
Building Management Systems: Extending control functionalities for lighting, HVAC, and security systems within large facilities.
Product Advantages:
-
Scalability: Enables the addition / multiple I/O modules, allowing the control system to grow with the operational needs.
-
Flexibility: Compatible with both single-ended and multi-rack expansion configurations, providing versatile deployment options.
-
Compact Design: Its slim pr/ile facilitates easy integration into existing control panels without requiring significant space.
-
User-Friendly Indicators: Equipped with LED indicators for power and expansion bus status, simplifying diagnostics and maintenance.
-
Reliable Communication: サポートs data transfer rates / up to 5 Mbps, ensuring efficient and timely data exchange between modules.
Recent News Headlines:
-
“GE Fanuc Enhances VersaMax Series with Advanced Expansion Modules”
-
“IC200ERM002C: Revolutionizing Industrial Control System Expansion”
-
“GE Fanuc’s Latest Receiver Module Boosts PLC Flexibility and Performance”
-
“Innovative Expansion Solutions Introduced in GE Fanuc’s VersaMax Line”
-
“IC200ERM002C Module Gains Industry Recognition for Enhancing Control Systems”
よくある質問 (FAQ):
-
What is the primary function / the IC200ERM002C module?
-
The IC200ERM002C serves as a non-isolated expansion receiver module, allowing for the addition / up to 56 I/O modules to a VersaMax PLC system.
-
-
How many modules can be connected using this expansion receiver?
-
It supports up to 7 groups, with a maximum / 8 modules per group, totaling 56 modules.
-
-
What are the power consumption specifications / the IC200ERM002C?
-
The module consumes 70 mA with a 5V backplane and 20 mA with a 3.3V backplane.
-
-
What mounting options are available for this module?
-
The IC200ERM002C can be mounted on a DIN rail or directly onto a panel, providing flexibility in installation.
-
-
What are the operating temperature limits for this module?
-
It operates within a temperature range / -20°C to +60°C, suitable for various industrial environments.
-
-
Does the module provide any status indicators?
-
Yes, it features three on-board LED indicators that display device status, aiding in diagnostics and troubleshooting.
-
-
Is the IC200ERM002C compatible with both single-ended and multi-rack systems?
-
Yes, it can be used in both configurations, with cable length limitations / 1 meter for single-ended and 15 meters for multi-rack systems.
-
-
What are the dimensions and weight / the module?
-
The module measures 66.8 x 128 x 50 mm, weighing 0.222 kg.
-
-
What type / communication ports does the module have?
-
It is equipped with two 26-pin female D-shell expansion ports for inbound and outbound connections.
-
-
Can the module be used with additional power supplies or boosters?
-
Yes, additional power supplies or boosters can be connected to the main power supply on the expansion module to provide adequate power to all connected devices.
-
Related モデルs in the Same Series or カテゴリー:
| モデル Number | 説明 |
|---|---|
| IC200ERM001C | Isolated Expansion Receiver Module for VersaMax systems |
| IC200PWR001 | Power Supply Module providing 120/240 VAC input and 5V output |
| IC200PWR002 | Power Supply Module with 24 VDC input and 5V output |
| IC200PWR003 | Power Supply Module /fering 48 VDC input and 5V output |
| IC200MDL640 | Discrete Input Module with 16 points, 24 VDC positive logic |
| IC200MDL241 | Discrete Output Module with 16 points, 24 VDC positive logic |
| IC200ALG264 | Analog Input Module with 15-bit resolution, 4 channels |
| IC200ALG260 | Analog Output Module, 12-bit resolution, 4 channels |
Popular モデルs from the Same ブランド (GE Fanuc):
| モデル Number | 説明 |
|---|---|
| IC693CPU374 | High-Performance CPU Module for GE Series 90-30 PLC |
| IC695CPU310 | PACSystems RX3i CPU with 1 GHz processing power |
| IC693MDL645 | 16-Point Relay Output Module for industrial control systems |
| IC695CPE330 | High-speed CPU with 64 MB RAM for complex automation tasks |
| IC693ALG223 | Analog Voltage Input Module, 16-bit resolution, 16 channels |
| IC200CHS022 | VersaMax I/O Carrier Module for base expansion |
| IC200CPUE05 | VersaMax CPU Module with built-in Ethernet support |
| IC694MDL754 | High-Density 32-Point Digital Input Module |
