Product Overview

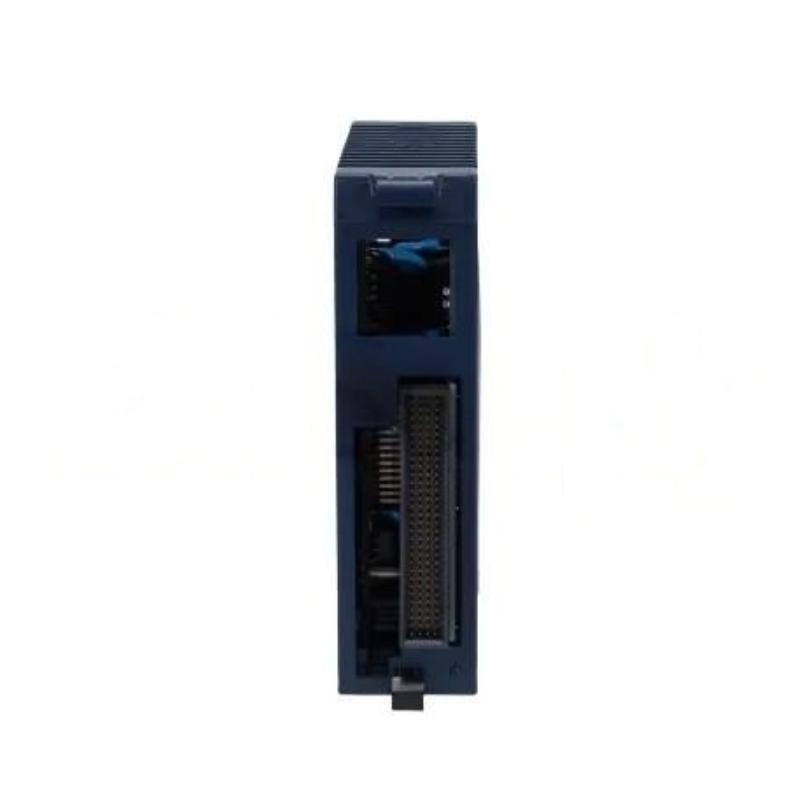

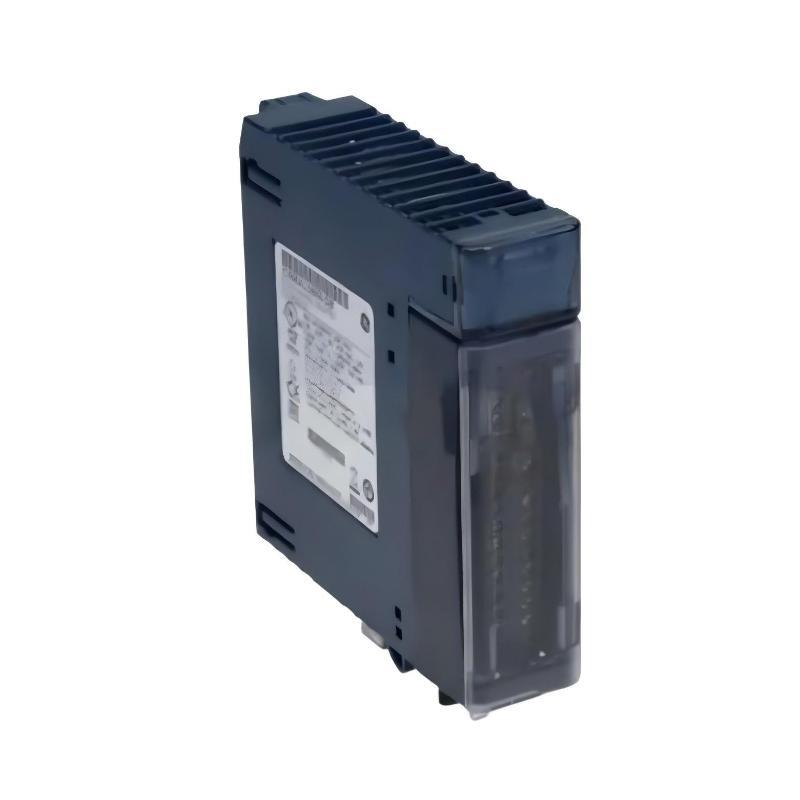

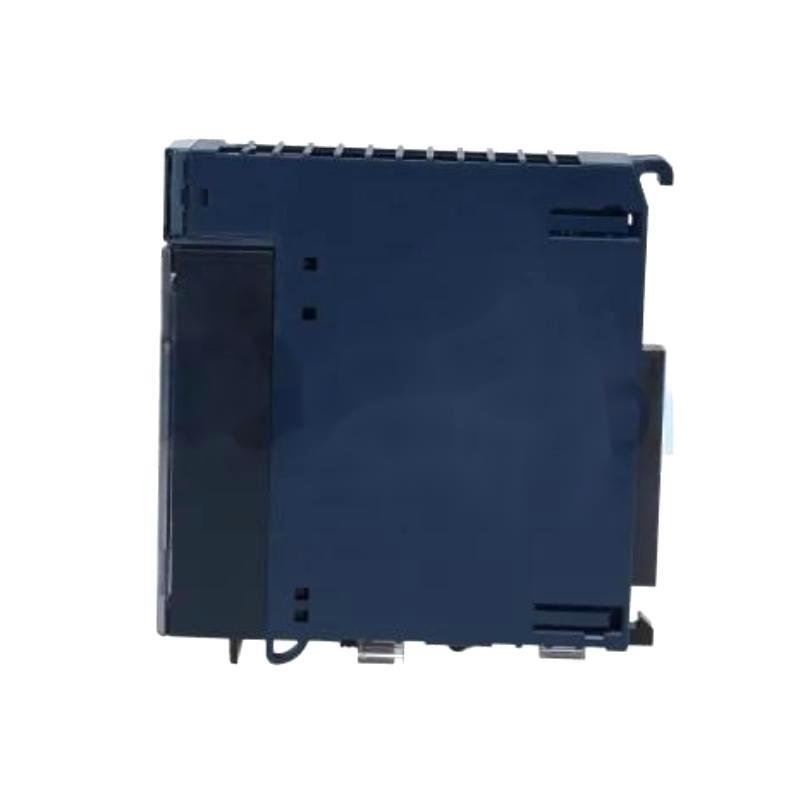

The GE Fanuc IC695ALG508 RX3i Analog Input Module is a high-performance input module designed for accurate analog signal measurement in the RX3i PACSystems series. It provides 8 differential input channels for current or voltage signals, delivering high accuracy, fast conversion speed, and excellent reliability.
Key Features
-
8 differential analog input channels
-
サポートs current and voltage signal inputs
-
High accuracy and fast conversion rate
-
16-bit resolution for precise data acquisition
-
Hot-swappable design for easy maintenance
Technical Specifications
| Item | Specification |
|---|---|
| メーカー | GE Fanuc |
| Product モデル | IC695ALG508 |
| Product Type | RX3i Analog Input Module |
| Number / Channels | 8 differential channels |
| Input Type | Current or Voltage |
| Input Signal Range (Voltage) | ±10 V DC |
| Input Signal Range (Current) | 0–20 mA or 4–20 mA |
| Resolution | 16 bits |
| Input Impedance (Voltage) | >1 MΩ |
| Input Impedance (Current) | 250 Ω |
| Accuracy | ±0.1% / full scale |
| Conversion Speed | 2 ms per channel |
| Backplane Current Consumption | 100 mA @ 5 V DC, 80 mA @ 3.3 V DC |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | –40 °C to +85 °C |
| Dimensions | 34 x 140 x 145 mm |
| 重量 | 0.41 kg |
| Applications | Analog signal acquisition for process and industrial control systems |
Industry Applications
-
Industrial automation and machine control
-
Power generation and energy systems
-
Oil and gas processing
-
Water and wastewater treatment plants
-
Manufacturing and assembly lines
-
Environmental monitoring and instrumentation systems
よくある質問 (FAQ)
Q1: What is the purpose / the IC695ALG508 module?
It captures analog signals from field sensors and converts them into digital data for the RX3i controller.
Q2: How many channels does the module support?
It supports 8 differential input channels.
Q3: What signal types can it measure?
The module can measure both voltage (±10 V) and current (0–20 mA, 4–20 mA) inputs.
Q4: What is the resolution / this module?
It /fers 16-bit resolution for precise analog-to-digital conversion.
Q5: Does it provide electrical isolation?
Yes, it includes channel-to-ground isolation to reduce noise and interference.
Q6: What is the conversion speed per channel?
Approximately 2 milliseconds per channel.
Q7: Is the module hot-swappable?
Yes, it supports hot-swap capability for easy replacement without shutting down the system.
Q8: What is the module’s power consumption?
It consumes 100 mA @ 5 V DC and 80 mA @ 3.3 V DC.
