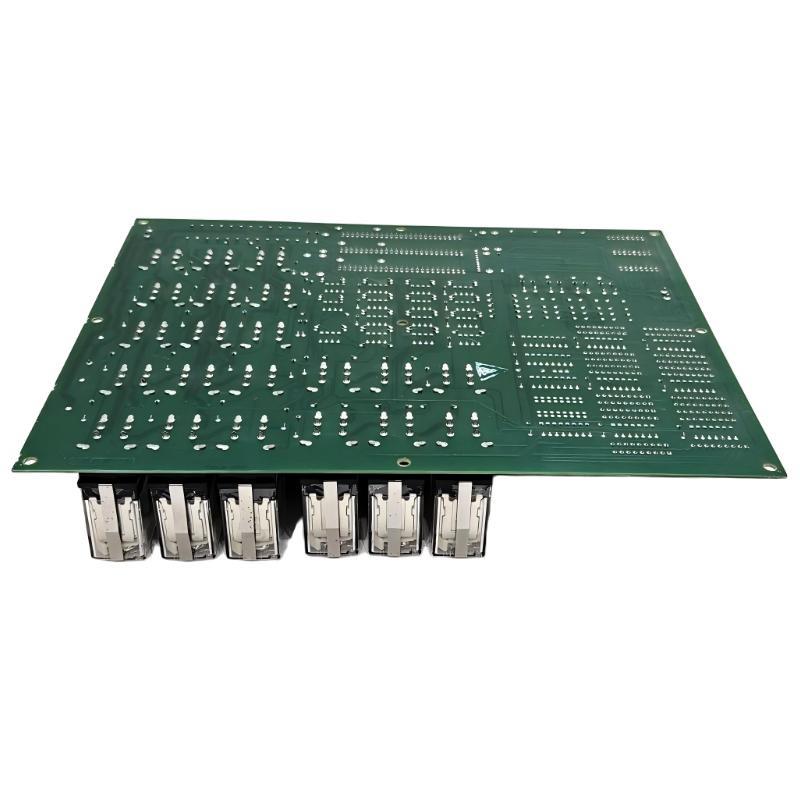

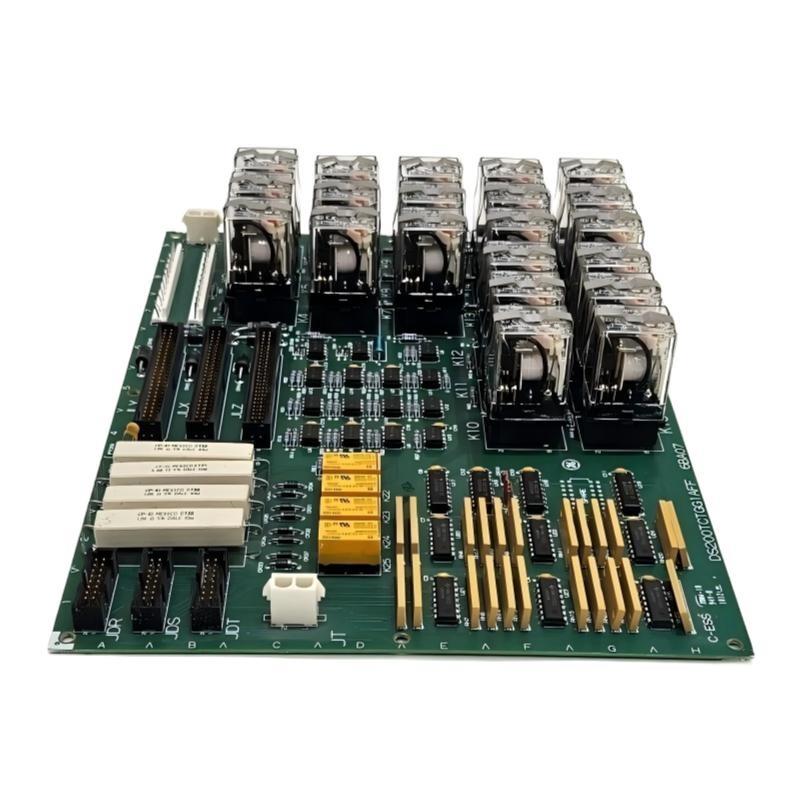

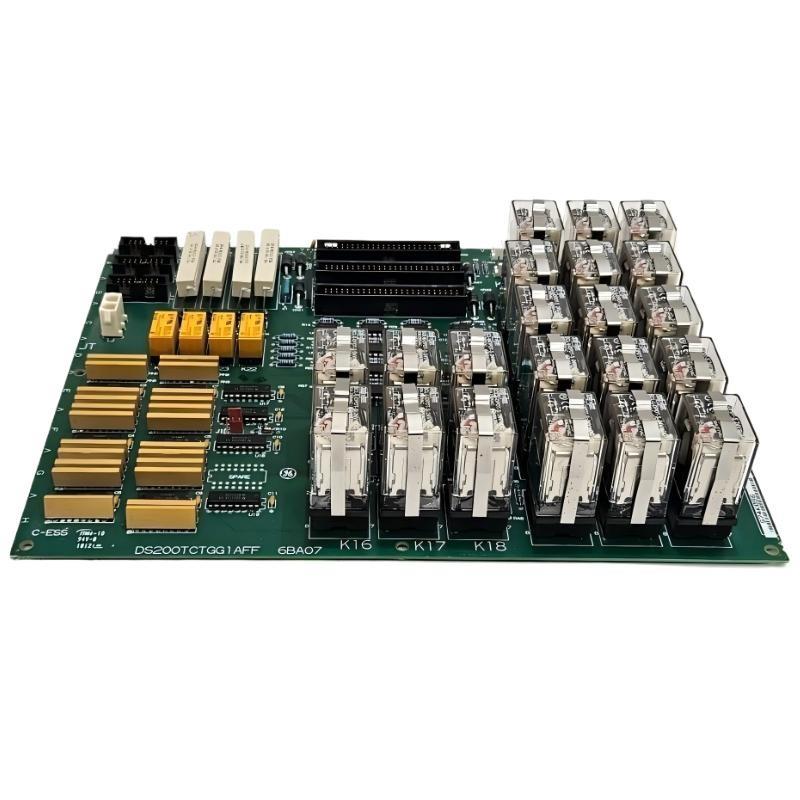

The GE DS200TCTGG1AFF Mark V Simplex Trip Board is a critical safety and control module designed for high-reliability turbine and generator protection within GE Mark V control systems. It serves as a dedicated trip processing interface, detecting abnormal conditions and initiating rapid shutdown or protective responses to safeguard turbines, generators, and associated equipment from damage.
This board is engineered to handle multiple analog and discrete inputs, process safety logic, and trigger trip outputs with deterministic response times. Its robust design ensures reliable operation under harsh industrial conditions, making it ideal for mission-critical applications where rapid fault detection and response are essential.
The DS200TCTGG1AFF provides a compact yet high-capacity solution for implementing simplex trip logic, ensuring that turbine and generator operations remain within safe operating parameters at all times.
製品仕様
| Parameter | 説明 |
|---|---|
| Product Type | Simplex Trip Board |
| System Series | GE Mark V Control System |
| Primary Function | Detect abnormal conditions and initiate protective trips |
| Signal カテゴリー | Analog inputs, discrete inputs, and trip outputs |
| Trip Processing | Safety-critical logic execution with deterministic response |
| System Interface | Backplane connection to control rack |
| Electrical Isolation | Isolation between monitored signals and trip outputs |
| Diagnostics Capability | Trip status, fault detection, and event logging |
| Operating Environment | Industrial-grade temperature, vibration, and shock tolerance |
| Installation Method | Rack-mounted installation in Mark V control cabinets |
| Mechanical Design | Robust PCB with reinforced connectors for heavy signal loads |
| Dimensions | 330 × 280 × 50 mm |
| 重量 | 1.34 kg |
Applications
• Turbine protection, detecting over-speed, over-temperature, and other critical conditions to initiate trips.
• Generator protection, safeguarding against electrical faults and abnormal operating scenarios.
• Industrial drive safety, providing rapid response to abnormal operating signals for controlled shutdown.
• Simplex trip logic implementation, supporting high-reliability protective functions in Mark V systems.
• System upgrades and retr/its, /fering a robust replacement module for legacy trip boards.
Advantages
• Fast and deterministic trip response, minimizing risk / equipment damage.
• High reliability, engineered for continuous-duty operation in harsh industrial environments.
• Integrated diagnostics, providing trip status and fault reporting for easy maintenance.
• Electrical isolation, protecting sensitive control electronics from transient or abnormal signals.
• Robust mechanical design, supporting heavy signal loads and long-term operational stability.
• Seamless system integration, compatible with GE Mark V control architectures.
