製品紹介

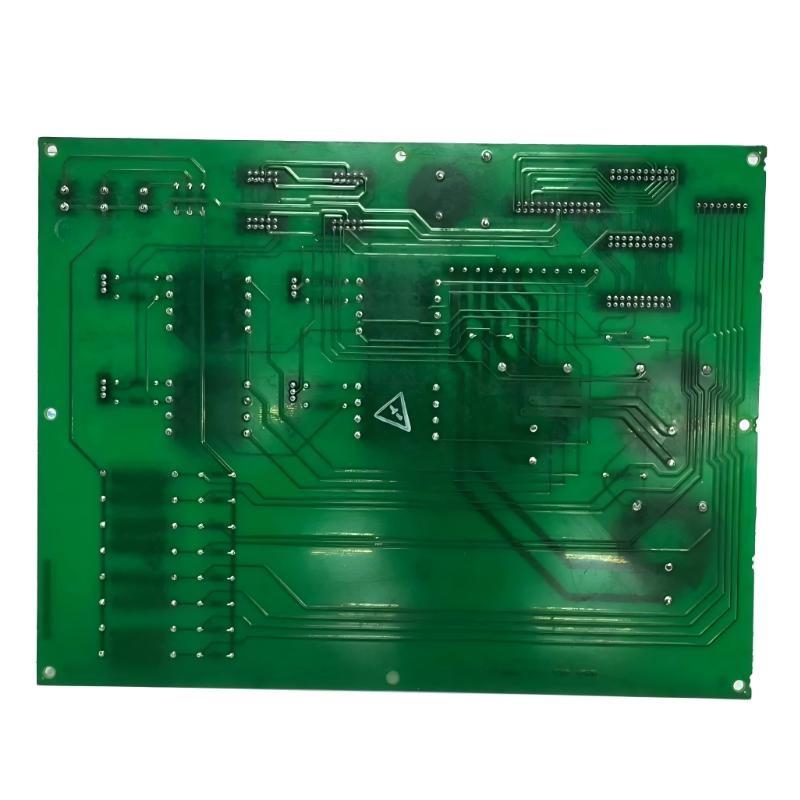

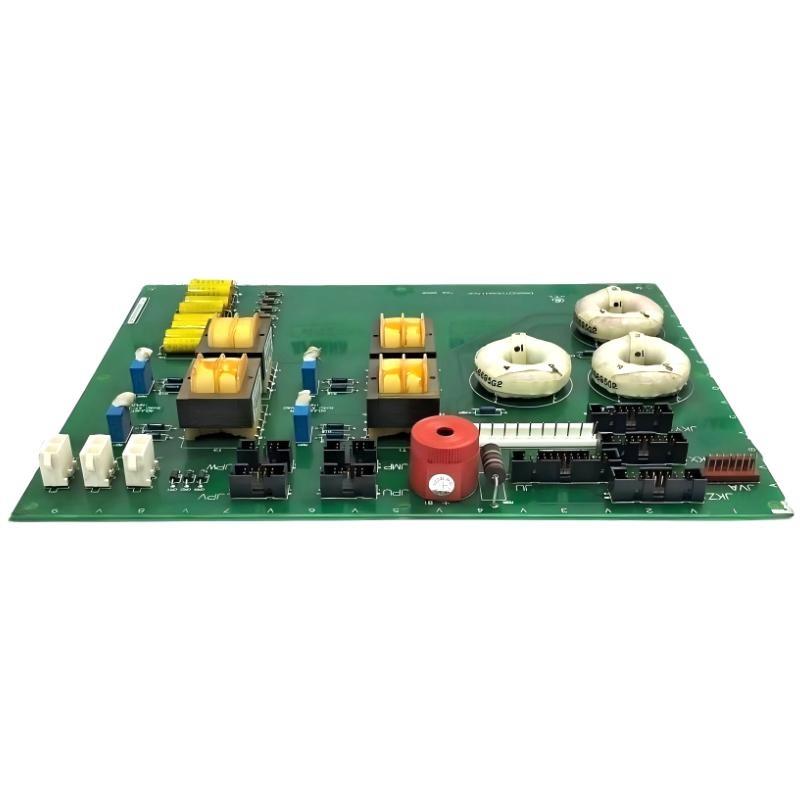

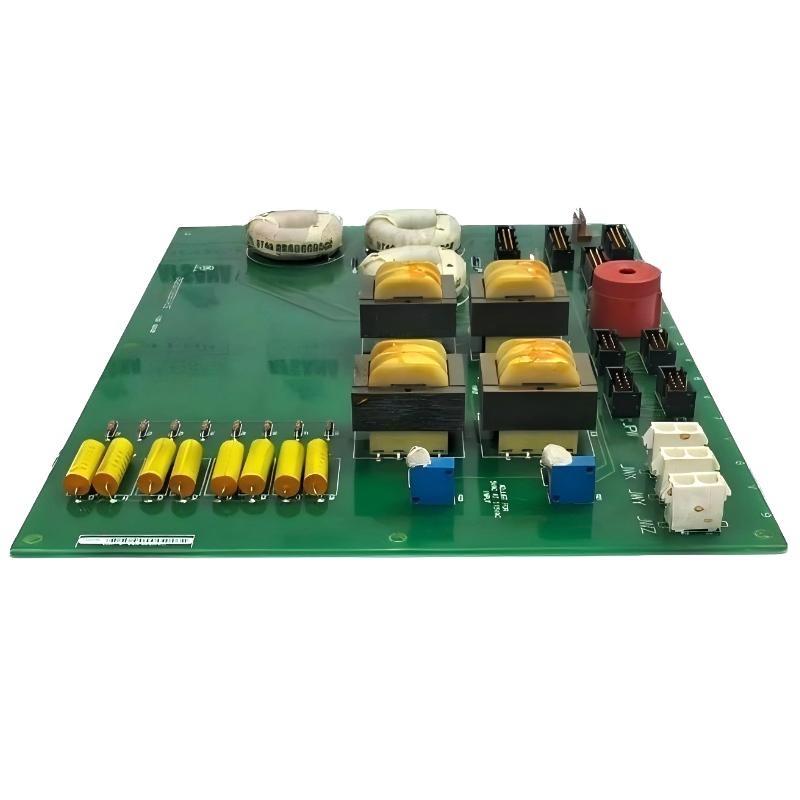

The GE DS200TCEBG1ACE Protective Termination Expander Board is an industrial control module designed to expand and protect signal terminations within GE Mark V turbine and drive control systems. It provides additional connection points while incorporating protective circuitry to safeguard both the control electronics and field wiring from overloads, transients, or wiring faults.
This board is engineered to facilitate safe and organized expansion / termination points for analog, digital, and discrete signals, ensuring reliable signal routing and system stability. By combining expansion capability with protection functions, it helps maintain operational integrity and prevents potential damage to sensitive control modules.
The DS200TCEBG1ACE is suitable for continuous-duty operation in industrial environments, providing robust mechanical and electrical performance for mission-critical turbine and drive applications.
製品仕様
| Parameter | 説明 |
|---|---|
| Product Type | Protective Termination Expander Board |
| System Series | GE Mark V Control System |
| Primary Function | Expand termination points and provide protection for control signals |
| Signal カテゴリー | Analog, digital, and discrete signals |
| Protection Features | Overvoltage, short-circuit, and transient protection |
| Connection Method | Screw-type industrial terminals |
| System Interface | Interface with existing terminal boards and control modules |
| Electrical Isolation | Isolation between field inputs and control electronics |
| Operating Environment | Industrial-grade temperature and vibration tolerance |
| Installation Method | Rack-mounted or panel-mounted in control cabinets |
| Diagnostics Capability | Fault indication for protected circuits |
| Dimensions | 180 × 120 × 25 mm |
| 重量 | 0.794 kg |
Applications
• Expansion / control signal terminations, increasing the number / accessible connection points for field devices.
• Signal protection, safeguarding analog, digital, and discrete lines from overloads, transients, and wiring faults.
• Turbine and generator control systems, providing reliable and organized signal distribution.
• Industrial drive applications, supporting safe and flexible termination for monitoring and control circuits.
• Control system upgrades, allowing easy integration / additional sensors, actuators, or input/output points.
Advantages
• Expanded connectivity, enabling additional termination points without redesigning the control cabinet.
• Integrated protection, preventing damage to sensitive electronics from voltage spikes or short circuits.
• Improved signal reliability, ensuring stable operation / connected control modules.
• Compact and robust design, suitable for industrial environments with limited installation space.
• Maintenance-friendly, with clear labeling and accessible terminals for troubleshooting.
• Seamless system integration, compatible with GE Mark V and related control platforms.
