Overview – Functional Design Summary

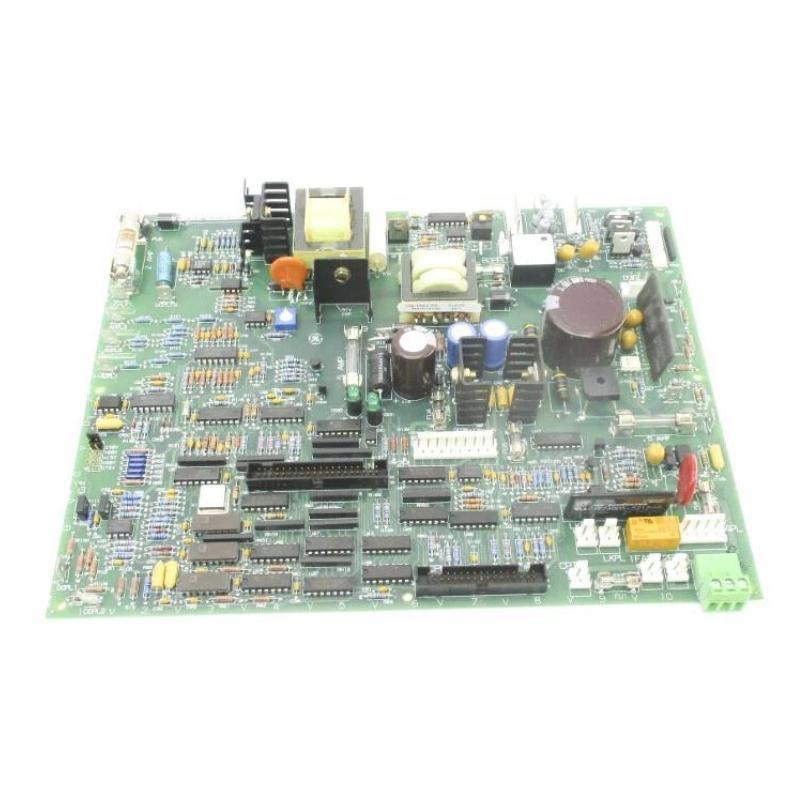

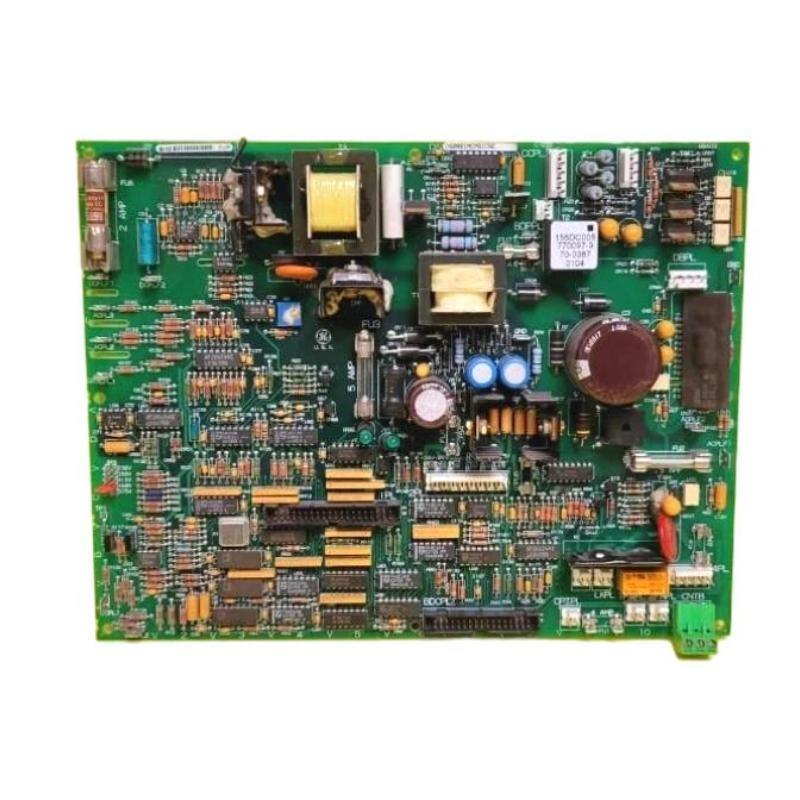

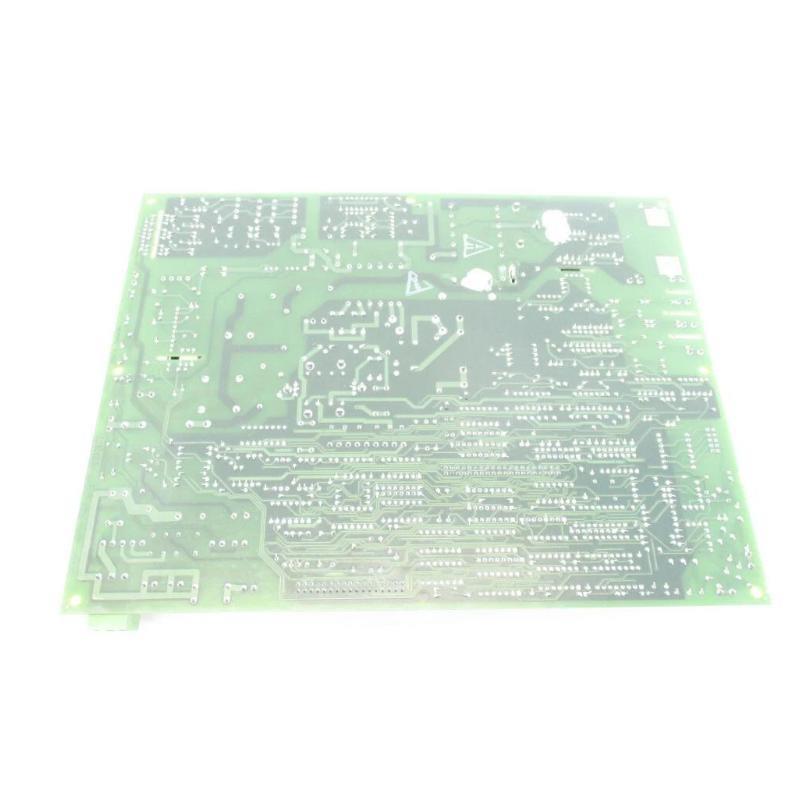

The DS200IMCPG1CGC is a GE motor control processor engineered to coordinate high-precision motor drive operations within industrial and turbine-grade systems. This module operates as a core computational 台, executing real-time algorithms for torque management, feedback acquisition, and diagnostic evaluation. Its design reflects GE’s emphasis on deterministic control cycles, high EMI imm台y, and sustained reliability in demanding thermal and vibration environments.
Detailed Technical Specifications
| Parameter | 説明 |
|---|---|
| Module Type | Motor Control Processor (IMCP) |
| System Platform | GE Industrial Drives / Mark V-based architectures |
| Processing Core | GE custom logic array + DSP computation engine |
| Control Features | Motor regulation, I/O processing, drive sequencing |
| Signal Interfaces | Backplane bus, analog/digital monitoring channels |
| LED Indicators | Module health, control loop status, fault reporting |
| Power Requirements | +5 VDC logic, ±15 VDC analog (via backplane) |
| Operating Range | 0°C to 60°C |
| Storage Temperature | –40°C to 85°C |
| Environmental Rating | High-vibration, turbine-class standard |
| Dimensions | 330 × 160 × 40 mm |
| 重量 | approx. 1.2 kg |
| Mounting Method | GE rack-mount assembly |
Operational Domains
-
Precision motor drive control frameworks
-
Industrial drive systems requiring deterministic DSP calculations
-
Power-plant auxiliary drive coordination
-
Legacy Mark V control system modernization
-
High-noise electrical environments
-
Applications requiring isolated feedback signal processing
Key Technical Strengths
-
Deterministic DSP performance ensures stable and predictable motor response
-
High-grade isolation minimizes electrical noise interference
-
Diagnostic depth improves field service efficiency
-
Long-term system stability suitable for continuous industrial operation
-
Seamless platform integration within GE’s modular control architecture
-
Robust structural design suitable for high-vibration application zones
