製品紹介

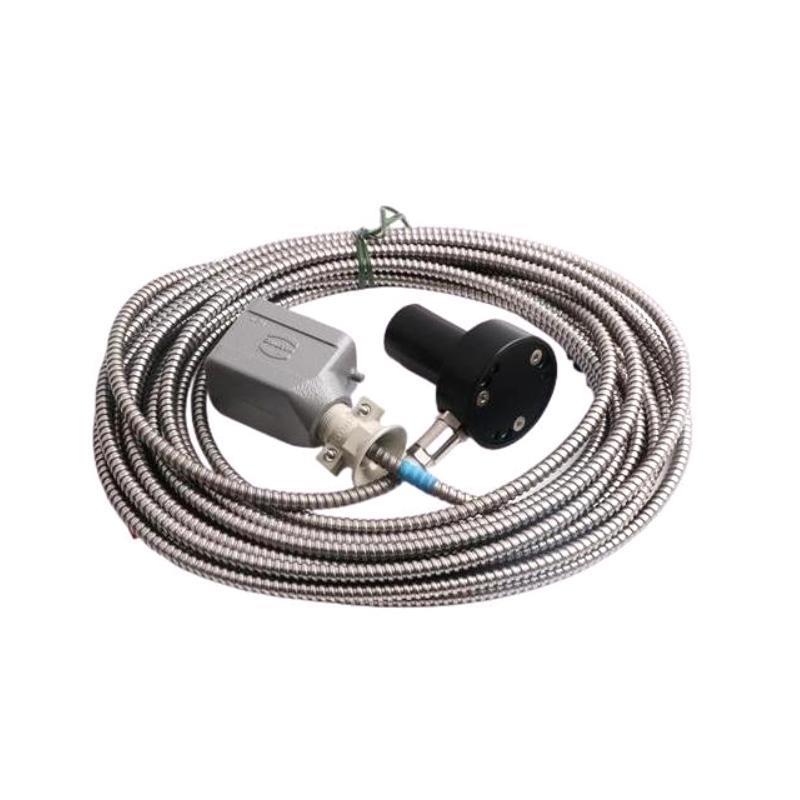

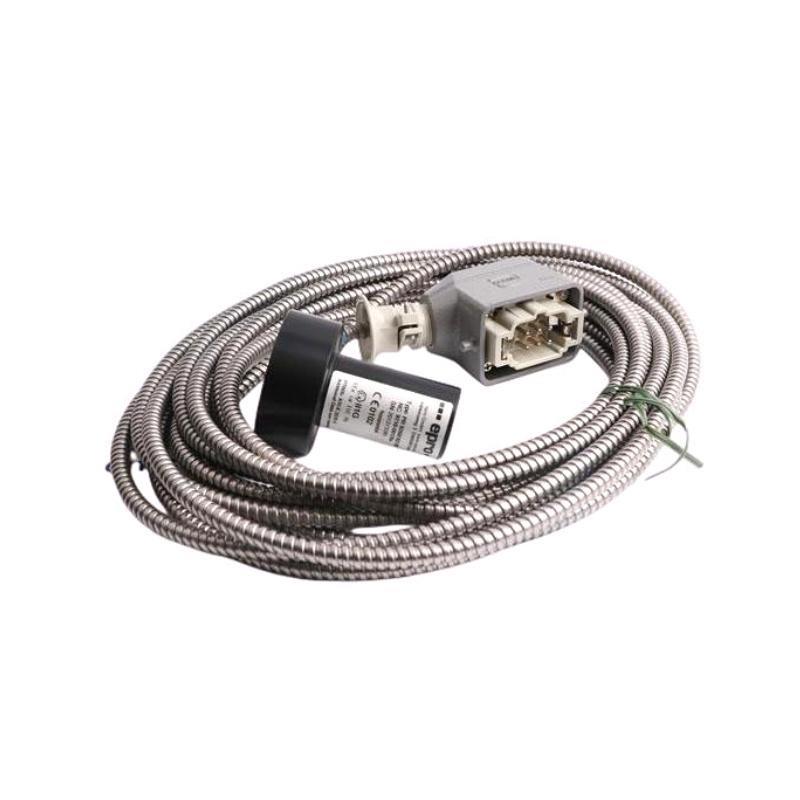

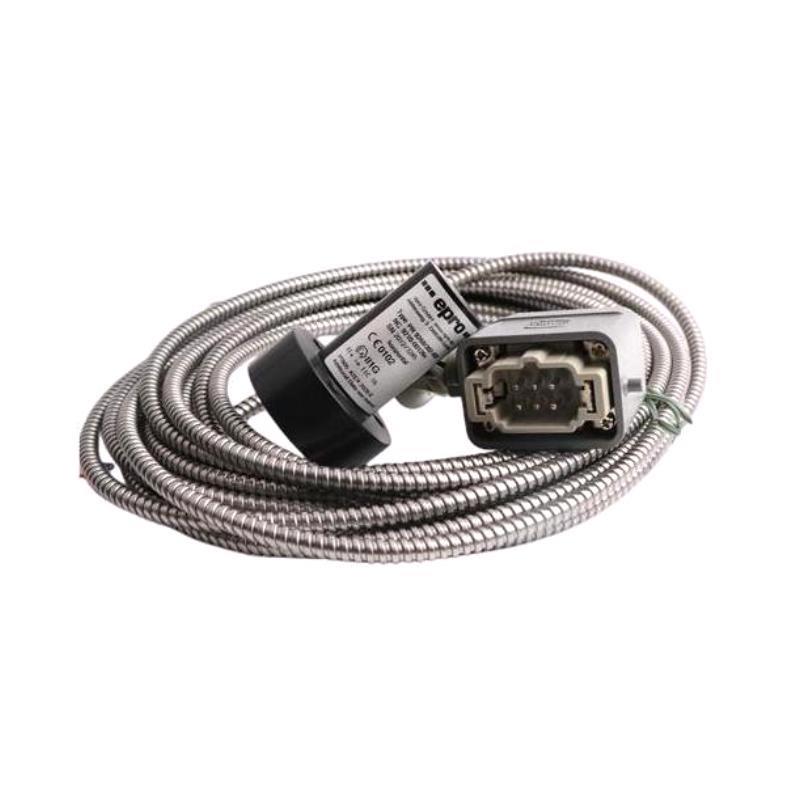

The Epro PR9268/602-000 is a robust and reliable electrodynamic velocity sensor designed specifically for vibration monitoring in industrial rotating machinery. This sensor is part / the trusted PR9268 series by Epro, a brand known for high-quality condition monitoring solutions tailored for demanding environments.
As a velocity transducer, the PR9268/602-000 converts mechanical vibrations directly into an electrical voltage signal, which is proportional to the velocity / the movement. The rugged design ensures long-term performance even under severe operating conditions such as those found in power generation, steel processing, pulp & paper, and petrochemical industries.
This sensor is suitable for both OEM installations and retr/it projects where high sensitivity and broad frequency response are essential. It integrates seamlessly with monitoring systems like the Epro MMS series or other industrial vibration measurement platforms.
製品仕様
| Parameter | 説明 |
|---|---|
| モデル | PR9268/602-000 |
| Sensor Type | Electrodynamic Velocity Sensor |
| Measuring Range | 0 to 50 mm/s RMS (typical) |
| Frequency Range | 10 to 1,000 Hz (±3 dB) |
| Sensitivity | 28.5 mV/mm/s ±5% (at 80 Hz, 22°C) |
| Output Signal | Analog Voltage (proportional to velocity) |
| Internal Damping | < 5% |
| Mounting | M8 or M10 stud mount |
| Operating Temperature Range | -35°C to +120°C |
| Shock Resistance | Up to 1000 g |
| Housing Material | Stainless Steel |
| Protection Class | IP67 (dust and water tight) |
| Connector Type | MIL-C-5015, 2-pin or integral cable |
| 重量 | 1.05 kg |
| Dimensions | 78 × 58 mm |
Product Applications
The PR9268/602-000 sensor is widely used in condition monitoring and predictive maintenance programs for rotating equipment. Common applications include:
-
Gas and Steam Turbines
-
Centrifugal Compressors
-
Pumps and Blowers
-
Motors and Generators
-
Industrial Fans
-
Rolling Mills and Conveyors
Its ability to detect low-frequency vibration makes it highly suitable for identifying issues like misalignment, imbalance, looseness, and bearing faults at an early stage, helping to prevent costly machinery failures and unplanned shutdowns.
Product Advantages
-
High Sensitivity and Accuracy
Offers excellent signal quality for precise vibration velocity measurements, even at low frequencies. -
Wide Frequency Response
Ensures effective detection / a broad range / mechanical faults. -
Rugged and Reliable Design
Stainless steel housing and IP67 protection allow for deployment in harsh industrial environments. -
Versatile Mounting Options
Compatible with both M8 and M10 threads for flexible integration into various machine configurations. -
Low Maintenance and Long Life
The non-electronic, passive design minimizes maintenance needs and improves MTBF (Mean Time Between Failures). -
Compatibility with Epro Monitoring Systems
Seamlessly integrates with Epro’s MMS6000 and MMS8000 systems as well as other third-party monitoring solutions.
よくある質問 (FAQ)
-
What is the primary function / the PR9268/602-000 sensor?
It measures vibration velocity to detect potential mechanical faults in rotating equipment. -
Is this sensor suitable for hazardous areas?
The PR9268/602-000 is available in ATEX-certified variants upon request for hazardous environments. -
Can I use this sensor in high-moisture or dusty areas?
Yes, it has an IP67 rating for water and dust ingress protection. -
What type / signal does this sensor produce?
It generates an analog voltage signal proportional to the vibration velocity. -
Is the sensor sensitive to installation direction?
Yes, it should be mounted perpendicularly to the vibration source for optimal performance. -
Does this sensor require power supply?
No external power is required; it is a passive sensor based on electrodynamic principles. -
Can it detect low-frequency vibrations?
Yes, with a frequency response starting from 10 Hz, it is well-suited for detecting low-frequency faults. -
How is it typically mounted?
Using M8 or M10 studs, either horizontally or vertically, depending on application needs. -
Is this sensor compatible with PLCs or DCS systems?
Yes, via intermediate signal conditioners or monitoring modules, it can feed into DCS/PLC systems. -
What are the calibration requirements?
While it is factory-calibrated, annual calibration checks are recommended for critical applications.
Related モデルs from the Same Series
| モデル | Sensitivity | Frequency Range | Mounting Type | Output Type |
|---|---|---|---|---|
| PR9268/600-000 | 28.5 mV/mm/s | 10 – 1,000 Hz | M10 Stud | Analog |
| PR9268/601-000 | 28.5 mV/mm/s | 10 – 1,000 Hz | M8 Stud | Analog |
| PR9268/603-000 | 100 mV/in/s | 12 – 1,000 Hz | M10 Stud | Analog |
| PR9268/604-000 | 10 mV/mm/s | 5 – 500 Hz | M8 Stud | Analog |
| PR9268/605-000 | 45 mV/mm/s | 15 – 900 Hz | Flange Mount | Analog |
| PR9268/606-000 | 28.5 mV/mm/s | 10 – 1,000 Hz | Magnetic Base | Analog |
Popular モデルs from the Same ブランド (Epro)
| モデル | Product Type | Application Area | Output Signal |
|---|---|---|---|
| PR6423/002-030 | Eddy Current Sensor | Shaft Vibration Monitoring | 4–20 mA / Voltage |
| CON021 | Sensor Connection Interface | PR6423 Signal 状態ing | Analog |
| MMS6312 | Monitoring Module | Vibration & Speed | Digital / Relay |
| MMS3120/022-100 | Signal 状態er Module | Vibration Monitoring | Digital / Analog |
| PR6424/010-000 | Proximity Probe System | Axial Position Monitoring | Voltage |
| PR9350/02 | Speed Sensor | Overspeed Detection | TTL / Frequency |
