Product Overview

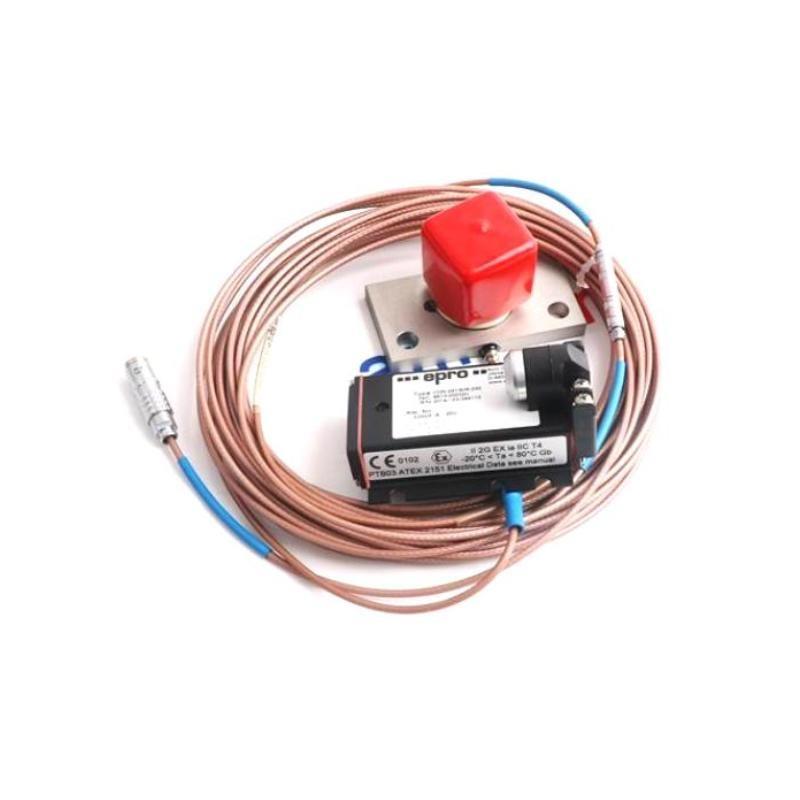

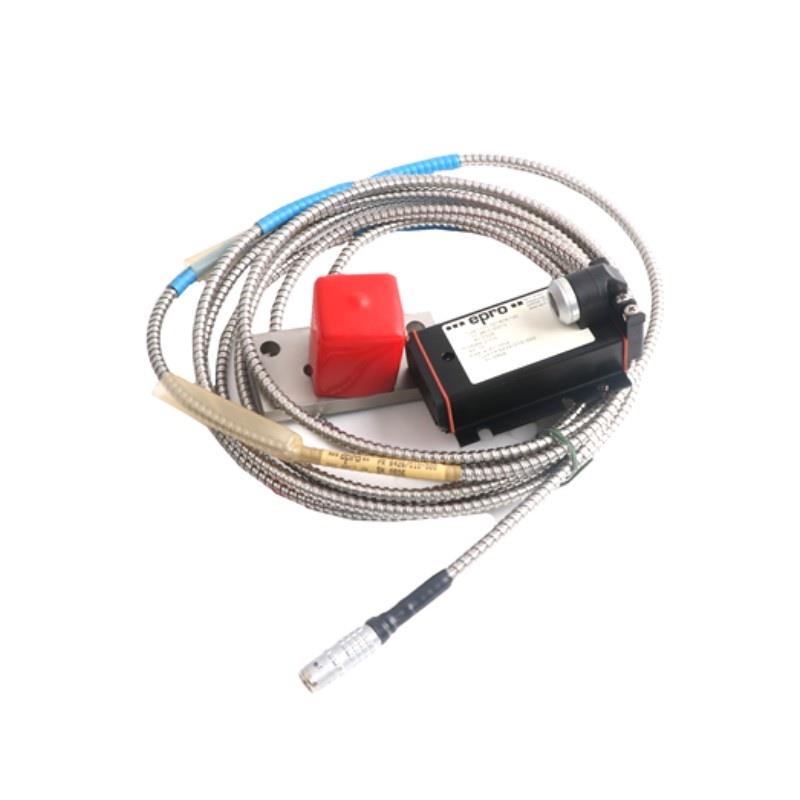

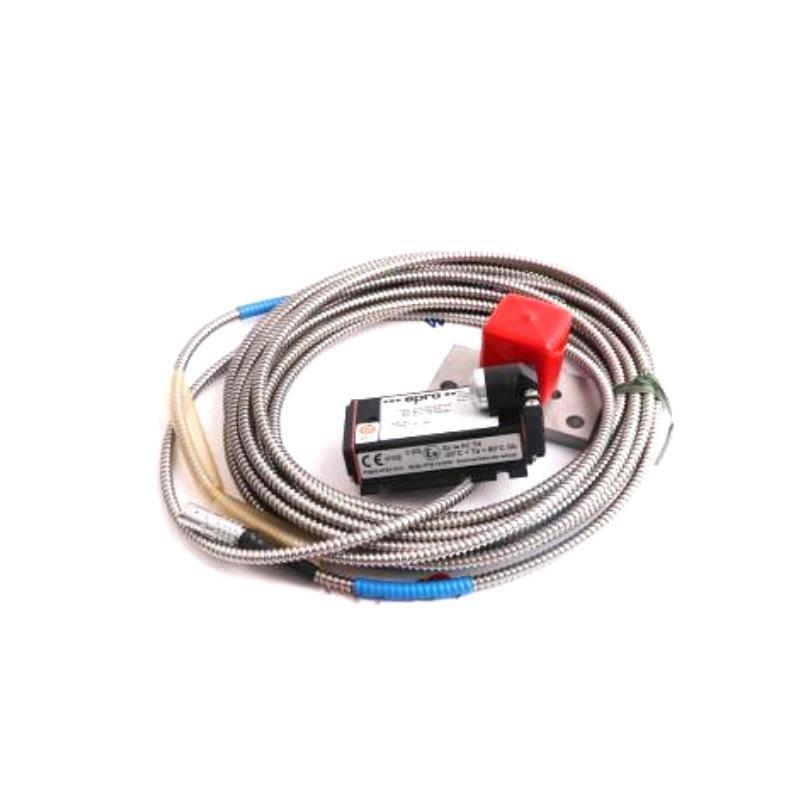

The Epro PR6426/010-110+CON021/916-160 32 mm Eddy-Current Sensor is a high-performance proximity transducer system designed for precise measurement / shaft vibration and position in large rotating machinery. Its robust 32 mm probe and integrated CON021/916-160 converter provide accurate, reliable signals for condition monitoring and protection. Ideal for turbines, compressors, generators, and other heavy-duty industrial equipment.
Key Features
-
32 mm eddy-current probe for large shaft monitoring
-
Complete sensor system with CON021/916-160 converter
-
High linearity and temperature stability
-
Rugged design for oil, dust, and industrial contaminants
Technical Specifications
| Item | Specification |
|---|---|
| メーカー | Epro (Emerson) |
| 型番 | PR6426/010-110+CON021/916-160 |
| Product Type | Eddy-Current Sensor System |
| Probe Type | PR6426 32 mm Proximity Probe |
| Converter Type | CON021/916-160 |
| Measurement Range | 0–4.0 mm (0–160 mils) |
| Sensitivity | 4 mV/μm (100 mV/mil) |
| Frequency Response | DC to 10 kHz |
| Power Supply | ±15 V DC |
| Output Signal | -2 V to -18 V (proportional to gap) |
| Operating Temperature | –35 °C to +180 °C |
| Storage Temperature | –40 °C to +200 °C |
| Humidity | 0–95% RH, non-condensing |
| Dimensions | Sensor head diameter 32mm |
| 重量 | 0.92 kg |
| Applications | Shaft vibration and position monitoring |
Industry Applications
-
Steam and gas turbines
-
Large compressors and pumps
-
Electric motors and generators
-
Gearboxes and rotating machinery
-
Oil, gas, and petrochemical industries
-
Power generation and condition monitoring systems
よくある質問 (FAQ)
Q1: What does the PR6426/010-110+CON021/916-160 system measure?
It measures shaft vibration and position using non-contact eddy-current sensing.
Q2: What is included in this model?
The system includes the PR6426/010-110 sensor and CON021/916-160 converter.
Q3: What is the probe diameter?
The probe diameter is 32 mm.
Q4: What type / output does the converter provide?
It provides a linear voltage output proportional to shaft vibration and position.
Q5: What is the operating temperature range?
It operates between –35 °C and +180 °C.
Q6: What is the measurement range?
The range is 0–4.0 mm (0–160 mils).
Q7: Is the system suitable for harsh environments?
Yes, it is oil, dust, and contaminant resistant.
Q8: What is the frequency response?
It supports DC to 10 kHz.
