製品紹介

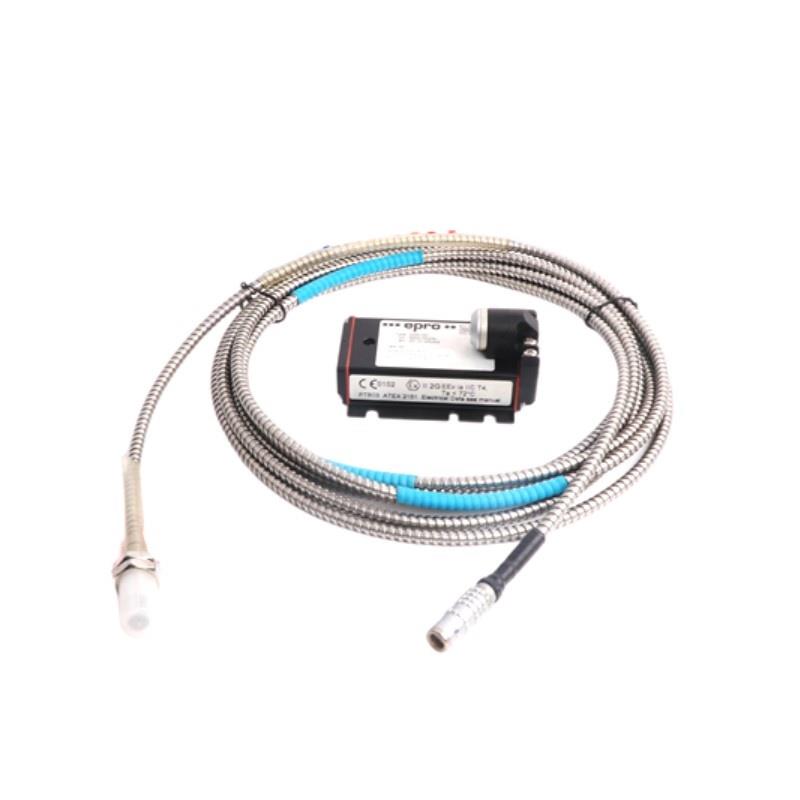

The Epro PR6424/107-100 16mm Eddy Current Sensor is a precision displacement and vibration measurement device designed for non-contact monitoring / industrial machinery and turbines. Utilizing eddy current technology, this sensor provides accurate, reliable, and fast response measurements, even in demanding industrial environments.
The sensor is suitable for real-time monitoring / shaft displacement, vibration, and alignment, allowing operators to detect early signs / mechanical issues such as imbalance, misalignment, or bearing wear. Its compact and robust design ensures simple integration into machinery, while maintaining high measurement stability and durability.
製品仕様
| Parameter | Specification |
|---|---|
| モデル Number | PR6424/107-100 |
| Device Type | Eddy Current Sensor |
| Sensing Principle | Eddy Current |
| Measurement Range | ±1 mm (depending on calibration) |
| Output Signal | Voltage or current output depending on interface |
| Sensitivity | High sensitivity for precise displacement measurement |
| Linearity | ≤ ±1% full scale |
| Frequency Response | DC to 10 kHz |
| Operating Temperature | -20°C to +120°C |
| Storage Temperature | -40°C to +125°C |
| Relative Humidity | 0–95%, non-condensing |
| Protection Class | IP65 |
| Material | Stainless steel housing |
| Mounting | Threaded or clamp mounting |
| Sensor Head Diameter | 16 mm |
| 重量 | 0.2 kg |
| Shock Resistance | 50 g, 11 ms |
| Vibration Resistance | 20 g, 10–2000 Hz |
Applications
The PR6424/107-100 Eddy Current Sensor is widely applied in industrial and safety-critical systems:
-
Turbines and Rotating Machinery – Measures shaft displacement and vibration in turbines, compressors, and generators.
-
Industrial Process Monitoring – Provides continuous monitoring / machinery in petrochemical, manufacturing, and power plants.
-
Hydropower Plants – Monitors rotor movement and alignment in hydro generators.
-
Aerospace and Defense – Tracks displacement and vibration in high-speed rotating components.
-
Research and Development – High-precision measurements for laboratory and experimental setups.
-
状態-Based Maintenance – サポートs predictive maintenance by providing accurate shaft movement and vibration data.
Advantages
The Epro PR6424/107-100 Sensor provides several operational and technical benefits:
-
High Accuracy – Delivers precise displacement and vibration measurements.
-
Non-お問い合わせ Sensing – Eliminates mechanical wear and minimizes interference with moving parts.
-
Fast Response – Captures high-frequency shaft and machinery vibrations.
-
Robust Construction – Resistant to vibration, shock, and harsh environmental conditions.
-
Compact Design – Facilitates installation in tight spaces without sacrificing performance.
-
Wide Operating Temperature – Reliable operation in high-temperature industrial environments.
-
IP65 Protection – Prevents ingress / dust and water for industrial reliability.
-
Flexible Mounting – Can be installed using threaded or clamp mechanisms for various machinery layouts.
FAQ
-
What sensing principle does the PR6424/107-100 use?
It operates on the eddy current principle, enabling non-contact measurement / shaft displacement and vibration. -
What is the typical measurement range / this sensor?
The standard range is ±1 mm, which can be calibrated according to application requirements. -
What is the frequency response / this sensor?
The sensor supports DC to 10 kHz, allowing detection / both slow displacement changes and high-frequency vibrations. -
Is the sensor suitable for high-temperature applications?
Yes, it operates reliably between -20°C and +120°C, making it suitable for industrial machinery and turbine environments. -
What type / output signals does the sensor provide?
It provides voltage or current outputs, compatible with standard industrial monitoring equipment. -
How precise is the PR6424/107-100 sensor?
It has a linearity / ≤ ±1% full scale, ensuring accurate measurements for high-precision applications. -
Can it withstand vibration and shock?
Yes, it is rated for 20 g vibration (10–2000 Hz) and 50 g shock (11 ms), making it robust for harsh industrial conditions. -
What mounting options are available?
The sensor can be installed using threaded or clamp mounting, depending on the machine setup. -
Is the sensor protected against dust and moisture?
Yes, it features IP65 protection, allowing reliable operation in dusty or wet industrial environments. -
Can this sensor be used for predictive maintenance?
Yes, it provides continuous displacement and vibration monitoring, supporting condition-based and predictive maintenance strategies.
Related or Same-Series モデルs
| モデル Number | 説明 |
|---|---|
| PR6424/107-101 | 16mm Eddy Current Sensor with extended range |
| PR6424/107-102 | 16mm Sensor with enhanced frequency response |
| PR6424/107-103 | 16mm High-temperature Eddy Current Sensor |
| PR6424/107-104 | 16mm Sensor with reinforced housing |
| PR6424/107-105 | 16mm Sensor optimized for turbines |
| PR6424/107-106 | 16mm Sensor with analog voltage output |
