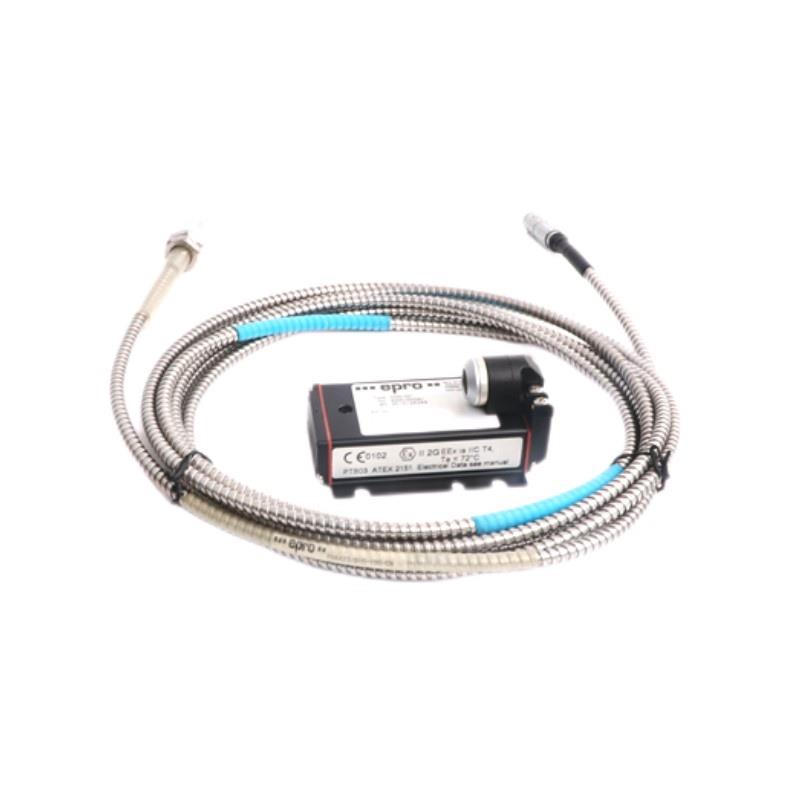

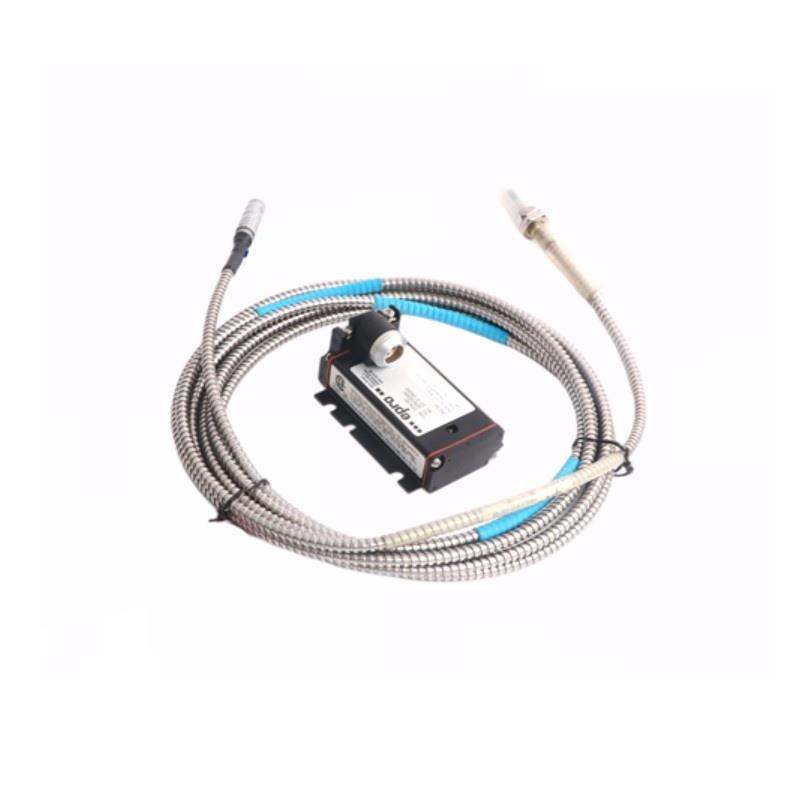

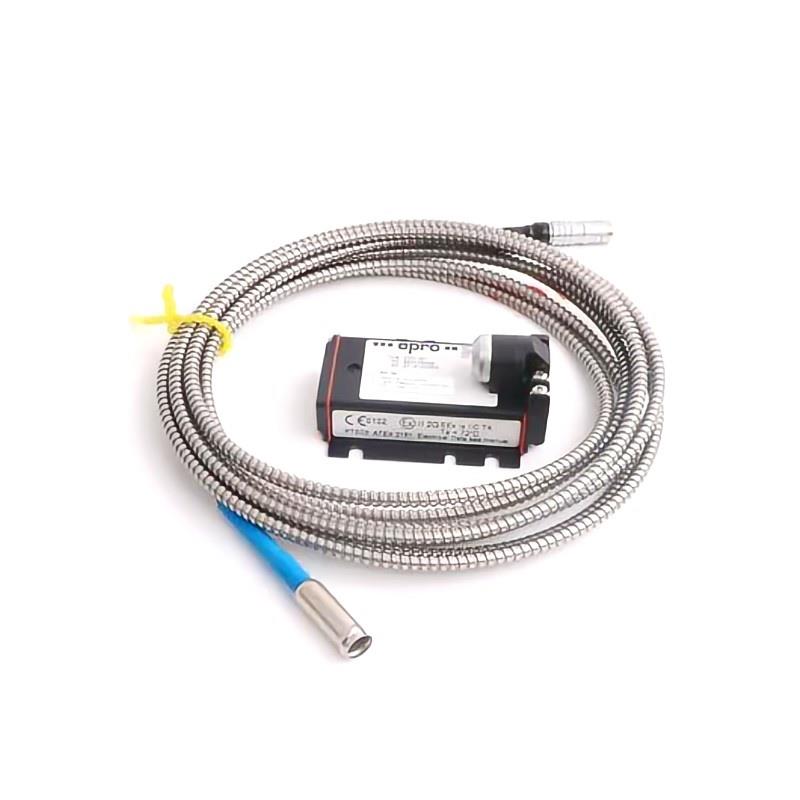

The Epro PR6424/101-030 16mm Eddy Current Sensor is a high-precision, non-contact displacement and proximity sensor designed for industrial machinery monitoring. Employing eddy current technology, it accurately measures shaft vibration, position, and proximity without physical contact, ensuring long-term reliability and minimal wear. The 16mm sensor head diameter provides a compact and robust solution suitable for integration into turbines, compressors, generators, pumps, and other critical rotating equipment. With stable signal output and high-frequency response, the PR6424/101-030 is ideal for predictive maintenance, real-time vibration analysis, and process optimization in demanding industrial environments.
製品仕様
| Parameter | Details |
|---|---|
| モデル Number | PR6424/101-030 |
| Sensor Type | Eddy Current Proximity / Displacement Sensor |
| Sensor Head Diameter | 16 mm |
| 重量 | 0.2 kg |
| Measurement Range | ±1 mm (standard, customizable) |
| Output Signal | AC or DC voltage proportional to displacement |
| Linearity | ±1% / full scale |
| Temperature Range | –40 °C to +125 °C |
| Frequency Response | 0–10 kHz |
| Cable Type | Shielded coaxial cable (custom lengths available) |
| Material | Stainless steel housing, corrosion-resistant |
| Mounting Type | Threaded or flanged mount options |
| Connector Type | Industrial or MIL-spec connector |
Applications
-
Turbines – Monitors rotor displacement and vibration for operational safety.
-
Compressors – Detects shaft misalignment and imbalance for early maintenance.
-
Generators – Provides continuous shaft position and vibration feedback.
-
Pumps – Tracks high-speed shaft displacement and vibration for anomaly detection.
-
Industrial Motors – Ensures precise rotor monitoring to maintain performance.
-
Rotating Machinery – Integrated into vibration monitoring systems for machinery protection.
Advantages
-
Non-お問い合わせ Measurement – Eliminates mechanical wear, extending sensor life.
-
High Accuracy – ±1% full-scale linearity ensures precise and repeatable data.
-
Robust Construction – Stainless steel housing for corrosion and industrial resistance.
-
Compact Form Factor – 16mm diameter sensor head allows installation in confined spaces.
-
Wide Operating Temperature – Reliable performance from –40 °C to +125 °C.
-
Flexible Mounting Options – Threaded or flanged mounting for versatile installation.
-
High-Frequency Response – Up to 10 kHz, suitable for high-speed machinery.
-
Stable Output – AC or DC signal compatible with monitoring systems and DCS platforms.
FAQ
-
What type / signal does the PR6424/101-030 output?
The sensor provides an AC or DC voltage proportional to shaft displacement, compatible with data acquisition systems, DCS, and vibration monitoring equipment. -
What is the measurement range / this sensor?
The standard range is ±1 mm, and it can be customized according to specific industrial requirements. -
Can the sensor operate in high-temperature environments?
Yes, it operates reliably between –40 °C and +125 °C. -
How is the sensor mounted on machinery?
It supports both threaded and flanged mounting options, allowing flexible integration with different equipment types. -
Is it suitable for monitoring high-speed rotors?
Yes, the sensor has a frequency response up to 10 kHz, allowing accurate measurement / dynamic rotor movements. -
What materials are used for the sensor housing?
The housing is made / stainless steel with corrosion resistance suitable for harsh industrial conditions. -
Does it require a specific type / cable?
A shielded coaxial cable is recommended to reduce electrical noise, with custom lengths available. -
Can it detect shaft misalignment or imbalance?
Yes, vibration and displacement signals can indicate early signs / misalignment or imbalance. -
What is the linearity accuracy / the sensor?
The sensor provides ±1% full-scale linearity, ensuring high-precision measurements. -
Can it integrate with existing industrial monitoring systems?
Yes, it is compatible with standard vibration monitoring systems, industrial DCS, and signal processing equipment.
Related モデルs (Same Series)
| モデル Number | Key Feature |
|---|---|
| PR6424/101-101 | Standard 16mm eddy current sensor for general applications |
| PR6424/101-021 | High-frequency response version |
| PR6424/101-022 | Reinforced housing version for extreme environments |
| PR6424/101-023 | Sensor with integrated connector for easier installation |
| PR6424/101-024 | Adjustable range sensor for custom machinery |
| PR6424/101-025 | High-precision linearity sensor for critical machinery monitoring |
Popular Epro モデルs
| モデル Number | Primary Application |
|---|---|
| PR6423/005-010 | Eddy current sensor for turbine and generator monitoring |
| PR6424/014-040 | 14mm displacement sensor for high-speed machinery |
| PR6424/01CS | Compact sensor for limited-space installations |
| PR6425/022-020 | High-resolution proximity sensor for precision equipment |
| PR6425/022-100 | Industrial eddy current sensor with extended temperature range |
| PR6426/030-050 | Sensor for vibration and position monitoring in rotating machinery |
