Product Overview

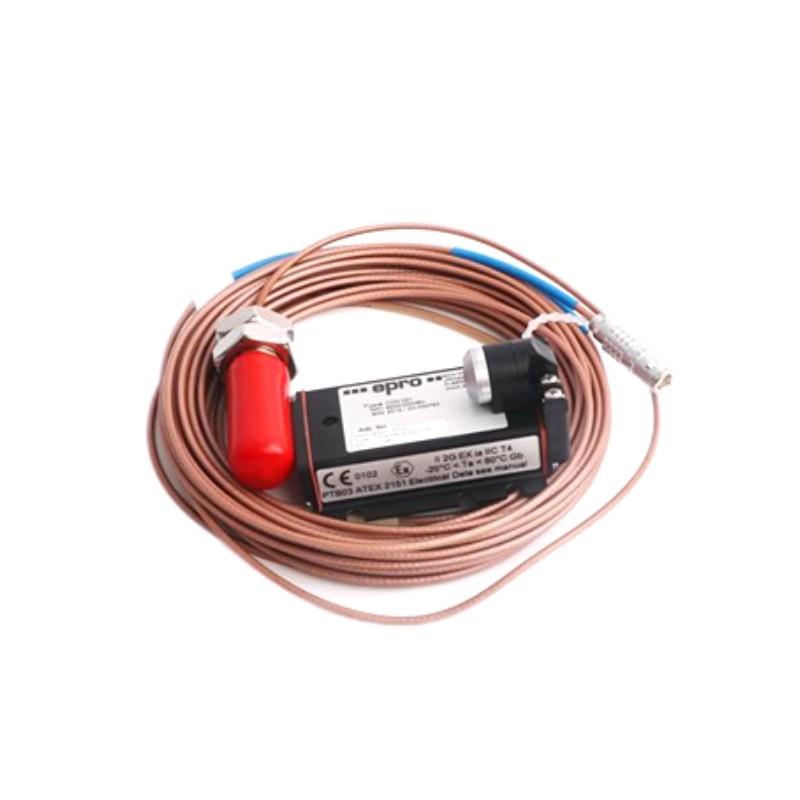

The Epro PR6424/01 is a high-precision 16mm eddy current sensor designed for non-contact measurement / displacement, vibration, and position in industrial applications. This sensor utilizes the principle / eddy current measurement, making it ideal for detecting changes in the proximity / a conductive target. It /fers excellent accuracy, reliability, and performance, making it an ideal solution for applications in fields such as machine condition monitoring, industrial automation, and precision measurement.
The Epro PR6424/01 is known for its compact design, featuring a 16mm diameter sensor head that allows for easy integration into space-constrained environments. With its high-frequency response and robust construction, it is capable / providing real-time, precise measurements even in harsh industrial conditions.
Key Features
-
High-Precision Measurement: Capable / detecting small displacements with high accuracy, ensuring reliable performance in critical applications.
-
Non-お問い合わせ Technology: Uses eddy current sensing, which means there is no physical contact with the measured object, reducing wear and tear and enhancing longevity.
-
Compact Design: With a sensor head diameter / just 16mm, the module fits into tight spaces, making it ideal for applications where space is limited.
-
Robust Construction: Built to withstand harsh industrial environments, with resistance to vibrations, temperature variations, and mechanical stress.
-
Wide Application Range: Suitable for both high-speed and high-precision measurement tasks in industrial automation and machine monitoring.
-
High-Frequency Response: Ensures fast and accurate detection / changes in the target’s position or displacement.
Technical Specifications
| Parameter | Specification |
|---|---|
| モデル | PR6424/01 |
| Type | Eddy Current Sensor |
| Sensor Head Diameter | 16mm |
| 重量 | 0.2 kg |
| Measurement Principle | Eddy Current |
| Measurement Range | Up to 20mm (depending on target material) |
| Output Type | Analog output (standard 4-20mA or voltage output) |
| Operating Temperature Range | -40°C to +85°C |
| Frequency Response | High frequency, fast measurement |
| Material Compatibility | Works with conductive materials (metals like steel, aluminum, etc.) |
| Resolution | High resolution for precise measurements |
| Protection Rating | IP67 for use in harsh environments |
| Power Supply | Typically 24V DC |
Applications
The Epro PR6424/01 16mm eddy current sensor is widely used in a variety / industrial applications requiring high-precision, non-contact measurements:
-
Machine 状態 Monitoring: Used to monitor the vibration, displacement, and position / rotating or moving machinery components to detect wear, misalignment, and other faults.
-
Automation Systems: Essential in systems where accurate position and displacement data are needed to control automation processes.
-
Vibration Measurement: Ideal for measuring vibrations in rotating machinery, helping to prevent unexpected failures and enabling predictive maintenance.
-
Position Detection: Used in precision measurement applications where the position / components needs to be monitored continuously.
-
Control Systems: The sensor can be integrated into control systems for feedback on position or displacement for process control in industrial settings.
-
Testing and Calibration: Provides precise and reliable data for calibrating machines, testing components, and ensuring quality control in manufacturing processes.
Advantages
-
Non-お問い合わせ Measurement: Eliminates the need for physical contact with the target, reducing wear and tear on the sensor and the measured object, while ensuring greater durability and longer lifespan.
-
High Sensitivity and Resolution: Offers fine measurement resolution, enabling accurate detection / small movements or changes in position, ideal for precision tasks.
-
Compact and Space-Saving: Its small 16mm diameter sensor head makes it easy to integrate into tight spaces where other measurement sensors may not fit.
-
Versatile Application Range: Whether measuring vibration, displacement, or position, the sensor /fers flexibility across various applications in different industries.
-
Rugged Design: With an IP67 rating, the sensor is designed to operate in harsh industrial environments, withstanding dust, moisture, and extreme conditions.
-
Fast Response Time: The high-frequency response allows for rapid measurement updates, making it suitable for dynamic and high-speed applications.
FAQ
-
What types / materials can the PR6424/01 sensor measure?
Answer: The sensor is designed to measure displacement on conductive materials, such as metals like steel, aluminum, and other alloys. -
How does the sensor measure displacement without contact?
Answer: The PR6424/01 uses the eddy current principle, where a magnetic field induces currents in the target, and changes in the target’s position alter the field, which the sensor detects. -
What is the maximum measurement range / the PR6424/01?
Answer: The sensor can measure up to 20mm, depending on the material / the target and the configuration / the sensor. -
What output types does the PR6424/01 provide?
Answer: The sensor provides analog outputs, typically 4-20mA or voltage output, which can be directly integrated into control systems. -
Can the PR6424/01 sensor be used in harsh industrial environments?
Answer: Yes, the sensor is rated IP67, meaning it is resistant to dust, moisture, and can operate in challenging industrial conditions. -
What is the frequency response / the PR6424/01?
Answer: The sensor has a high-frequency response, allowing it to detect fast changes in displacement and providing real-time measurement updates. -
What is the operating temperature range / the PR6424/01?
Answer: The sensor operates within a temperature range / -40°C to +85°C, making it suitable for a wide range / industrial applications. -
What are the primary applications for the PR6424/01 sensor?
Answer: It is commonly used for machine condition monitoring, vibration measurement, position detection, and automation systems. -
Can the PR6424/01 be integrated into existing control systems?
Answer: Yes, the sensor’s analog output can be integrated into existing control systems for real-time feedback and monitoring. -
What advantages does the non-contact measurement provide?
Answer: Non-contact measurement reduces wear on both the sensor and the target, extending the sensor’s lifespan and improving overall system reliability.
