製品紹介

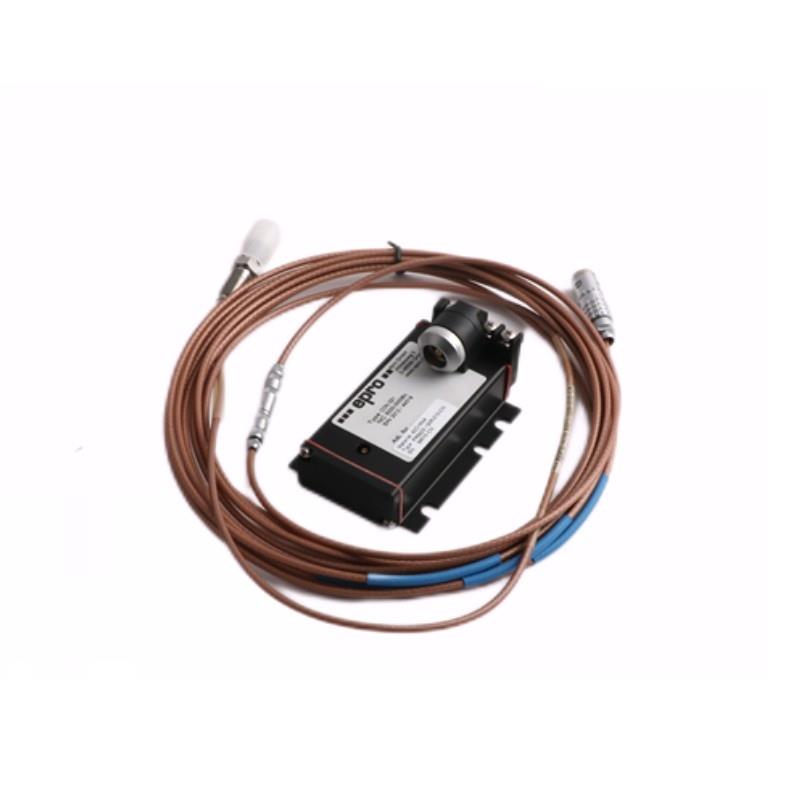

The Epro PR6423/10R-131 is a non-contact eddy current displacement sensor designed to provide accurate and reliable measurements / shaft vibration and axial displacement in critical rotating machinery. Belonging to the highly respected PR6423 series from Epro (now part / Emerson), this model is frequently used in turbine generators, compressors, pumps, and other dynamic machinery where monitoring shaft behavior is essential for predictive maintenance and protection systems.
The sensor operates based on the eddy current principle, which allows it to detect changes in the distance between the sensor probe and the rotating target (typically the shaft) without physical contact. This ensures longevity, accuracy, and minimal interference in high-speed environments. With an 8mm tip diameter and a 10R configuration, the PR6423/10R-131 is optimized for industrial-grade use and can be paired with CON-series extension cables and CON0xx driver modules to form a complete displacement measurement system.
製品仕様
| Parameter | Specification |
| モデル Number | PR6423/10R-131 |
| Sensor Type | Eddy Current Displacement Sensor |
| Sensing Principle | Non-contact eddy current |
| Tip Diameter | 8 mm |
| Sensing Range | Typically 0.25 mm to 2.0 mm (depending on setup) |
| Linear Range | ±1 mm (typical with matching driver and extension) |
| Nominal Sensitivity | 7.87 mV/µm (depends on driver and calibration) |
| Temperature Range (Operation) | -35°C to +180°C (standard version) |
| Material | Stainless steel housing |
| Electrical Connector | Integrated with thread connection (matched to CON cable) |
| Thread Type | M14x1 or custom per order |
| Cable Length | Typically configured with 5m, 7m, or 9m extension cable |
| Vibration Tolerance | Up to 20 g (dependent on mounting and installation) |
| Environmental Protection | IP65 (with correct mounting and connection) |
| Sensor Head Diameter | 8 mm |
| 重量 | 0.1 kg |
| Compatible Drivers | CON011, CON021, CON031 series |
| Approvals | CE, ATEX (depending on version) |
Product Applications
The PR6423/10R-131 is extensively used across industries that rely on high-speed rotating equipment. Its typical application areas include:
-
Power Generation: Steam and gas turbines for shaft vibration and thrust monitoring.
-
Oil & Gas: Compressors and turbo expanders where machinery protection is critical.
-
Petrochemical Industry: Monitoring pumps and large rotating agitators in explosive zones.
-
Pulp & Paper: High-speed rolls and dryer drums where shaft alignment and vibration must be closely monitored.
-
Industrial Manufacturing: CNC spindles and other precision rotary machinery.
-
Water Utilities: Pumps and turbines in hydropower stations.
This sensor is typically integrated into a comprehensive condition monitoring system to enable predictive maintenance and early fault detection, reducing unplanned downtimes and repair costs.
Product Advantages
-
Non-お問い合わせ Design: Ensures zero wear and extended service life in harsh environments.
-
High Temperature Operation: Suitable for elevated process temperatures up to 180°C.
-
優良 Linearity and Sensitivity: Ensures accurate shaft vibration and position measurements.
-
Flexible Installation Options: Comes with various thread types and compatible extension cables.
-
Proven Industrial Reliability: Trusted by OEMs and industries worldwide for over two decades.
-
Scalable and Modular: Can be easily expanded with other CON series components.
-
Explosion-Pro/ Variants 対応可能: ATEX-rated versions for hazardous area usage.
-
Compact Footprint: Ideal for tight installation spaces or retr/itting.
よくある質問 (FAQ)
-
What does the “10R-131” in the part number PR6423/10R-131 mean?
-
The “10R” indicates the sensor tip type and design variation, while “131” refers to specific configuration or cable connection interface.
-
-
Is the PR6423/10R-131 compatible with all CON series drivers?
-
It is compatible with most CON drivers like CON011, CON021, and CON031, provided they match the calibration and extension length.
-
-
Can this sensor operate at high temperatures?
-
Yes, it can operate reliably at temperatures up to 180°C. Special high-temp versions are also available.
-
-
Does this sensor support hazardous area installations?
-
Explosion-pro/ (ATEX) variants are available for use in hazardous environments.
-
-
What is the difference between the PR6423/10R-131 and other PR6423 models?
-
Differences lie in thread type, cable connection type, and tip configuration to suit various mechanical installations.
-
-
How is this sensor calibrated?
-
It is typically calibrated with the driver module during system setup using a micrometer or gap simulator tool.
-
-
Is the PR6423/10R-131 suitable for long-distance cable installations?
-
Yes, when used with matched extension cables and a compatible driver module.
-
-
What maintenance does this sensor require?
-
Minimal; periodic inspection and cleaning are recommended, especially in dusty or oily environments.
-
-
Can this sensor detect both vibration and axial displacement?
-
Yes, depending on mounting direction: radial for vibration, axial for displacement.
-
-
How can I ensure optimal performance / this sensor in my application?
-
Ensure proper alignment, mounting torque, and use only recommended accessories (extension cables and drivers).
Related モデルs from the Same Series
| モデル | 説明 | Tip Diameter | Temperature Rating | Thread Type |
|---|---|---|---|---|
| PR6423/002-030 | Standard 5mm tip sensor with 2mm range | 5 mm | -35°C to +180°C | M10x1 |
| PR6423/005-010 | 8mm tip with axial mounting configuration | 8 mm | -35°C to +180°C | M14x1 |
| PR6423/003-010 | 5mm tip with extended linear range | 5 mm | -35°C to +180°C | UNF 3/8″ |
| PR6423/004-010 | High-temperature 8mm tip version | 8 mm | Up to +220°C | M14x1 |
| PR6423/002-000 | Base 5mm tip version, compact housing | 5 mm | -35°C to +180°C | M10x1 |
| PR6423/001-010-CN | China-certified version with standard specs | 5 mm | -35°C to +180°C | M10x1 |
Popular モデルs from the Same ブランド (Epro / Emerson)
| モデル | 説明 | カテゴリー | Compatibility |
|---|---|---|---|
| MMS3120/022-100 | 2-channel vibration monitor system | Monitoring System | PR6423/PR6424 Sensors |
| MMS3125/022-020 | 4-channel monitoring module | Monitoring System | PR6423, PR9268 Series |
| CON021 | Signal driver for PR6423 sensors | Signal Converter | Compatible with PR6423 |
| CON011 | Signal conditioner for PR6423/PR6424 | Signal Driver | All PR6423/PR6424 series |
| PR9268/201-100 | Velocity sensor for casing vibration | Vibration Sensor | Standalone or with CON 台s |
| PR6424/014-040 | Eddy current sensor with different thread and range config | Eddy Current Sensor | Alternate to PR6423 |
