製品紹介

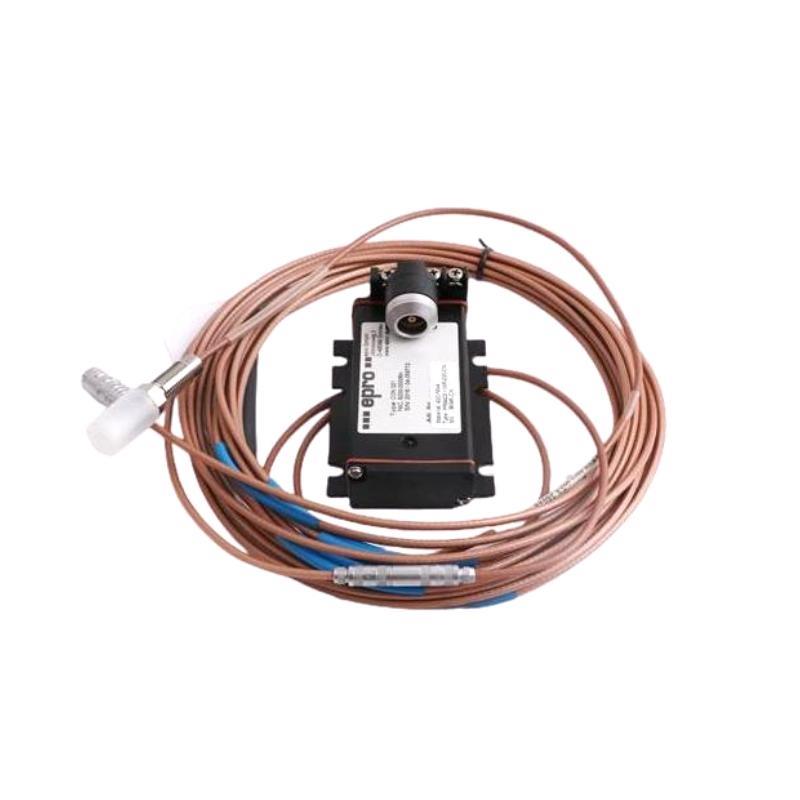

The Epro PR6423/00R-101+CON031 is an 8mm Eddy Current Sensor engineered for precision displacement measurement in industrial environments. This sensor employs eddy current technology to measure the distance between the sensor face and conductive metal targets without physical contact, ensuring durability and reliability.
Designed with a compact sensor head and equipped with the CON031 connector system, the PR6423/00R-101+CON031 is ideal for applications where space constraints exist but high accuracy and fast response times are necessary. It is manufactured to withstand harsh industrial conditions, /fering stable performance even in the presence / dust, moisture, and vibrations.
製品仕様
| Parameter | Specification |
|---|---|
| モデル | PR6423/00R-101+CON031 |
| Sensor Type | Eddy Current Displacement Sensor |
| Sensor Head Diameter | 8 mm |
| Output Signal | Analog voltage or current |
| Frequency Range | High frequency |
| Linearity | ±1% / full scale |
| Target Material | Conductive metals (ferrous & non-ferrous) |
| Operating Temperature Range | -25°C to +85°C |
| Protection Rating | IP67 (dust and water resistant) |
| 重量 | 0.22 kg |
| Connector Type | CON031 |
| Power Supply | 10 to 30 V DC |
| Response Time | ≤1 ms |
| Mounting | Threaded mounting standard |
Product Applications
The PR6423/00R-101+CON031 finds use in a variety / demanding fields, including:
-
Rotating machinery monitoring: Tracks shaft displacement and vibrations in pumps, turbines, and motors.
-
Machine tool control: Provides precise feedback for position and displacement in machining centers.
-
Automotive testing: Measures dynamic component movements during engine and drivetrain testing.
-
Industrial automation: Detects displacement and vibration to ensure proper operation / robotic and conveyor systems.
-
Structural health monitoring: Monitors vibrations and displacement in bridges and large-scale industrial equipment.
-
Quality assurance: Checks alignment and position / metal components in manufacturing processes.
Product Advantages
-
Compact and robust design: The sensor’s small form factor and durable IP67-rated enclosure allow deployment in harsh environments.
-
Non-contact measurement: Eliminates mechanical wear and tear, ensuring long-term reliability.
-
High precision and stability: Eddy current technology provides stable, noise-resistant signals.
-
Fast response time: Less than 1 millisecond response suitable for real-time monitoring.
-
Wide temperature range: Operates reliably from -25°C up to +85°C.
-
Versatile mounting options: Threaded design for easy integration in existing equipment.
-
Connector convenience: CON031 connector allows secure and straightforward electrical connections.
-
Broad target compatibility: Suitable for a wide variety / conductive metal targets without recalibration.
よくある質問 (FAQ)
-
What is the standard sensing distance for this sensor?
The PR6423/00R-101+CON031 is designed for an 8 mm sensing distance. -
What kind / metals can it detect?
It works with both ferrous and non-ferrous conductive metals. -
What protection rating does this sensor have?
It carries an IP67 rating, making it dust-tight and resistant to water ingress. -
What type / output signal does this sensor provide?
It /fers an analog voltage or current output depending on system configuration. -
Is this sensor suitable for high-speed applications?
Yes, it has a fast response time / 1 millisecond or less. -
What power supply voltage is required?
The sensor operates on a DC power supply ranging from 10 to 30 volts. -
How is the sensor mounted?
It features a threaded mounting mechanism for secure attachment. -
Can the sensor be used in extreme temperatures?
Yes, it works reliably between -25°C and +85°C. -
What is the advantage / the CON031 connector?
The CON031 connector ensures a secure and easy-to-install electrical connection. -
Does the sensor require frequent maintenance?
Due to its non-contact nature, maintenance requirements are minimal.
Recommended Related モデルs
| モデル | Sensing Distance | Dimensions (mm) | 重量 (g) | Notes |
|---|---|---|---|---|
| PR6423/00R-102+CON031 | 12 mm | Ø20 x 100 | 250 | Extended range version |
| PR6423/010-010+CON021 | 8 mm | Ø20 x 100 | 250 | Alternative connector type |
| PR6423/00R-101+CON021 | 8 mm | Ø20 x 95 | 240 | Different connector option |
| PR6423/015-100+CON031 | 15 mm | Ø20 x 110 | 270 | Mid-range sensing distance |
| PR6423/00R-080+CON031 | 8 mm | Ø20 x 80 | 230 | Compact and short version |
| PR6423/00R-140+CON031 | 8 mm | Ø20 x 140 | 290 | Longer sensor head |
Popular Epro モデルs from the Same ブランド
| モデル | Sensor Type | Sensing Distance | Dimensions (mm) | 重量 (g) | Application Focus |
|---|---|---|---|---|---|
| PR6423/010-010+CON021 | Eddy Current | 8 mm | Ø20 x 100 | 250 | Precision displacement |
| PR6424/010-140 | Eddy Current | 10 mm | Ø25 x 140 | 310 | Vibration and displacement |
| MMS3120/022-100 | Magnetic Proximity | 10 mm | 20 x 50 x 30 | 120 | Position sensing |
| PR6426/010-140+CON021 | Eddy Current | 32 mm | Ø32 x 140 | 350 | Shaft displacement |
| MMS3125/022-020 | Inductive Proximity | 20 mm | 25 x 60 x 40 | 150 | Automation sensors |
| MMS3120/024-080 | Magnetic Proximity | 24 mm | 32 x 80 x 30 | 200 | Industrial automation |
