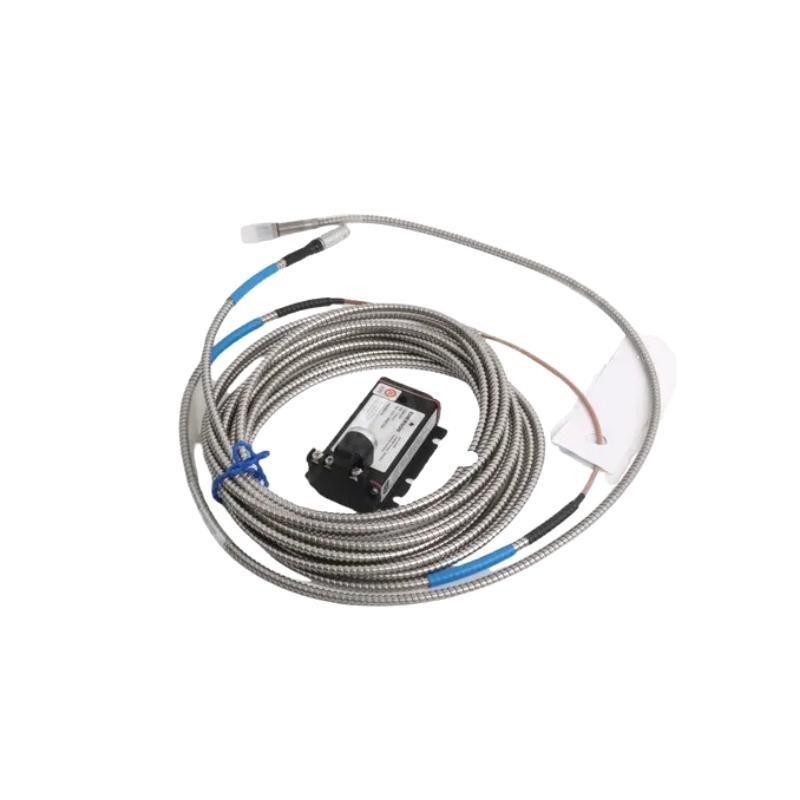

The Epro PR6423/004-000 is a high-performance non-contact eddy current displacement sensor, engineered specifically for critical machinery monitoring in industrial environments. Designed and manufactured by Epro (now under Emerson Process Management), this sensor forms part / a modular system intended for real-time monitoring / shaft displacement, vibration, and positioning / rotating equipment.
Featuring an 8mm probe diameter, the PR6423/004-000 /fers excellent linearity, wide frequency response, and durability in harsh operating conditions. When used in conjunction with Epro’s CON0xx converters (such as CON021 or CON041), the sensor provides a complete measurement chain capable / withstanding high temperatures, contamination, and electromagnetic interference.
Technical Specifications
| Parameter | Specification |
|---|---|
| モデル Number | PR6423/004-000 |
| Sensor Type | Eddy Current Displacement Probe |
| Measuring Principle | Non-contact electromagnetic induction (Eddy Current) |
| Measuring Range | 0 – 2.0 mm (Nominal) |
| Linear Range | ±1.0 mm |
| Sensor Head Diameter | 8 mm |
| Mounting Thread | M10 x 1 (standard); other threads available on request |
| Cable Length | Supplied separately; typically used with 5 m or 10 m cable |
| Frequency Response | DC to 10 kHz |
| Sensitivity | Approx. 7.87 mV/µm (±5%) |
| Temperature Range (Probe) | -35°C to +180°C |
| Environmental Rating | IP65 |
| Target Material | Ferromagnetic metals (e.g., AISI 4140, 4340) |
| Compliance Certifications | CE, ATEX compliant versions available |
| 重量 | 0.1 kg |
| Installation | Axial or radial depending on vibration vector |
Product Applications
The PR6423/004-000 is built for demanding applications in critical rotating equipment. It is a preferred choice for:
-
Steam and Gas Turbines – Shaft displacement, vibration, and thermal expansion monitoring.
-
Centrifugal Compressors – Radial and axial position tracking for high-speed rotors.
-
Pumps and Motors – Real-time diagnostics to detect imbalance, misalignment, and bearing wear.
-
Gearboxes and Industrial Drives – Early fault detection in mechanical power transmission systems.
-
OEM Machinery – Integrated into machinery by equipment manufacturers for condition monitoring.
Its robust construction and temperature tolerance make it ideal for installation in hazardous, high-vibration, and oil-contaminated environments commonly found in petrochemical, power generation, and heavy manufacturing sectors.
Product Advantages
-
High-Temperature Resilience: Operates up to +180°C without signal degradation.
-
優良 Linearity and Sensitivity: Ensures precise, stable output across the full measuring range.
-
Non-お問い合わせ Design: Minimizes mechanical wear, extending service life and reducing maintenance needs.
-
Modular Compatibility: Works with various Epro converter models (e.g., CON021, CON041).
-
Rugged Design: IP65-rated, making it suitable for dusty, wet, or contaminated environments.
-
Customizable: 対応可能 with optional cable lengths, thread types, and certifications.
-
CE and ATEX Compliance: Safe for use in industrial and potentially explosive zones.
よくある質問 (FAQ)
-
What is the measuring principle used in the PR6423/004-000?
It utilizes the eddy current principle to detect non-contact displacement in conductive materials. -
Can the PR6423/004-000 be used in high-temperature environments?
Yes, the probe is designed to function reliably in environments up to +180°C. -
Is the probe compatible with all Epro converters?
It is compatible with most, including CON021 and CON041, depending on signal conditioning requirements. -
What is the standard thread size for mounting this probe?
It comes with an M10x1 thread; other thread sizes can be requested. -
Does the sensor require recalibration in the field?
No, factory calibration is provided and field recalibration is generally unnecessary unless conditions change. -
What is the IP rating / the sensor?
The probe is rated IP65, /fering solid protection against dust and water ingress. -
How long is the probe cable?
The cable is sold separately, usually in 5 m or 10 m lengths. -
What are the main differences between the PR6423/004-000 and PR6423/002-030?
While both are 8mm probes, the PR6423/004-000 is optimized for higher accuracy and cleaner signal output in lower-noise applications. -
Can this probe be installed horizontally and vertically?
Yes, orientation depends on the axis / the vibration or displacement you wish to monitor. -
What materials are recommended as targets for measurement?
Best performance is achieved with ferromagnetic metals such as AISI 4140 and 4340.
Related モデルs from the Same Series (Epro PR6423)
| モデル Number | 説明 | Probe Diameter | Cable Length | Use Case |
|---|---|---|---|---|
| PR6423/000-000 | Standard eddy current probe | 8 mm | Configurable | General purpose |
| PR6423/002-030 | Probe with high-temp CON021 converter | 8 mm | 3 m | Turbine shaft monitoring |
| PR6423/003-010 | Extended range version | 8 mm | 10 m | Wide displacement range monitoring |
| PR6423/005-010 | ATEX-certified probe with 10m cable | 8 mm | 10 m | Explosive environments |
| PR6423/012-100 | Compact-length sensor | 8 mm | 1 m | Tight space installations |
| PR6423/011-010 | Standard sensor matched with CON021 | 8 mm | 10 m | Compressors, pumps, general equipment |
Popular モデルs from the Same ブランド (Epro / Emerson)
| モデル Number | 説明 | Product Type | Typical Application |
|---|---|---|---|
| PR6424/010-140 | High-temperature eddy current probe | 5 mm sensor | Gas turbines, extreme environments |
| PR9268/203-000 | Velocity vibration sensor | Seismic sensor | Industrial rotating machinery |
| MMS3120/022-100 | Monitoring rack with vibration channels | Monitoring system | PR6423/PR6424 integration |
| CON021 | Standard converter for eddy current probes | Signal conditioner | Works with PR6423/PR6424 series |
| TQ403 | Keyphasor or phase trigger module | Timing module | Shaft phase reference |
| MMS6110 | Compact vibration and process signal monitoring | Monitoring system | Compact plant installations |
