Product Overview

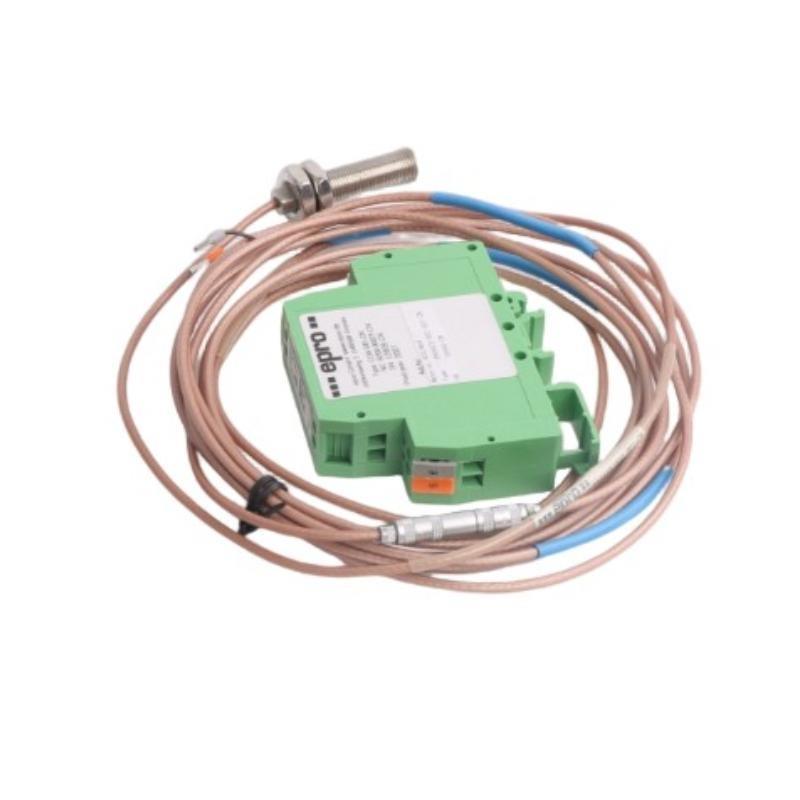

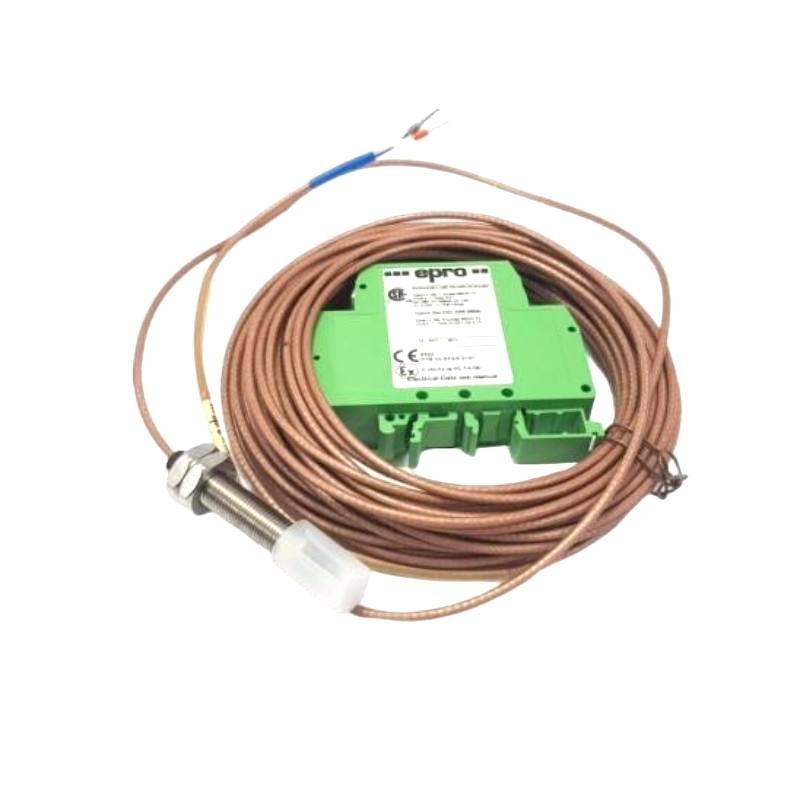

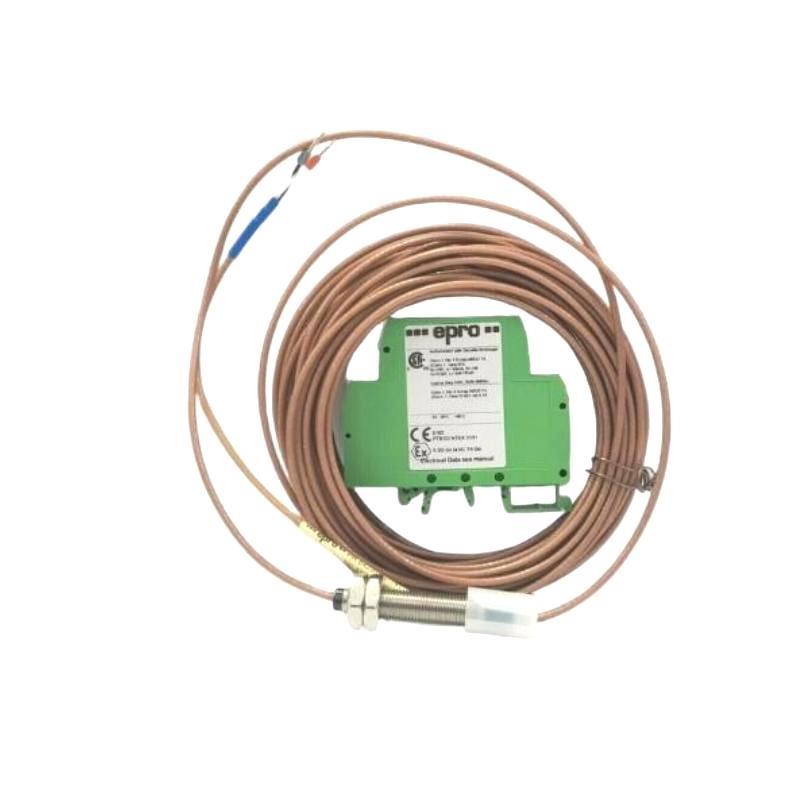

The Epro PR6423/000-031+CON041 is a high-precision 8 mm Eddy-Current Sensor system, designed for non-contact measurement / shaft displacement, vibration, and axial position in rotating machinery. This package includes the PR6423/000-031 probe and the CON041 signal conditioner, ensuring accurate signal conversion and stable output for monitoring and protection systems.
Key Features
-
Complete sensor system: PR6423/000-031 probe + CON041 signal conditioner
-
8 mm diameter probe for versatile installation
-
High-resolution non-contact measurement / displacement and vibration
-
Robust stainless-steel housing for harsh industrial environments
-
Wide operating temperature range for flexibility in applications
-
優良 long-term stability and repeatability
-
Seamless integration into machine protection systems
Technical Specifications
| Item | Specification |
|---|---|
| モデル Number | PR6423/000-031+CON041 |
| Series | PR6423 |
| Sensor Type | Eddy-Current Probe with 状態er |
| Probe Diameter | 8 mm |
| Probe Length | 31 mm |
| Measurement Range | ±1 mm (typical, system-dependent) |
| Frequency Response | DC – 10 kHz |
| Linearity | ≤1% / full scale |
| Output Signal | Voltage (via CON041) |
| Operating Temperature | -35 °C to +180 °C |
| Storage Temperature | -50 °C to +200 °C |
| Humidity | Up to 100% condensing |
| Probe Housing Material | Stainless steel |
| Mounting Type | Threaded installation |
| Dimensions | Sensor head diameter 8 mm |
| 重量 | 0.16 kg |
| Compliance | CE, RoHS |
Industry Applications
-
Power Generation – Turbine and generator shaft monitoring
-
Oil & Gas – Pumps, compressors, and critical rotating machinery
-
Petrochemical & Chemical – Displacement and vibration monitoring / process machinery
-
Manufacturing – Precision spindle and rotating equipment monitoring
-
Marine & Utilities – Motor, gearbox, and pump condition monitoring
Advantages
-
Delivered as a complete sensor + conditioner system
-
Provides highly accurate and stable measurements
-
Non-contact operation eliminates mechanical wear
-
Rugged stainless-steel housing for industrial durability
-
Wide compatibility with monitoring and protection systems
-
Enhances predictive maintenance and machine availability
よくある質問 (FAQ)
Q1: What does the PR6423/000-031+CON041 include?
It includes the PR6423/000-031 eddy-current probe and the CON041 signal conditioner.
Q2: What is the probe diameter?
8 mm.
Q3: What is the probe length?
31 mm.
Q4: What is the typical measurement range?
±1 mm, depending on the system configuration.
Q5: What is the compatible signal conditioner?
This package comes with the CON041, already matched for accurate signal processing.
Q6: What is the operating temperature range?
-35 °C to +180 °C.
Q7: What industries use this sensor system?
It is widely used in power generation, oil & gas, petrochemical, manufacturing, and marine applications.
Q8: What is the housing material?
Stainless steel for corrosion resistance and durability.
Q9: Does this system provide direct voltage output?
Yes, via the included CON041 signal conditioner.
Q10: What are the main advantages / using an integrated probe + conditioner package?
It ensures precise calibration, optimized signal processing, and easier installation.
Related Epro Eddy-Current Sensors
| モデル Number | 説明 |
|---|---|
| PR6423/003-020 | 8 mm Eddy-Current Sensor |
| PR6423/004-030-CN | 8 mm Eddy-Current Sensor |
| PR6423/010-130 | 8 mm Eddy-Current Sensor |
| PR6423/13R-030 | 8 mm Eddy-Current Sensor |
| PR6423/10R-131+CON041 | 8 mm Eddy-Current Sensor |
Popular Epro Eddy-Current Sensors
| モデル Number | 説明 |
|---|---|
| PR6423/000-031+CON041 | 8 mm Eddy-Current Sensor |
| PR6423/010-130 | 8 mm Eddy-Current Sensor |
| PR6423/13R-030 | 8 mm Eddy-Current Sensor |
| PR6423/003-020 | 8 mm Eddy-Current Sensor |
| PR6423/014-010+CON021 | 8 mm Eddy-Current Sensor |
